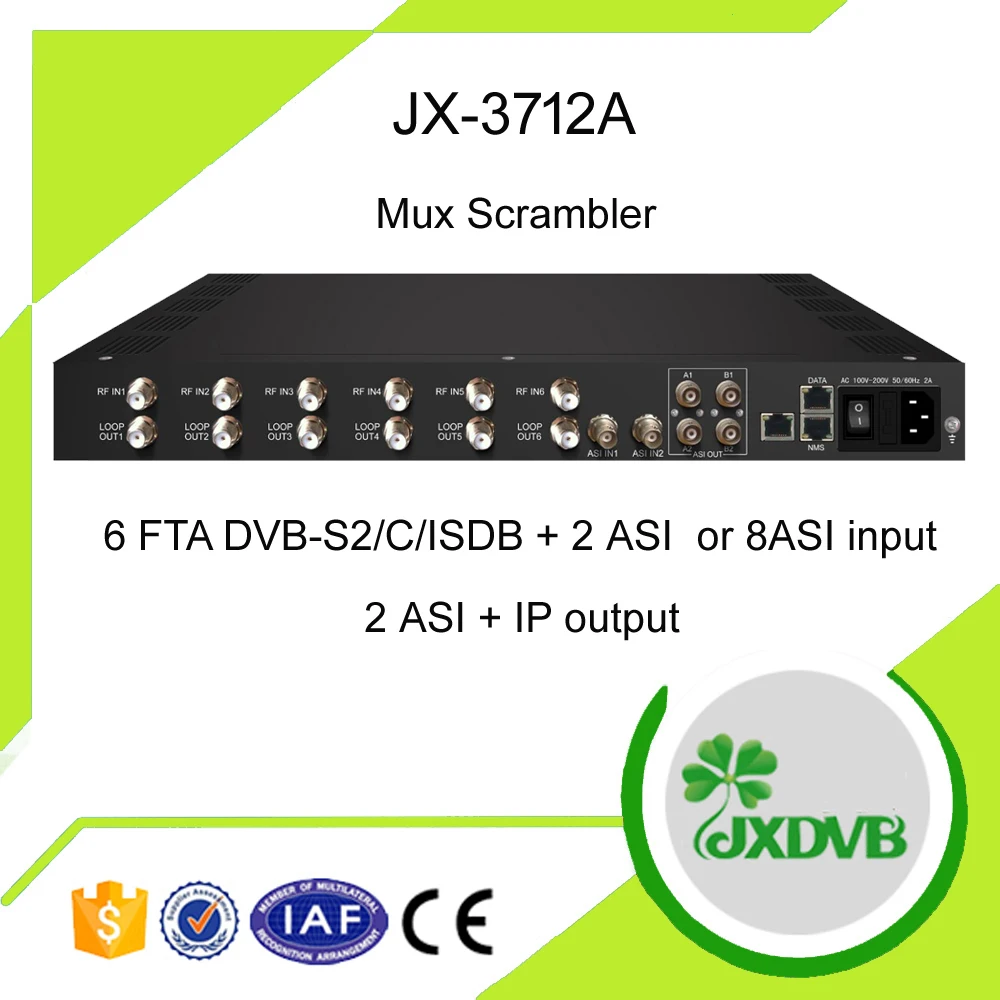

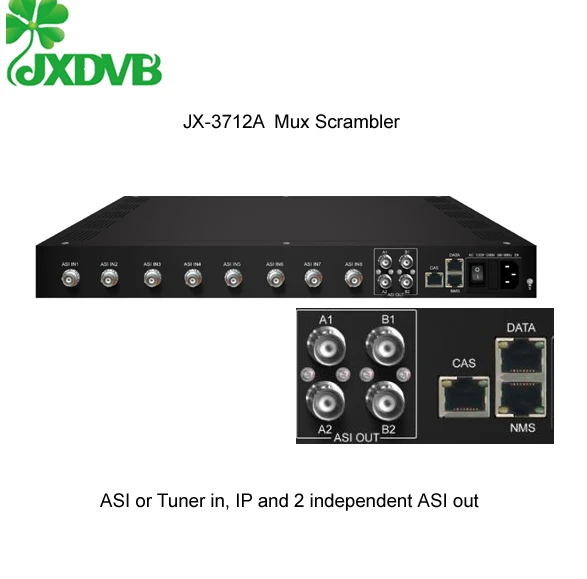

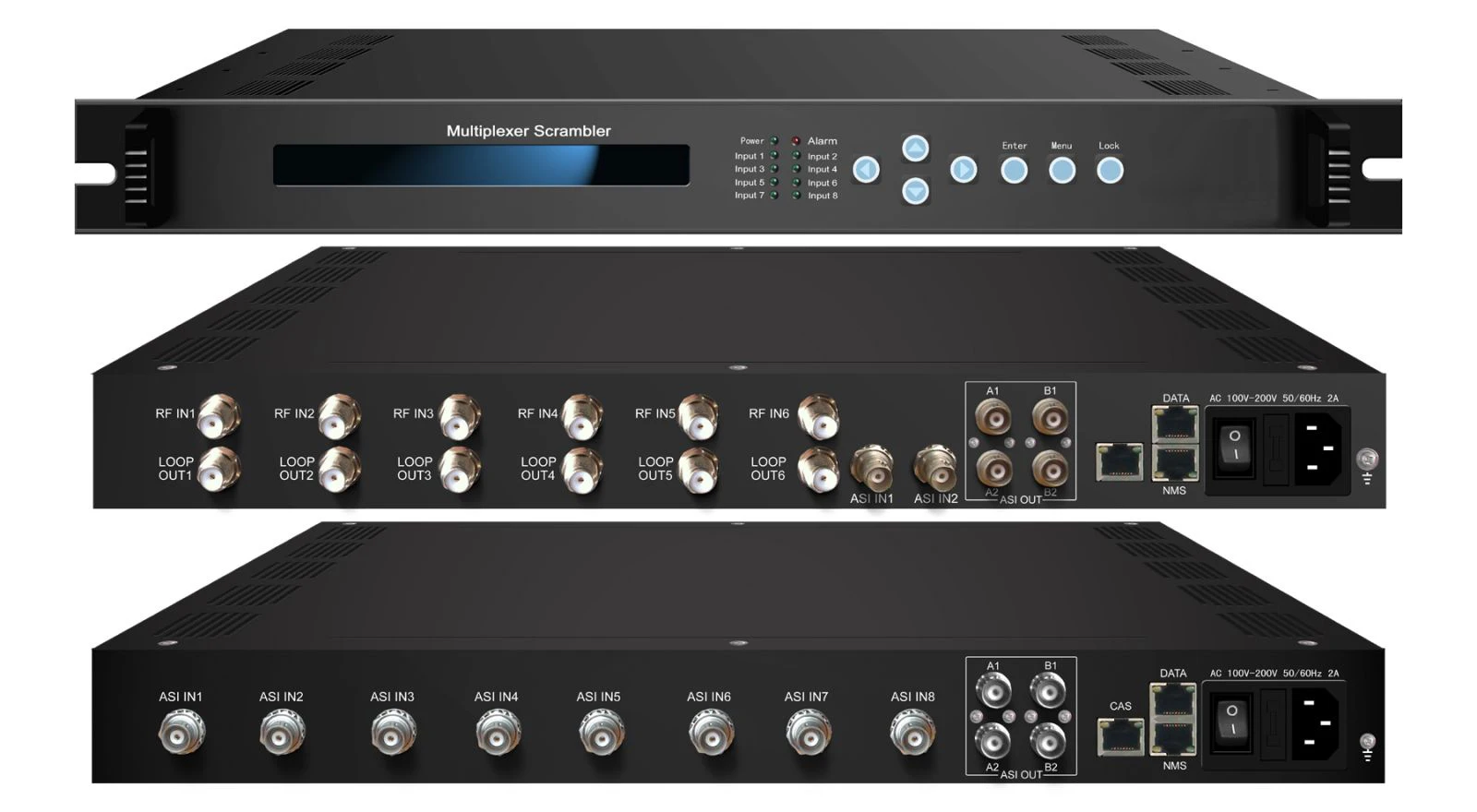

Digital TV 8 Channel ASI to IP Multiplexer Scrambler

Input interface

8 BNC interface

Multiplex

Input channel

8 channels ASI input

Output channel

2 groups of standalone ASI output and 2 corresponding IP output

Maximum PID remapping

256 per input channel

Function

PID remapping (automatically or manually)

PCR accurate adjusting

Generate PSI/SI table automatically

Scrambling parameters

Maximum support simulcrypt CA

4

Standard

ETSI 101 197,ETSI 103 197

Way of Connection

Local/Remote connect

IP output

Interface

RJ45

Output Protocol

TS over UDP protocol

Output Bit-rate

1-108Mbps per output channel

ASI output

Interface

4 BNC interface

Output form

TS

Output bit-rate

1-108Mbps per output channel

System

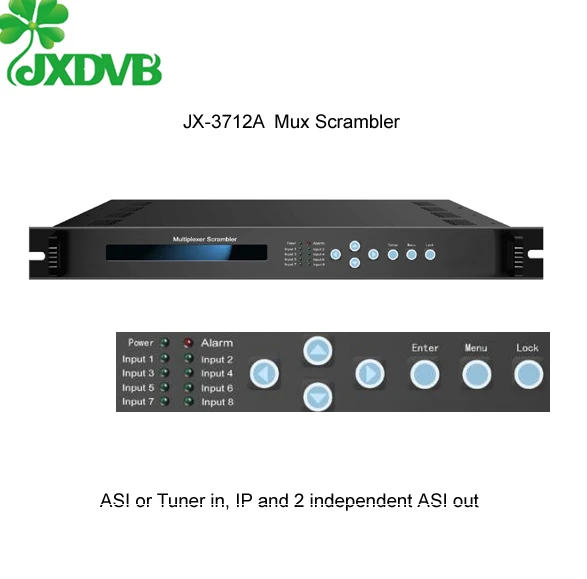

Support NMS and LCD panel management

General

Demission

482mm×455mm×44.5mm (W x L x H)

Weight

2.5kg

Temperature

0~45℃(operation) -20~80℃(storage)

Power supply

AC 110V±10%50/60Hz

Or AC 220V±10% 50/60Hz

Consumption

≈15.4W
