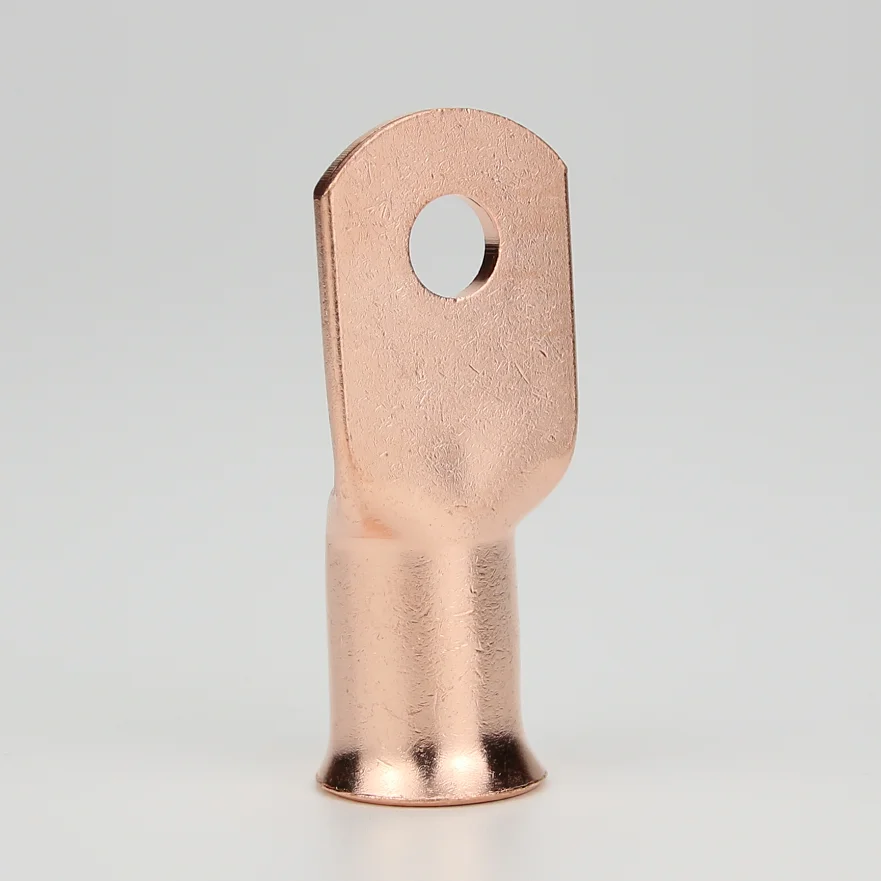

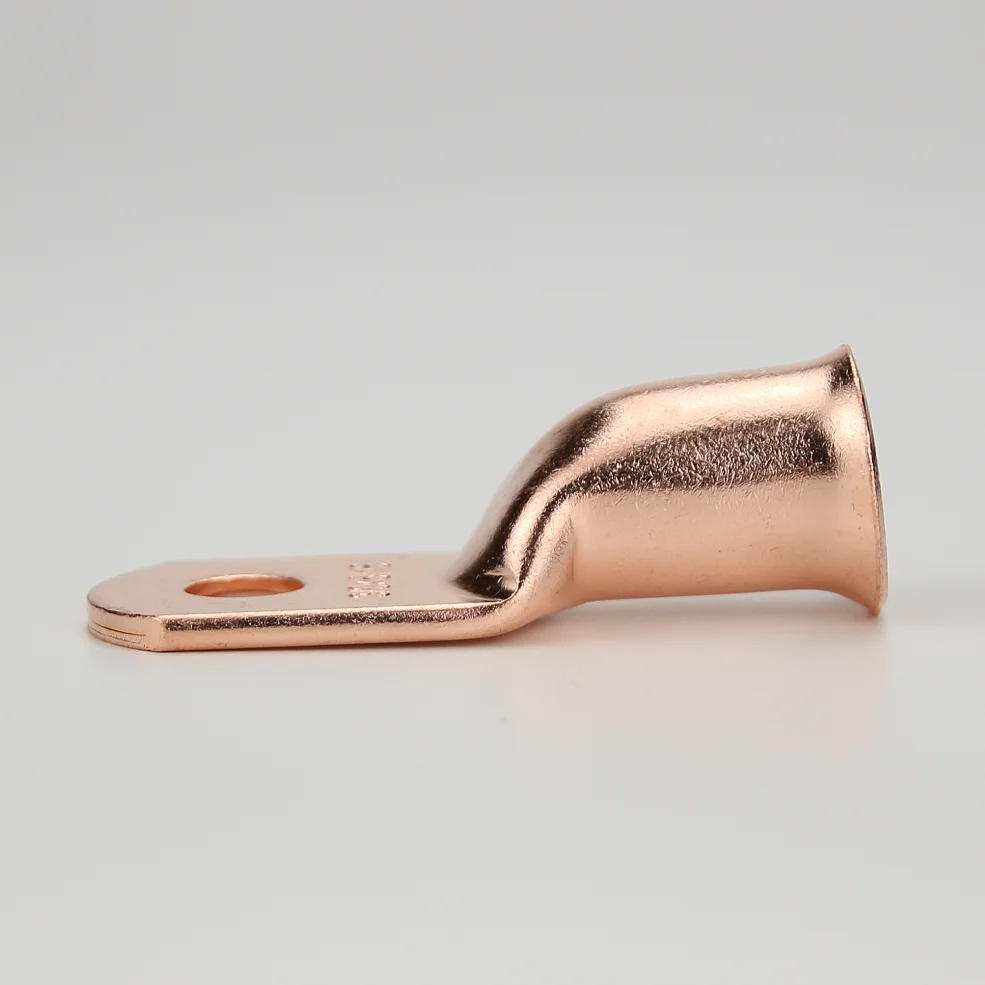

AWG Battery copper cable lugs tube terminal
- Category: Terminals >>>
- Supplier: Zhejiang,Wubai,Power,Fitting,Co.,Ltd.,[Zhejiang,China]Zhejiang
Share on:
Product Overview
Description
Product Description
1. Wire size : AWG 8 - 750 or 10 mm² - 400 mm²
2. Stud size : inch #8 - 3/4'' or 4.0mm - 20mm
3. Standard : DIN EN 61373 class 1B vibration-tested
4. Certification : ISO9001,SGS,CE,ROHS
| Product Name | AWG series Cable lug |
| Material | C11000,C1100,CU-ETP,E-CU58 for high conductivity |
| Surface | Tin-plated to protect against corrosion for Salt spray experiment 48H |
| Hardness | HV: 120 - 70 |
| Maching acuuracy class | High |
| Pullout test | Conform to UL486 standard |
| Contact resistance | Conform to UL486 standard |
| Flammability rating of material | Conform to UL486 standard |
| Specific test date | Please mail us |
Product Parameter as following :
| PART NO | ITEM NO. | Dimension(mm) | |||||
| Φd2 | B | L | ΦD | Φd | E | ||
| WB0007-0001 | 8#10 | 5.1 | 11.8 | 33.3 | 7.1 | 4.8 | 13 |
| WB0007-0002 | 8*1/4 | 6.8 | 11.8 | 33.3 | |||
| WB0007-0003 | 8*5/16 | 8.3 | 11.8 | 33.3 | |||
| WB0007-0004 | 8*3/8 | 10.4 | 14.5 | 33.3 | |||
| WB0007-0005 | 8*1/2 | 13.1 | 17 | 33.3 | |||
| WB0007-0006 | 6#10 | 5.1 | 11.8 | 37.3 | 8.1 | 5.9 | 15 |
| WB0007-0007 | 6*1/4 | 6.8 | 13.7 | 37.3 | |||
| WB0007-0008 | 6*5/16 | 8.3 | 13.7 | 37.3 | |||
| WB0007-0009 | 6*3/8 | 10.4 | 13.7 | 37.3 | |||
| WB0007-0010 | 6*1/2 | 13.1 | 17 | 37.3 | |||
| WB0007-0011 | 4*1/4 | 6.8 | 13.8 | 38.9 | 9.5 | 7.3 | 15.5 |
| WB0007-0012 | 4*5/16 | 8.3 | 13.8 | 38.9 | |||
| WB0007-0013 | 4*3/8 | 10.4 | 14.5 | 38.9 | |||
| WB0007-0014 | 4*1/2 | 13.1 | 17 | 38.9 | 15 | ||
| WB0007-0015 | 2*1/4 | 6.8 | 16.5 | 41.1 | 11.1 | 8.5 | 16 |
| WB0007-0016 | 2*5/16 | 8.3 | 16.5 | 41.1 | |||
| WB0007-0017 | 2*3/8 | 10.4 | 16.5 | 41.1 | |||
| WB0007-0018 | 2*1/2 | 13.1 | 17 | 41.1 | 15.3 | ||
| WB0007-0019 | 1*1/4 | 6.8 | 16.4 | 43.6 | 11.7 | 9.1 | 16 |
| WB0007-0020 | 1*5/16 | 8.3 | 16.4 | 43.6 | |||
| WB0007-0021 | 1*3/8 | 10.4 | 17.1 | 43.6 | |||
| WB0007-0022 | 1*1/2 | 13.1 | 19.1 | 43.6 | |||
| WB0007-0023 | 1/0*1/4 | 6.8 | 18.4 | 46.8 | 13 | 10.4 | 19 |
| WB0007-0024 | 1/0*5/16 | 8.3 | 18.4 | 46.8 | |||
| WB0007-0025 | 1/0*3/8 | 10.4 | 18.4 | 46.8 | |||
| WB0007-0026 | 1/0*1/2 | 13.1 | 21 | 46.8 | |||
| WB0007-0027 | 2/0*1/4 | 6.8 | 21 | 52.4 | 14.2 | 11.7 | 22 |
| WB0007-0028 | 2/0*5/16 | 8.3 | 21 | 52.4 | |||
| WB0007-0029 | 2/0*3/8 | 10.4 | 21 | 52.4 | |||
| WB0007-0030 | 2/0*1/2 | 13.1 | 21 | 52.4 | 21 | ||
| WB0007-0031 | 3/0*5/16 | 8.3 | 23.1 | 55.9 | 15.7 | 13 | 22.5 |
| WB0007-0032 | 3/0 | 10.4 | 23.1 | 55.9 | |||
| WB0007-0033 | 3/0*1/2 | 13.1 | 23.1 | 55.9 | |||
| WB0007-0034 | 4/0*5/16 | 8.3 | 25.8 | 60.5 | 17.2 | 14.2 | 24 |
| WB0007-0035 | 4/0*3/8 | 10.4 | 25.8 | 60.5 | |||
| WB0007-0036 | 4/0*1/2 | 13.1 | 25.8 | 60.5 | |||
Product Effects
When you see this picture, do you want to know why ?
There are two main reasons:
1. the quality problem of a product itself.
2. the quality problem of product crimping .
We have a strong datebase on the quality and crimping of cable lug .
If you are interested in these date , please mail us and discuss them together .we look forward to your consultation .
