TMAX brand High Efficiency Lab Scale Bench Top Planetary Ball Mill Grinder for Powder Grinding

TMAX brand High Efficiency Lab Scale Bench Top Planetary Ball Mill Grinder for Powder Grinding

Category: >>>
Supplier: Xiamen Tmax Battery Equipments Limited

Price:$1,480.00

Quantity:

Product Overview

Description

High Efficiency Lab Scale Bench Top Planetary Ball Mill Grinder for Powder Grinding

Features

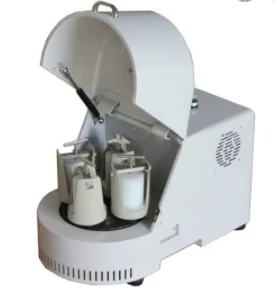

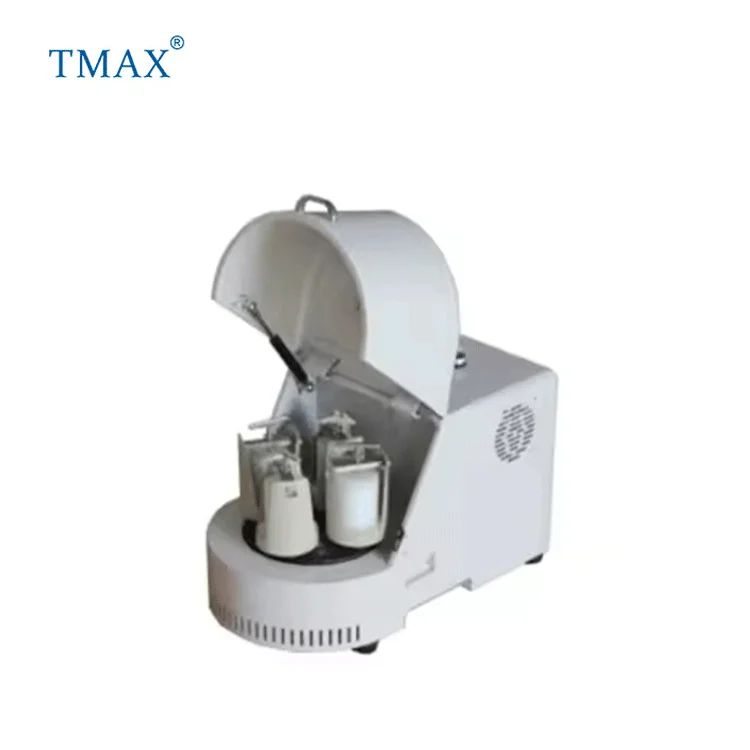

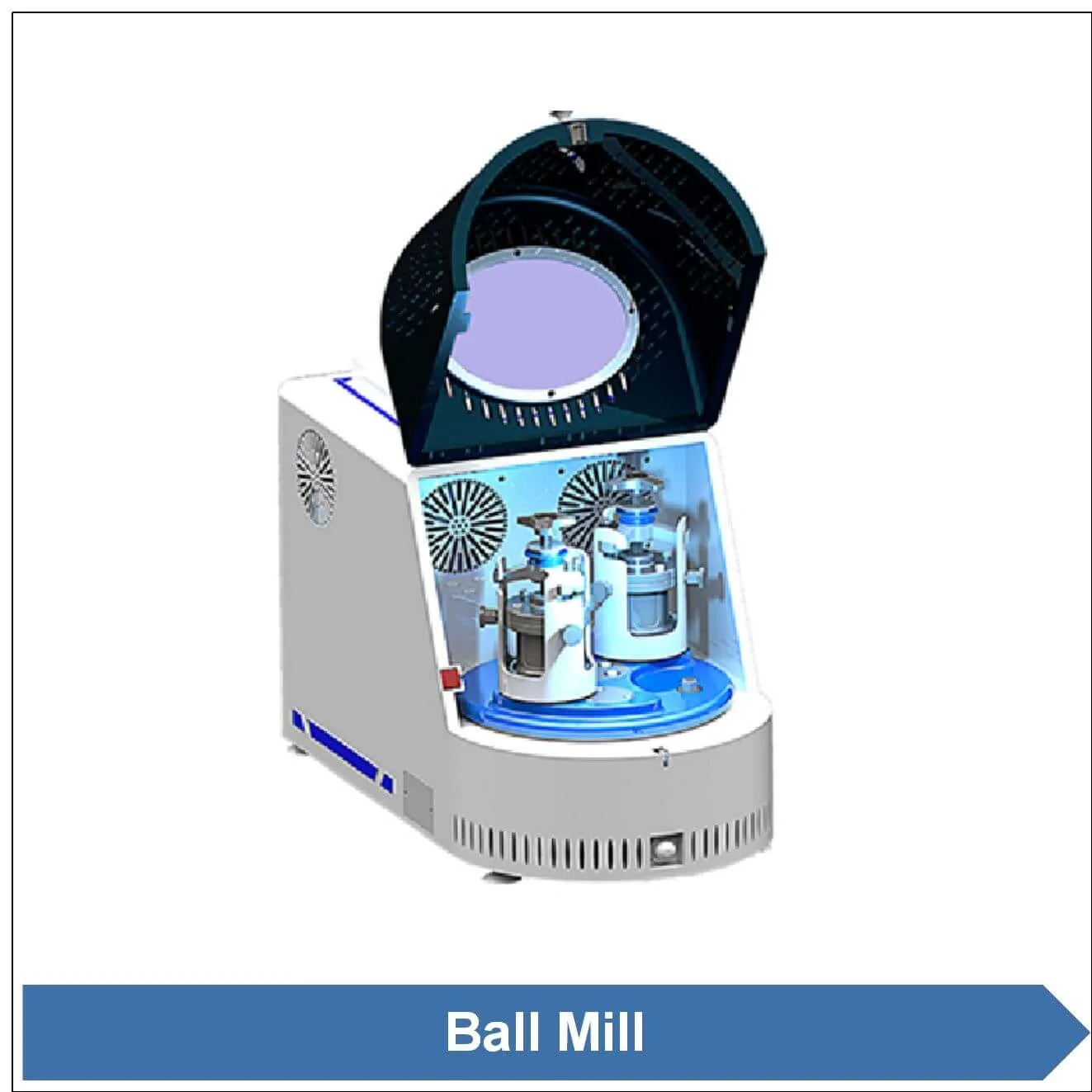

TMAX-XQM series of variable frequency planetary ball mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be grinding and mixing by the mill with dry or wet method. The size of ground powder can be reduced to as small as 0.1 micrometer.

Specifications

Model	Planetary Ball Mill Machine TMAX-XQM-0.4
Grinding tank volume (L)	0.1L*4

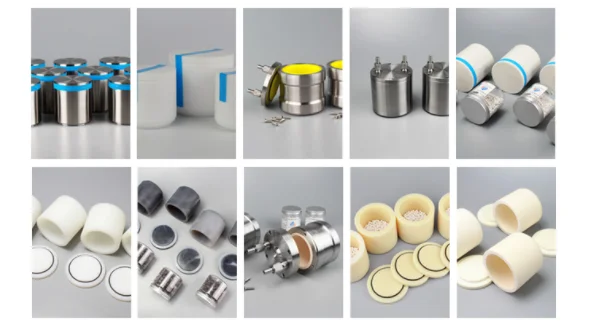

Grinding tank material	According to requirements
Grinding media	According to requirements
Maximum loading per tank	Material and grinding medium does not exceed two-thirds of the volume
Feeding material size	Soil material ≤ 10 mm, other materials ≤ 3 mm
Discharge material size	Min 0.1um
Rotating speed	Revolution 335r / min, Rotation 670r / min
Speed ratio (revolution: rotation)	1:2
Speed mode	Frequency, programmable stepless speed regulation, manual, automatic timing forward and reverse
Transfer method	Gear drive
Working Voltage	220V
Motor power and variable frequency power	0.75Kw
Way of working	Two or four cans work at the same time
Maximum continuous operating time	72hours
Machine Size	750470564mm
Weight(not include Jars and Ball )	80kg
Programmable control (electronic monitoring)	Ball mill using high-tech microcomputer chip control, can be set to forward and reverse alternately run(0-999min) and forward, pause, reverse, pause, forward (0-999min) alternate operation according to the procedure. Particularly suitable for cooling or intermittent operation.
