Large/heavy/40L-60L payload agriculture drone sprayer
US $40000-$50000

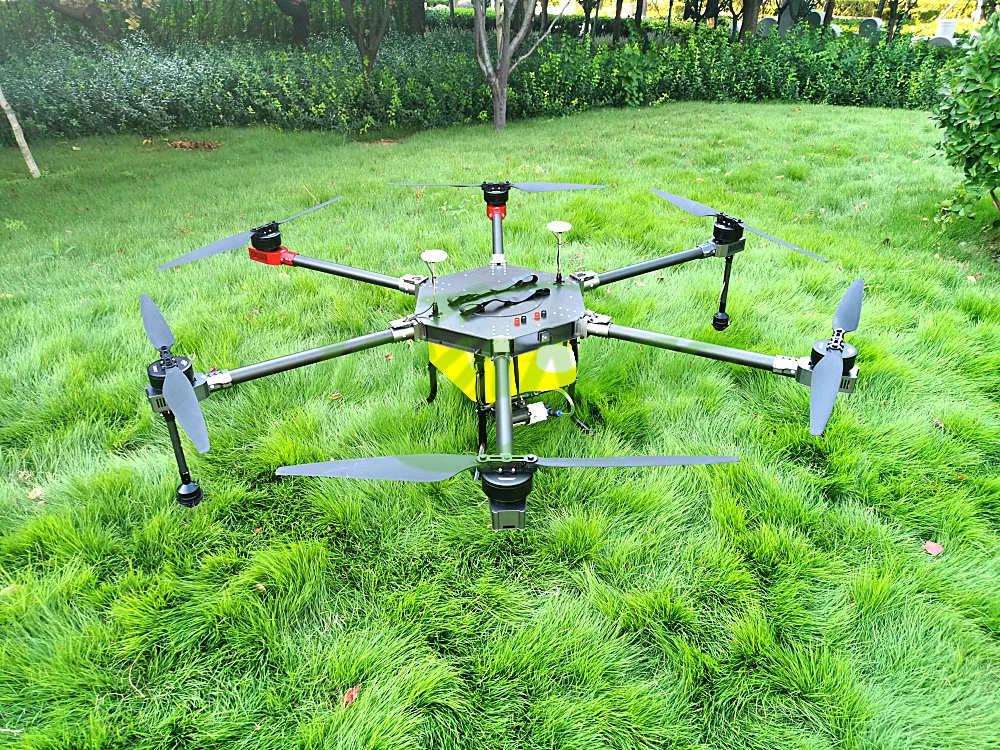

Joyance JT15L 608 Professional agricultural drone sprayer/plant conservation drone for spraying rice
- Category: Aircraft >>>
- Supplier: Shandong Joyance Intelligence Technology Co. Ltd.
Share on (60790526745):
Product Overview
Description
COMPANY PROFILE
9 years experience on R & D
CE, FCC, RoHS, ISO 9001 Certificates
10L, 15L, 16L, 20L, 32L various models
Agricultural Spraying Drone, Fogger Drone, Spreading Drone
One-on-one online Pre-sales and After-sales Service
Exported to 65 countries, such as Brazil, Peru, Colombia, Ecuador, Mexico, El Salvador, Panama, Guatemala, Costa Rica, USA, Japan, Indonesia, Australia, South Africa, Nigeria, Ghana, Iran, Romania, Ukraine, Poland, UK, Serbia, etc.
Products Description
Drone Applications
JOYANCE drones have been widely used for crop protection, mosquito control, and public disinfection.
Plantations: rice, corn, sugar cane, soybean, flower, coffee, vegetables, fruit trees.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Chemical use: liquid pesticide, herbicide, foliar fertilizer, fungicide, insecticides, etc.
Sprayer Drone adopts low volume technology, the pesticide droplet diameter is only 50~200um, has better atomization and penetration effect, save 90% water and 20% pesticides use.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.
High Efficiency: One drone can cover 50~70 hectares field per day.
Compared with plane, tractor and hand-held sprayers, drone sprayer is more efficient, reduce water & pesticides use, has less drift, keeps people away from heat-stroke and chemical poisoning.

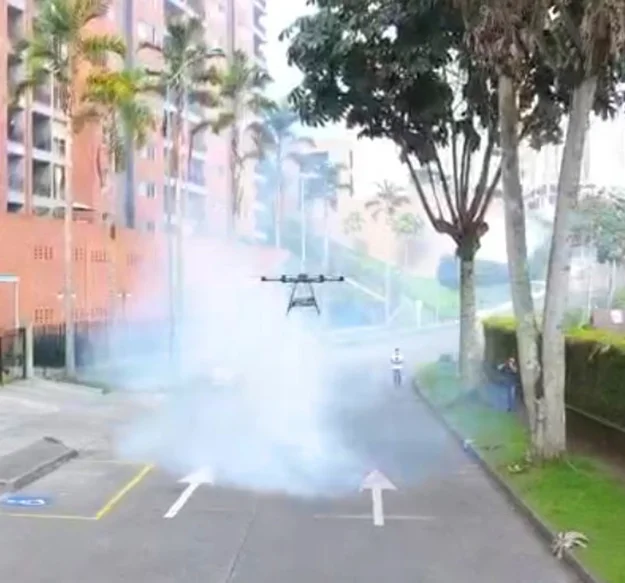

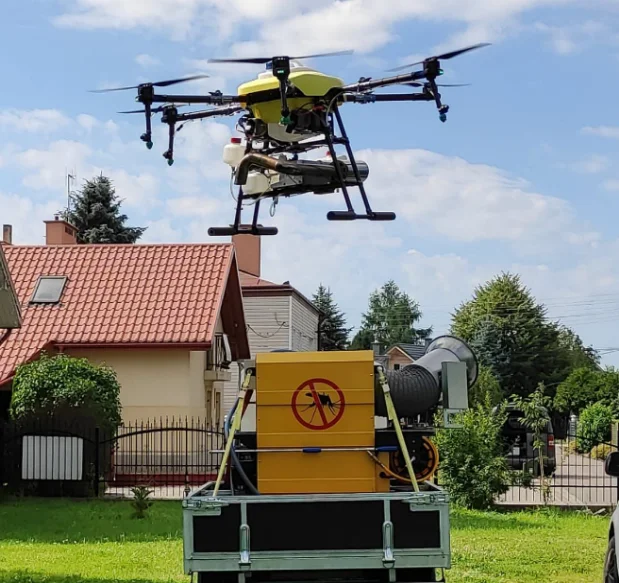

Thermal Fogger Drone.

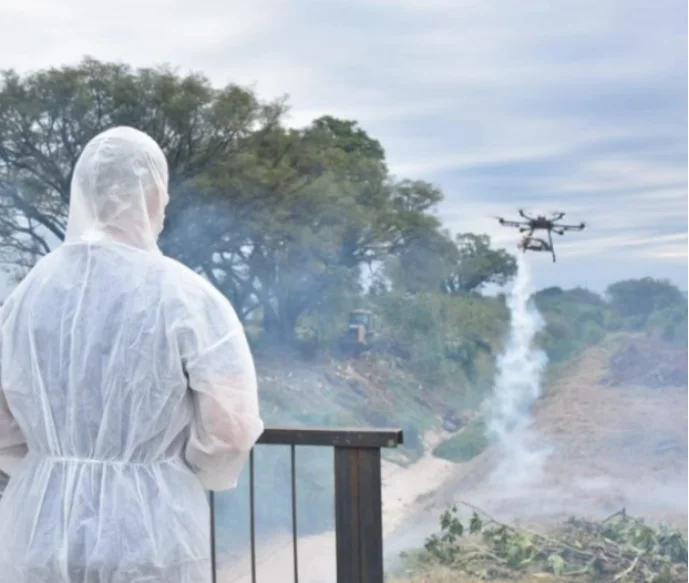

Joyance thermal fogger drones have been widely using for pest control, mosquito control, disinfection and fighting against Dengue in 65 countries.
Product Parameter

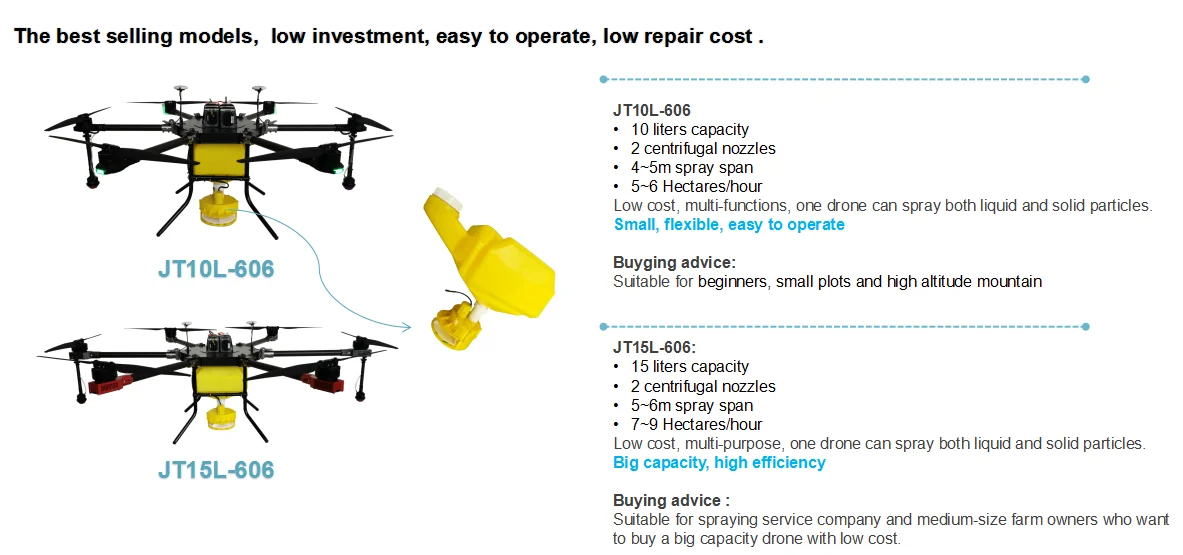

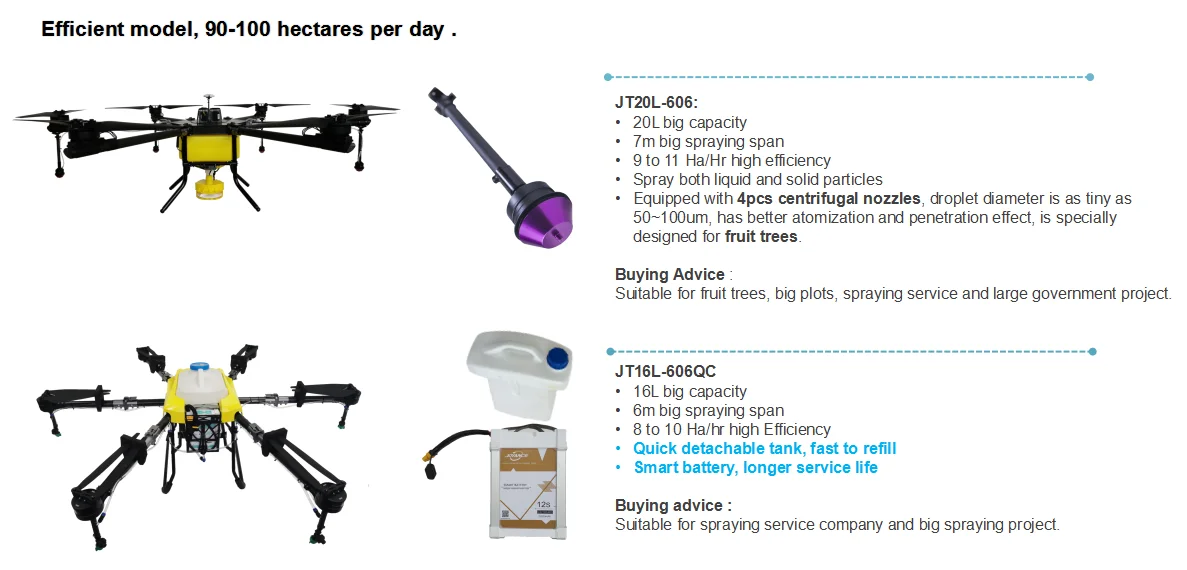

Technical parameter | JT10L-606 | JT15L-606 | JT16L-606QC | JT20L-606 |
Pesticide load | 10 Liters | 15 Liters | 16 liters | 20 liters |
Self weight | 10.5 KG | 13.5 KG | 17 kg | 18.5 kg |
Take-off weight | 22 KG | 31 KG | 40 kg | 44 kg |
Fly time | 10-15 Min | 10-15 Min | 10~15 min | 10~15 min |
Spraying efficiency | 5-6 Hectares/hour | 7-8 Hectares/hour | 8~10 Hectares/hour | 9~11 hectares/hour |
Spray width | 4-6 M | 6-7 M | 8~10 m | 7~8 m |
Spray speed | 0~8 M/S | 0~8 M/S | 0~10 m/s | 0~10 m/s |
Nozzle | 2 centrifugal nozzles | 2 centrifugal nozzles | 4 cone nozzles | 4 centrifugal nozzles |
Battery | 2 pcs 6S 17000 mAh | 2 pcs 6S 17000 mAh | 1 pc 12S 22000 mAh | 2 pcs 6S 23000 mAh |
Flying radius | 1000 M | 1000 M | 1000 m | 1000 m |
Spray flow | 1~1.5 L/Min | 2~2.5 L/Min | 2.5~4 L/min | 2.5~ 3 L/min |
Flying height | 0~30 M | 0~30 M | 0~30 m | 0~30 m |
Work temperature | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ |
Work humidity conditions | 0-90% | 0-90% | 0-90% | 0-90% |
Wind resistance | 10 m/s | 10 m/s | 10 m/s | 10 m/s |
Spread size (m) | W1.3 * L1.3 * H0.45 | W1.8 *L1.8 * H0.48 | 1.8*1.8 * 0.7 m | 1.95 *1.95 * 0.57 m |
Folded size (m) | W0.6 * L0.6 * H0.51 | W0.7 * L0.7 *H0.63 | 1.05 * 0.95 *0.7 m | 0.7 * 0.7 *0.8 m |
Aluminum box size / weight | 73*67*65 cm / 50 kgs | 75*75*81 cm / 70kgs | 115*105*80 cm / 80 kgs | 75*85*95 cm / 80 kgs |
Product Feature

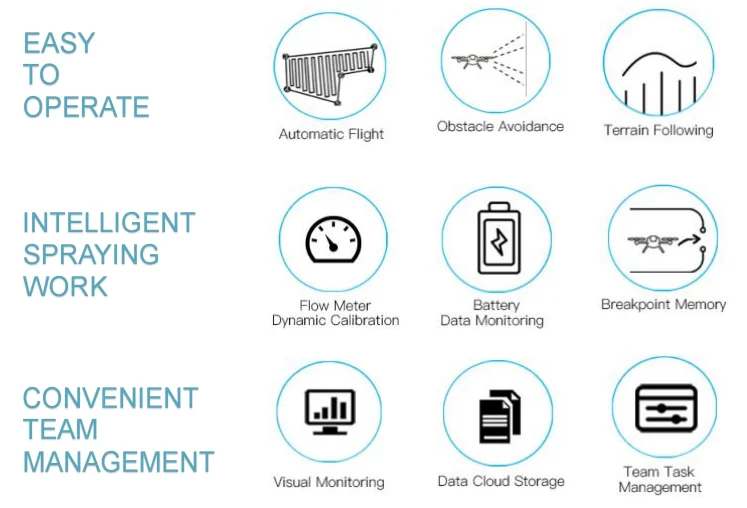

Operation mode : manual mode, AB point mode, autonomous flying mode
Functions :
One key return and land
Break point memory
One key return and land
Break point memory
Night operation
Obstacles avoidance
Terrain following
FPV camera
U turn
Solid seeds and fertilizers spreading tank
APP functions :
Data cloud storage
APP functions :
Data cloud storage
Online upgrade
Fault detection
Battery date monitoring
Flow meter dynamic calibration
real time FPV monitoring
Why Choose Us
CERTIFICATE & PATENT
CE, FCC, RoHS, ISO 9001, 12 Patents.
EXHIBITION
Exhibitions in Ukraine, Australia, New Zealand, Argentina, Malaysia, Canton Fair, etc.
CUSTOMERS IN THE WORLD
JOYANCE drones have been sold to 65 countries and regions, such as Brazil, Peru, Colombia, Ecuador, Iran, Turkey, Malaysia, Indonesia, Cambodia, Australia, New Zealand, Ghana, Nigeria, Poland, Romania, Moldova, Ukraine, German, UK, etc.
Customers Comment
Alberto Delgado, Costa Rica (2017~2020)
Hello, this is Alberto Delgado from Costa Rica.
We have been using this technology for two years with very good results, we went from applying 56 liters per hectare of the product with aircraft to applying 15 liters per hectare with drones. Having an efficiency of 96% with wind and at noon which is a very strong conditions. We have had a 20% reduction in product, whether chemical, biological or organic, with outstanding results and helping
us with costs as well.
We have been using this technology for two years with very good results, we went from applying 56 liters per hectare of the product with aircraft to applying 15 liters per hectare with drones. Having an efficiency of 96% with wind and at noon which is a very strong conditions. We have had a 20% reduction in product, whether chemical, biological or organic, with outstanding results and helping
us with costs as well.
Handi, Iran (2017~2020)
We are general agent for JOYANCE Drone in the Middle East, we have been working with this company since 2017, and we are confident that JOYANCE has the best drones and good support to maintain their drones.
So far we have purchased more than 60 drones, and we are happy because every
drone works properly without any problem,
and JOYANCE drone is the best in all over the world.

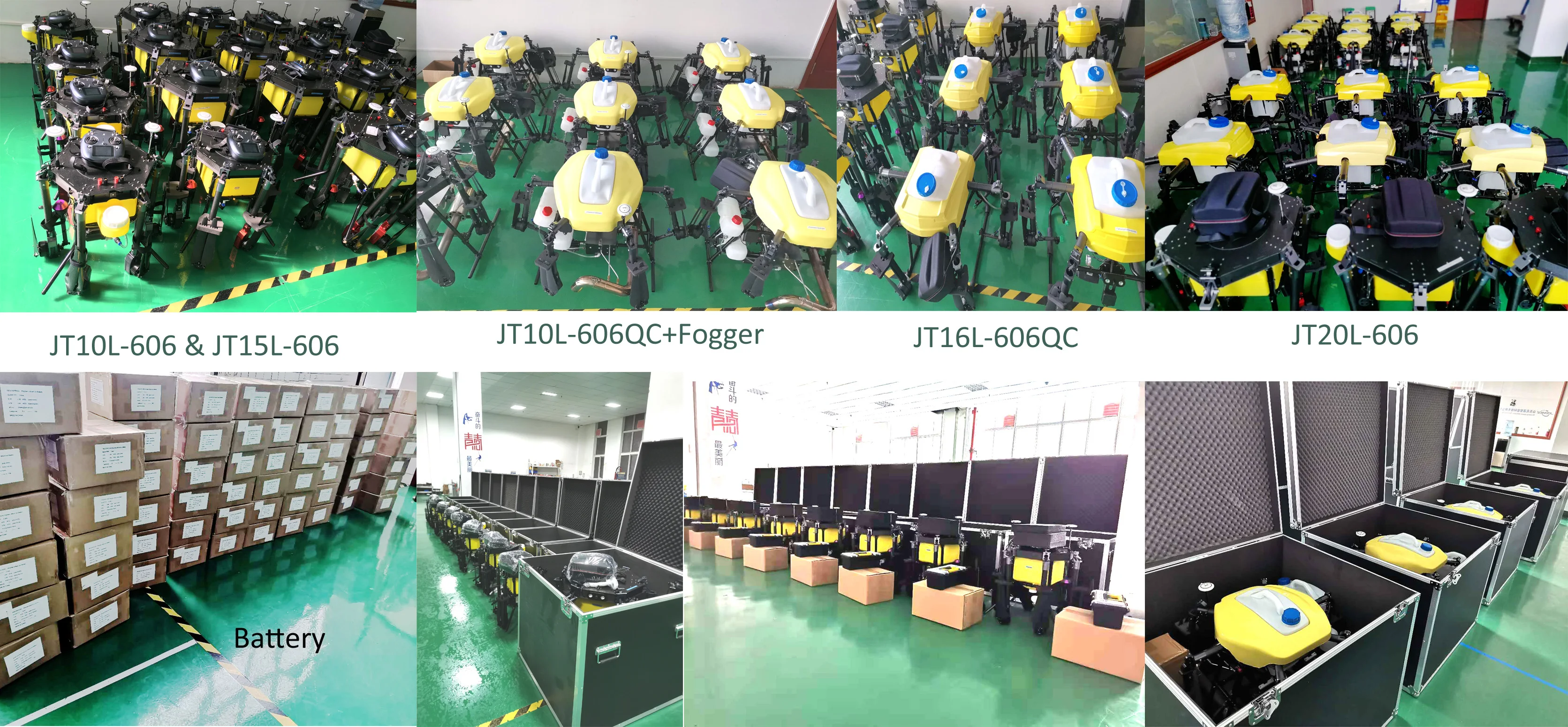

Packing and Delivery
WHAT DOES YOUR PACKAGE INCLUDE??? | ||

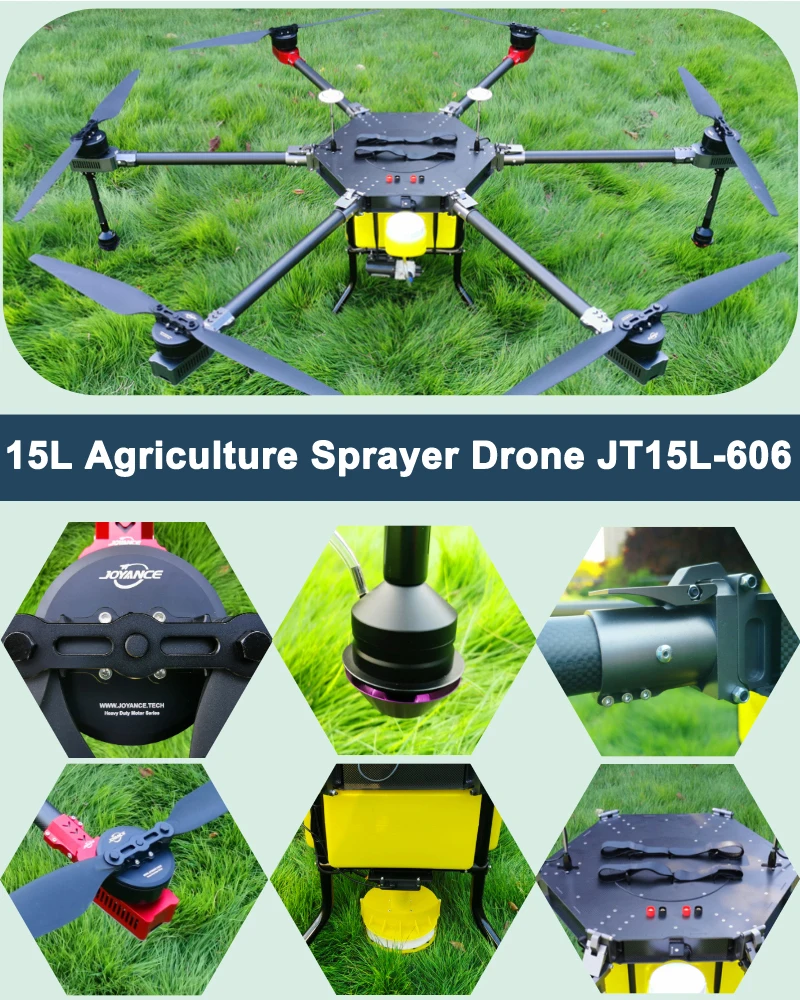

15 Liters drone kit | JT15L-606 *1 | |
Spraying system | 15L 2 in 1 tank *1 Water Pump *1 Electrostatic centrifugal nozzles *2 | |

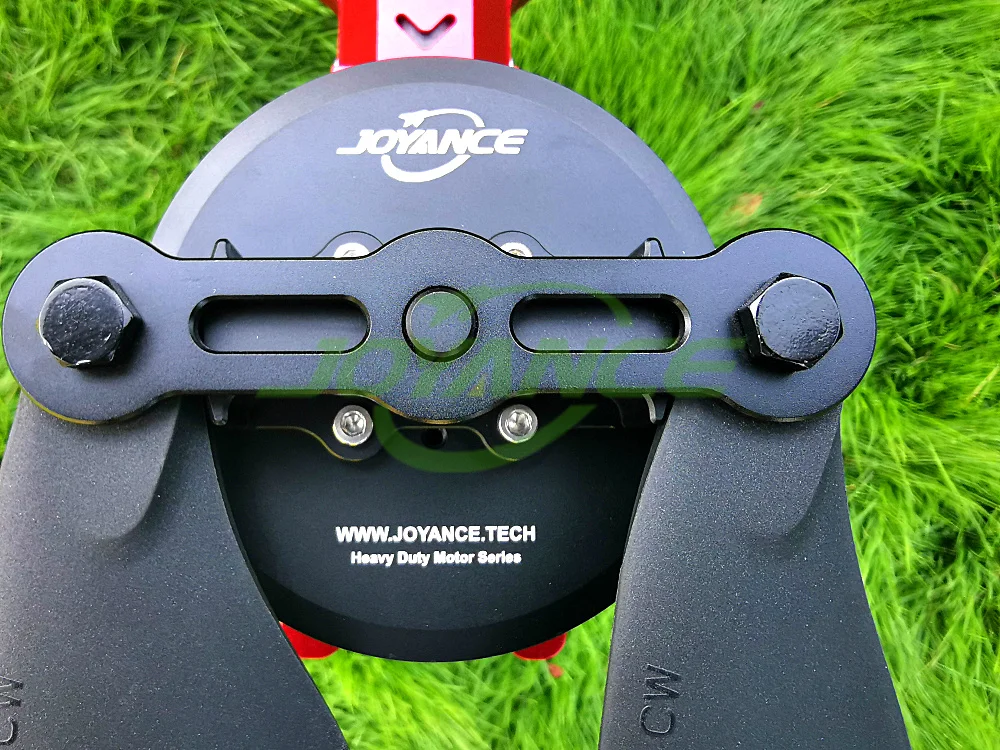

Power system (FOC) | Motor+ESC+Motor Base *6 Carbon fiber foldable propeller *6 | |
Battery | 6S, 17000mAh Battery *2 | |
Charger | 1200W, 8-way, charger *1 Full charge 2 batteries in 40 minutes | |
Intelligent Spraying | DCU + Flowmeter | |
Remote controller | With integrated radio telemetry, 1.5km distance, 12 hours work time/day | |
Toolkit | Maintenance tools, replacement spare parts | |
Package Case | Aluminum transport case, protect drone and the parts | |
Professional Packing and Delivery
Fast Delivery: 3-7 working days for small order, 10-30 days for bulk order
Shipment: by sea/air/courier
Package: professional packing with aluminum packing case, protect the goods well in transportation.
The drones are 100% tested before delivery, ready to fly!
Package: professional packing with aluminum packing case, protect the goods well in transportation.
The drones are 100% tested before delivery, ready to fly!
FAQ
Q1. What's your best price for the UAV?
A1: We will quote our best price according to your order quantity, so when you make an inquiry, please let us know the quantity you need.
Q2. What's your MOQ of agricultural drone?
A2: 1 piece is our MOQ, Well we don't have quantity limitation, any quantity is ok for trial order.
Q3. What's the delivery time of sprayer drone?
A3: 3-7 days for trial order, 7-15 days for mass order.
Q4. What's your payment term?
A4: quantity order: T/T, 50% deposit before production, 50% balance payment before delivery.
Q5. What about the warranty of the aircraft?
A5: 3 years warranty for drone frame (3~12 months for spare parts).
A1: We will quote our best price according to your order quantity, so when you make an inquiry, please let us know the quantity you need.
Q2. What's your MOQ of agricultural drone?
A2: 1 piece is our MOQ, Well we don't have quantity limitation, any quantity is ok for trial order.
Q3. What's the delivery time of sprayer drone?
A3: 3-7 days for trial order, 7-15 days for mass order.
Q4. What's your payment term?
A4: quantity order: T/T, 50% deposit before production, 50% balance payment before delivery.
Q5. What about the warranty of the aircraft?
A5: 3 years warranty for drone frame (3~12 months for spare parts).
Q6. Are you factory or trading company?
A6: We are factory with 9 years experience on R&D.
A6: We are factory with 9 years experience on R&D.
