Diesel Generator Best quality high Precision ats switch

Product Overview

Description

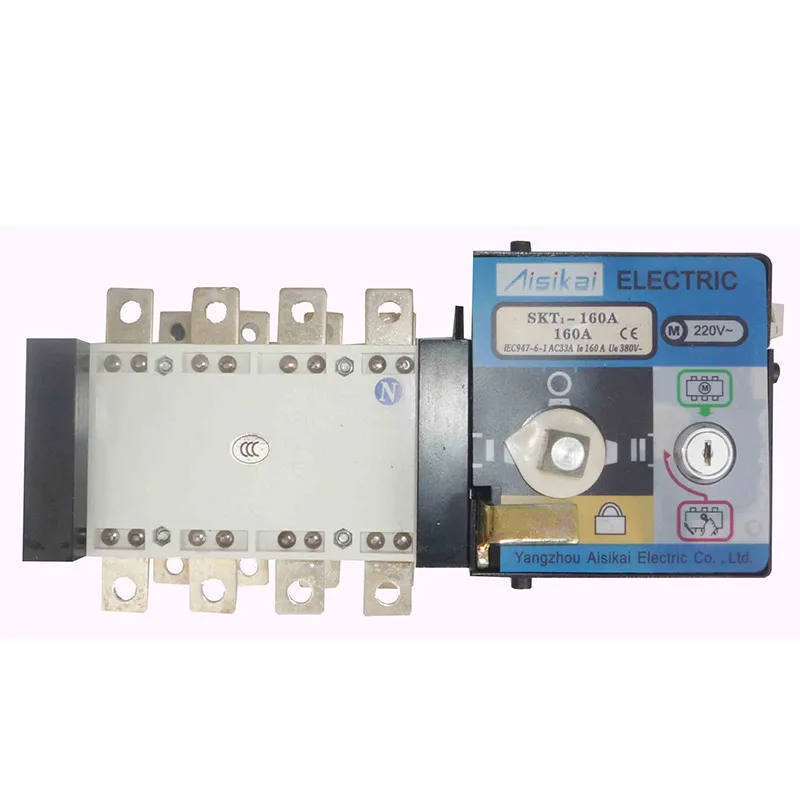

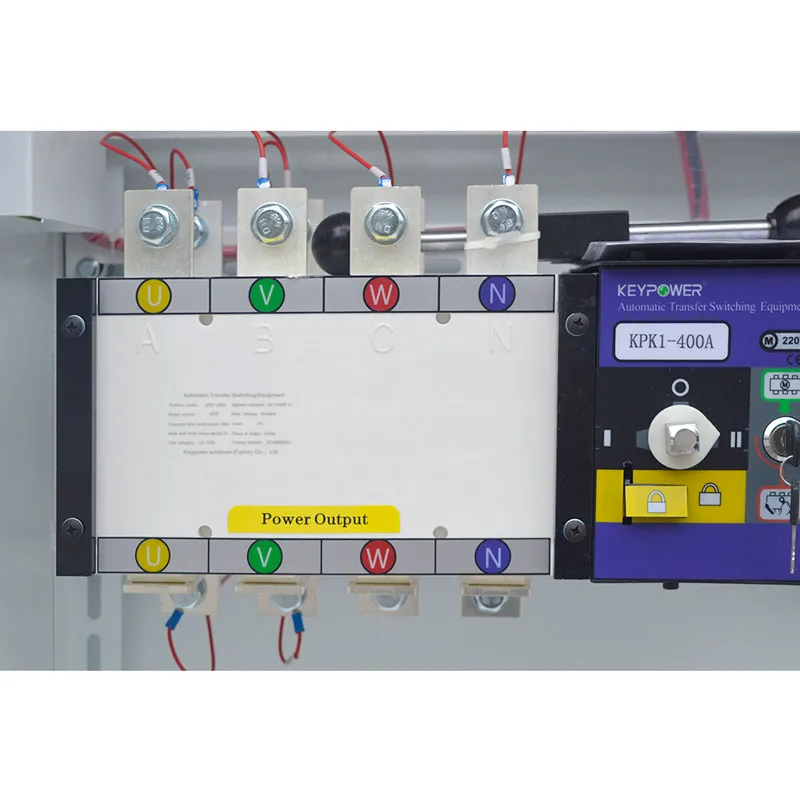

Best quality high Precision ats switch

Conventional thermal current lth A			250A
Rated current ln(A)			200A	250A
Rated impulse withstand voltage Ui(A)			500	500
Dielectric strength(V)			5000	5000
Rated surge-resistant voltage Uimp kV(installed category IV)			8	8
Rated Working current le(A)	380A	AC-31	200	250
		AC-33	200	250
		AC-35	200	250
	220A	DC-31	200	250
		DC-33	160	200
		DC-35	200	250
Motor power P(380V)kW			100	132
Rated short-time withstand current(kA Rms)0.1S/1S			25/12	25/12
Rated breaking capbility(A Rms)AC33 380V			1600	1600
Rated making capability(A Rms)AC33 380V			2000	2000
Rated short-current making capability lcm(kA peak value)			17	17
Mechanical durability(number of cyclic operation)			10000	10000
Electric durability	COSφ=0.65 AC33		1000	1000
Change-oner time	I-0-II or II-0-I (s)		1.1	1.1
	I-0 or II-0 (s)		0.7	0.7
Power wer consumption  of electrical control	24V(DC)(w)		75	75
Moment of operation(Nm)			30	30
Weight(kg)	3poles		10.4	10.4
	4poles		11.3	11.3



FEATURES OF ATS

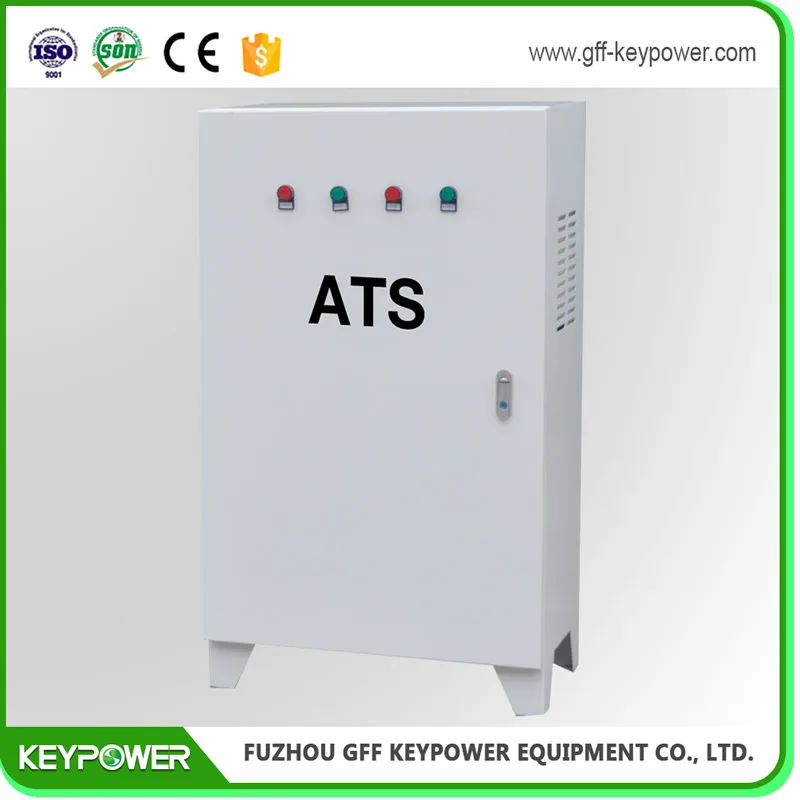

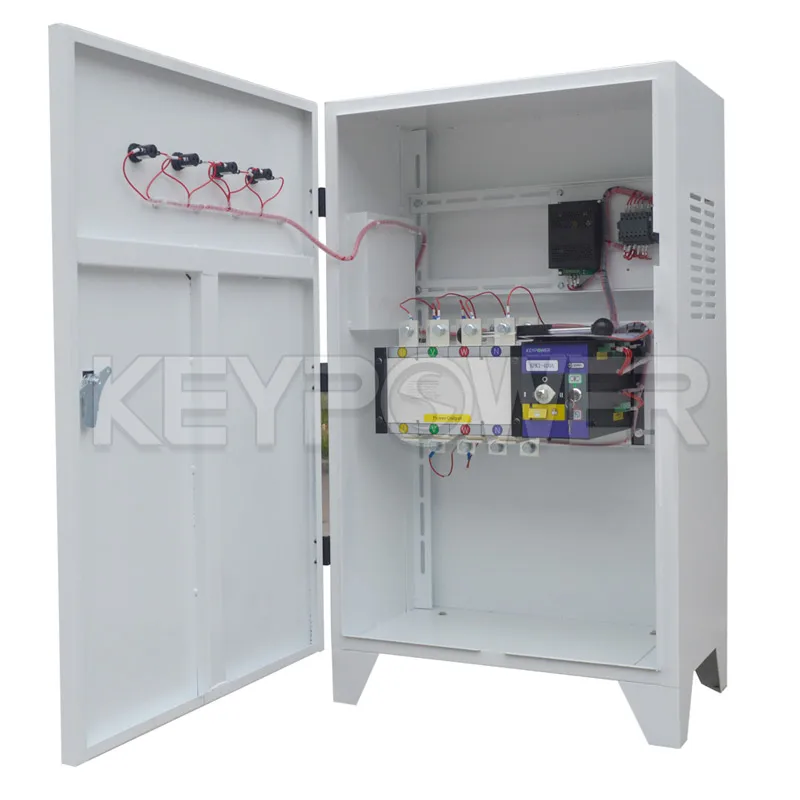

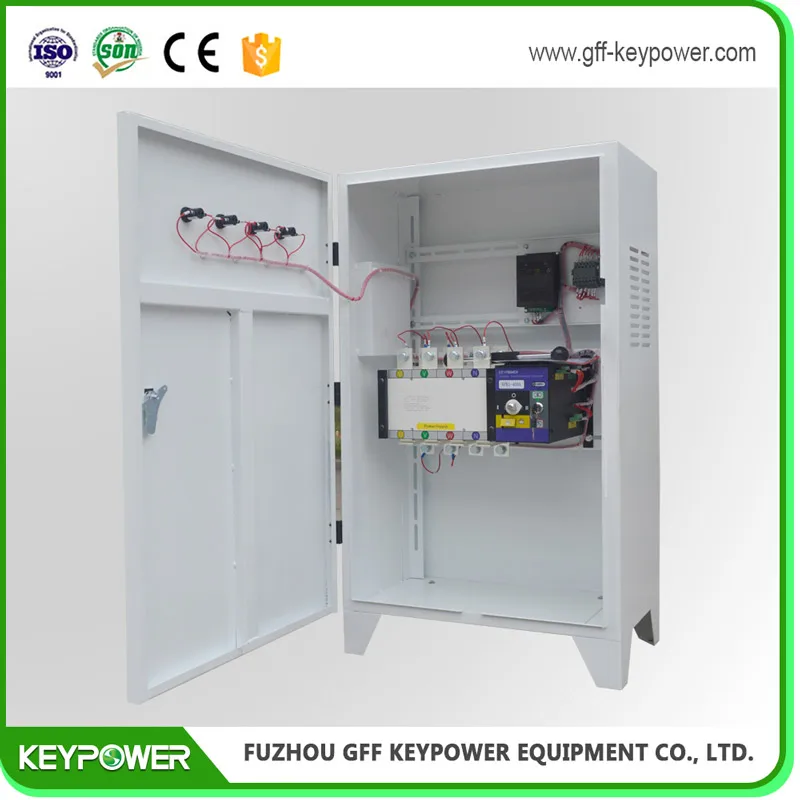

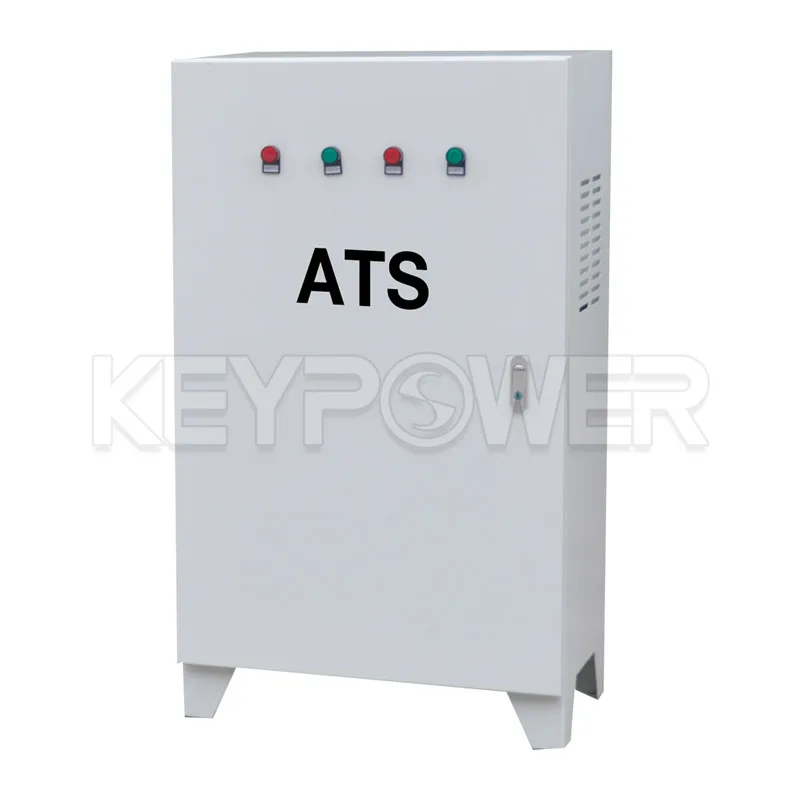

Sheet steel lockable enclosure with hinged door

Finished in outdoor textured powder coated painting

Removable base gland plate for cable entry/exit on all ratings

Indicators in different color for"Mains on load"and "Generator on load"

Note:AST built in the canopies as option
