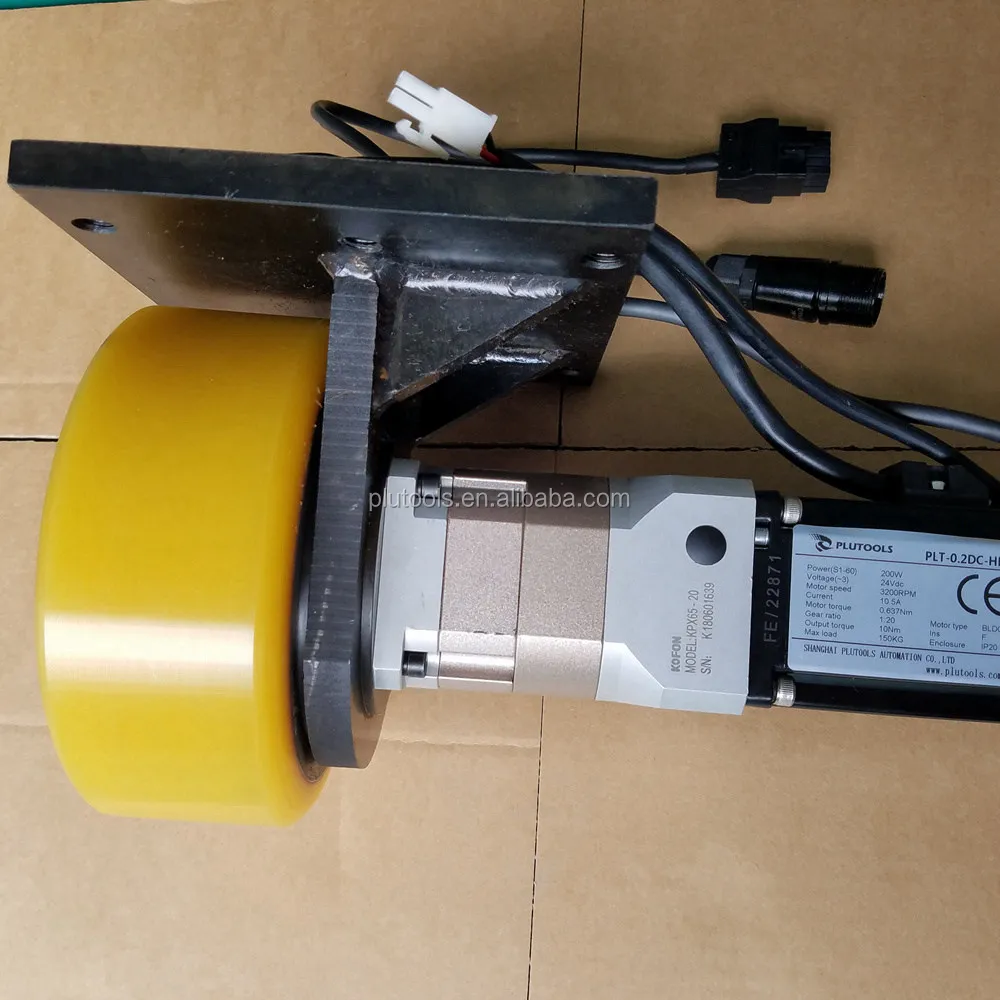

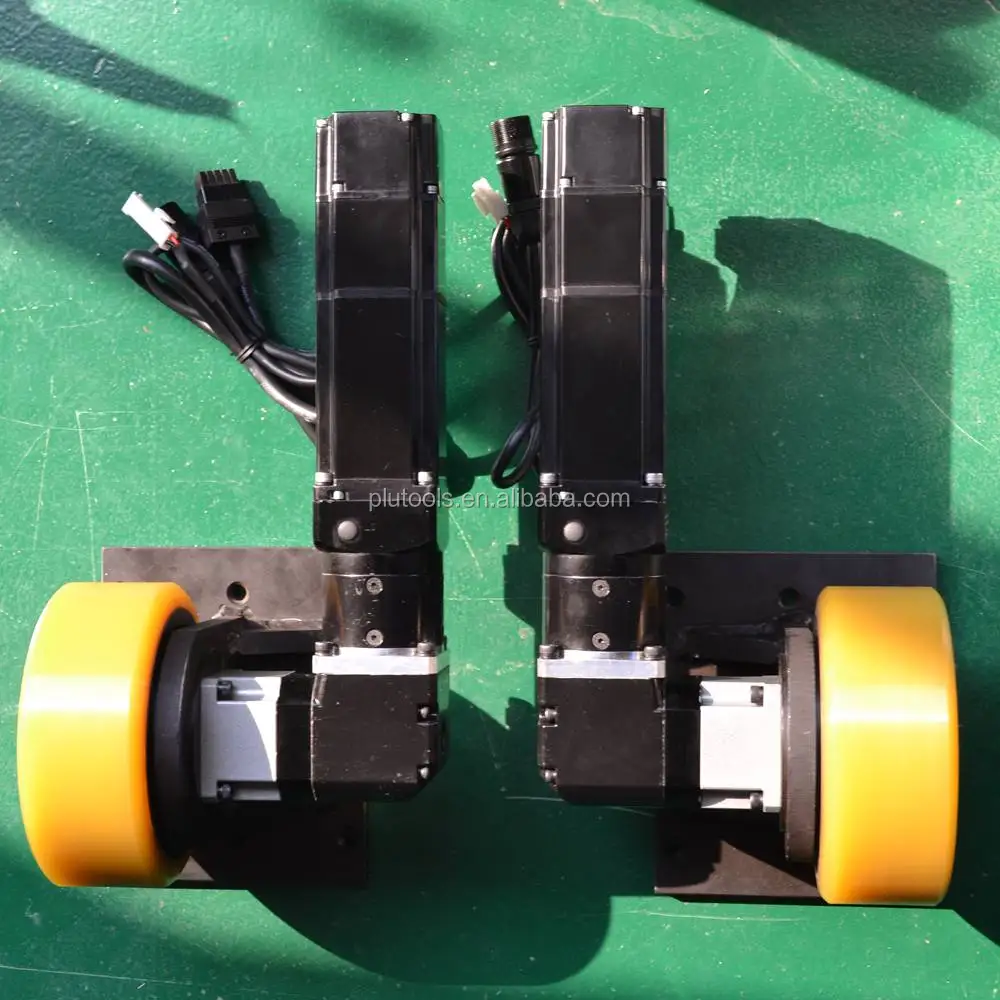

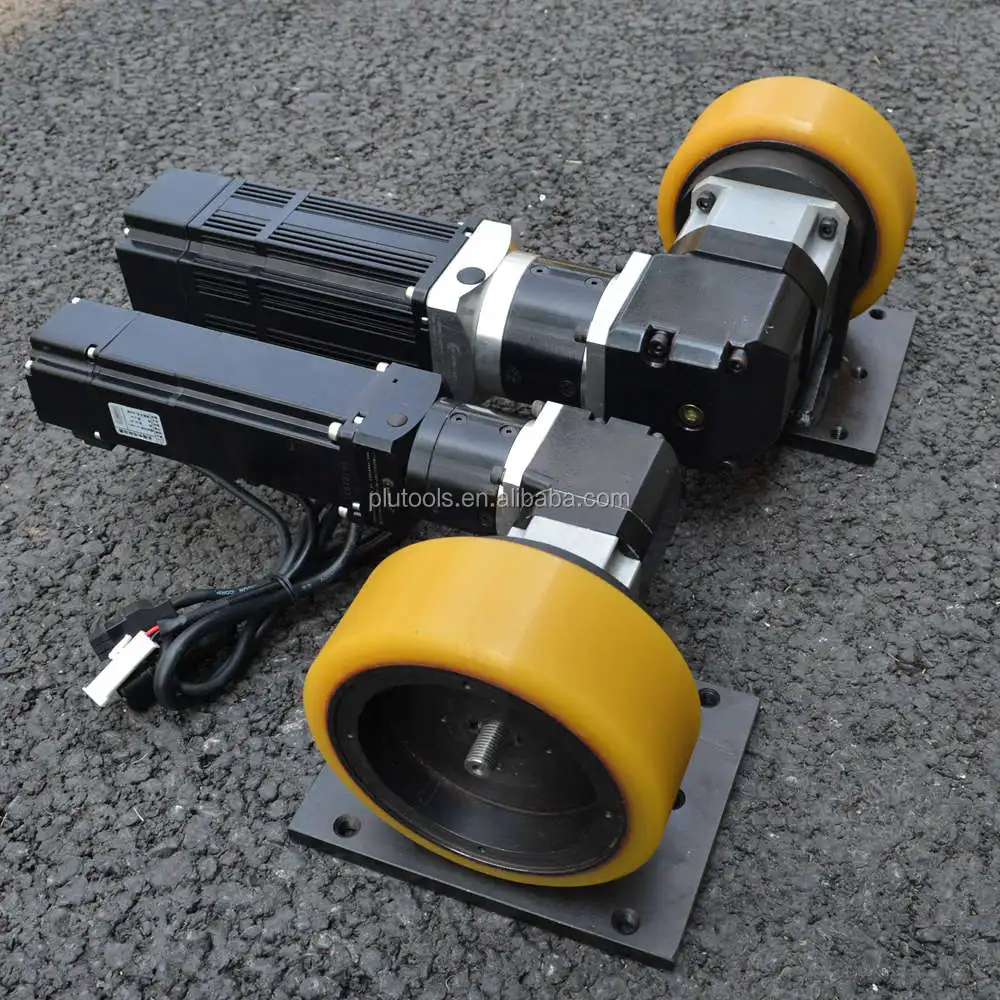

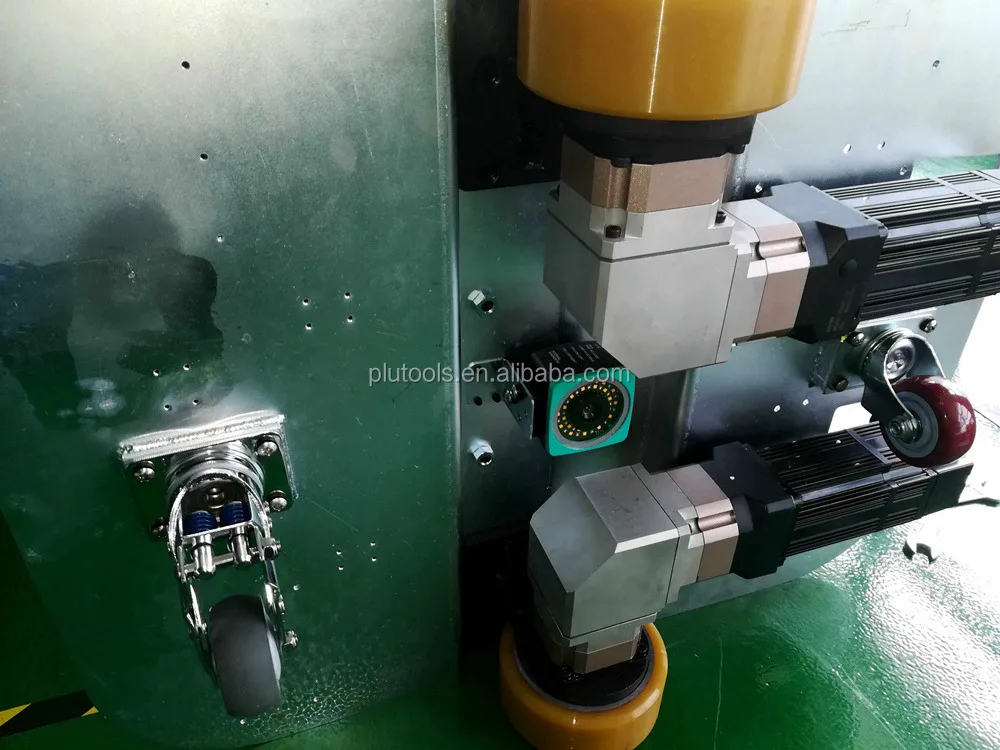

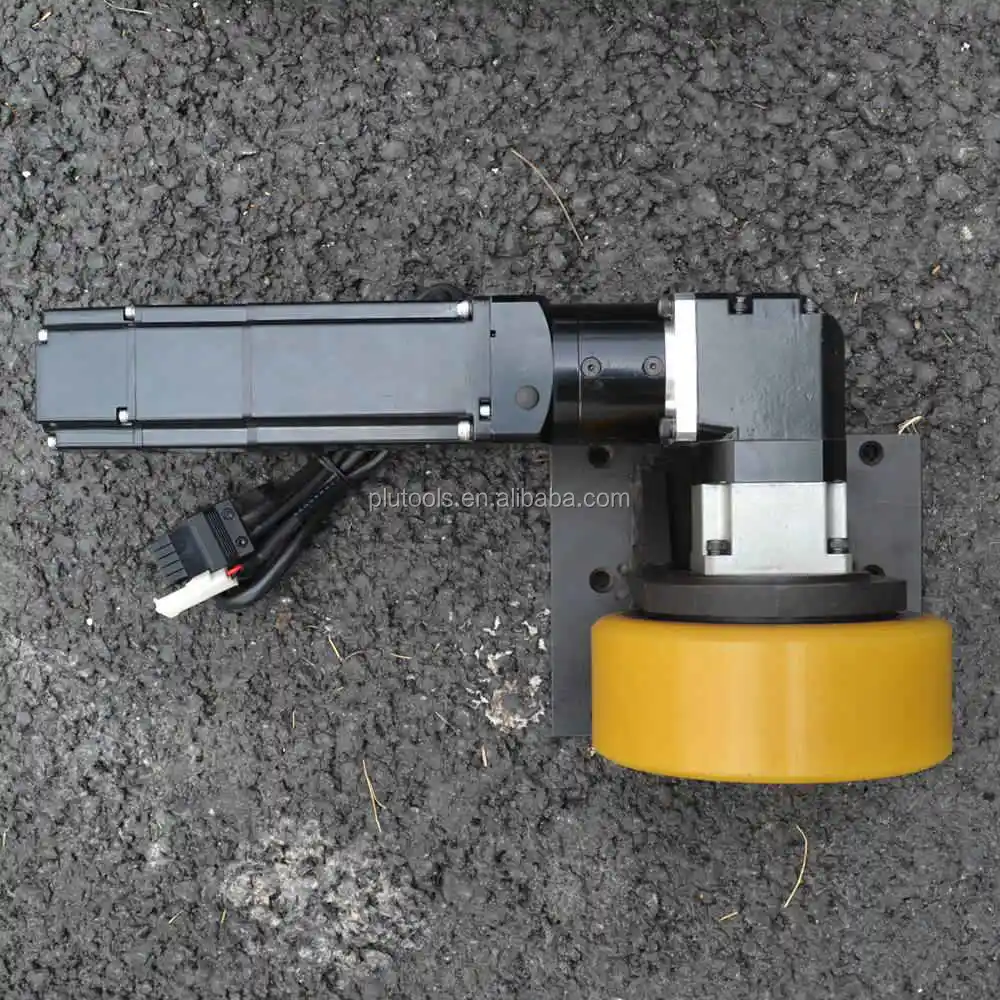

24v customize low noise planetary gear motor drive unit for AGV with 150mm wheels
- Category: >>>
- Supplier: Shanghai Plutools Automation Corporation Limited
Share on (60790622353):
Product Overview
Description
Product Description
| Model Name | PLT-150P200B-24D |
| Traction motor type | BLDC |
| Rated Power(W) | 200 |
| Battery voltage | 24 |
| Traction motor rated speed(RPM) | 3000 |
| Traction rated current(A) | 10.5 |
| Traction motor torque(Nm) | 0.64 |
| Traction gear ratio | 20 |
| Traction gear torque(Nm) | 10 |
| wheel diameter(mm) | 150 |
| Wheel width(mm) | 60 |
| Mounting height(mm) | 165 |
| Max.turning radius(mm) | - |
| max.load(kg) | 150 |
| max.speed(m/s) | 1.17 |
Application
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer.
Q: Can you make a motor with custom specifications?
A: Yes, actually that is what we do most of the time.
Q: What is the MOQ (minimum order quantity)?
A: 1 pc for sample order, and 100pcs for bulk order.
Q: Do you have motors in stock?
A: No, we don’t. All motors are made with orders.
Q: How to pay you?
Paypal, Western Union, Money Gram, T/T, L/C payment are acceptable.
Q: What do you need to know if I need a recommendation on motor?
A: Normally we need to know dimensions, rated voltage, speed at load/no load, torque at load/stall. i.e. a motor with diameter 37mm, 12V, 100rpm and 2Kgf.cm at load.
Q: Can I ask you for help if I know nothing about motor?
A: Yes, our pleasure. We are nice people with big hearts.
Q: Where is your loading port ?
A: Ningbo Port, Shanghai Port, China.
Q: Can I visit your factory?
A: Yes,of course
