Stage Background Super Thin P4.81 Church LED Video Wall Panel Display Screen
Pixel Pitch | 4.81mm |
Pixel Density | 43222dots/sqm |
Color Configuration | 1R1G1B |
LED Package | SMD2121 |
Module Size | 250mm x 250mm |
Module Resolution | 52dots x 52dots |
Drive Mode | 1/13 Scan |
| Cabinet Material | Die casting Aluminum |
| Led Color | Black |
Standard Cabinet Size | 500mm x 500mm |
Cabinet Weight | 7.5KG |
Brightness | ≥1200 cd/sqm, adjustable by software |
Viewing Distance | 4m-40m |
Viewing Angle | H: 140°; V:140° |
Refresh Rate | 3840HZ, adjustable by software |
Frame Rate | 120frame/s |
Grey Scale | 16.7M colors(Synchronized) |
Color Temperature | R.G.B brightness 256 level adjustable |
Power Input | AC110V/ 220V ±10, 50HZ |
Max Power Consumption | 800W/sqm |
Ave. Power Consumption | 300W/sqm |
Storage Temperature | -30~+70 degree |
Working Temperature | -20~+50 degree |
Blind Spot Rate | <1/10000 |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP43 |
Operating Humidity | 10%~90% RH |

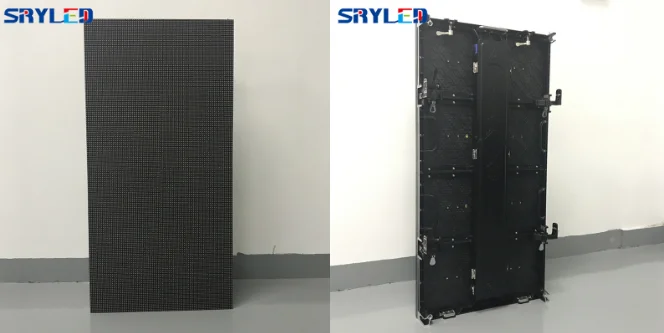

We have 500*500mm and 500*1000mm led cabinets for you.

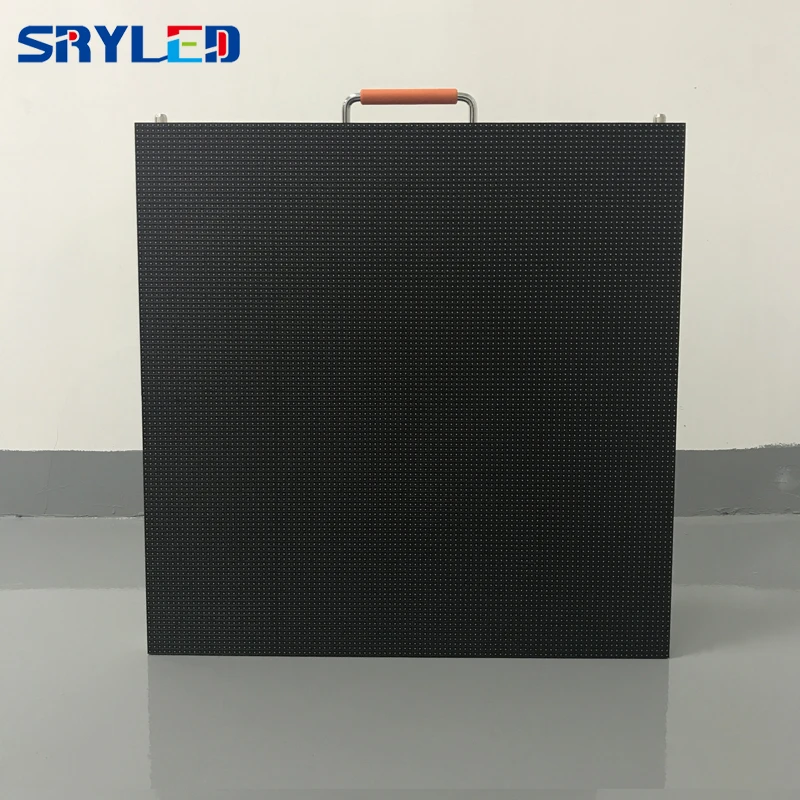

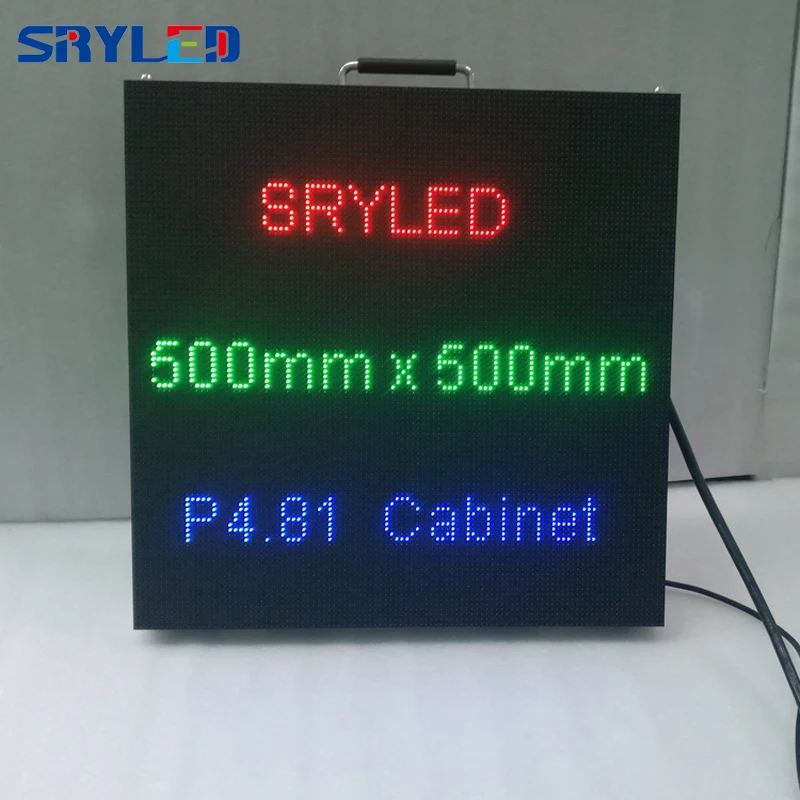

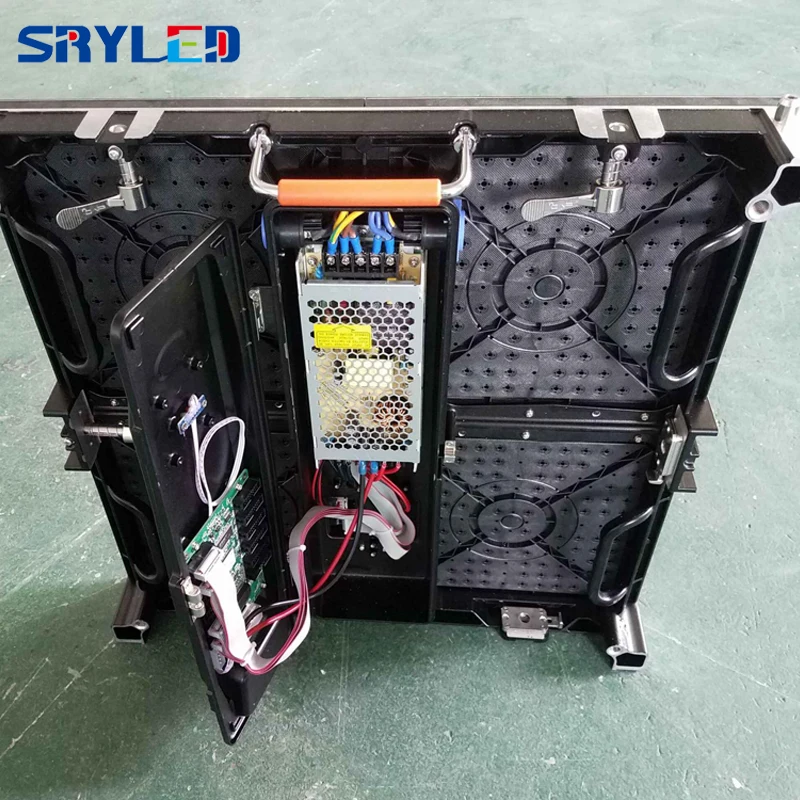

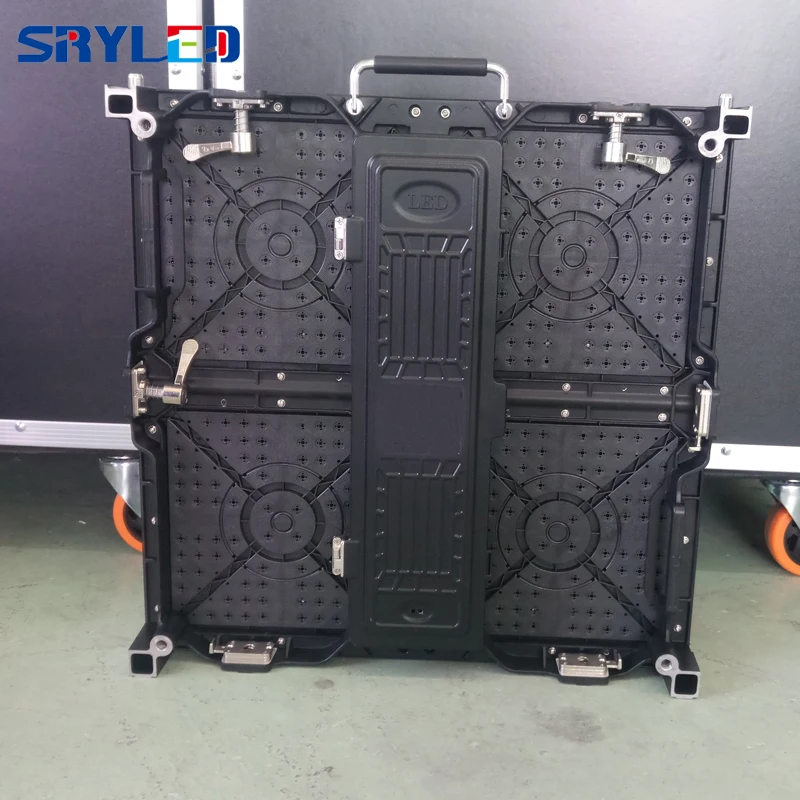

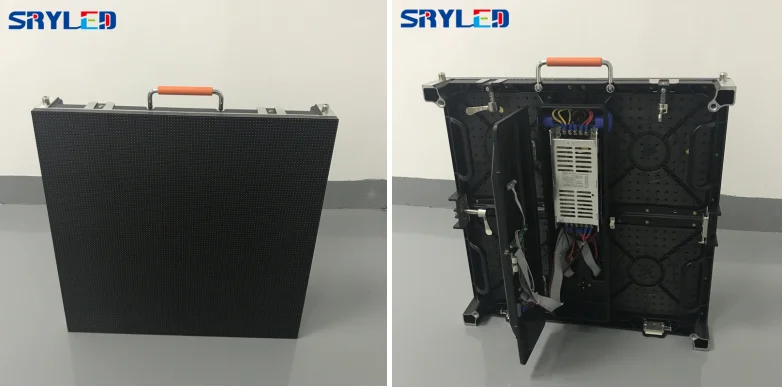

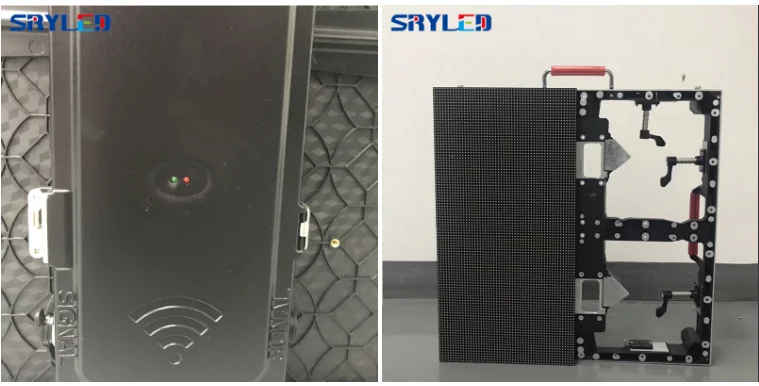

Screen back and front details

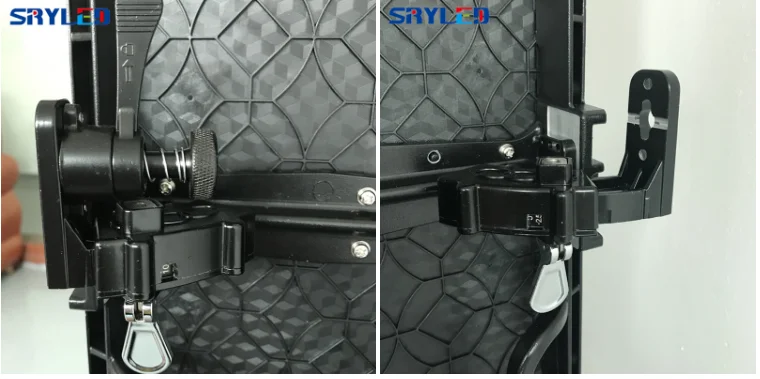

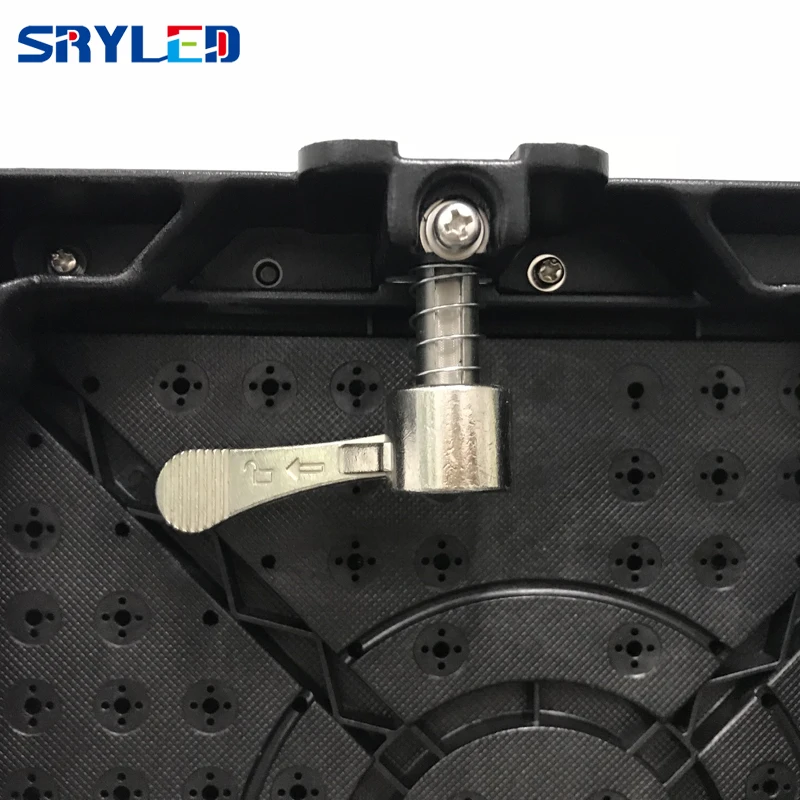

Details photo of led cabinets
P4.81 led screen in Mexico
P4.81 led screen in Singapore
P4.81 led screen for stage show
1.Super Light and Thin 8KG/panel with a depth of 70mm which is half of the depth of traditional LED screen,saving space and transportation cost.
2.High Refresh Rate ;Refresh Rate≥2000, offering impressive visual effect.
3.Noiseless Free of fans and air conditions, excluding noise and reducing power consumption.
4.Fine and Smooth Picture Drive IC of high refresh rate and high grey scale to ensure stable picture and better visual effect of the screen.The latest horizontal-blanking circuit applied to completely eliminate phenomenon of blanking and smear.
5.Seamless Splicing High conformity of picture without gap and information missing, realizing a seamless splicing display.
6.Fast Installation and Dismantlement.
Remark:Stage Background Super Thin P4.81 Church LED Video Wall Panel Display Screen widely use for tage background, advertising activity, press conference, news conference etc.
We have similar products like glass led display.This is the new product in the market
| |||||||
![]() | |||||||
![]() | |||||||
![]() | |||||||
Contact Info:If you want know more,please feel free to contact me to get a full quotation.
| Phone/Whatsapp/Wechat: | 8618173534979 |
| Skype | Juli Deng |
| Tel | 86 0755 8466 0806 |
