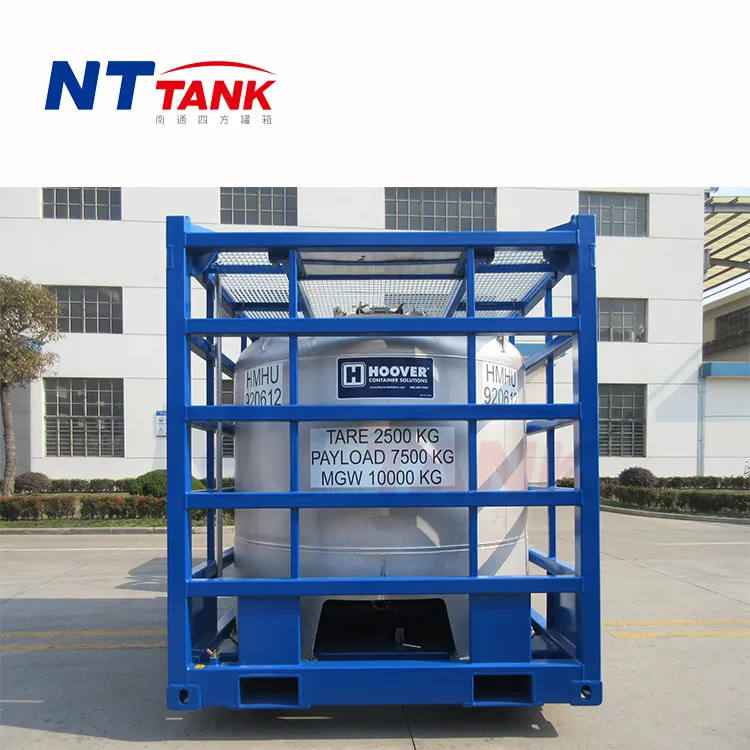

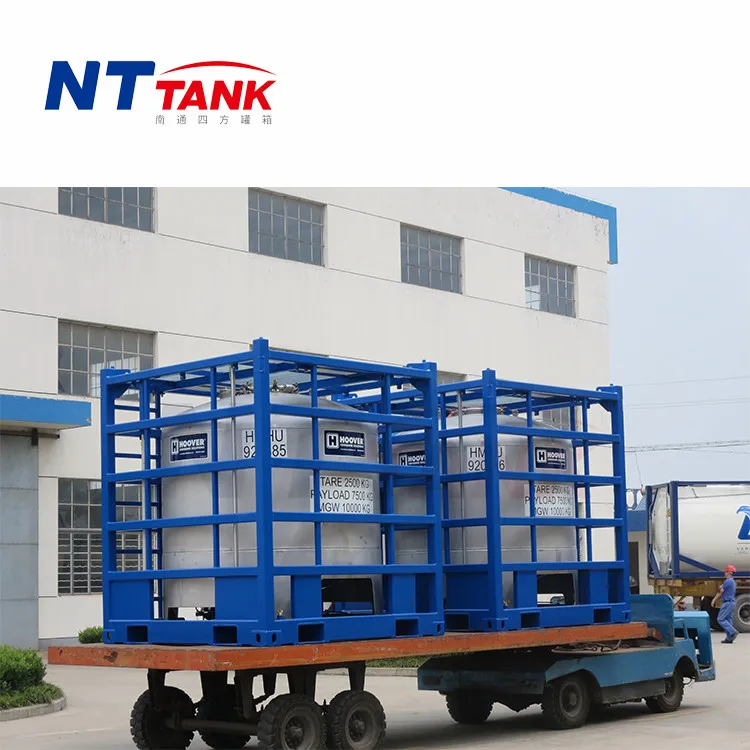

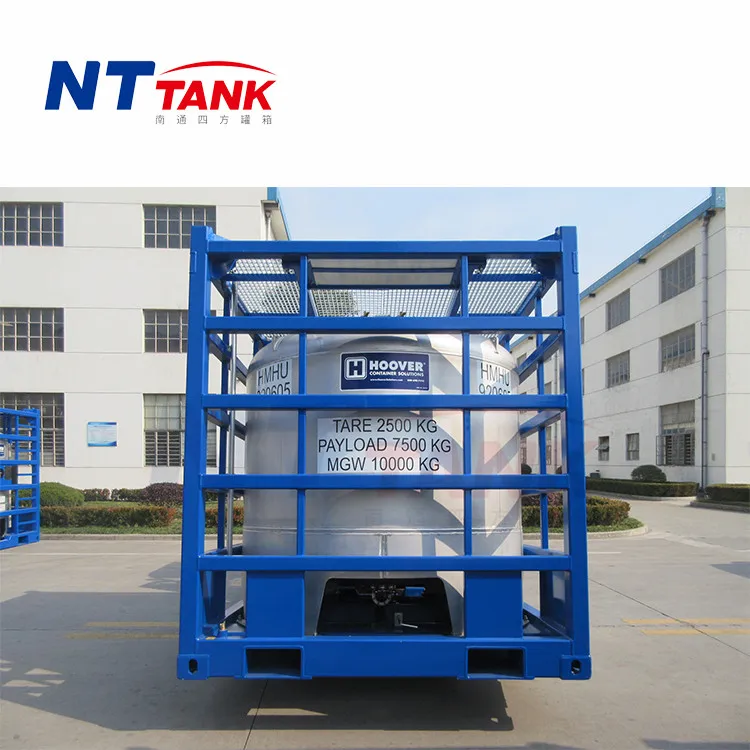

20ft Transport liquid portable tank special offshore container

Tank Type

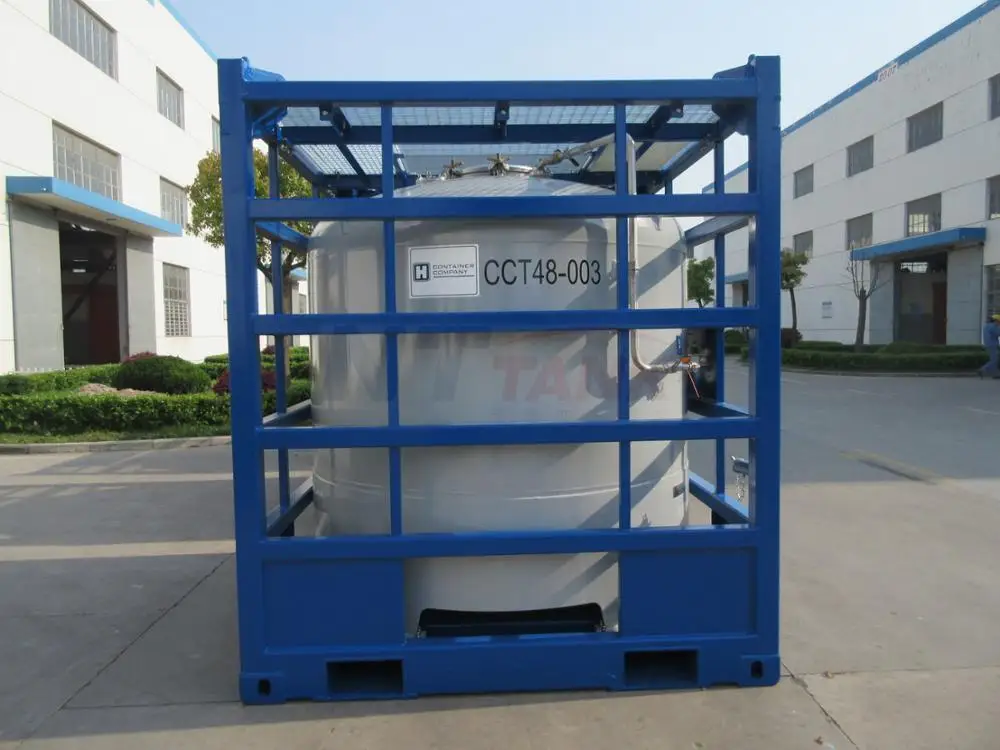

10ft ISO Universal Full Frame Offshore Tank

Frame Dimensions

2991mm×2438mm×2438mm

Capacity

2,000 Galons +/- 2%

M.G.W.

13,000 kg

Tare (est.)

2,800 kgs

Max Payload

10,200 kgs

Working Pressure

4 Bar

Test Pressure

6 Bar

Ambient Temp

-40°C to +65°C

Vessel Material

SANA 50028-7 WNr 1.4402/14404(C<0.03%),316L stainless steel

Shell:Cold Rolled 2B finish

Dished ends:Hot rolled and polished internally to 1.2 Micron CLA

Shell Thickness

4.4 mm nominal

Ends Thickness(B.F)

4.4 mm min,after forming

Corrosion Allowance

0.2 mm

Lining Lugs

Top of framework fitted with 4 off lifting lugs suitable for ues with 8.5 bow Shackles,Lug hole size 29mm

Frame Material

GB/T 1591-2008-Q345D(Primary Structure)

GB/T 1591-2008-Q3458,Q235B(Secondary Structure)

Frame to Shell

304 stainless steel

Corner castings

ISO 1161 - 8 off

Vessel Design Code

ASME VIII Div 1

Radiography

Shell

Ends

ASME Spot

ASME Full

Inspection Agency

LR

Design Approvals

UN Protable tank T11(incorporating ADR,IMDG and CFR),TIR,CSC

The complete container will meet the requirements of ISO 1498/3,EN12079 and DNV2.7-1 offshore regulations.
