cosmetic jars transparent film shrink wrap packing heat tunnel side sealing machine
- Category: Other Packaging Machines >>>
- Supplier: Ruian Yongxin Machinery Co. ltd.
Share on (60790746787):
Product Overview
Description
cosmetic jars transparent film shrink wrap packing heat tunnel side sealing machine
Product Description

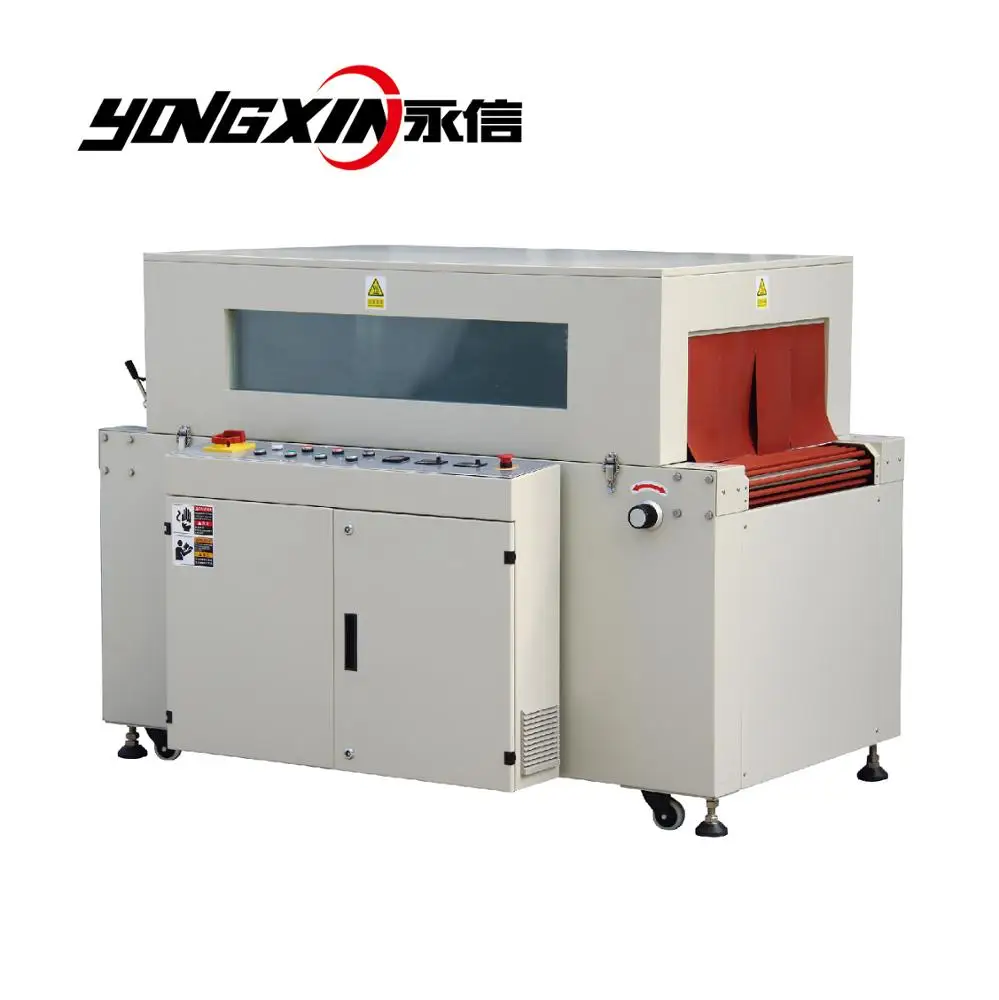

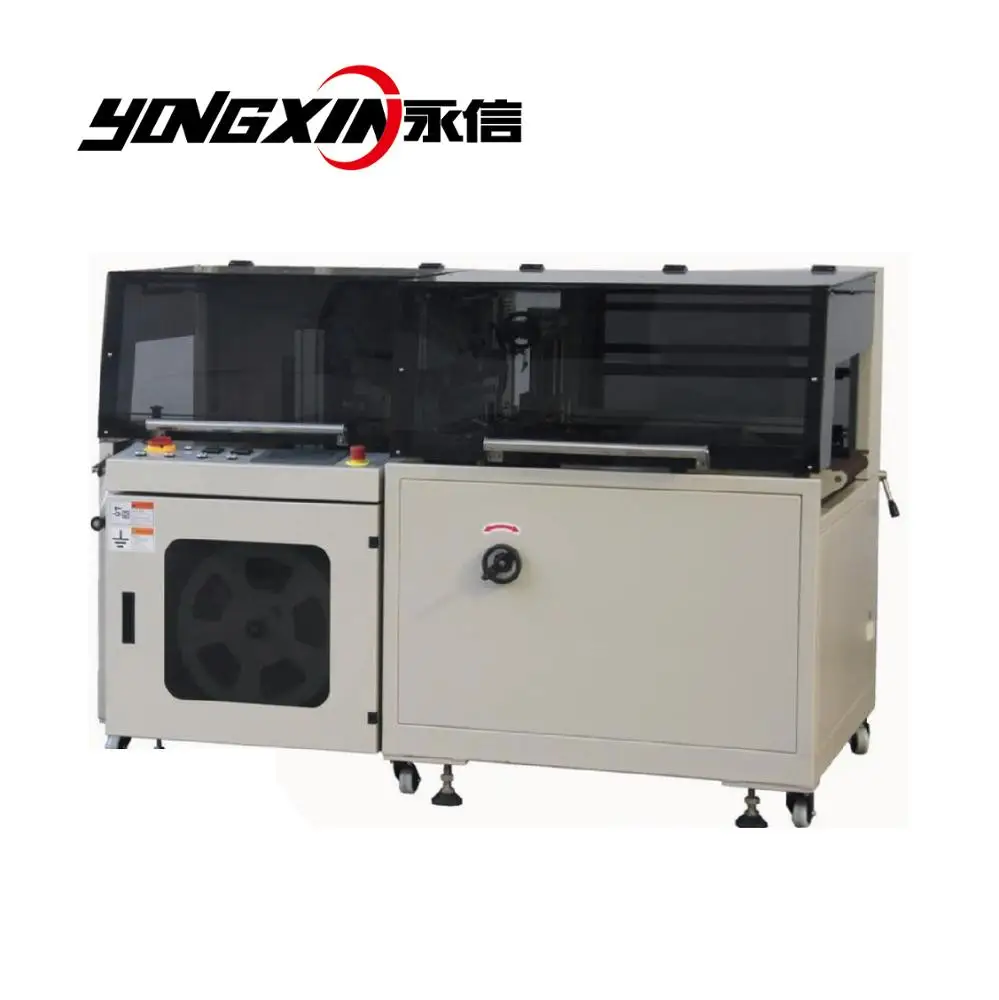

1.Machine Photo Shrink tunnel :
High Speedy Box Shrink Packaging Machine With Side Sealer
2. Uses: Shrink tunnel
Suitable for large quantity shrink wrapping industries such as software, foodstuff, cosmetics, printing, pharmacy, flooring, ceramics, beverge and beer in every industry.
The video is only for reference of shampoo packaging. Pls tell us your details information of your products,we will give you the best packaging solution.
High Speedy Box Shrink Packaging Machine With Side Sealer

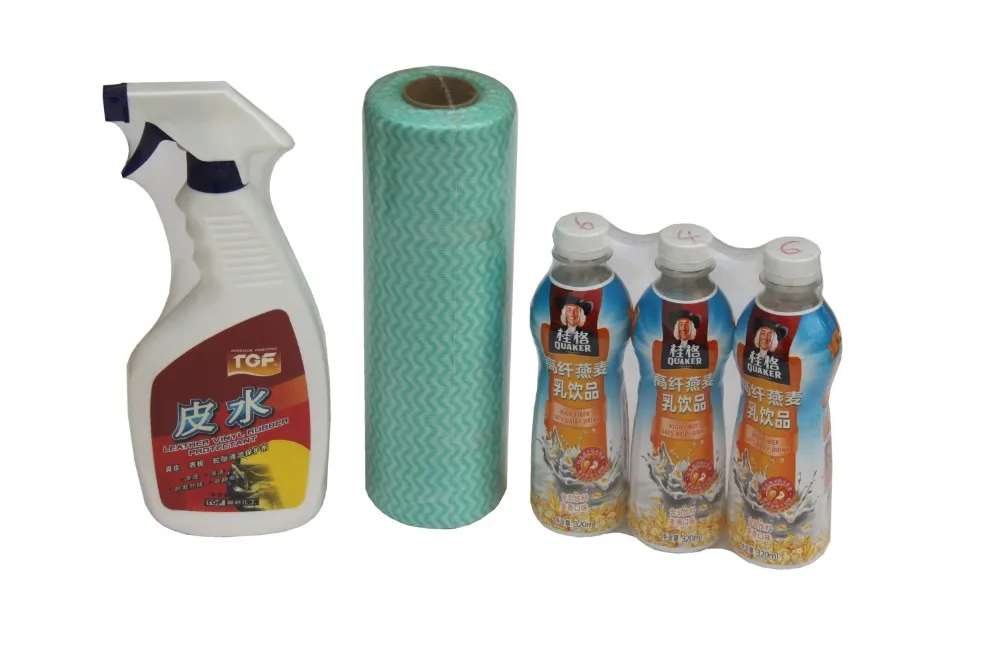

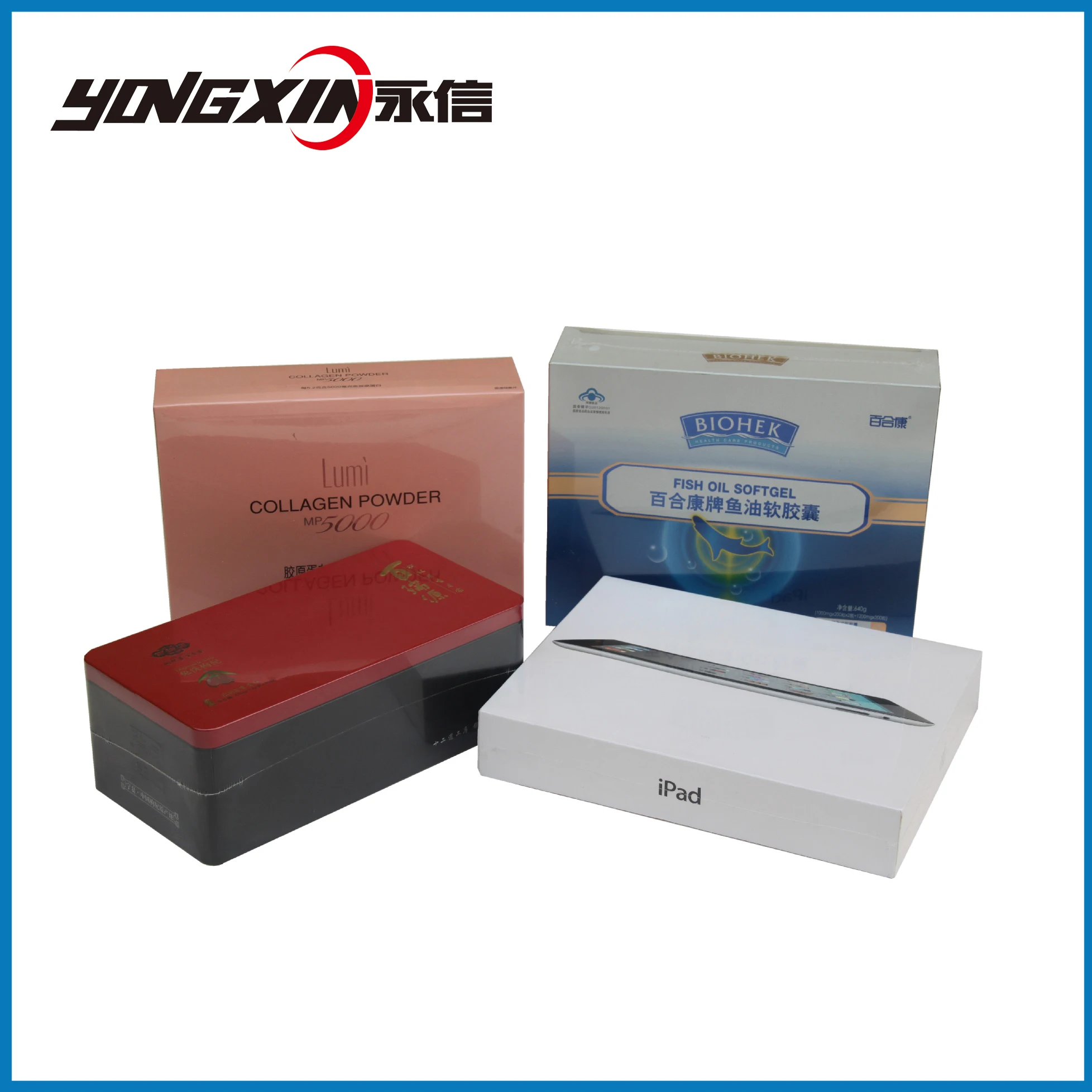

3. Packing result: Shrink tunnel
High Speedy Box Shrink Packaging Machine With Side Sealer
4. Performance Characteristics: Shrink tunnel
1.The machine adopts imported touching screen,on which all settings and operation can be done. Meanwhile,various product data can be stored in advance,and operator only to select parameters from the computer while usage.
2.According to different collocations for the machine and different products, the max packing speed is up to 80pcs/min.
3.Constant temperature heat sealing and cutting system is suitable for PE. POF etc, industrial standard shrink films, the seal is firm and nice, especially applicable for POF film, adjust the conveyor with the head wheel for packing products of different size. The reliability is higher and easier to operate it.
4.The front feed in systems speed is adjustable, combines a worktable at the end of the tunnel, makes whole machine highly automatic, it runs automatically without an operator comes true.
5.BM-500L Hi-speed hot air circulating shrink tunnel adopts roller type conveyor, the rollers are covered by silicone gel pipe, they roll automatically, also the conveyor can use Teflon mesh belt or S.S. mesh belt instead of rollers. When shrink PE film, need not the rollers roll, easy to convert it by the handle at the end of the tunnel.
High Speedy Box Shrink Packaging Machine With Side Sealer

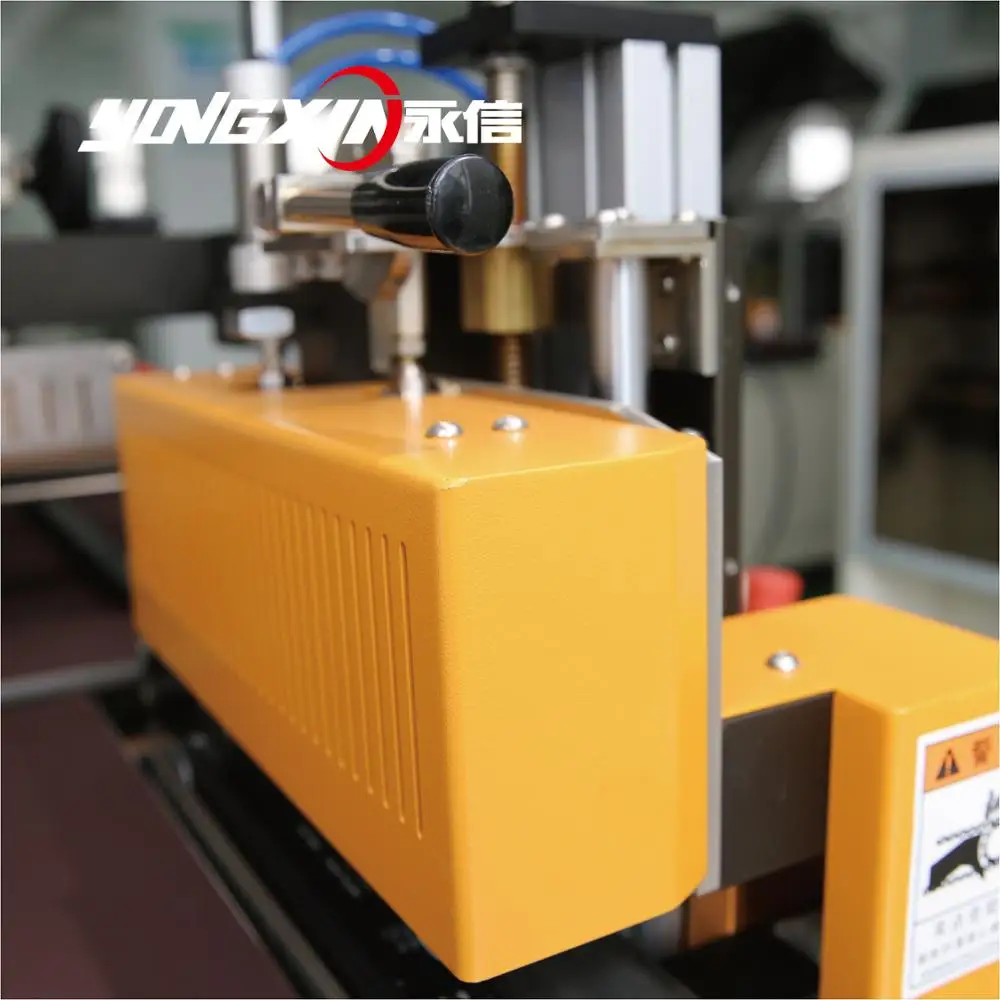

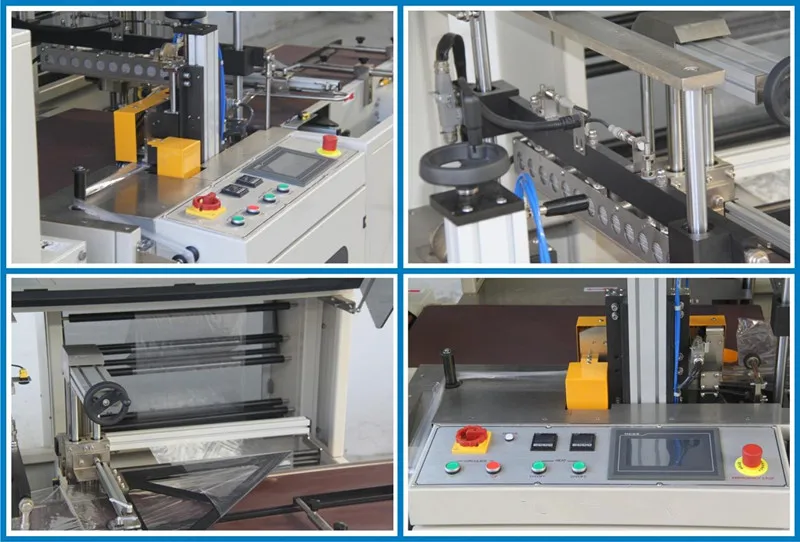

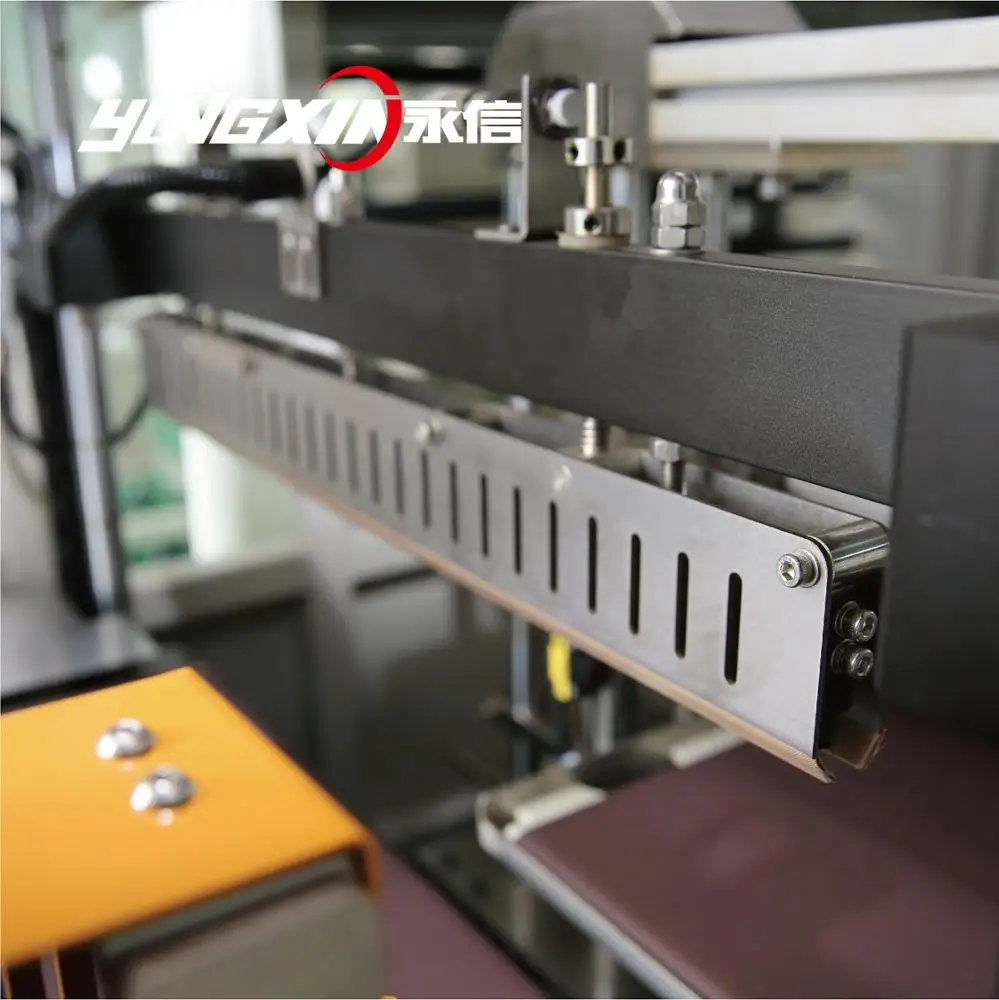

5. Detail of Machine: Shrink tunnel
High Speedy Box Shrink Packaging Machine With Side Sealer
6. Main Technical Parameters: Shrink tunnel
Model | BTH-450 | BM-500L |
Max Packing Size | (L)No limited (W+H)≤400mm (H)≤130mm | (L)1500*(W)450*(H)250mm |
Max sealing Size | (W+H)≤450mm | (L)1500*(W)500*(H)300mm |
Packing Speed | 30~80 packs/min | 30~80 packs/min |
Electric Supply & Power | 380V/50Hz 3kw | 380V/50Hz 16kw |
Max Current | 10 A | 32A |
Air Pressure | 5.5kg/cm3 | / |
Weight | 800kg | 650kg |
Overall Dimensions | (L)2050*(W)1500*(H)1300mm | (L)1800*(W)1100*(H)1300mm |
High Speedy Box Shrink Packaging Machine With Side Sealer
7. Spare part list:
| No. | Item | Brand | Qty |
| 1 | Cutting knife servo motor | SIEMENS(Germany) | 1 |
| 2 | Product feeding motor | TPG(Japan) | 1 |
| 3 | PLC | OMRON (Japan) | 1 |
| 4 | servo motor driver | SIEMENS(Germany) | 1 |
| 5 | product feeding inverter | OMRON (Japan) | 1 |
| 6 | Breaker | SCHNEIDER(France) | 1 |
| 7 | Temperature controller | OMRON (Japan) | 1 |
| 8 | side sealing cylinder | FESTO (Germany) | 1 |
| 9 | Horizontal ,vertical sensor | BANNER(USA) | 4 |
| 10 | Sealing knife | DAIDO(Japan) | 1 |
High Speedy Box Shrink Packaging Machine With Side Sealer

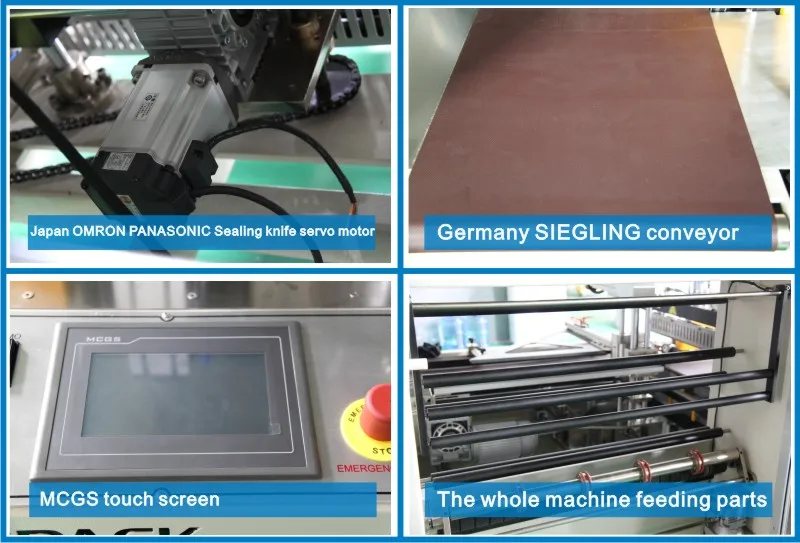

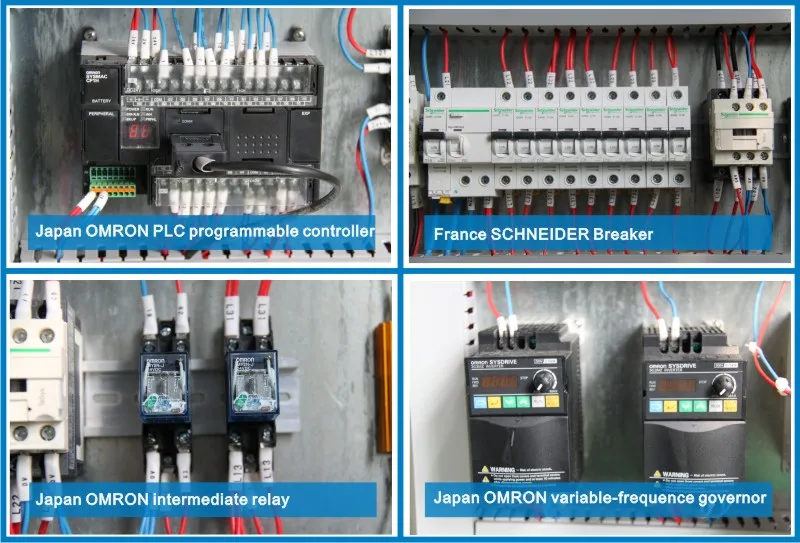

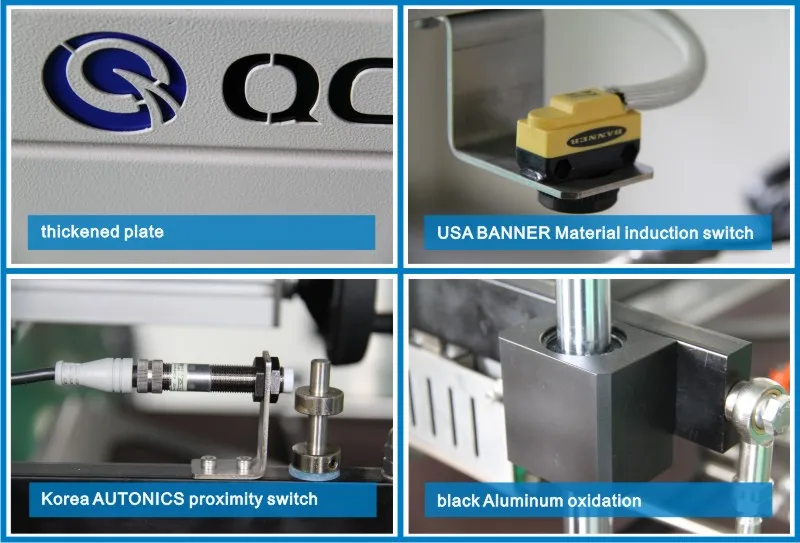

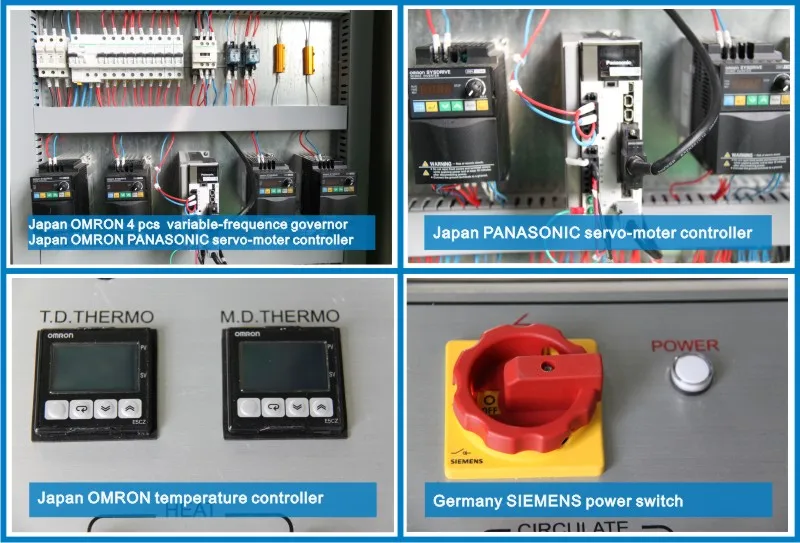

8. Picture of spare part:
part one:
High Speedy Box Shrink Packaging Machine With Side Sealer
part two:
High Speedy Box Shrink Packaging Machine With Side Sealer
part three:
High Speedy Box Shrink Packaging Machine With Side Sealer
part four:
Quality Assurance
High-Speed Granular Bottle Packaging Machine With Side Sealing

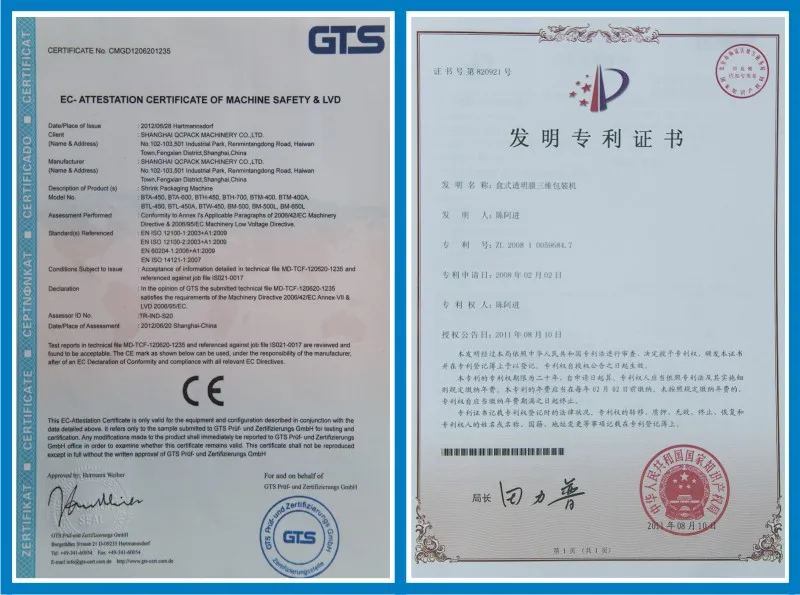

9.Certificate of CE and Patent:
Packaging & Shipping
High Speedy Box Shrink Packaging Machine With Side Sealer

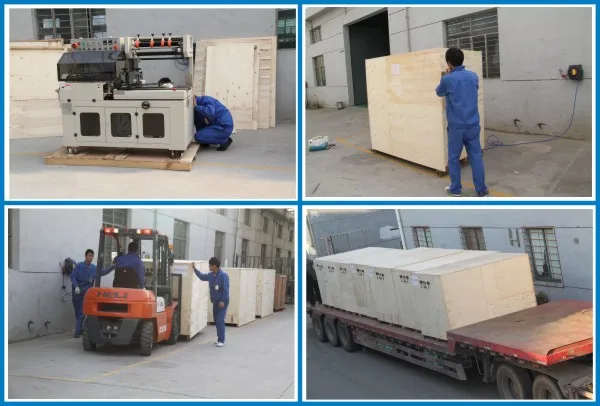

10. Packaging and Shipping:
High Speedy Box Shrink Packaging Machine With Side Sealer
11. Warranty: One year limited.
Wearing parts guarantee within a year.
High Speedy Box Shrink Packaging Machine With Side Sealer

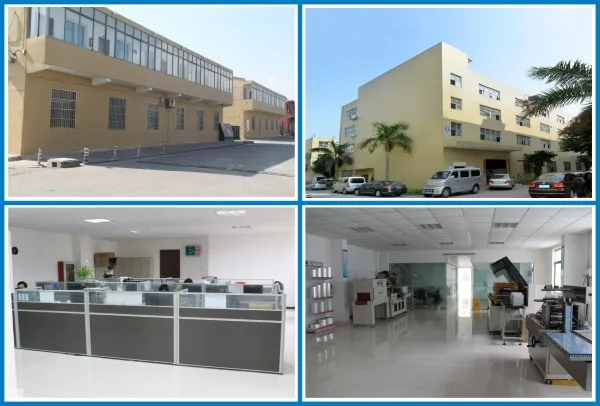

12. Ruian Yongxin Machinery Factory:
Company Information
OUR COMPANY
Ruian Yongxin Machinery Factory is located in Ruian, Zhejiang province, the famous City of Packaging Machinery in China. It always devotes itself to researching and developing packaging or pharmaceutial machineries. The Plant had successively solved many state-level and provincial level machinery technological problems, filling up several technological gaps on machineries at home. With many years' experiences on machinery design, technology and manufacture, the Plant has the capacity in designing, manufacturing, installing and debugging the single machines as well as complete equipments. The Plant is a professional machinery manufacturer integrating with scientific research, industry and trade. At the beginning of the new century, the Plant has successfully presented packaging machine for condoms, fully automatic transparent film packaging machine, semi-automatic transparent film packaging machine, electrical tape packaging machine, which are widely applied to family planning products, cosmetics, medicine, foodstuff, daily necessities and stationeries. The products are not only well distributed to all over the country, but also are exported to tens of countries and regions. All have received a lot of praises. We abide by the policy of "Survival by Quality, Development by Trustworthiness, Innovation for Challenges, Competition by Service", orientating to the aim of "Advancing with the World, Building up the Chinese Brand", working hard to offer "Quality Products, Excellent Service" to all customers. The factory director, Mr. Chen Ajin, together with all staff members, warmly welcome all circles of life to visit, negotiate business and cooperate with us to achieve more contributions.
OUR EXHIBTION

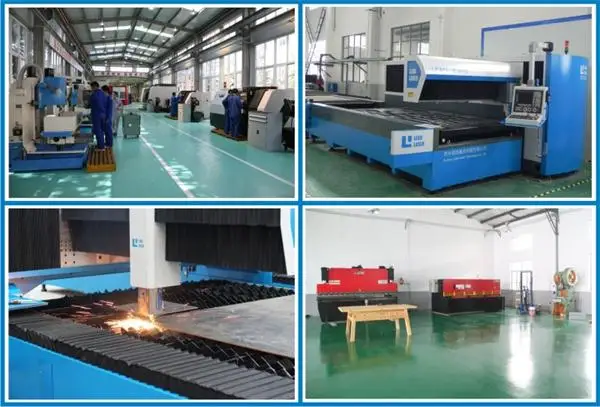

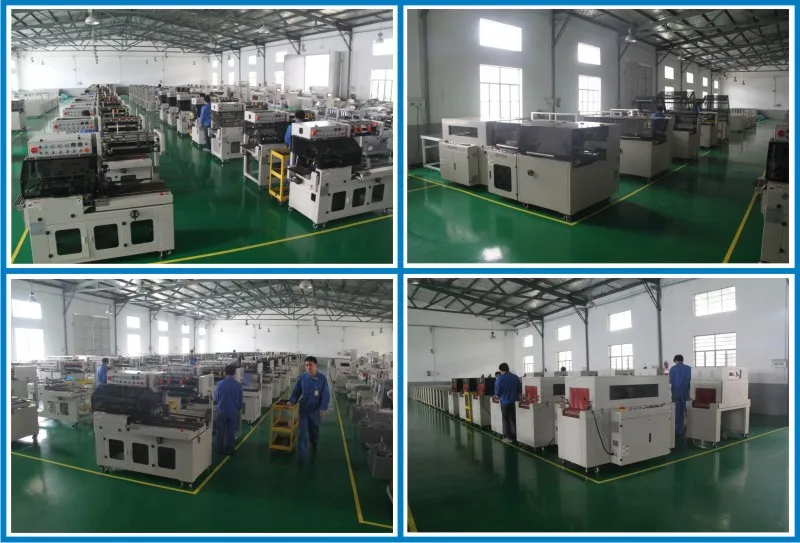

Machines in the workshop:
Transparent Film Tea Packaging Equipment
Equipment in the workshop:

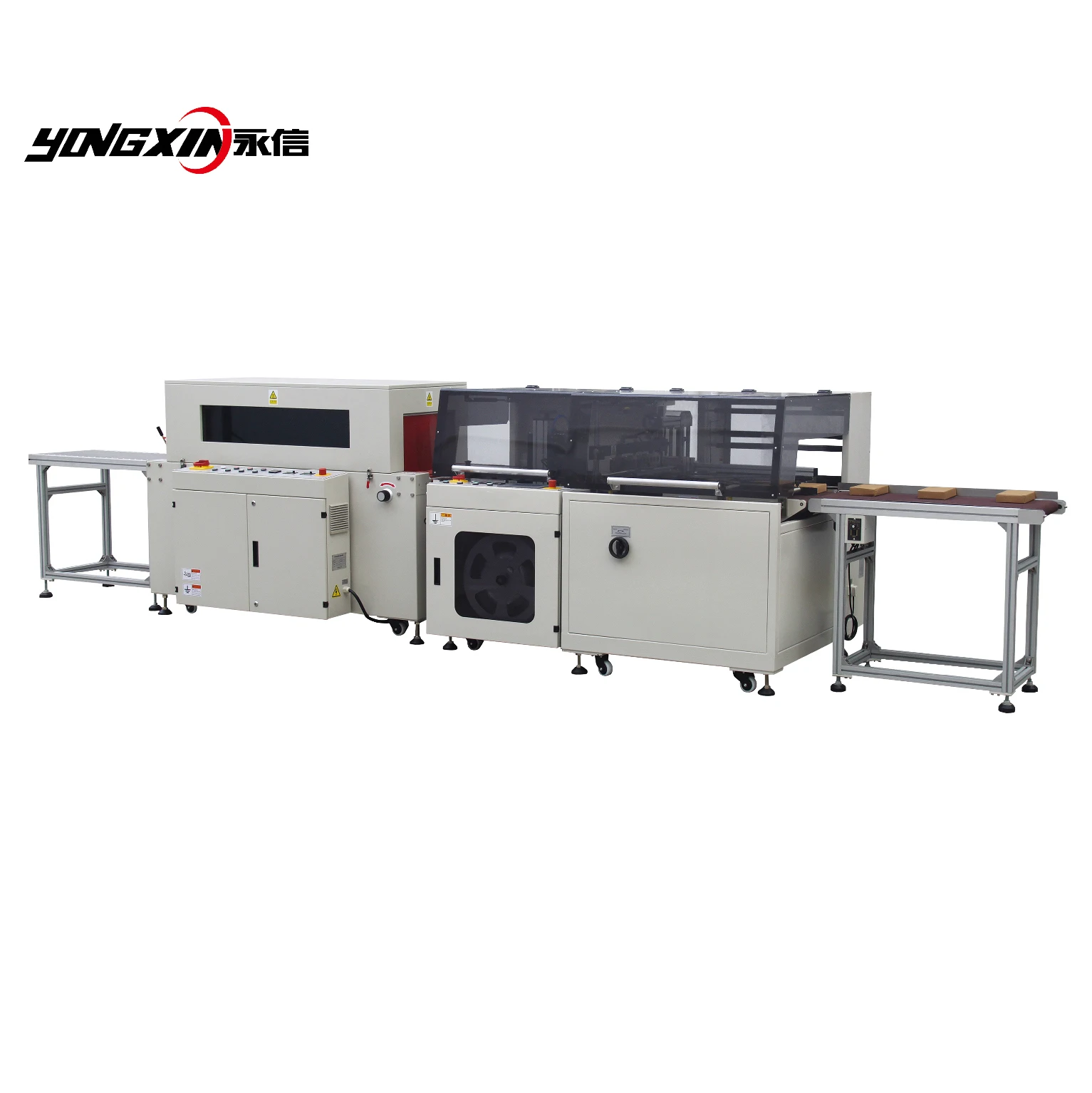

High Speedy Box Shrink Packaging Machine With Side Sealer
Our Services
Pre-sales service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
After-sale service:
1.We will guarantee the machine quality for 2 years.
2.We provide free training and answer customer's question on technology in time.
16. Contact us:
If you wanna know more information about our machines, welcome to contact us and visit our factory any time!!
High Speedy Box Shrink Packaging Machine With Side Sealer
