2.Structure for External Evg eps insulation 3d construction wall tridi panel machine production line .

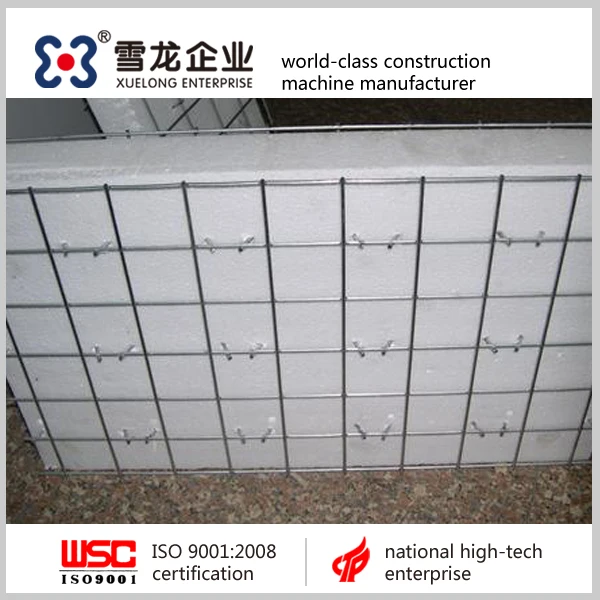

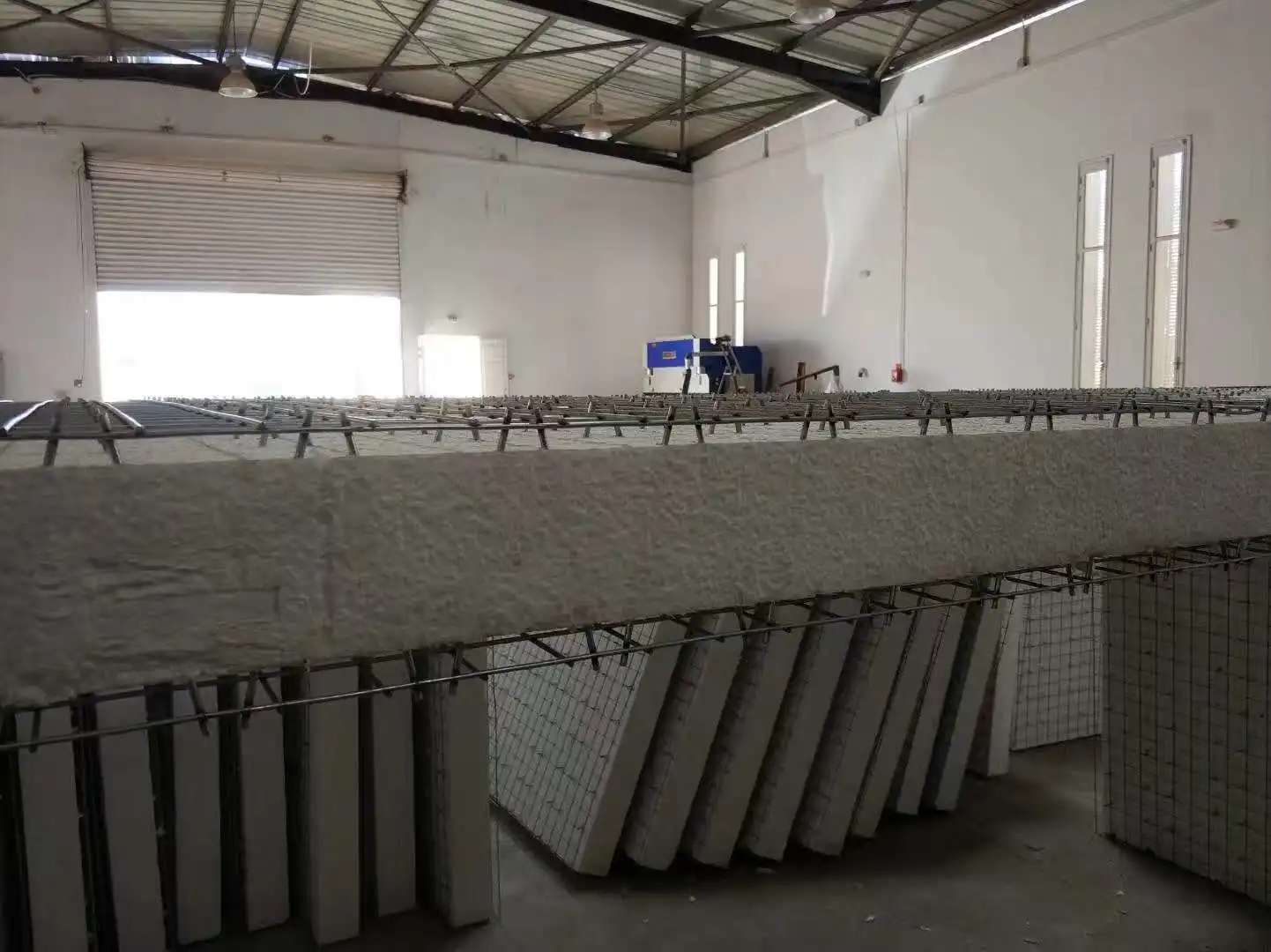

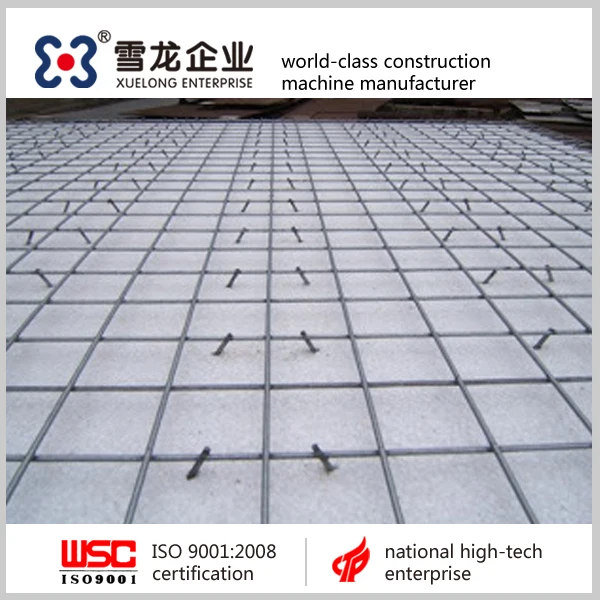

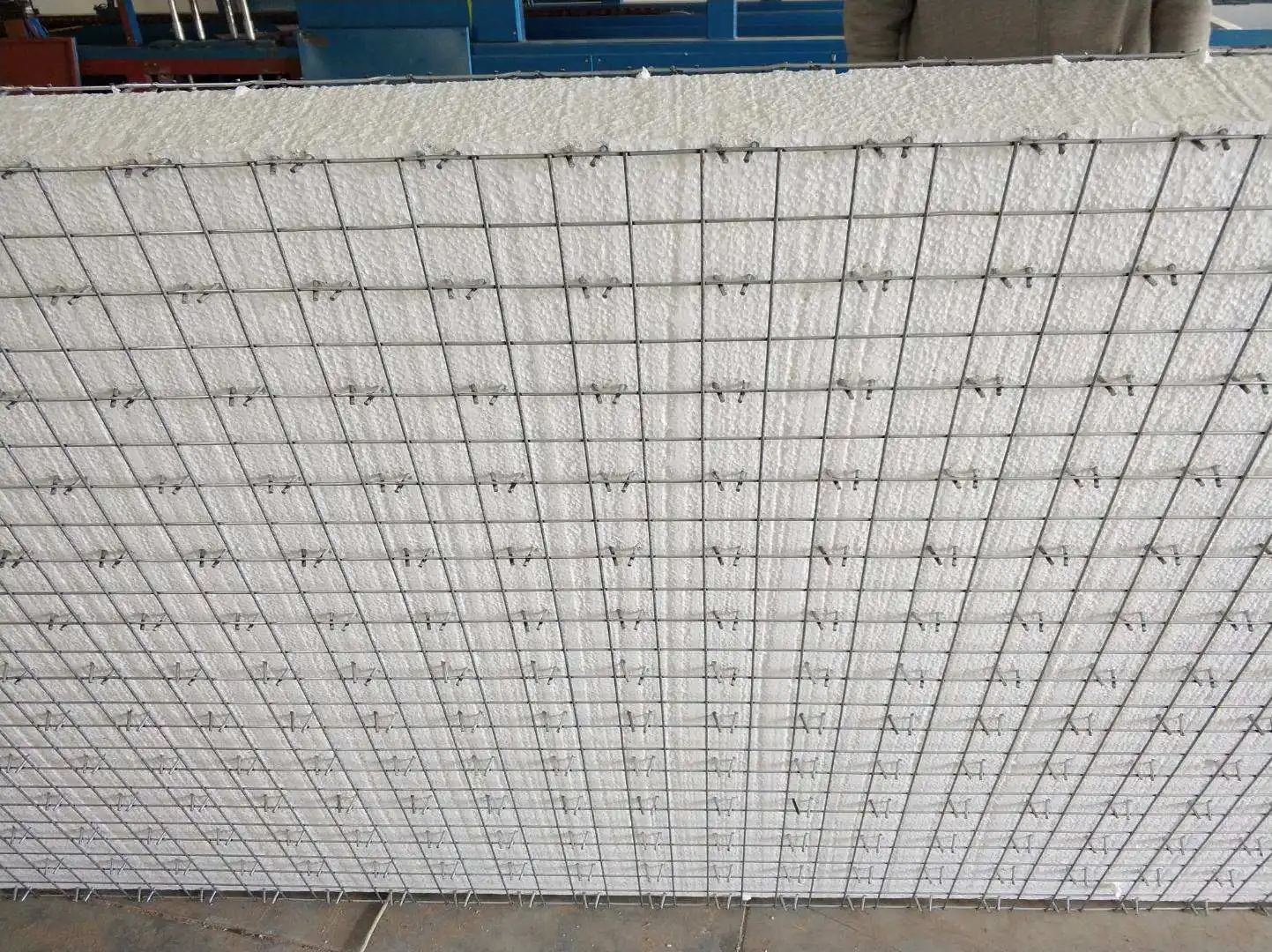

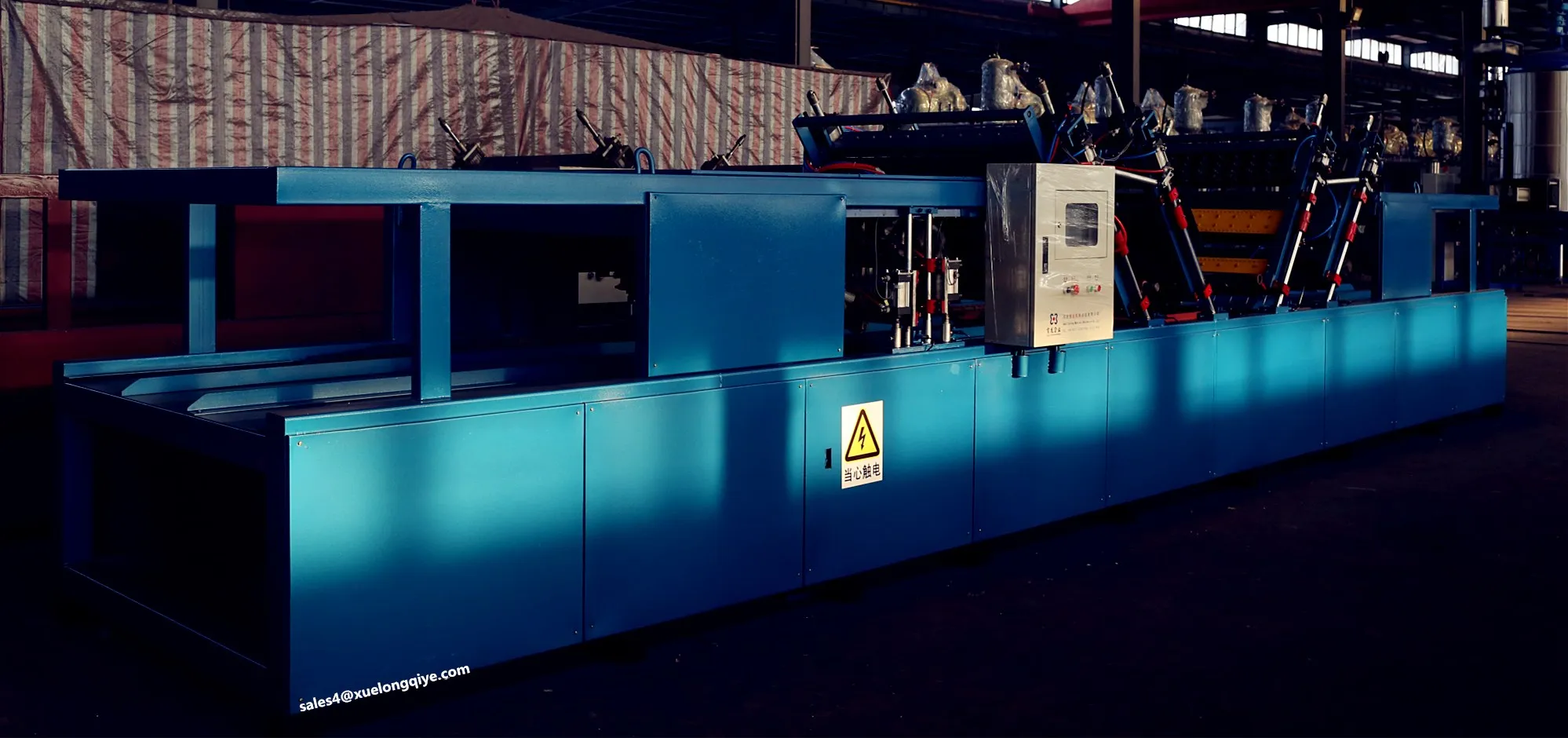

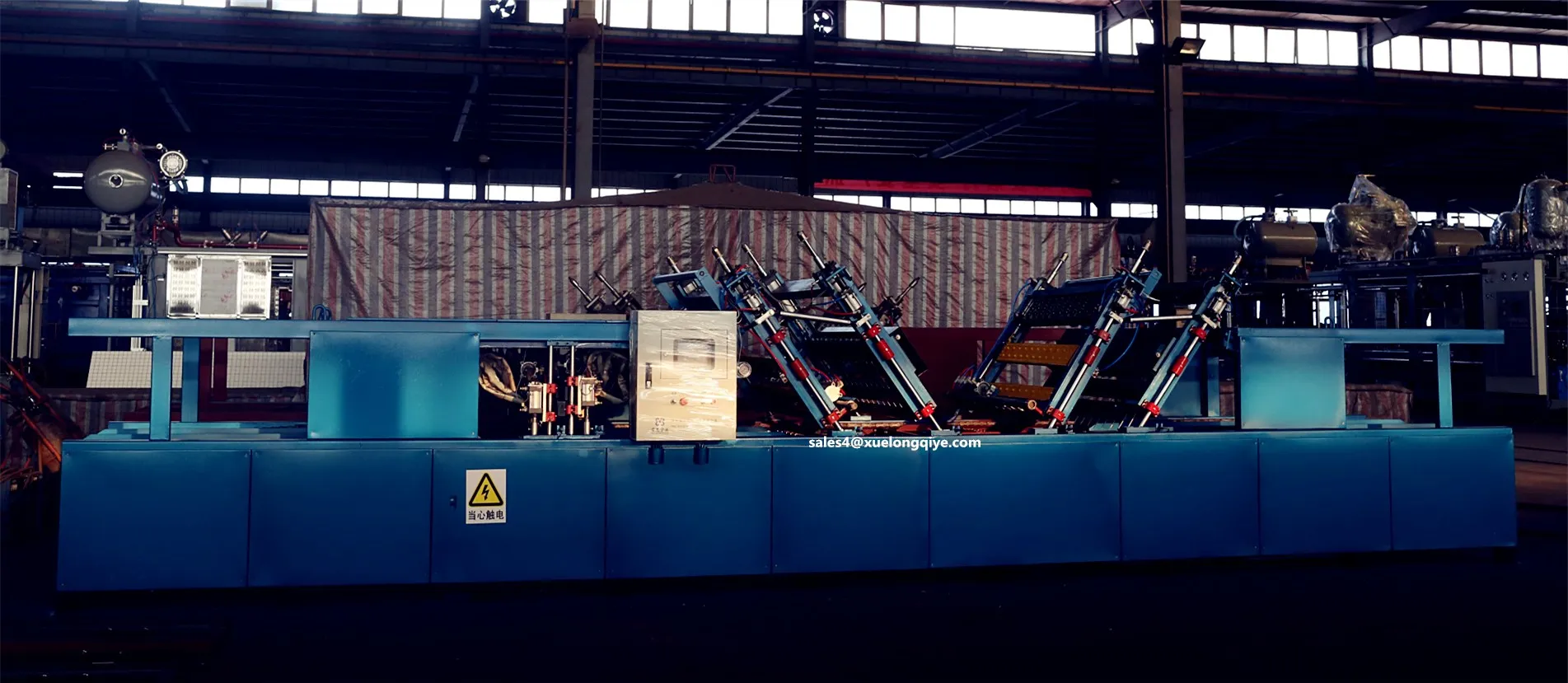

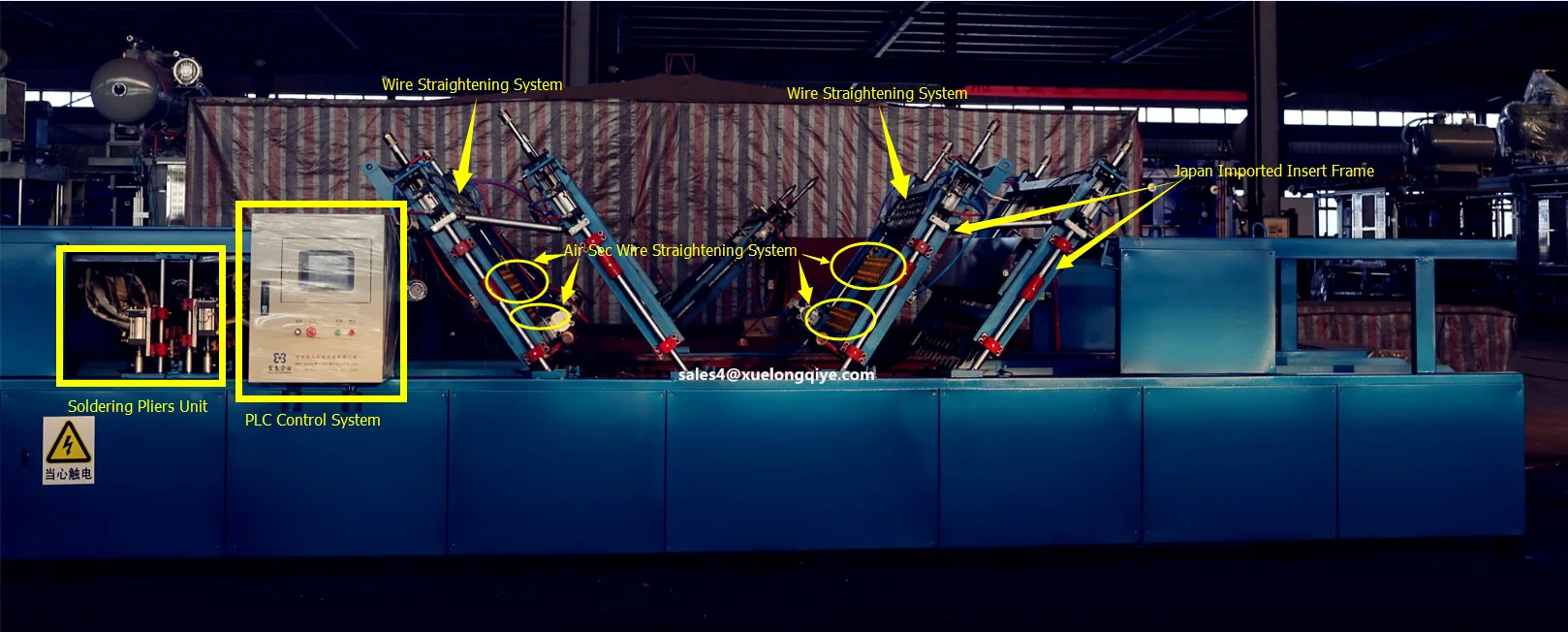

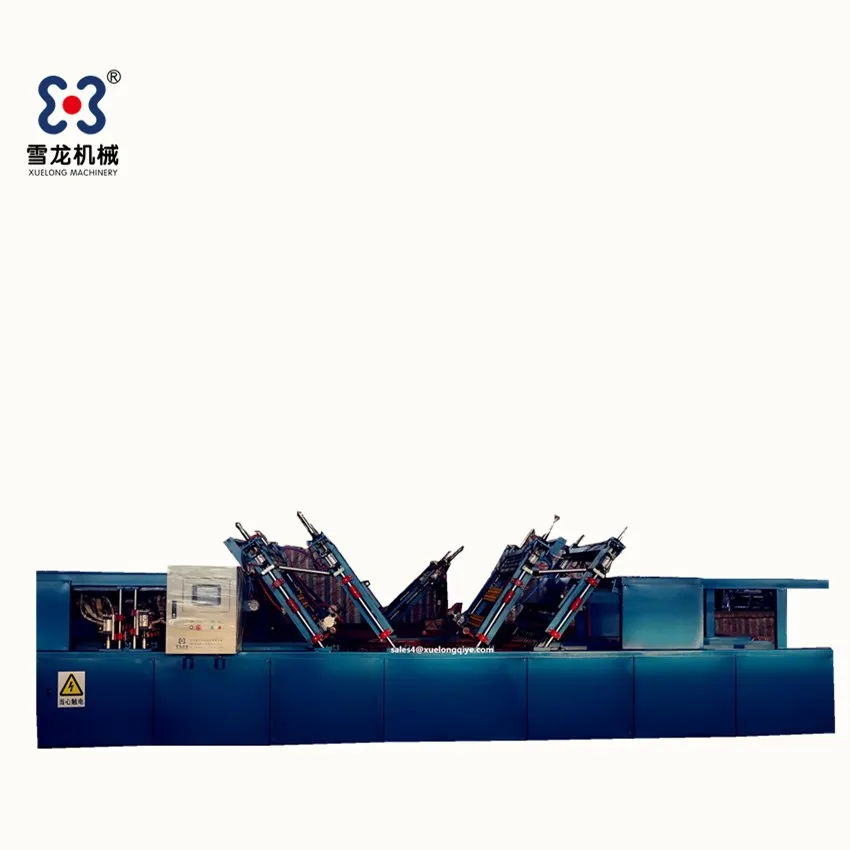

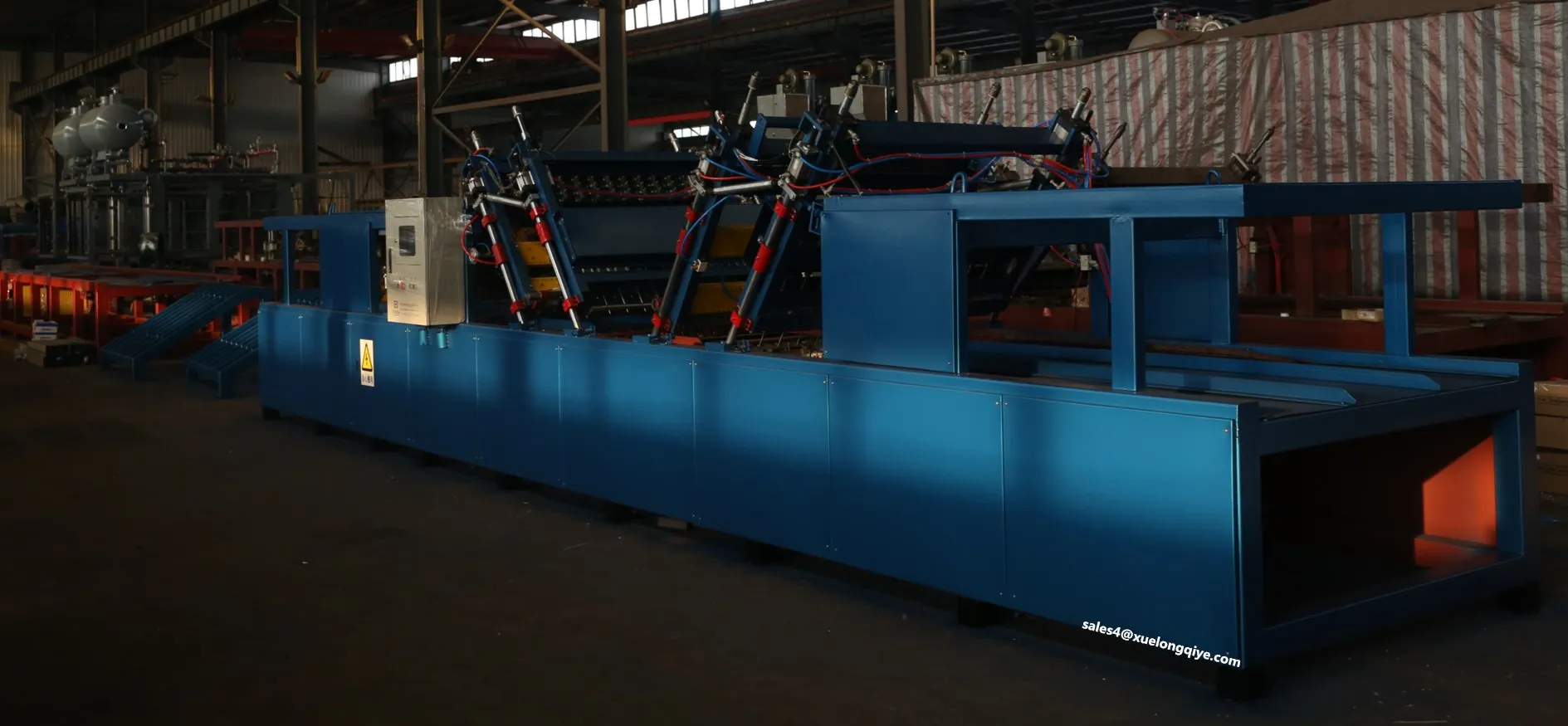

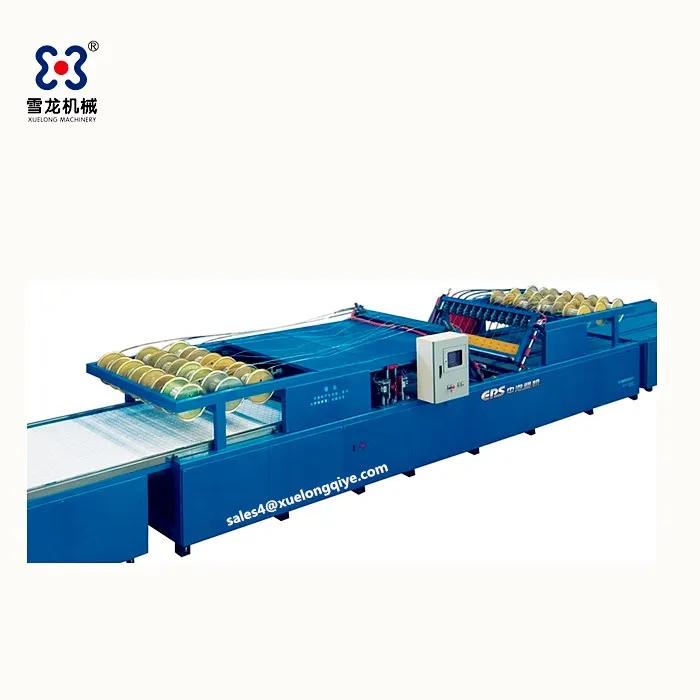

XL-ZH-1200 type3D wire mesh panel machine is made of 11 parts, they are:wire feeding wheel, inserting point A, inserting point B, upper spot welder 1, upper spot welder 2 ,lower spot welder 1, lower spot welder 2,chain transmission system, electric control system, pneumatic control system, and grid frame.
Electric control system adopts PLC to realize central control,each part is driven bystep motor. When it begins working, workers put the EPS board and wire mesh in order in the grid frame on chain. Then workers start the machine. After that, the chain will step onautomatically; the Photoelectric Switch detectsthe position of the grid frame. While the grid framegets to the required position, the inserting board will insert slantwise. Then the machine will successively insert, fasten and weld,cut,reset and step on to complete a cycle, then repeats. The upper spot welders are also detected the position where they drop lower to weld by the Photoelectric Switch.
Each control unit works individually and completesthe process according to planned program, and realizes the continuous production together.
This complete 3D panel production line includes: 3D Panel Machine, Wire Mesh Welding Machine, Winding Machine, and MeshRepairing Machine, which are manufactured by us.
3.Specifications for External Evg eps insulation 3d construction wall tridi panel machine production line .
Items
Technical Parameters
Panel length
3000mm
Panel width
1220mm
Polystyrene board thickness
50mm-100mm
Wire material
Low carbon steel wire. Galvanized, no processed but wire surface is clear.
Wire dia
2-3mm
Capability
400-600m2 / 8hours
Mesh size
50*50mm
Rated power
3m2/min 0.8Mpa
Overall dimension
14500mm*1800m*1700mm
Weight
4000KG
4.Advantages for External Evg eps insulation 3d construction wall tridi panel machine production line .

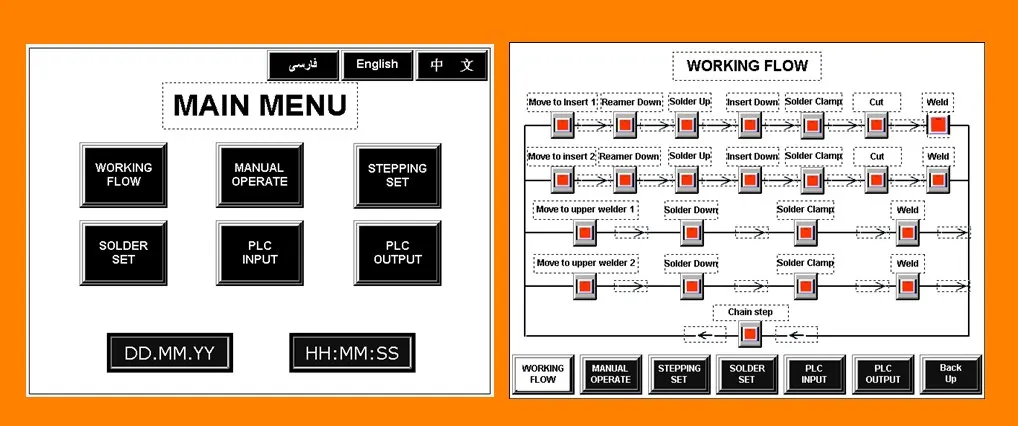

1)PLC touch screen to control system.
3D panel production machine line adopts PLC touch screen to control system. More precise positioning and threading can be achieved. The whole process is fully automated, the control is simple, and the leak welding rate is less than 1%.

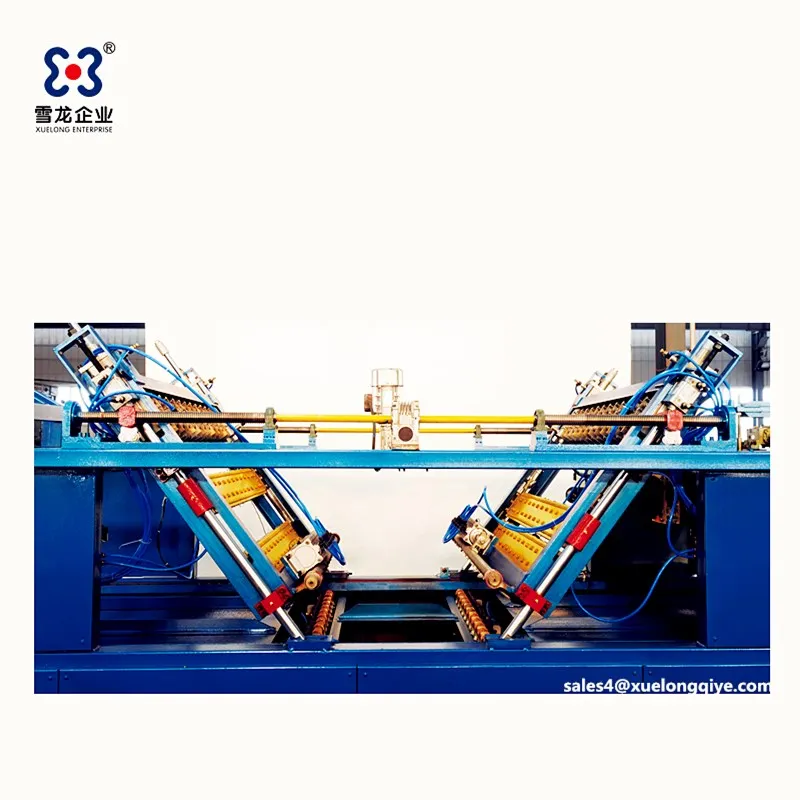

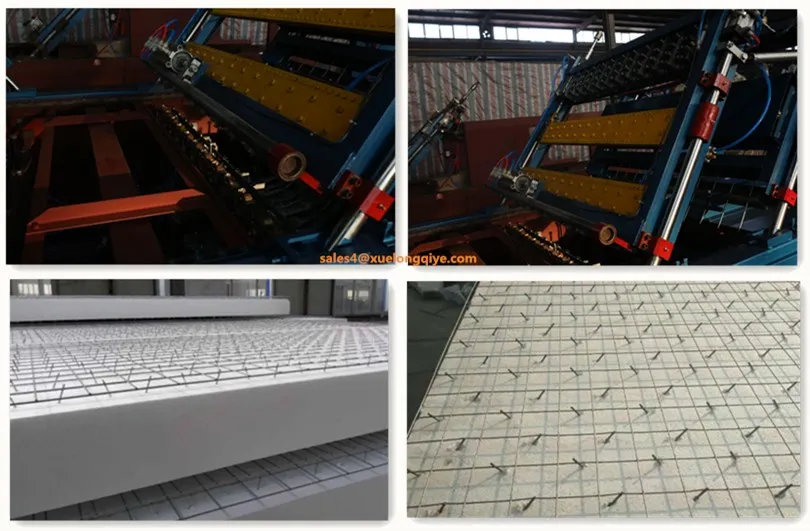

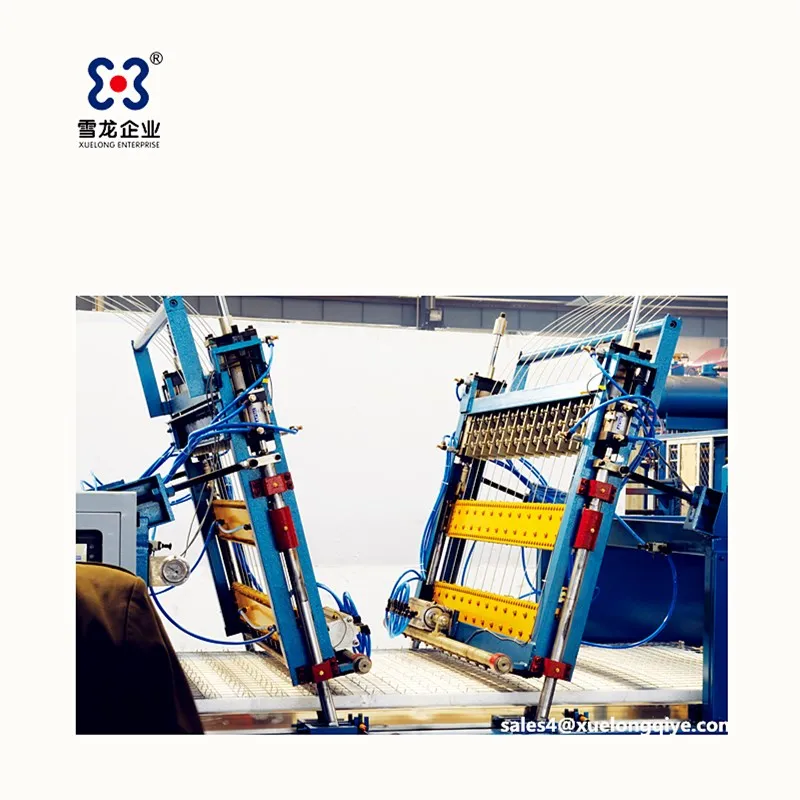

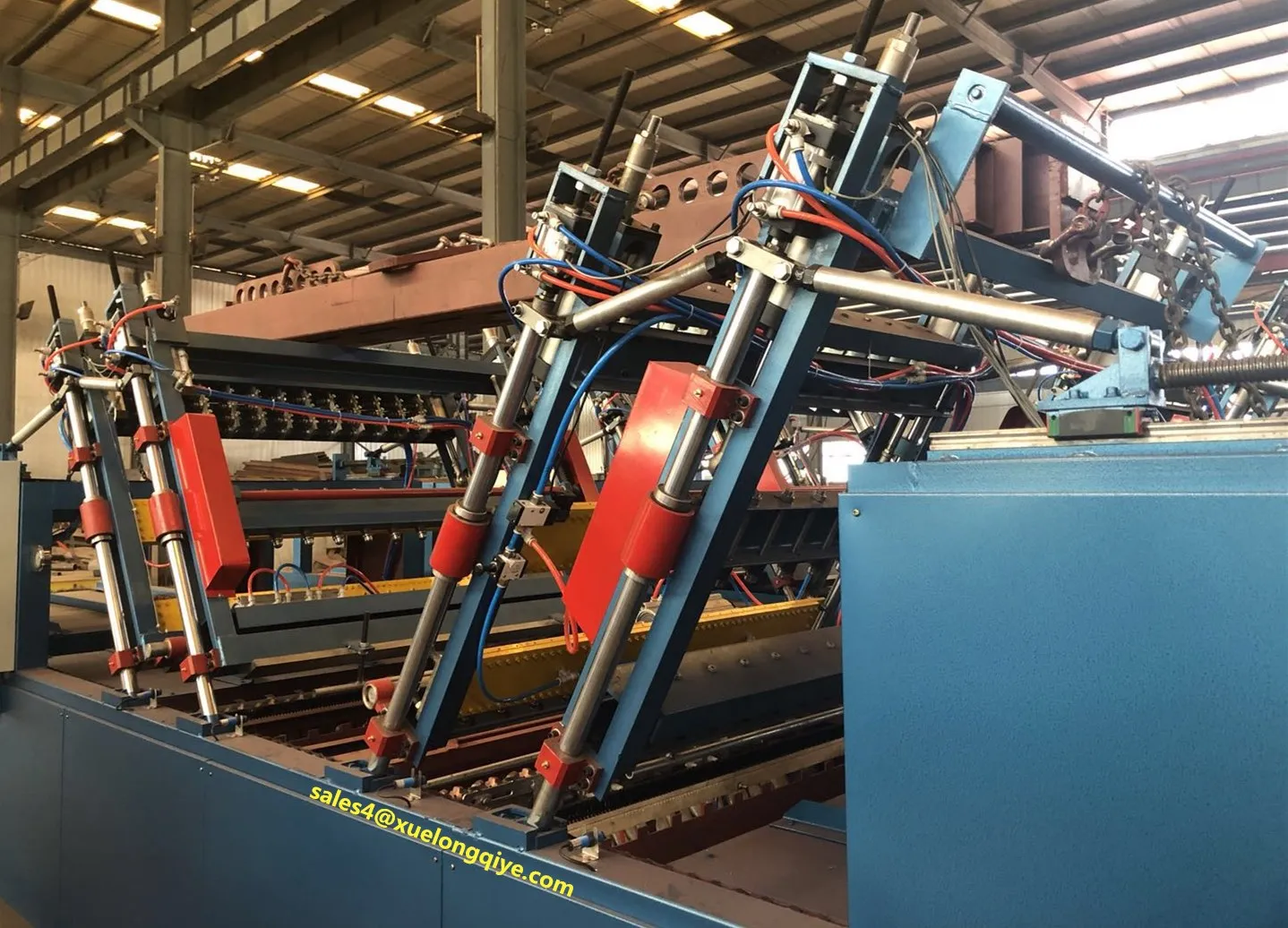

2)Patented Technology --- Soldering Pliers Unit and Pinpoint Wire Inserting .
Germany imported soldering Pliers Unit, high welding efficiency, low leakage welding rate and good welding quality.
The Pinpoint Wire Inserting technology, the first positioning, the rear insertion of the wire, greatly higher the precision of the wire insertion, so that the product is more sturdy and beautiful, durable.
The angle of the insert can be flexibly adjusted according to your needs to maximize the market demand and improve production efficiency.
