Brass Valve production line machinery equipment

Product Overview

Description

product advantages

1.one time finish

2.high efficiency

3.speed is fast

4.quoting ltalian technology

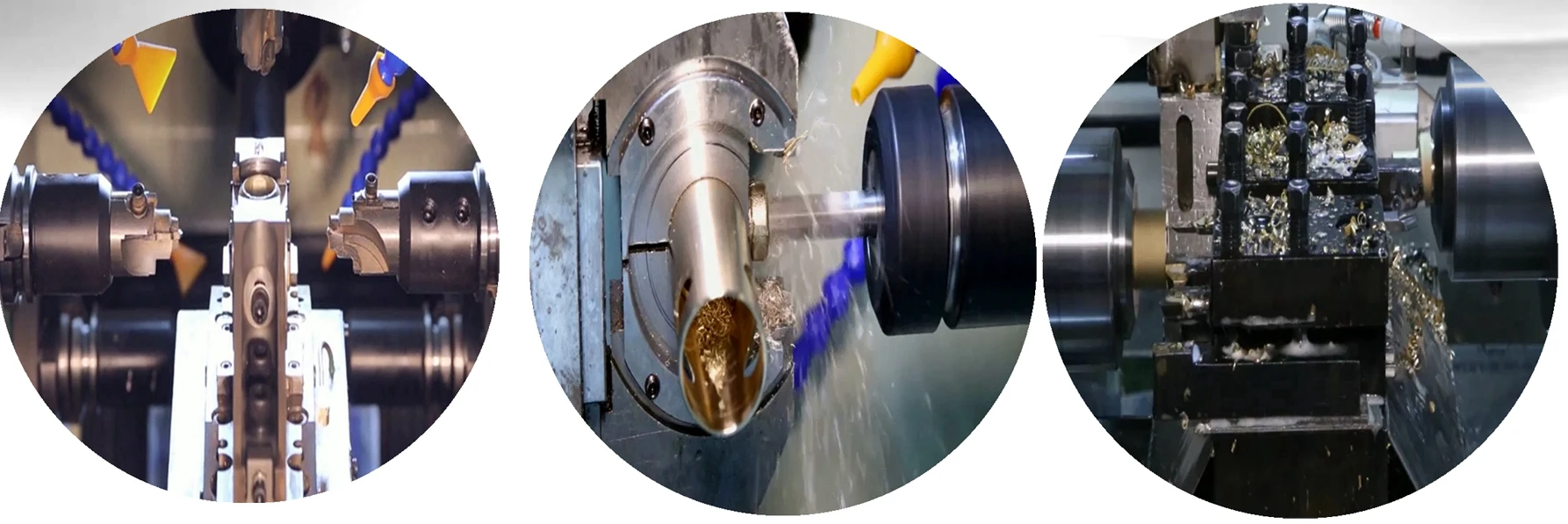

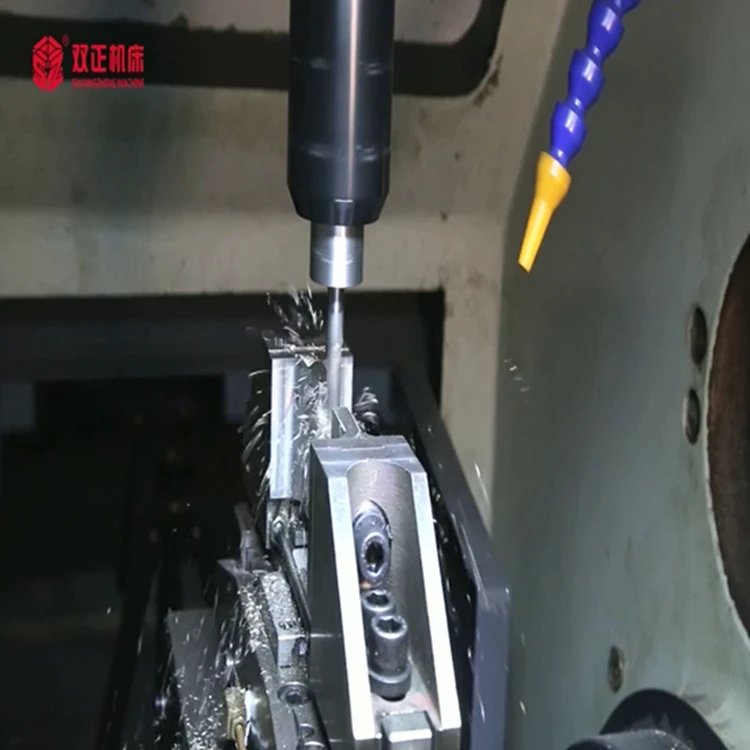

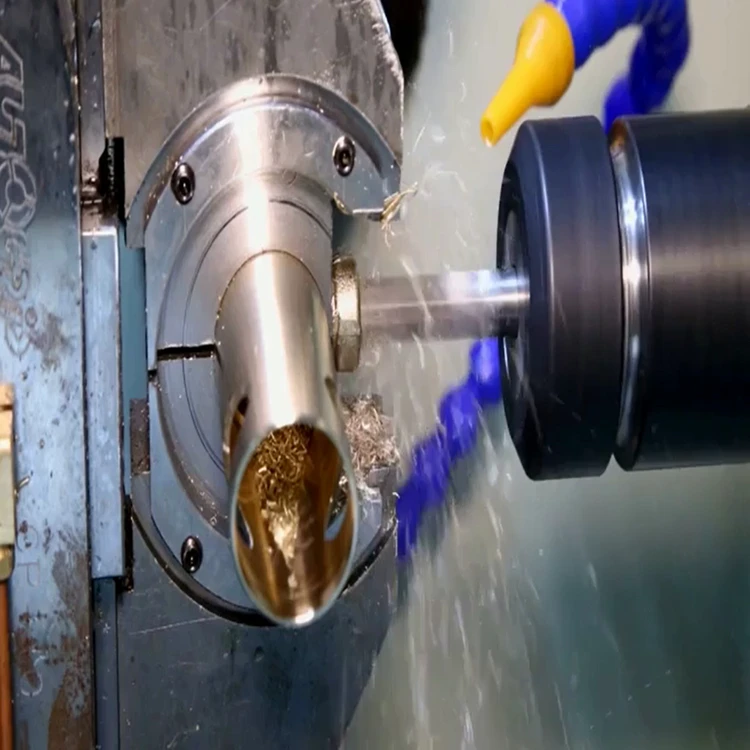

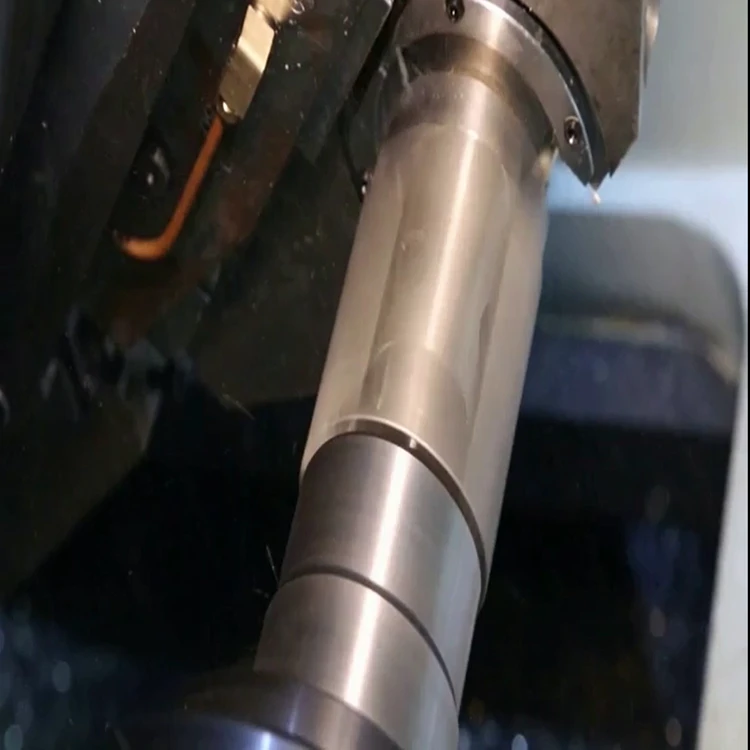

    drilling hole                     boring hole              tapping hole

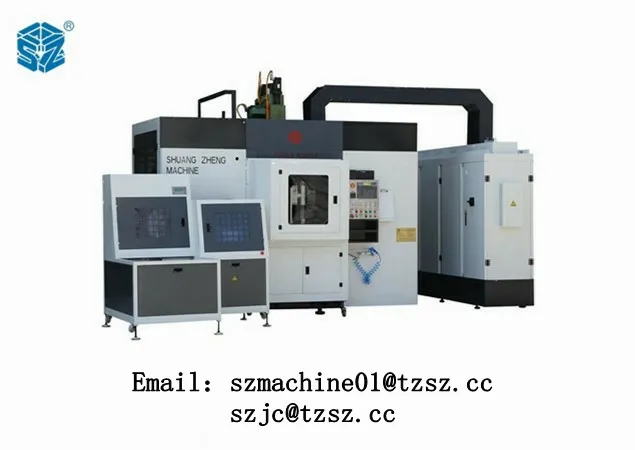

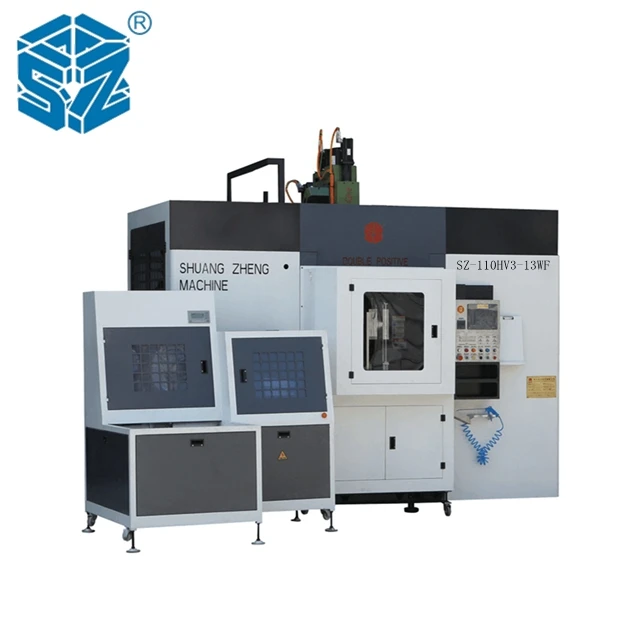

SZ-110HV3-13WF

Italian technology.transfer vertical rotation 8 station 3 direction 13 axis.broing/tapping/groove tools  transfer check valve body  processing special machine

This machine adopts schneider PLC programmable controller control.The operation control is flexible and convenient.Can connect intelligent manufacturing control system.Ensure the efficiency of machine tools.The device has a wide operating window.Convenient workpiece entry and fixture replacement.

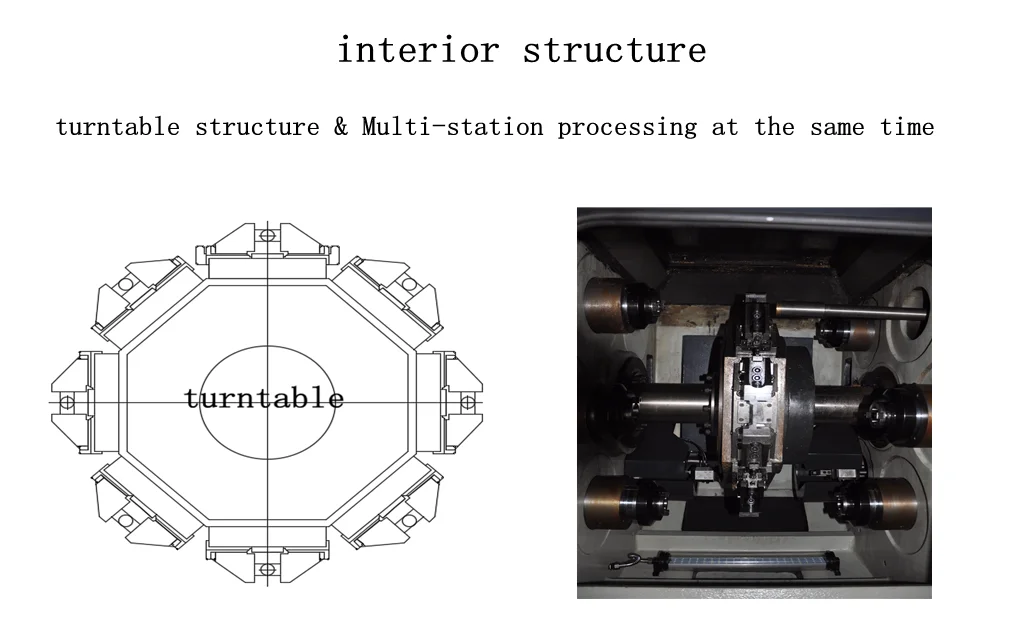

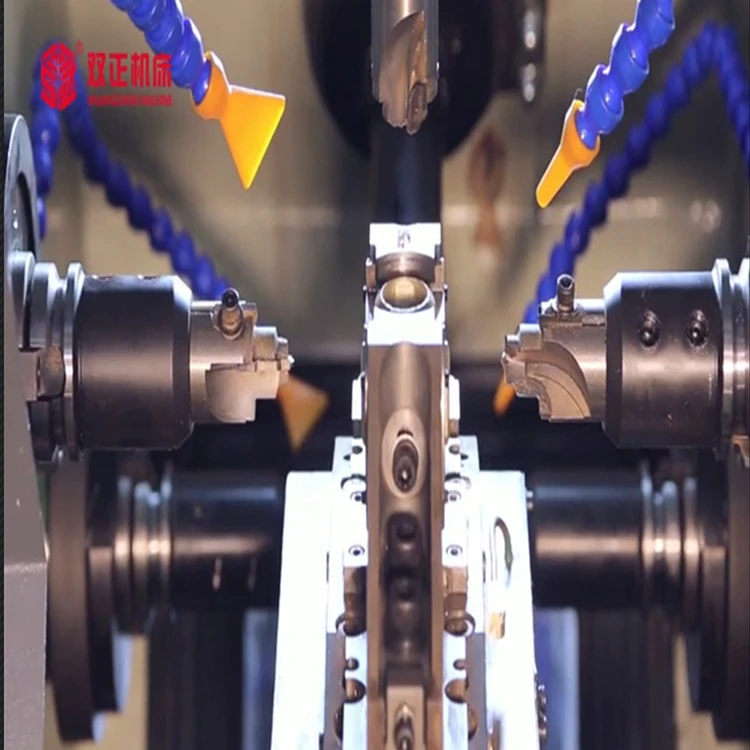

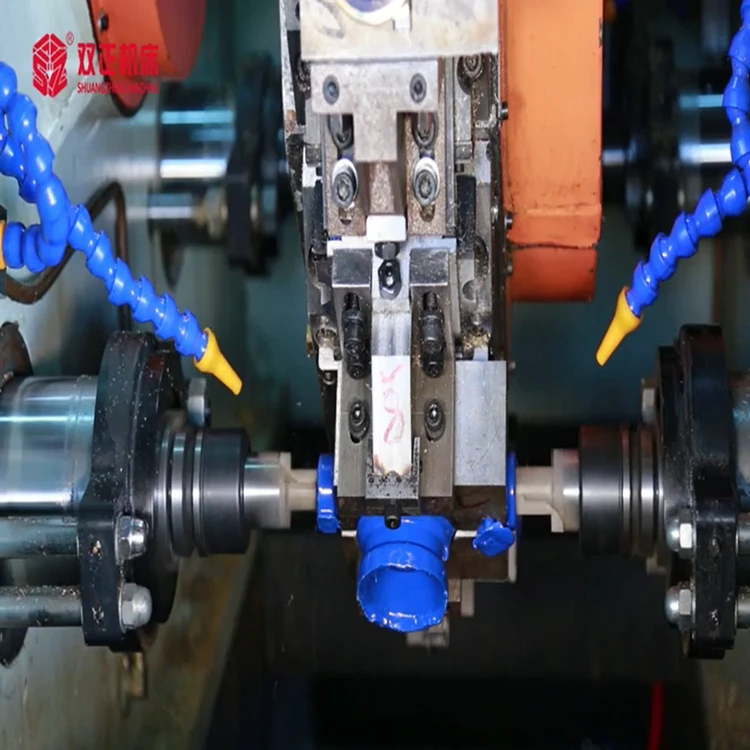

The workpiece is clamped in the machine tool one-time  Armor,8 station Vertical rotation of station rotary table.Synchronous clamp turn 7 close 1 open.Each functional power head,Three directions simultaneously complete broing/tapping/groove tools process.According to customer product drawing processing standard requirements.To complete the finished product in one time.Lean production.

The bed structure is made of HT300 as a whole.According to the process, three times of aging treatment.Minimize internal stress.Ensure no deformation.All holes for power heads and datum plane. The five-sided CNC machining center is used for one-time processing.Perfect to ensure mounting accuracy.





 Our company specializes in the design and manufacture of high -end precision transfer multi-axis combination.Provide 4.6.8.10.12 station body design.power head.Fixture modular design.Provides a highly  flexible combination .Effectively provide customer product solutions.It is widely used in water heating,valve,weiyu,refrigeration and auto parts.

SZ-110HV3-13WF

processed product	check valve
power (kw)	89.6*50%
weight	14000kg
Equipment size (length *width*height)m	6.2*3.8*3.2 m
Exection of figures	boring/tapping/groove tools
upper and lower feeding system	automatic hoist-vibrating disk- mechanical hand feeding
processing efficiency s/pcs	1/2=7s,3/4=8s,1"=9s
chip removal machine	chain plate chip removal machine
processing method	water-cooling processing





Zhejiang shuangzheng machine tool co., LTD was established in August 2015,"Double positive machine tool" is a manufacturing enterprise which makes machine tool equipment for high end intelligent automatic machine processing for water heating and valve industry.The technical quality of the company's products,It focuses on the application technology of machine tool manufacturing in Italy and Taiwan.

company specializes in plumbing valves,Wei yu,refrigeration,Auto parts design and manufacture of high-end intelligent servo multi - axle transfer machine combination processing machine,Valve automatic assembly machine,Fully automatic CNC machine tool,Hydraulic machine tool,Hydraulic machine tool,Automatic machining of pipe fitting joint,The robot intelligent upper and lower feeding system and flexible production line machine and other eight series of more than 100 varieties of production equipment.The company can customize various special machine tools according to the user's demand,Product automation assembly machine assembly line equipment.











our serviece

Before sales

our professional tachnical recommed the right machine and can also customise special machine as customer's requirement and special parts

sales following

during machine production watching the machine quality and testing machine and take pictures or make video for customer checking

After sales

we will send technical go to customer's factory to install and adjust machine

we have after-sell service to supply all life-time machine maintance and repairment service











Q1. How can I get a quotation?

A.  Leave us massage with your purchase requirements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.



Q2. Can you provide customized machine or SPM (Special purpose machine)?

A.  Yes, we provide smart solutions for our customer, in order to increase efficiency.



Q3. Can you provide training for operation CNC machines?

A. Yes, free training in our factory is available.



Q4. How about your price?

A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.



Q5.What's your warranty terms?

A.One year warranty for normal use and we supply maintenance for free.



Q6.What kind of payment methods do you support?

A. We support payment methods such as L/C, T/T, DP, DA and so on



Q7.Do you have a professional technician?

A. Yes, our company has a team of professional engineers from Taiwan.



Q9.What is the technology adopted by the machines in your factory?

A.Our factory adopts mature Italy sub technology.





Our company specializes in the design and manufacture of high -end precision transfer multi-axis combination.Provide 4.6.8.10.12 station body design.power head.Fixture modular design.Provides a highly  flexible combination .Effectively provide customer product solutions.It is widely used in water heating,valve,weiyu,refrigeration and auto parts.
