Generally, heating pipe, the oven with circulating fan can be called hot air circulation oven, because no matter what the structure of the oven, the wind direction is horizontal or vertical, it is all hot air circulation inside, so it can be referred to as hot air circulation oven, such as electric air blast oven, high temperature sterilization oven for the door. However, most of the so-called hot air circulation ovens in the general industry still refer to the ovens as shown above. Other ovens are evolved from the above ovens. For example, with the requirement of high temperature sterilization, the fan is changed into the air cooled standard ring fan.
Item Informations
Item Informations
Item Name

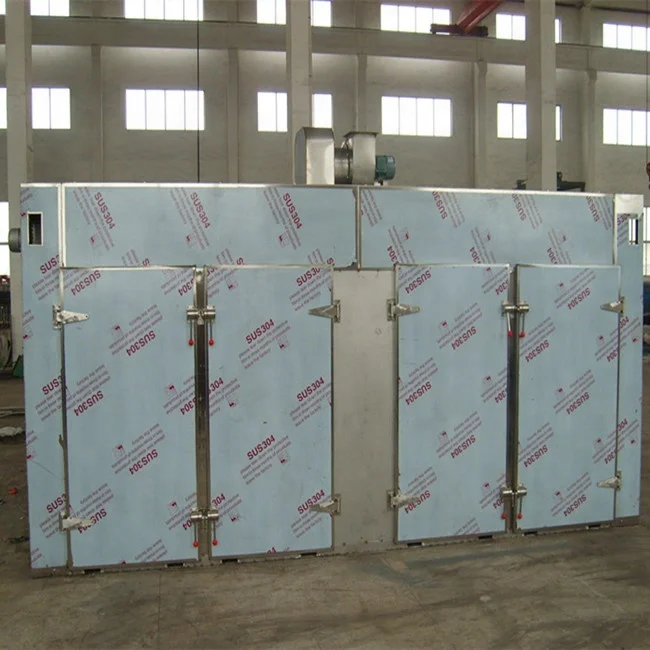

CT-C hot air circulation drying oven, hot air drying oven
Heating Source
Steam, electricity, far infrared, electric steam, etc.
Using Temperature
The steam is heated at 1: 50-140 ℃ with a maximum of 150 ℃. Electric, far-infrared heating temperature 50-350 ℃.
Automatic control system and computer control system available
Common Steam Pressure
0.02-0.8Mpa(0.2-8 kgf/cm2)
Notes
1. Special requirements are indicated at the time of ordering.
2. Use temperature above 140 ℃ or less than 60 ℃, note when ordering.
3. Our factory can supply drying trolley, baking plate size unified, baking plate position can be exchanged.
The air circulation system of the hot air circulation oven adopts the fan circulation air supply mode, the air circulation is uniform and efficient. The air source is driven by the circulating air supply motor (using non-contact switch) through the heater, and the hot air is sent out, and then through the air duct to the oven chamber, and then the air suction duct after use is recycled as the air source for heating. Homogeneity of indoor temperature. When the swing occurs due to the action of the switch door, the supply air circulation system quickly restores to operation until the set temperature is reached.
Structures of hot air circulation drying oven:
The hot air circulation oven consists of angle steel, stainless steel plate and cold steel plate. The insulation layer is filled with high density aluminum silicate cotton. The high density aluminum silicate cotton ensures the temperature preservation of the oven and the safety of the user. The heater is installed at the bottom, top or sides. A digital intelligent instrument is used to control the temperature. The hot air circulation oven air duct design has two kinds: horizontal air supply and vertical air supply.
Horizontal wind: horizontal wind is left wind, right suction, suitable for powder baking.
Vertical wind: vertical wind is both sides of the wind, the middle suction, suitable for large industrial products baking.
Applications:
The hot air circulation oven is used for heating, curing, drying and dehydrating materials in medicine, chemical industry, food, agriculture and sideline products, aquatic products, light industry and so on. Such as raw materials, Chinese medicine pieces, extract, powder, granules, dehydrated vegetables and so on.
Featurs of hot air circulation drying oven:
1. The hot air in the oven circulation, high thermal efficiency, energy saving.
2. By using forced ventilation, the oven is equipped with air duct, and the material is dry evenly.
3. The oven runs smoothly. Automatic temperature control, easy installation and maintenance.
4. Wide range of application, can dry all kinds of materials, is an ideal general drying equipment.
About the hot air circulation system:
Hot air circulation system mainly includes cyclone separator, blower, air filter and heater. The hot air from the dryer is removed by a cyclone separator and then returned to the blower, then filtered and heated into the dryer. During the circulation, the temperature of the root air releases part of the circulating air continuously. The feature of the dryer is that the slice is made into a piston comb ball in the ten dryers, which basically ensures that the slice has the same small residence time in the drying process, and the drying quality is good. Moreover, the dried slices can be connected into the screw extruder hopper continuously for spinning to avoid the moisture return of the dry chips. And the dryer itself structure is relatively simple.
Packing & Delivery
Packing & Delivery
1. Our CT-C hot air circulation drying oven should been cleanned first, then packaged with the transparent coating, next it will been shipped into the marine container with steel wire fixing.
2. If there is over-size drying machine, we will choose the flat rack container to shipping.
3. The contract takes effect after receiving 30% advance payment. Delivery within 10 days after receiving the payment, the payment shall be at least 60% of the total value of the product.
Company Information
Company Information
Our company, Jiangsu Shengman Drying Equipment Engineering CO., Ltd is a high-tech enterprise mainly engaged in drying innovative equipment, located in zhenglu town, tianning district, changzhou city, covering an area of 16,000 square meters and a building area of over 9,000 square meters. Our company is specialized in producing all kinds of drying equipment, granulating equipment, mixing equipment, crushing equipment and dust removal equipment.
Companies have set up cooperation with nanjing university of science and technology of drying technology research and development centers, and a drying equipment sample workshop, modern large heavy-duty workshop and related measurement test equipment, have professional research and development, design and production applicable to the pharmaceutical, chemical, agricultural products deep processing, bioengineering and food additive industries dry series equipment. The company has 180 employees, among which 30 are engineers, 25 are comprehensive managers, 25 are sales staff, and 40% are college degree or above.
The company has passed ISO9001 quality management system certification, and good operation, the bank credit AAA grade. All of Shengman people will be in the spirit of down-to-earth enterprise, sincerely for the purpose of users, all-round pre-sale, sale, after-sale services, and all friends to cooperate with the drying industry in China to further improve the level of efforts.
Our Service & FAQ
Our Services
Pre-service: As a good and rich experience supplier, we should offer customer the best quality and best price of the machine. We do something as following:
(1). introduce the suitable product to the customer in detail
(2). answer the question raised by customer carefully
(3). make the suitabe project as the customer requirement
(4). make sure the machine is suitable for the material
Sale service:
In order to fulfill the contract smoothly, establish a good cooperative relationship, here's are several points what we must do. (1). ensure product with high quality and pre-commissioning before delivery (2). delivery on time (3). provide full set of documents as customer’s requirements
After-sale service: Provide considerate services to minimize customers’ worries. (1). Assist customers to prepare for the first construction scheme. (2). Install and debuging the drying equipment. (3). Train the first-line operators. (4). Exame the drying equipment. (5). Take initiative to eliminate the troubles rapidly. (6). Provide technical support. (7). Establish long-term and friendly relationship with all my customers.
Service commitment: We provide customers 12-months warranty to make sure the machine work well, and always keep certain inventory level of spare parts, which means the replacements can be sent to you timely. At the same time, we send every customer a preferential and reasonable quotation.
FAQ
Q: How can i visit your factory? A: Our company is in Changzhou city, and it is very near Shanghai city. It takes about 1 hour to get to Changzhou. Or we can even visit you in Shanghai.
Q: Are you a factory or a trading company?
A: We are a manufacturer, and have been in the drying industry for more than ten years.
Q: What’s the MOQ of your products? A: 1 set.
Q: How is the quality of your products? A: Our products come with best quality, and passed CE certification. And exported to lots countries around the world, such as Australia, Malaysia, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the drying machine has a problem? A: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: Does your price include freight? A: The price we offer usuallly is FOB Shanghai price. If you request CIF, please give us your delivery port, and even can offer the EXW price (the machine cost) for you.
Q: What is your payment term? A: Our usual payment term is T/T. 30% T/T in advance, another 70% T/T before shipment. Other ways can also be received after we discussion and agreement, like L/C.
Q: Which kind of payment you accept?
A: Common is after 30% of the advance payment is received, the contract becomes effective (20% of which is the deposit); The production cycle depends on the actual situation; Delivery to Shanghai port within 15 days after the another 70% payment is received.
