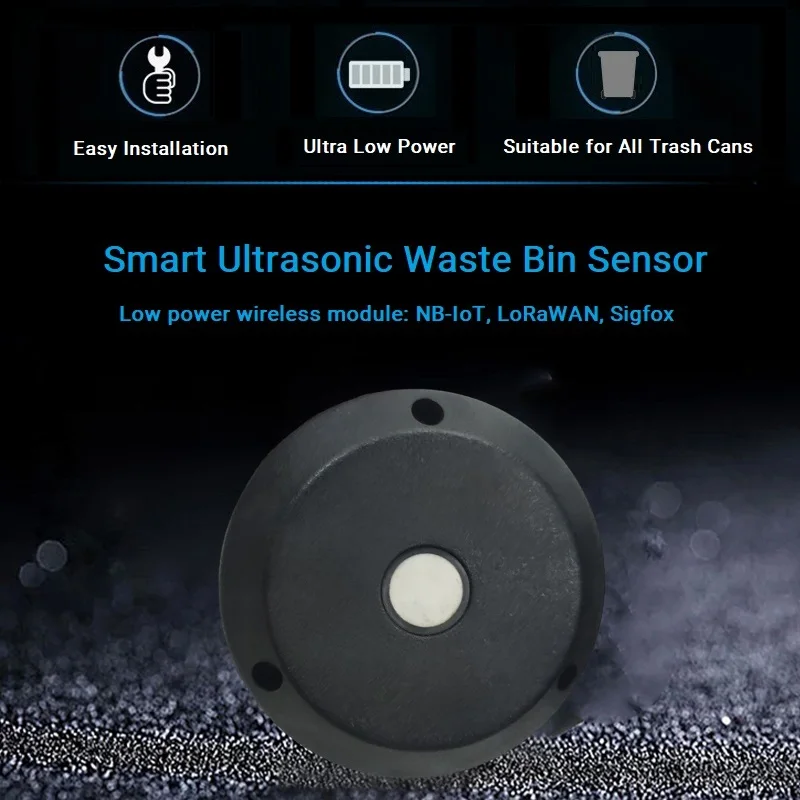

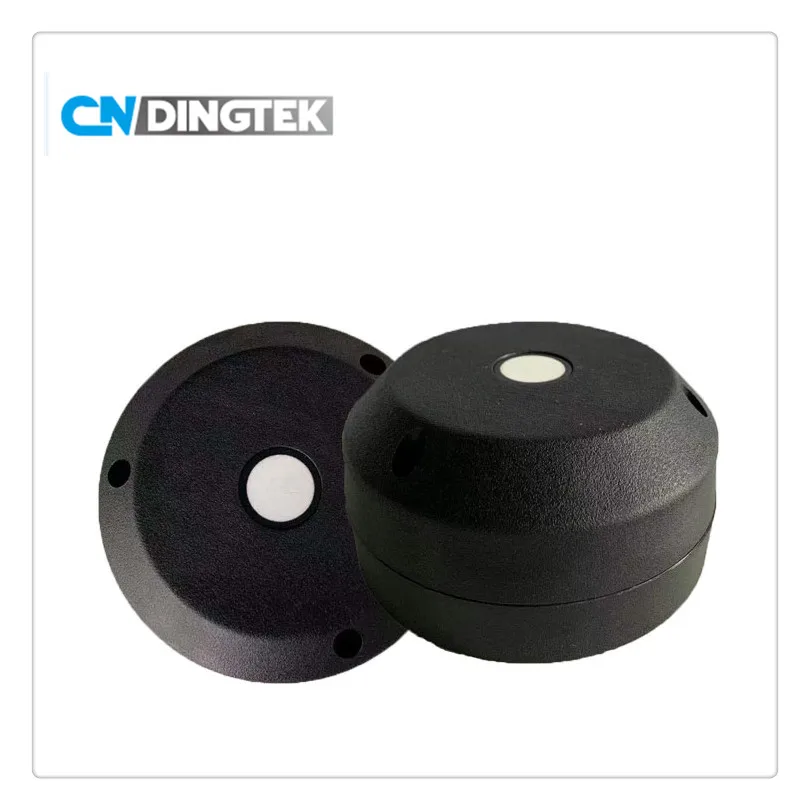

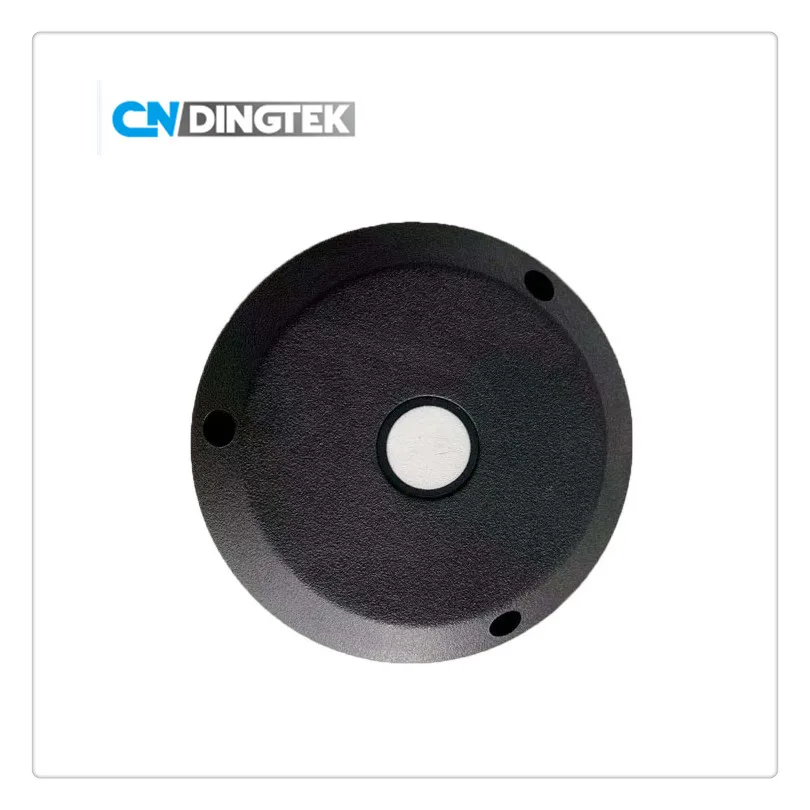

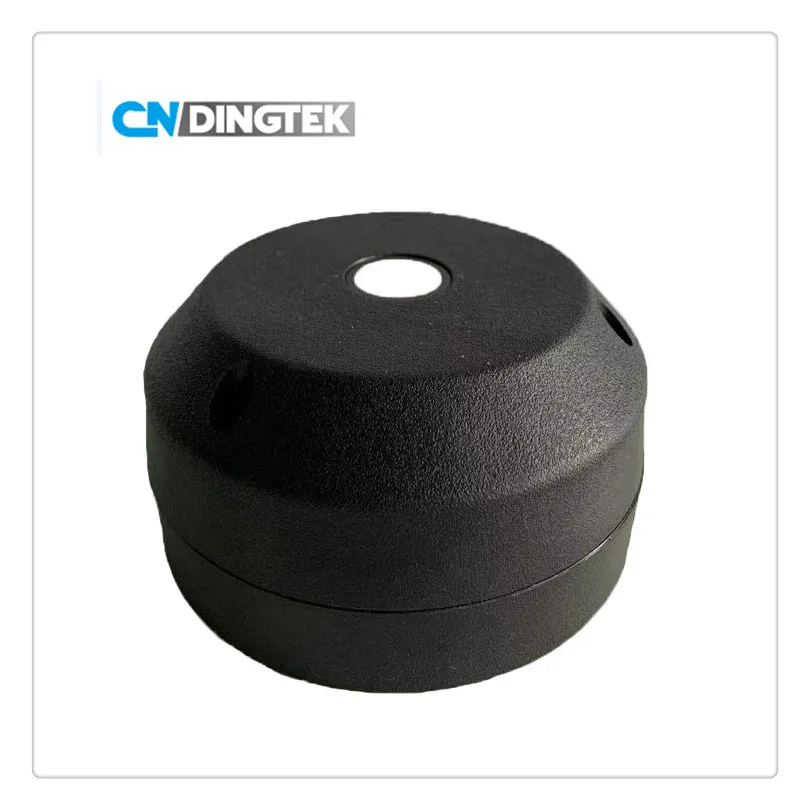

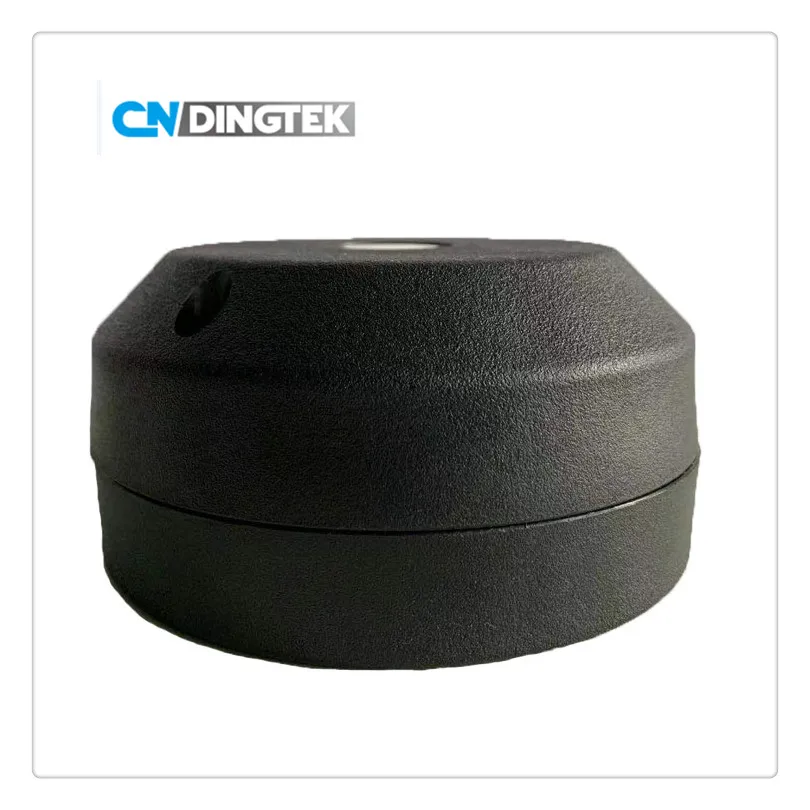

The DF702 sensor is designed for waste bin status detection. It detect the following status:
- Full
- Flame risk
- Inclined or not
Through the NB-IoT module. it transmit the status via NB-IoT sim card to base station, then via internet network to network server to application server. Finally user can monitor the status remotely.
As it is with algorithm of low power consumption, the internal battery can work for more than 3 years (at 4 hours interval upload interval).
Specification
Overview
Dimension
115*115*50mm
Net Weight
150g
Color
Black
Shell Material
ABS
Detector
Principle
Ultrasonic
Detection Range
200cm/500cm
Blind area
0-15cm
Accuracy of height
3mm
Accuracy of temperature
2℃
Accuracy of angel
2° (optional)
Controller
MCU
STM32, 32bit ARM® core controller
Radio
Communication
NB-IoT
Frequency
Full frequency band(B1,B3,B5,B8,B20) and B28
Battery
Inner Battery
Non-rechargedLithium Battery10500mAh @ 3.6V
Battery Life
More than 3 years
Environment
Operating Temperature
-20 ~ +70℃
Storage Temperature
-40 ~ +85℃
Protection Level
IP66
