DIY Mini CNC Router 6090 3 Axis Milling Machine With 2.2KW Water Cooling Spindle
- Category: >>>
- Supplier: Shenzhen Gthink Tech Co. Ltd.
Share on (60790815323):
Product Overview
Description
DIY Mini CNC Router 6090 3 Axis Milling Machine With 2.2KW Water Cooling Spindle
Product Description
Brief introduction
A. What area it can used for?
CNC 6090 3 axis 2.2KW router mini CNC milling machine is widely used for different area such as Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, PCB, Adverstising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.
B. What materials it can used for?
It can work for Wood, acrylic,plastic,Jade, PCB ,PVC,Aluminum, Copper, Acetate Sheet, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, Industrial or Hobby Prototype Building, Building Model Making, etc. So, you can do engraving work at office or home,Ideal for milling, engraving, drilling & cutting.
The Hardware Capabilities :
1. Limited switch added.
2. Auto checking function added.
3. 2200W spindle.
4. USB or parllerl port.
5. Control box can be 3 axis and 4 axis universal.
6. Water cooling spindle, less noise.
Soft service :
1. Got CE approval.
2. Youtube cnc machine video support.
3. Technical team always available.
4. English manual available.
5. USB CNC or Mach 3 software available.
6. From reliable & trustable profesional China mini CNC router machine manufacturer.
Other features:
1. Independent power supply for mainboard, prolong using life.
2. With strong aluminum alloy frame materials.
3. Cover plates reducing pollution for the screws and shafts.
4. steady and strong support structure Spindle motor knob.
5. Independent power supply for mainboard, prolong using life.
6. Use with a computer which connets with a cable (parallel or usb cable).
Customers need to prepare G codes,then lead it to the MACH3 or USB software and start to run the machine.
Specifications

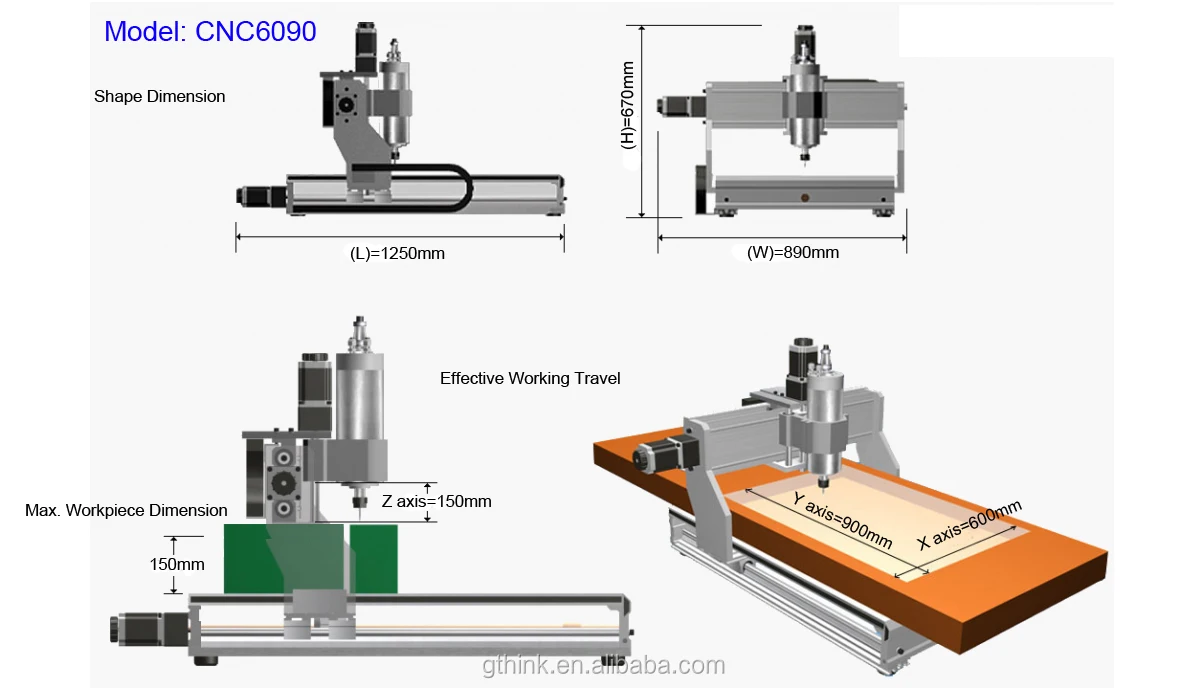

Effective working travel | 600(X)mm*900(Y)mm*150(Z)mm | |
Shape dimension | 890*1250*670mm | |
Frame materials | Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs | |
acceptable material thickness | ≤150mm | |
Driving units | X/Y/Z axis | X,Z SFUR1605-DFC7-P0 ball screw, Y SFUR2005-DFC7-P0 ball screw |
Sliding units | X axis | Dia.30mm chrome plate shafts |
Y axis | Dia.30mm chrome plate shafts | |
Z axis | Dia.16mm chrome plate shafts | |
Stepping motor type | 57 two-phase 3A 150N.cm | |
Spindle motor | Changlong GDZ80-2.2, 24000RPM, 2200W | |
Principal axis collet | ER20 1-13mm | |
Repeat accuracy | 0.05mm | |
Spindle precision | radial beat acuities 0.03 mm | |
Maximum speed | 4000mm/min | |
Control unit | E100S2R2B + JMC542 independent drive board for each Axis | |
Computer connection | MACH3+Parallel port for Win XP , USBCNC + USB cable for Win 10 | |
Command code | DXF file, Gerber file, G code, or any MACH3 support format file | |
Protection | Emergency stop button | |
Operating Voltage | AC220V/110V | |
Accessories | Pump, Auto checking tool , cutter, banner and so on. | |
Warranty | 1 Year | |
Package size | One wooden box package , 121*86*82cm,valume weight 170KG | |
Gross weight | 150KG | |

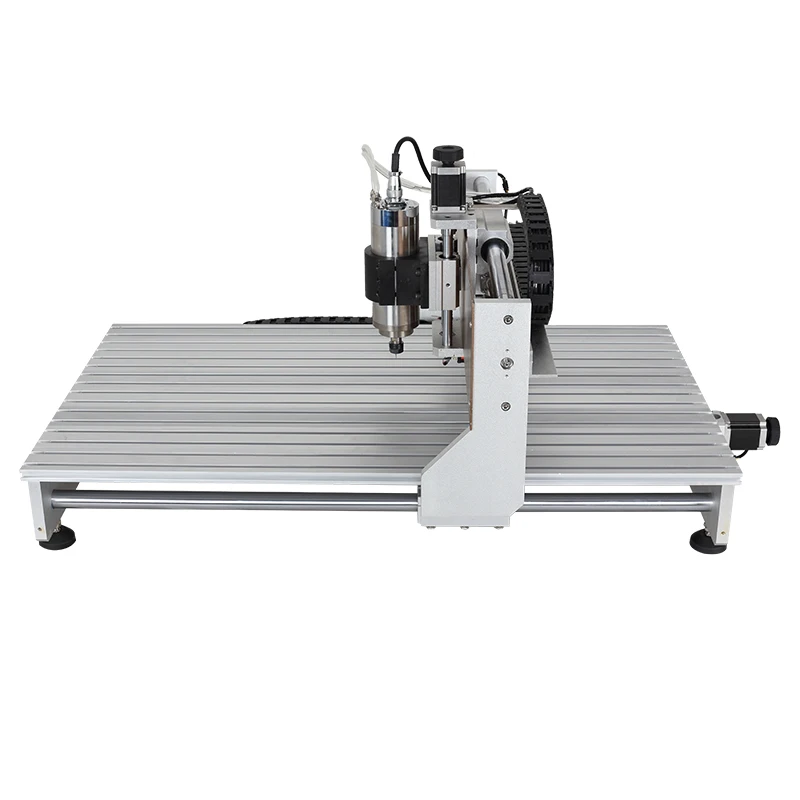

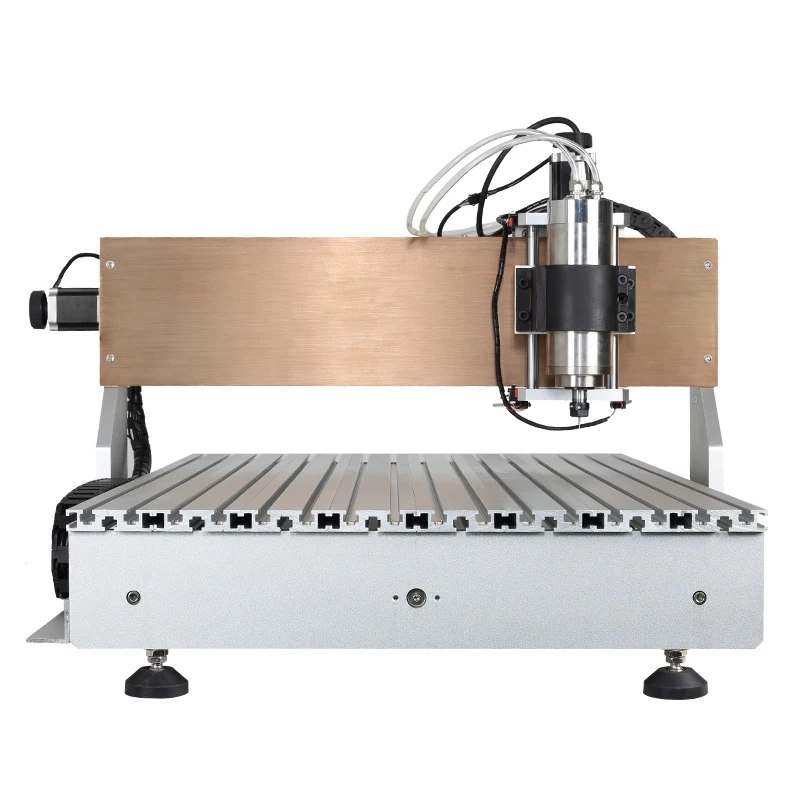

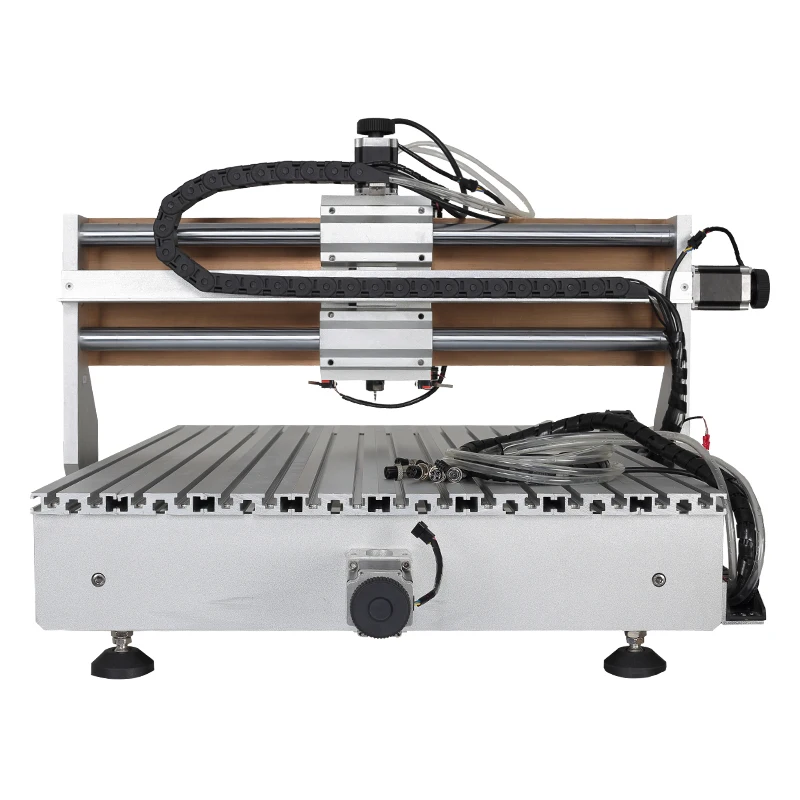

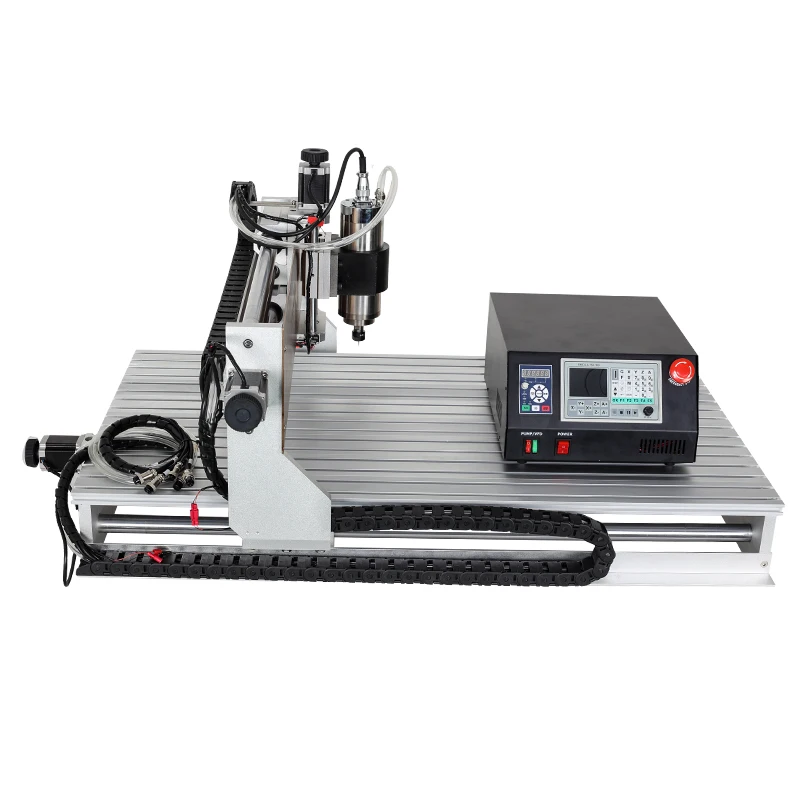

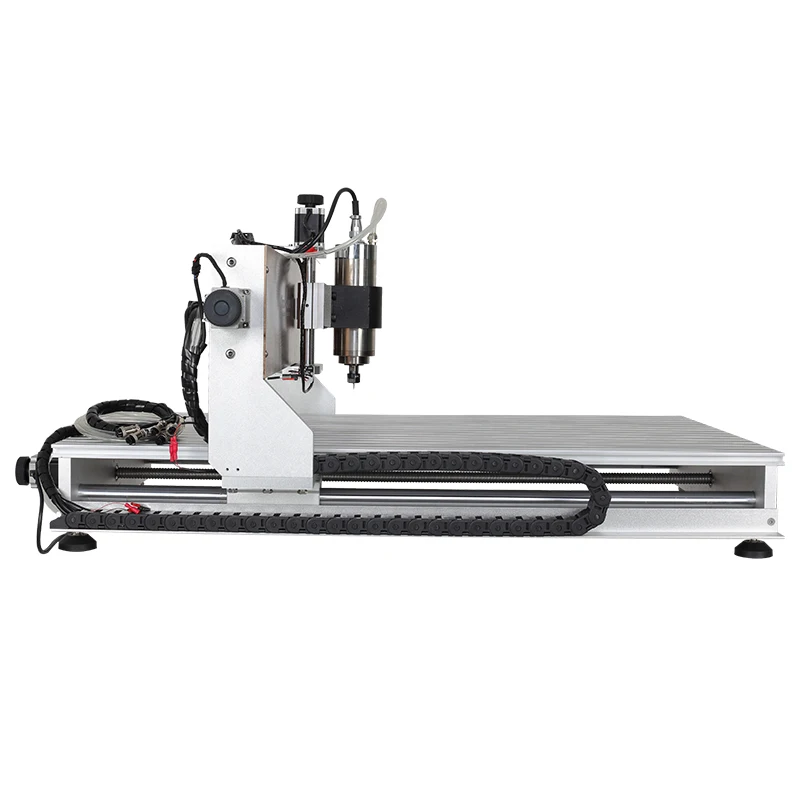

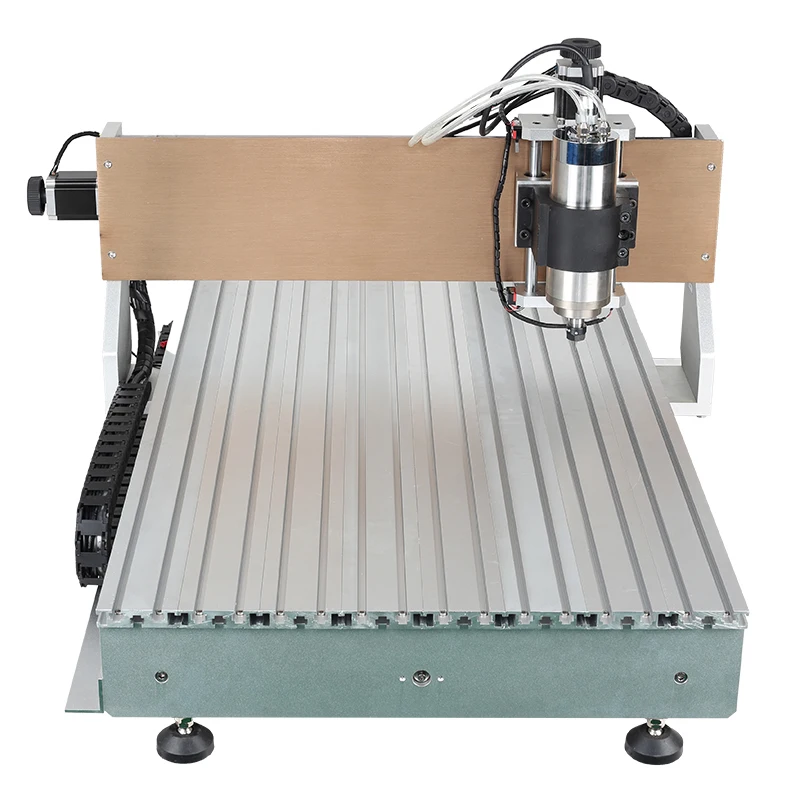

Detailed Image
Factory Photos
Machine will be tested well before shipment

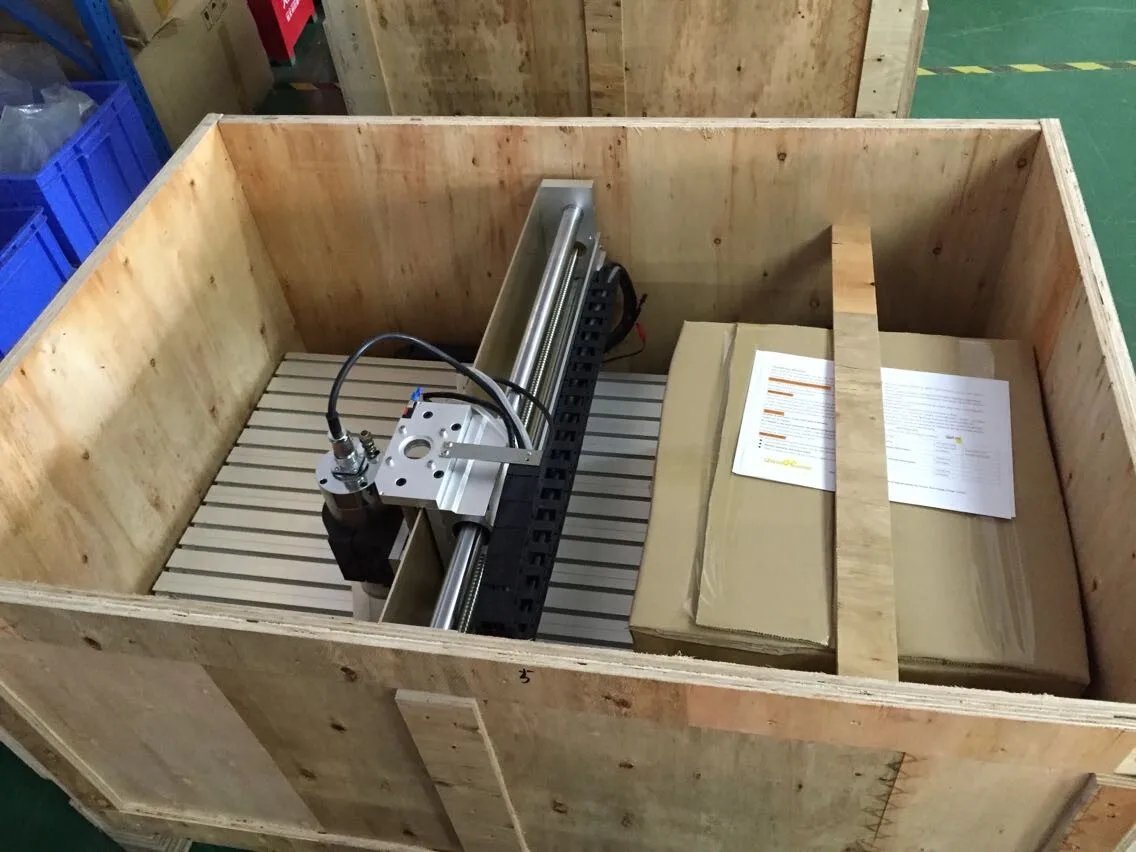

Packaging & Shipping
Packing List:
1 water pump *1
2 CD (software)*1
3 Fixed briquetting *4
4 milling bit *1
5 clamp tool *3
6 parallel cable *1
7 USB cable *1
8 auto-checking tool *1
9 clamp tool *6
10 engraving bit *3
11 collet 3.175 *1
12 screws *4
13 limited switch *4
1.Wooden box box .
2. Package size:121*86*82cm,Gross weight 150KG,volume weight 170KG
wooden box.
Shipping Methods:
1. 1)Express(door to door):DHL/Fedex/TNT etc.
2)Air/Sea Shipment: Please provide us your air port information.
2. The shipping cost depends different weight,we will choose the cheapest and safest way according your order.
3. Shipping time:Usually it will take around 4-5days by Express from China to destination country.Please note that 1-3 more days will be needed for some remote place.
Shipment Time:
1. For samples within 1-3 workdays
2. Wholesales Orders : 2-5 workdays according to different quantities
3. OEM orders:7-10 days after receiving your sample confirmation and payment.
