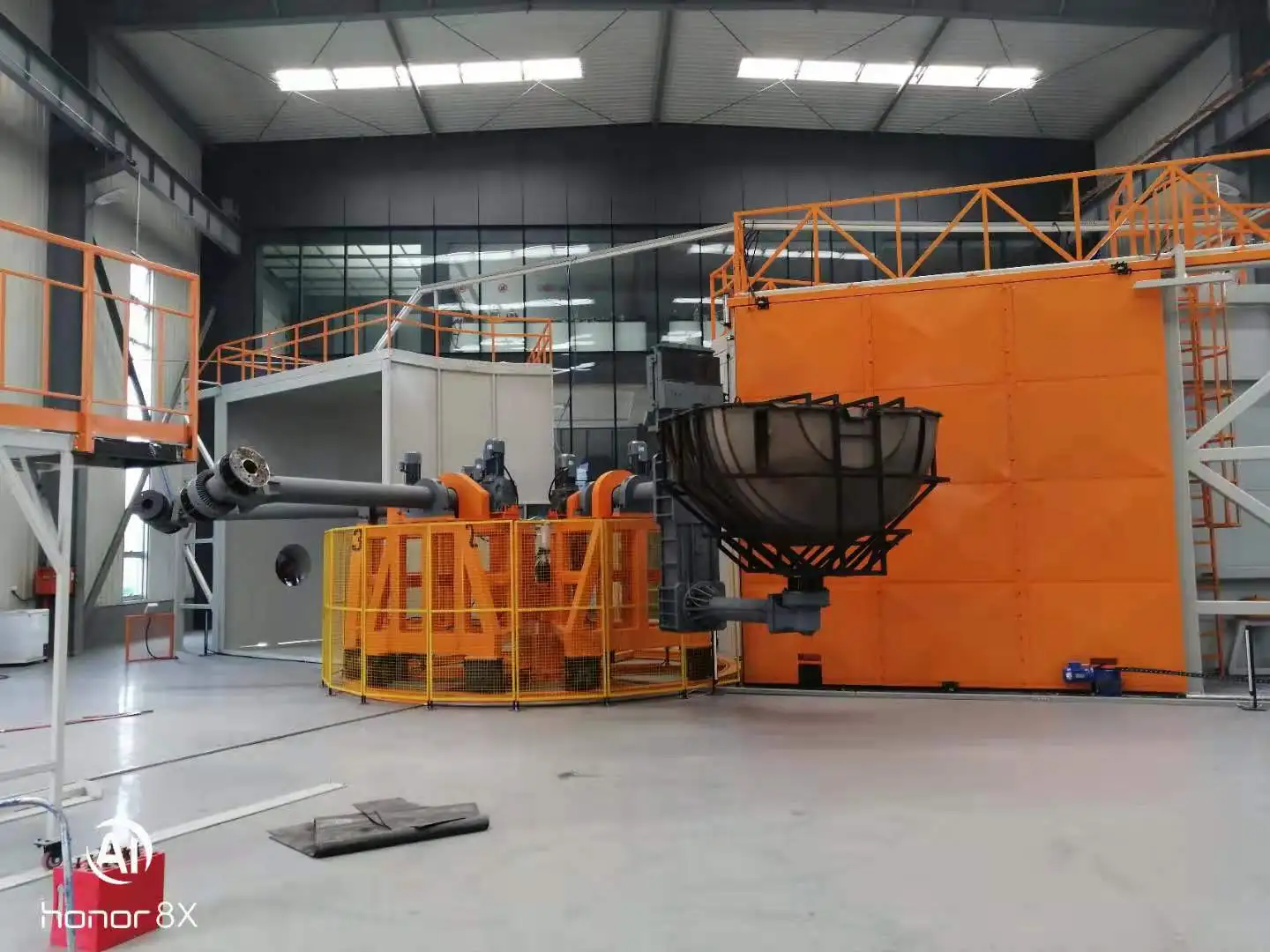

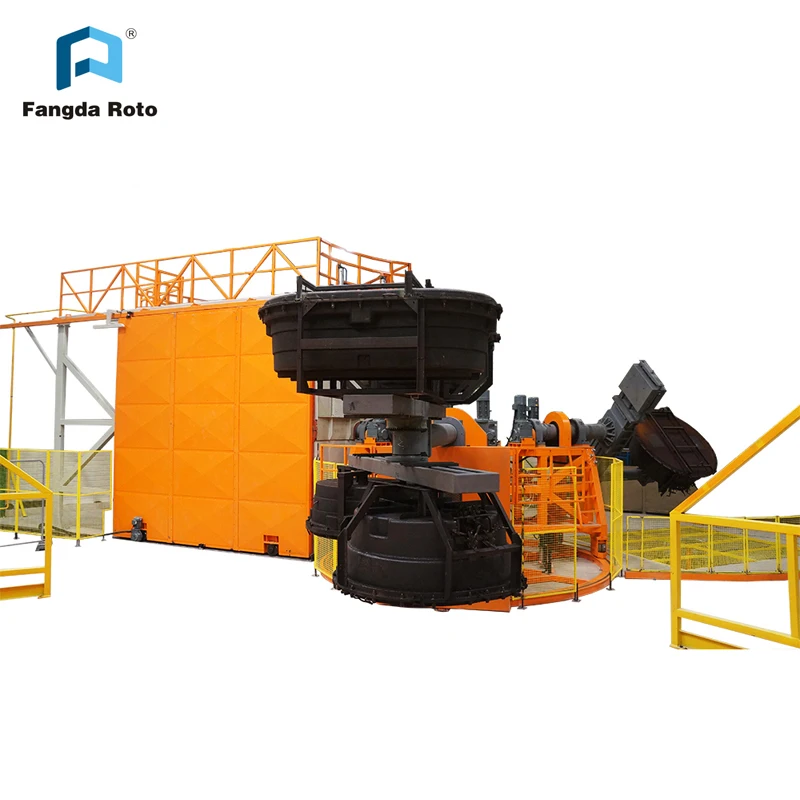

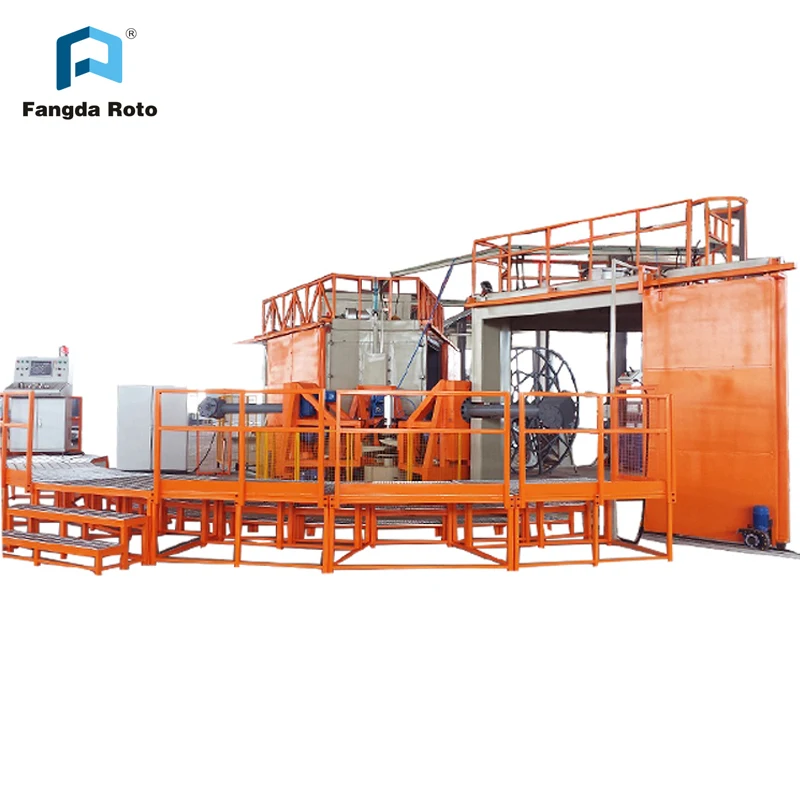

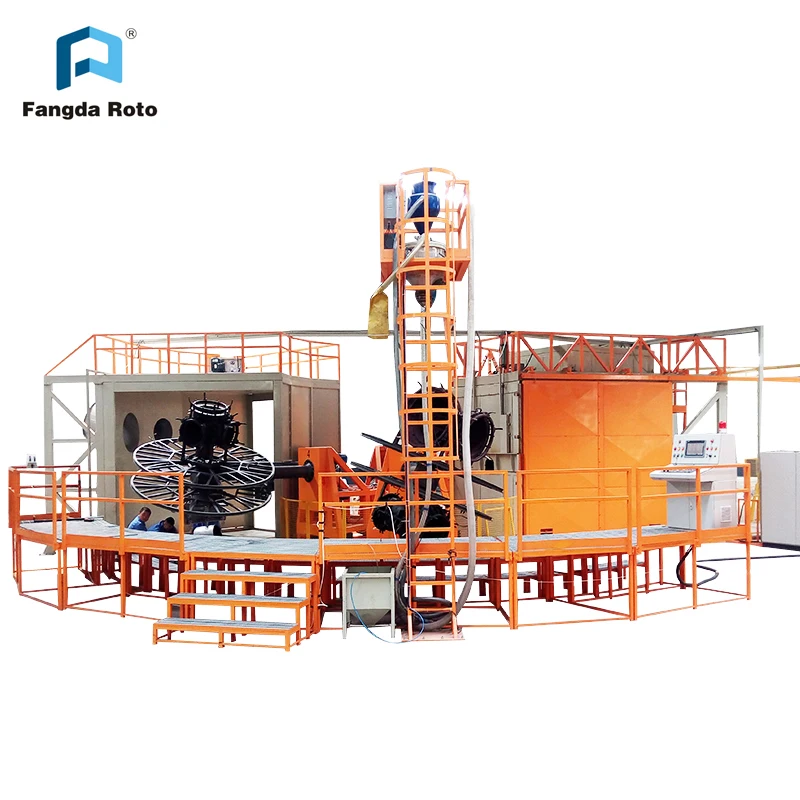

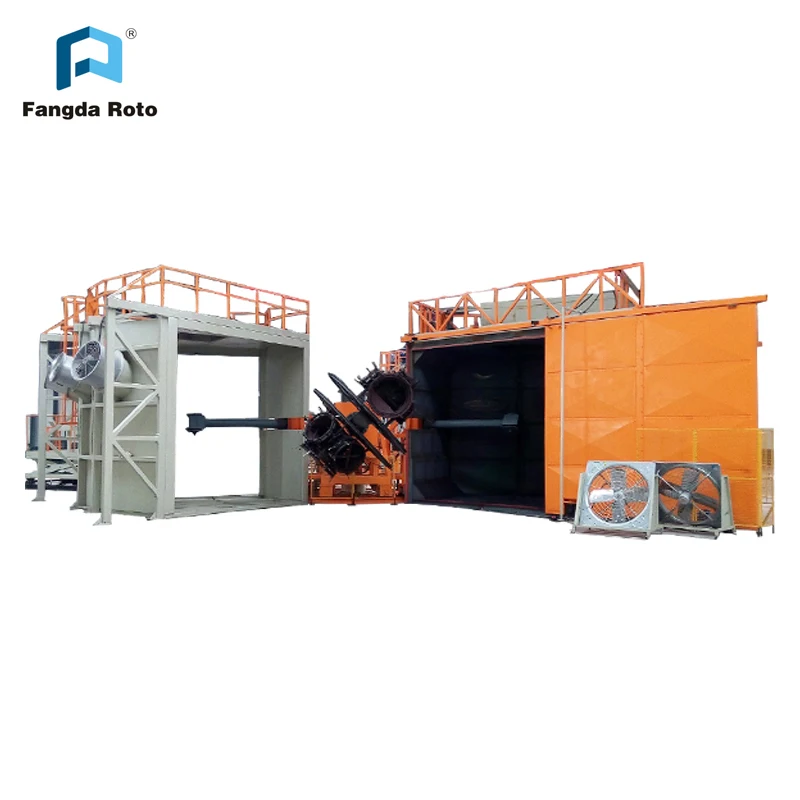

Fangda carousel style rotational molding machine was developed to efficiently manufacture a wide variety of rotational molded parts.
With the option of having 3(three) or 4 (four) arms, the Carousel Series is a very efficient machine in the manufacturing sequential parts in large quantities, it presents up to 20% more efficiency compared to other machine models.
1. High effective and themal nsuiated of heating chamber;
2. Automatic combustion control to reduce consumption;
3. Gear driven transmission to increase the stability;
4. Cooling station can rapid and uniform cooling to reduce deformation;
5. Breakdown sell-check alarm to improve product yield;

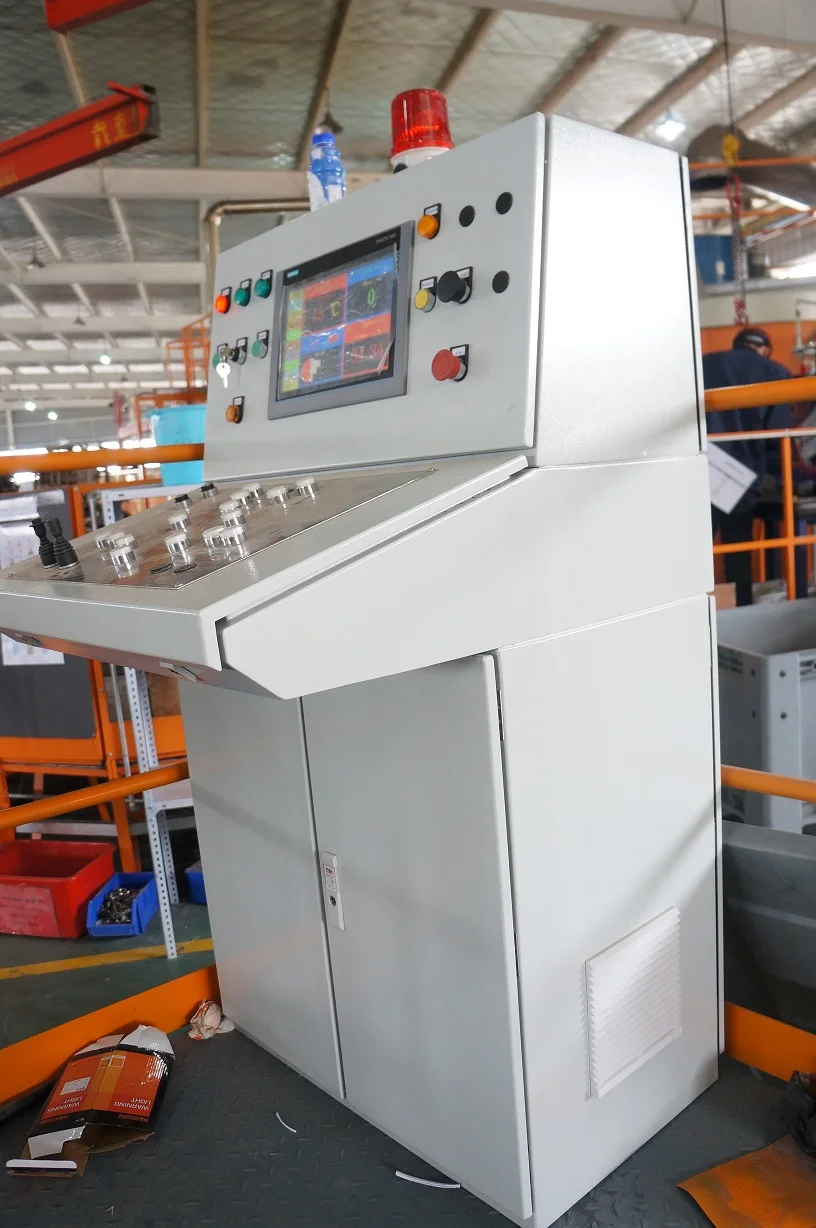

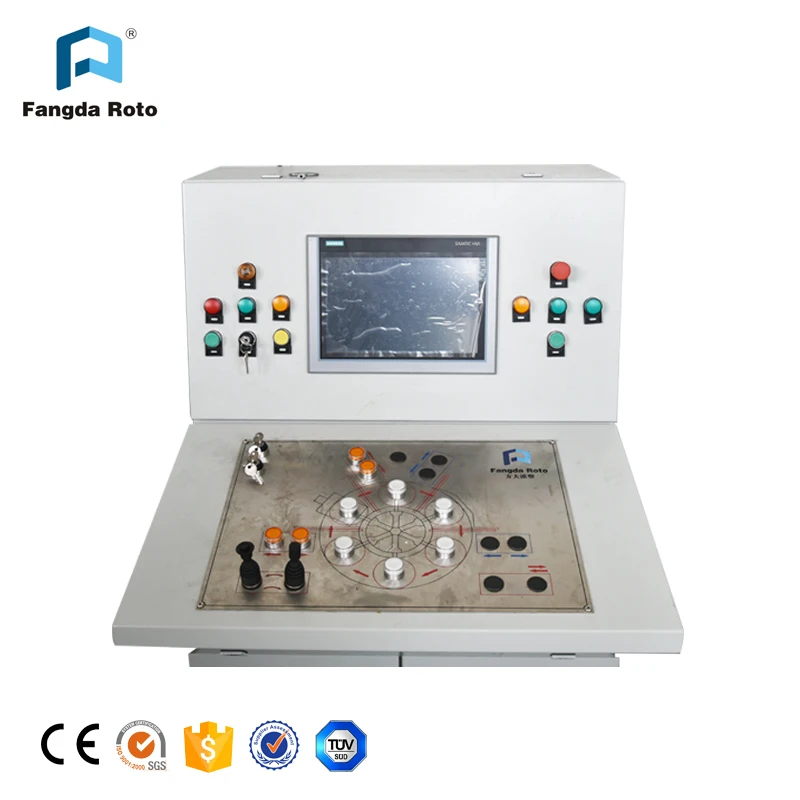

6. Touch screen operation easy to learn and use;
7. Removable operating platform flexible and convenient.
Model No.
Machine Dimension(m)
Oven Inner Dimension (m)
Max. load(kg)
3 arms with 5 stations
4 arms with 6 stations
L(m)
W(m)
H(m)
Straight Arm
LOffset Arm
Coffset Arm
FD3-2600
FD4-2600
12.7
11.1
4
2.6*2.6*2.6
900
700
/
FD3-3100
FD4-3100
14.8
13.1
4.5
3.1*3.1*3.1
1300
900
/
FD3-3600
FD4-3600
16.3
14
5
3.6*3.6*3.6
1500
1000
/
FD3-4100
FD4-4100
18.7
16.5
5.6
4.1*4.1*4.1
2000
1200
/
FD3-4600
FD4-4600
20.7
17.6
6.1
4.6*4.6*4.6
2500
/
1600
FD3-5100
FD4-5100
21.7
18.6
6.6
5.1*5.1*5.1
3000
/
2000
