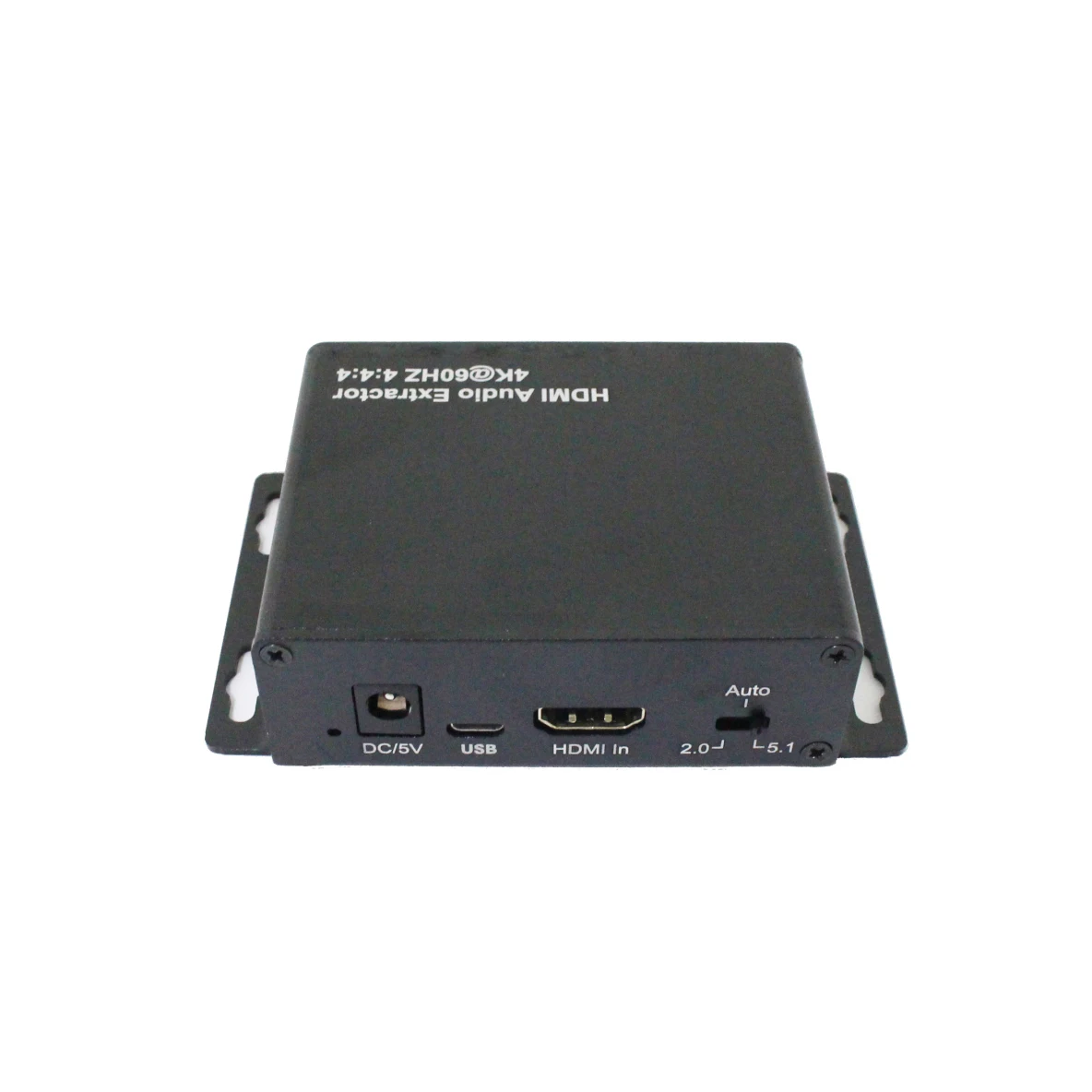

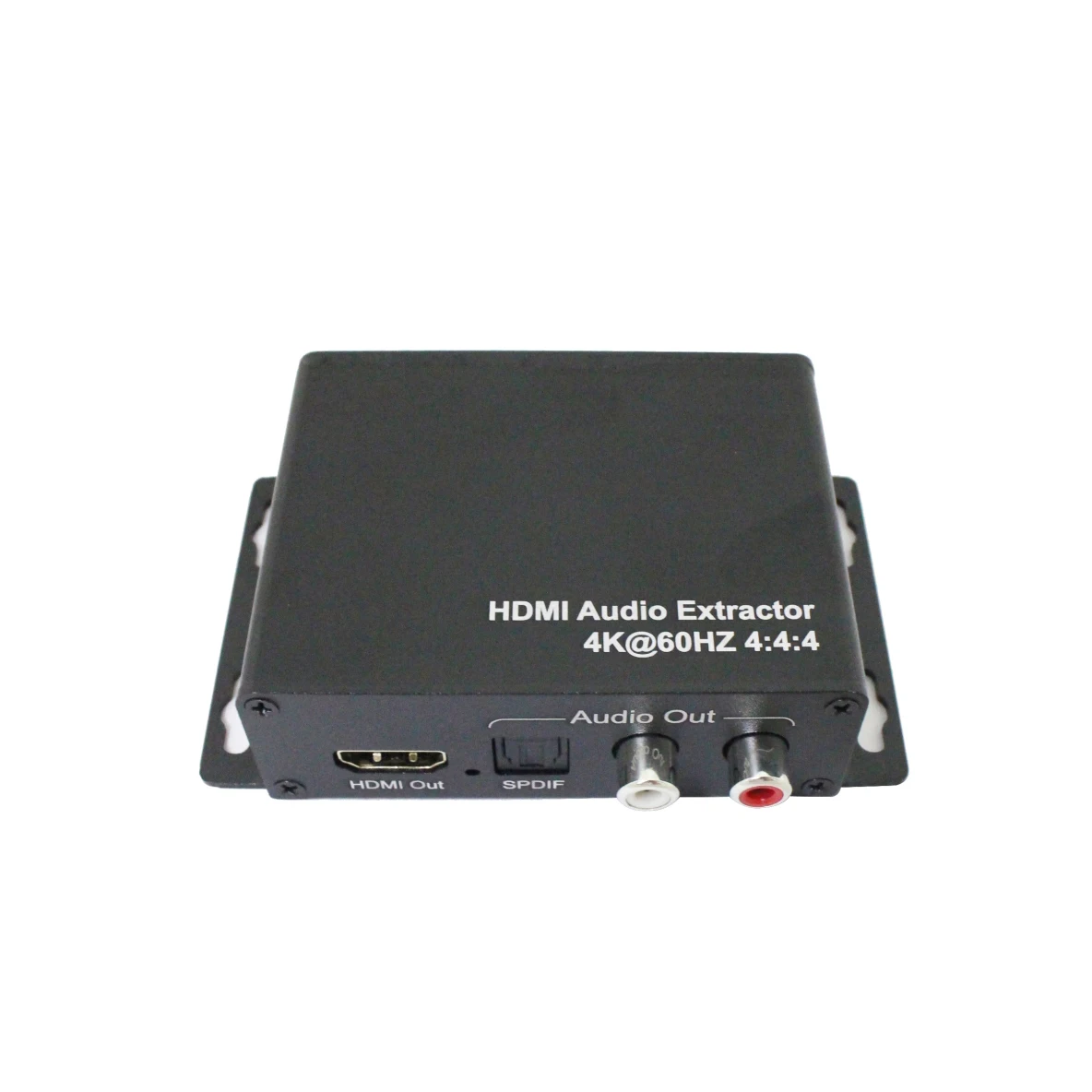

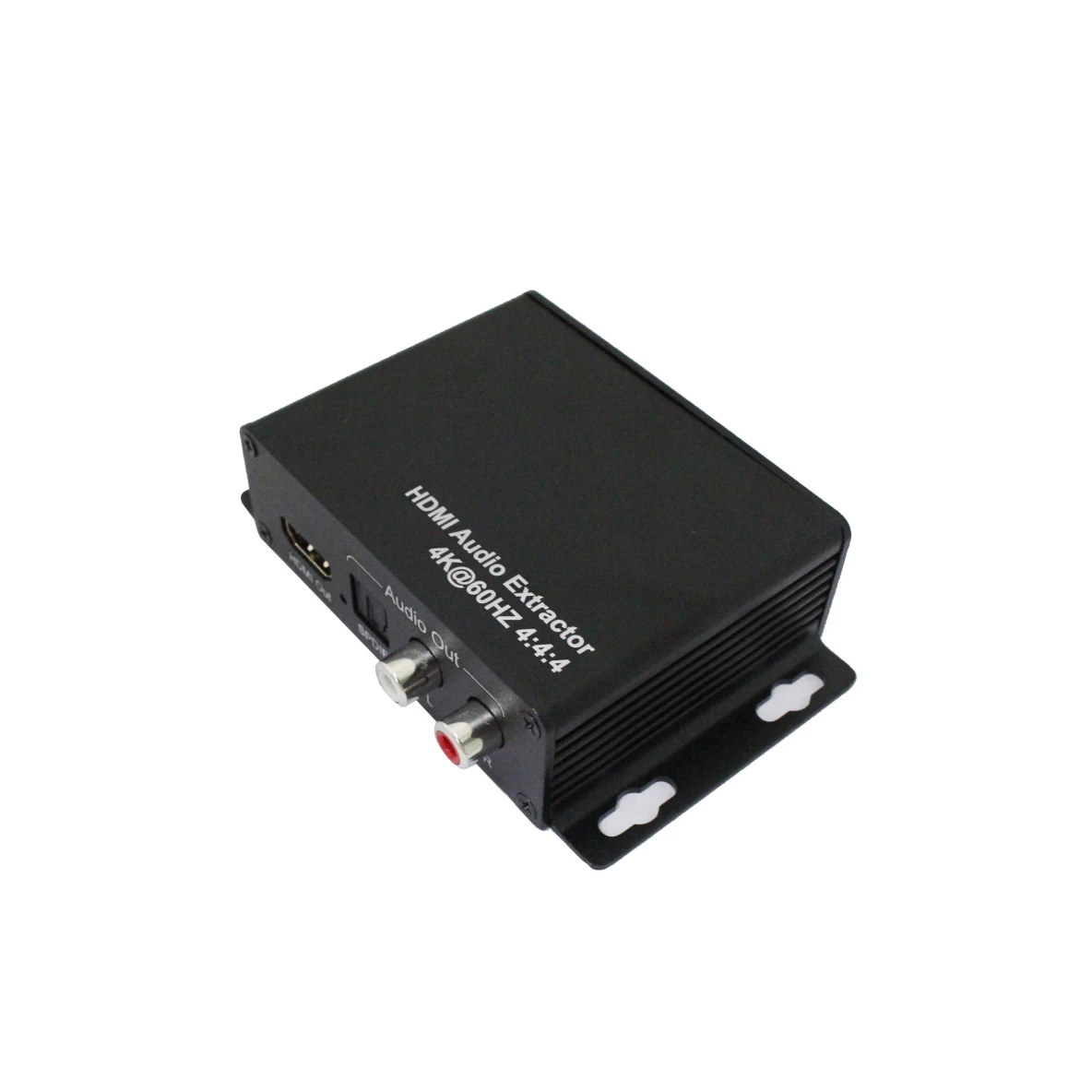

HDMI 2.0 Audio Extractor, 4K@60HZ YUV4:4:4
- Category: >>>
- Supplier: Shenzhen Shunxun Electronics Co. Ltd.
Share on (60790890641):
Product Overview
Description
HDMI 2.0 Audio Extractor,
4K@60HZ YUV4:4:4
4K@60HZ YUV4:4:4
Features
* Three Audio EDID Settings: Auto/2.0CH/5.1CH
* Extract the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output
* Extract the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output
or 5.1 channel Audiooutput
* Support PCM and Dolby DTS
* Supports resolution up to 4K@60HzYUV4:4:4
* Supports deep color up to36 bit
* HDCP2.2/1.4Compliant
* Support CEC
* Support firmware updating through USB port
* Support PCM and Dolby DTS
* Supports resolution up to 4K@60HzYUV4:4:4
* Supports deep color up to36 bit
* HDCP2.2/1.4Compliant
* Support CEC
* Support firmware updating through USB port
Operating Temperature Range | -5 to +35℃(+23 to +95℉) | |||||
Operating Humidity Range | 5 to 90%RH (No Condensation) | |||||
Input Video Signal | 0.5-1.0 Volts P-P | |||||
Input DDC Signal | 5 volts p-p(TTL) | |||||
Support Video format | 4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video | |||||
Support Video Color Format | xv-YCC/deep color 36bit | |||||
Support Audio Format | PCM、DTS-HD Master Audio、Dolby true-HD etc. | |||||
Data transfer speed rate | 18Gbps (Maximum) | |||||
Power consumption | 2watts(Maximum) | |||||
Dimension (L×W×H) | 104.4x64x28.3mm | |||||
Net Weight | 175g | |||||

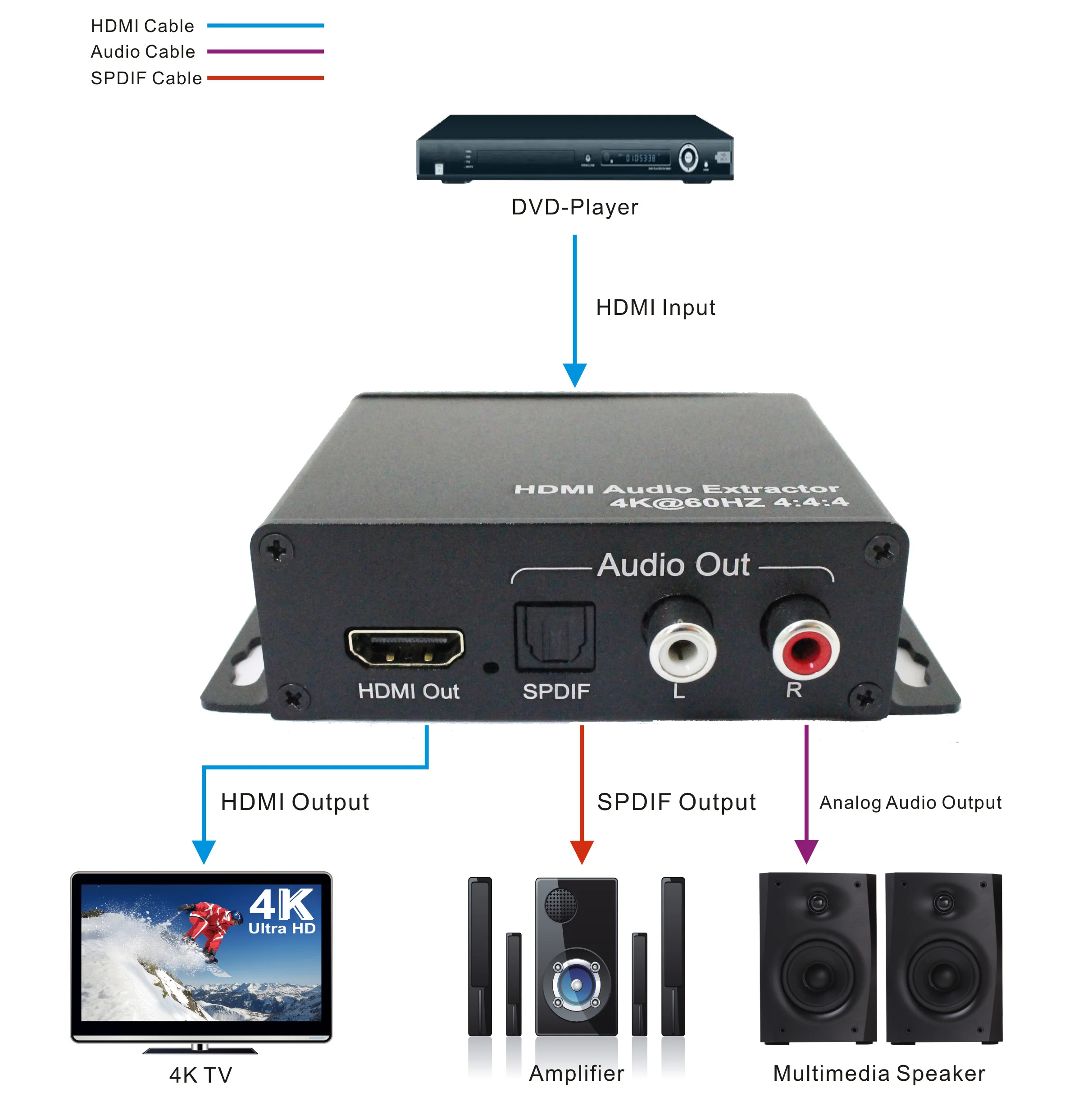

Wiring Diagram
Certifications
Packing & Delivery
PACKING CONTENTS
* Main Unit. Mini 4K HDMI AudioExtractor
* DC 5V PowerSupply
* OperatingInstructions
* Main Unit. Mini 4K HDMI AudioExtractor
* DC 5V PowerSupply
* OperatingInstructions
