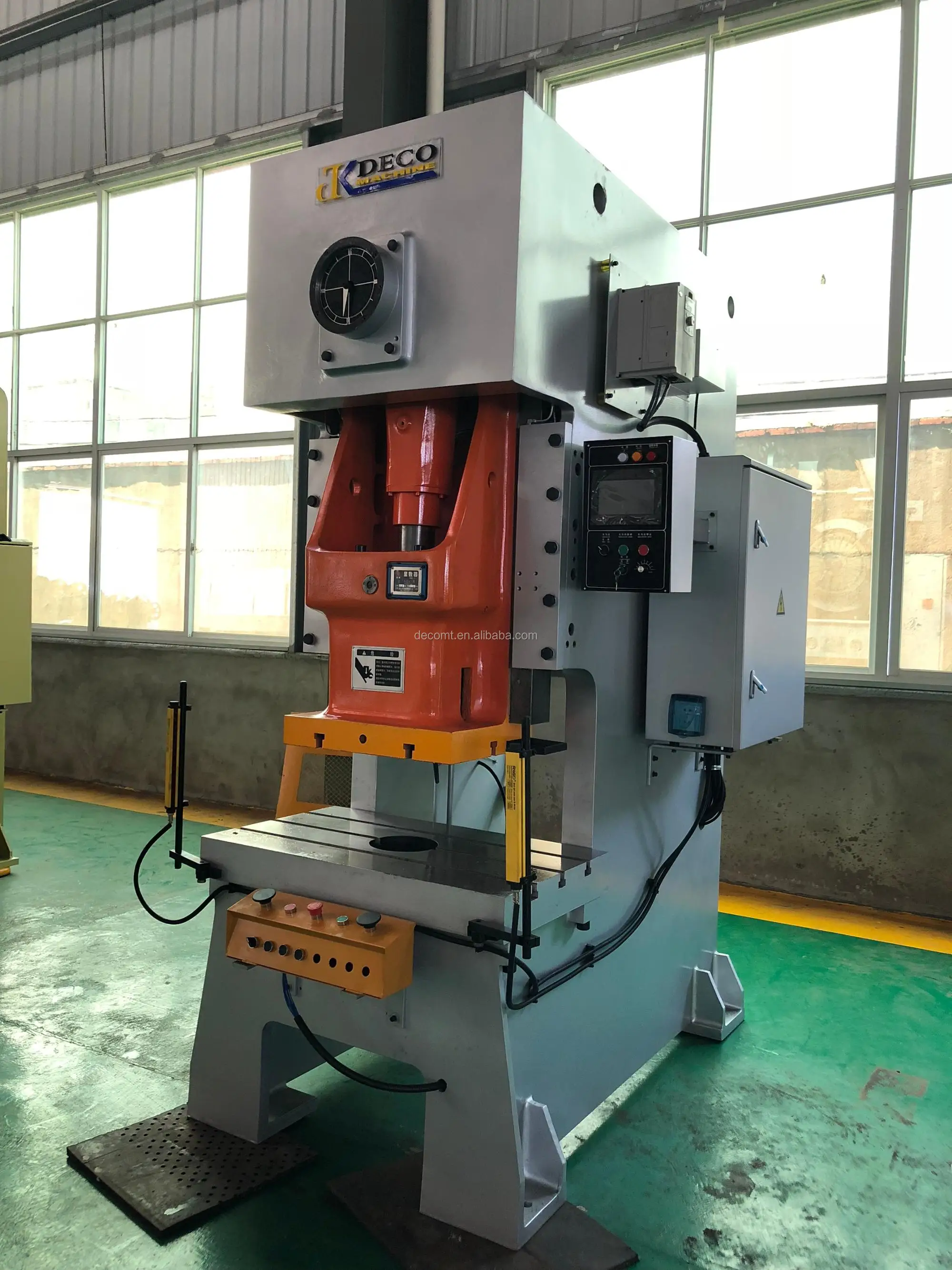

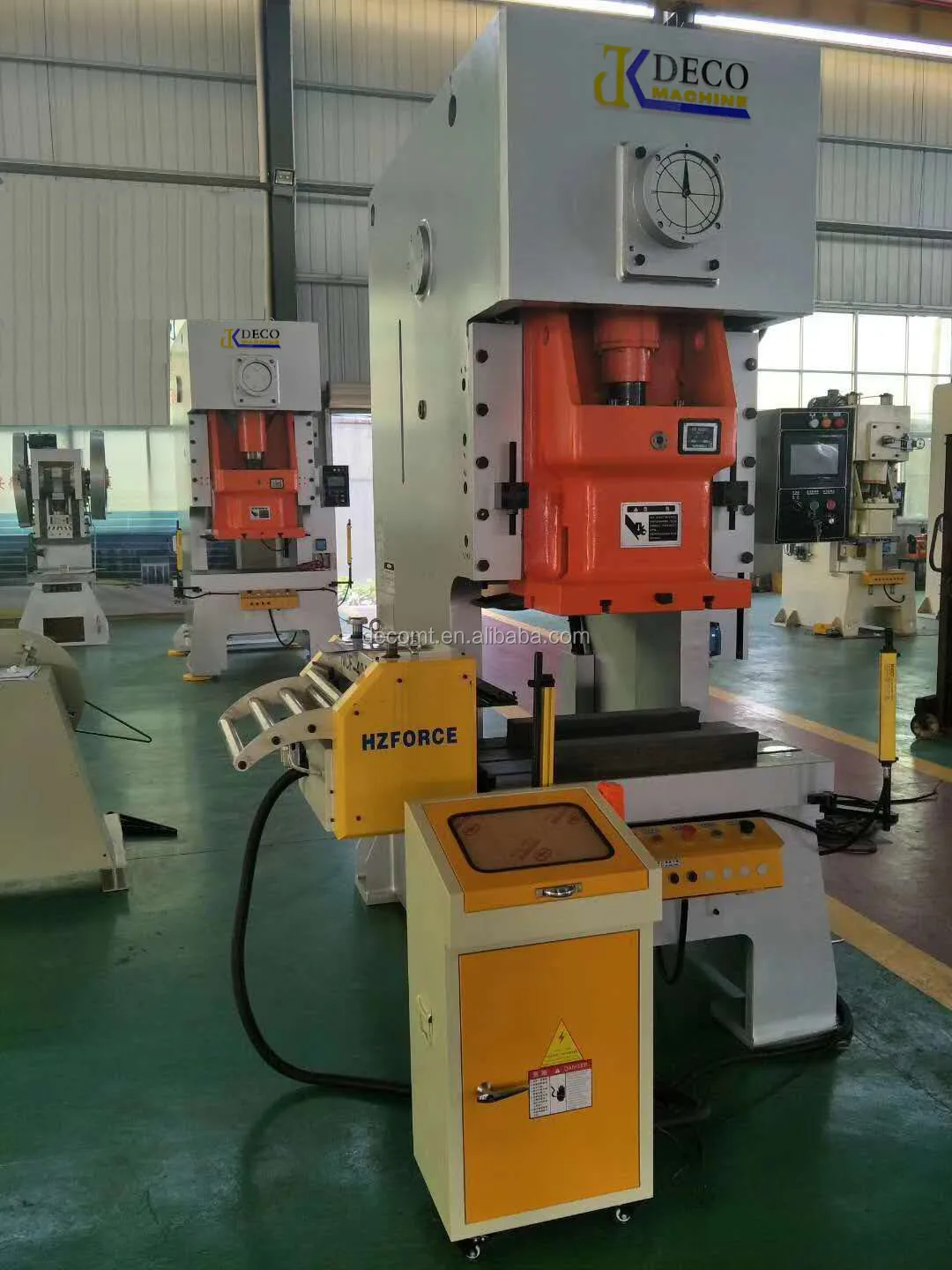

high quality cnc metal pneumatic puncher punching machine

Product Overview

Description

high quality cnc metal pneumatic puncher punching machine

1. Main Features:

1.High Rigidity

  High rigidity, high-precision frame, with welded steel board and heat treated, eliminate inner tension of press.

2.Balance Center Of Gravity

  The transmission center is in accordance with the center of the whole machine, ensure the accurate and

  stability in pressing.

3.Safe and Reliable Operation

  High-sensitive clutch/braking added international top double electromagnetic valve and overloading protection

  device, can guarantee the accuracy and safety for slid board running and stopping.

4.High-Precision

  The abrasive sections of crankshaft, gears, gearshaft are treated by hardening heat treatment and followed

  milling processing, with high abrasion resistant and balance performance, as well as stable performances.

  Ensure quality and using life of Punch.

5.Automation Processing

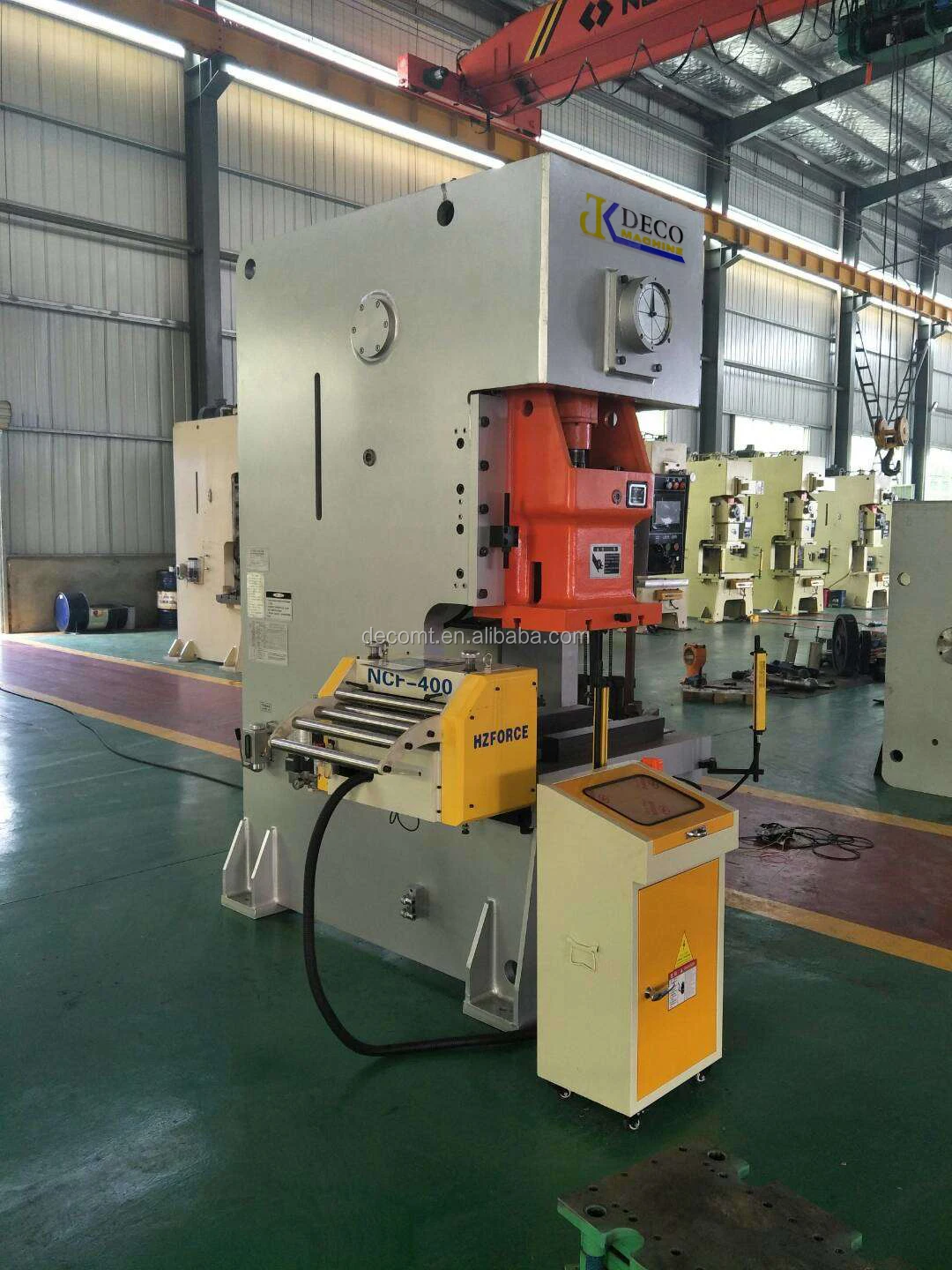

  Can equip all automatic feeders for automation production, reduce the cost, promote efficiency.

 2. Standard Accessories:

-Hydraulic overload protector

-Grease pump

-Slide adjust device(ZC1 below 60)

-Slide adjust device(ZC1 60 or more)

-Inverter

-Die height indicator(ZC1 below 60)

-Die height indicator(ZC1 60 or more)

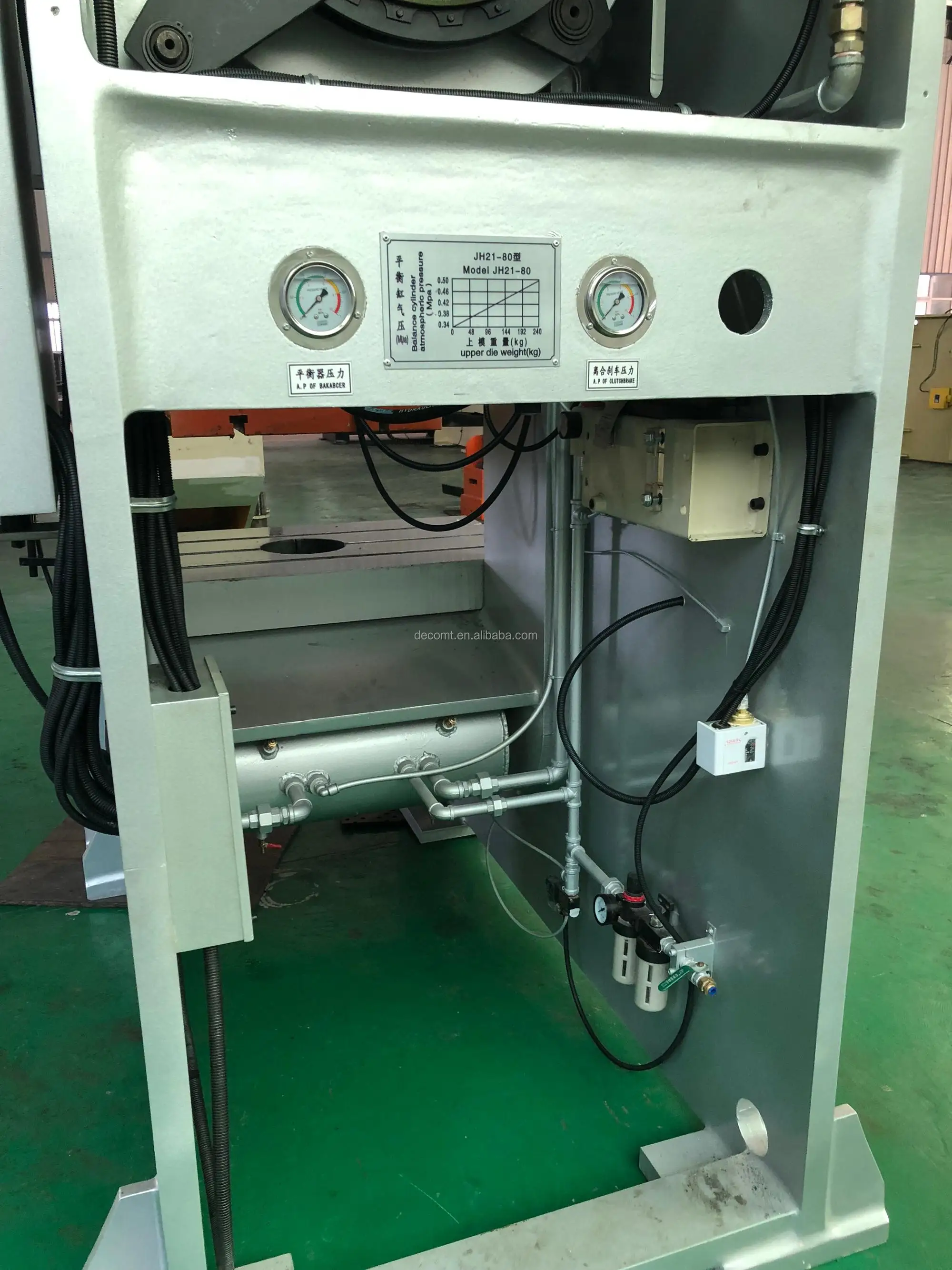

-Balance device

-Rotary cam switch

-Crank angle indicator

-Power supply

-Anti vibration press mount

-Photo-electronic safety device

-Electrical stroke counter

-Preset counter

-Air source receptacle

-Over-run safety device

-Maintenance toll box

-Die room light

-Operation Manual

3. Safety Equipment:

-Front finger Protection(Safety light curtain)

-Scram Button

-Both-Hands Operation

4.Main Configuration:

Serial No.	Part Description	Brand	Place of Origin
1.	The Whole Structure	DECO	Nanjing,Jiangsu,China
2.	Slide	DECO	Nanjing,Jiangsu,China
3.	Crankshaft	DECO	Nanjing,Jiangsu,China
4.	Connecting Rod	DECO	Nanjing,Jiangsu,China
5.	Gears	DECO	Nanjing,Jiangsu,China
6.	Hydraulic Overload Protection	Kingair	Taiwan
7.	Double Valve	TACO	Japan
8.	Cam Controller	Estun	Nanjing,Jiangsu,China

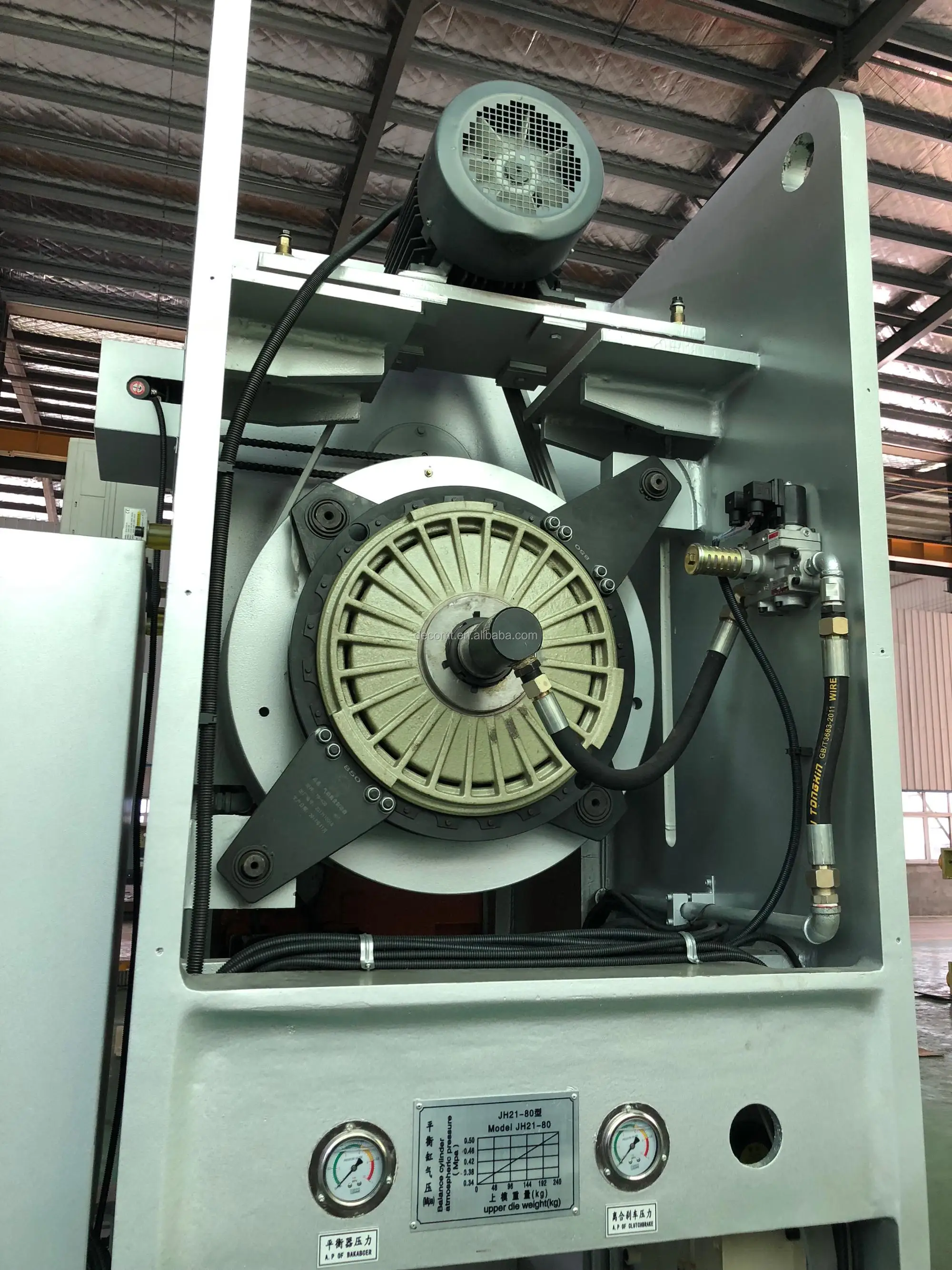

9.	Dry Friction Clutch	OMPI	Italy
10.	Sealing Element	SOG	Taiwan
11.	AC Contactor	Schneider	France
12.	Intermediate Relay	Omron	Japan
13.	Breaker	Schneider	France
14.	Power Door Lock	Schneider	France
15.	Transformer	Chint	Zhejiang,China
16.	Grease Pump	IHI	Japan
17.	Bearings	NSK or HRB,ZWZ,LYC	Japan or China
18.	Pneumatic Components	AirTAC	Taiwan
19.	Photo-electronic Device	Lion	Zhejiang,China
20.	Motor	TECO	Taiwan
21.	Frequency Transformer	Delta	Taiwan
22.	Anti Vibration Press Mount	HengRun	Zhejiang,China
23.	Lamp	HengTe	Shandong,China
