STVI056WT-01

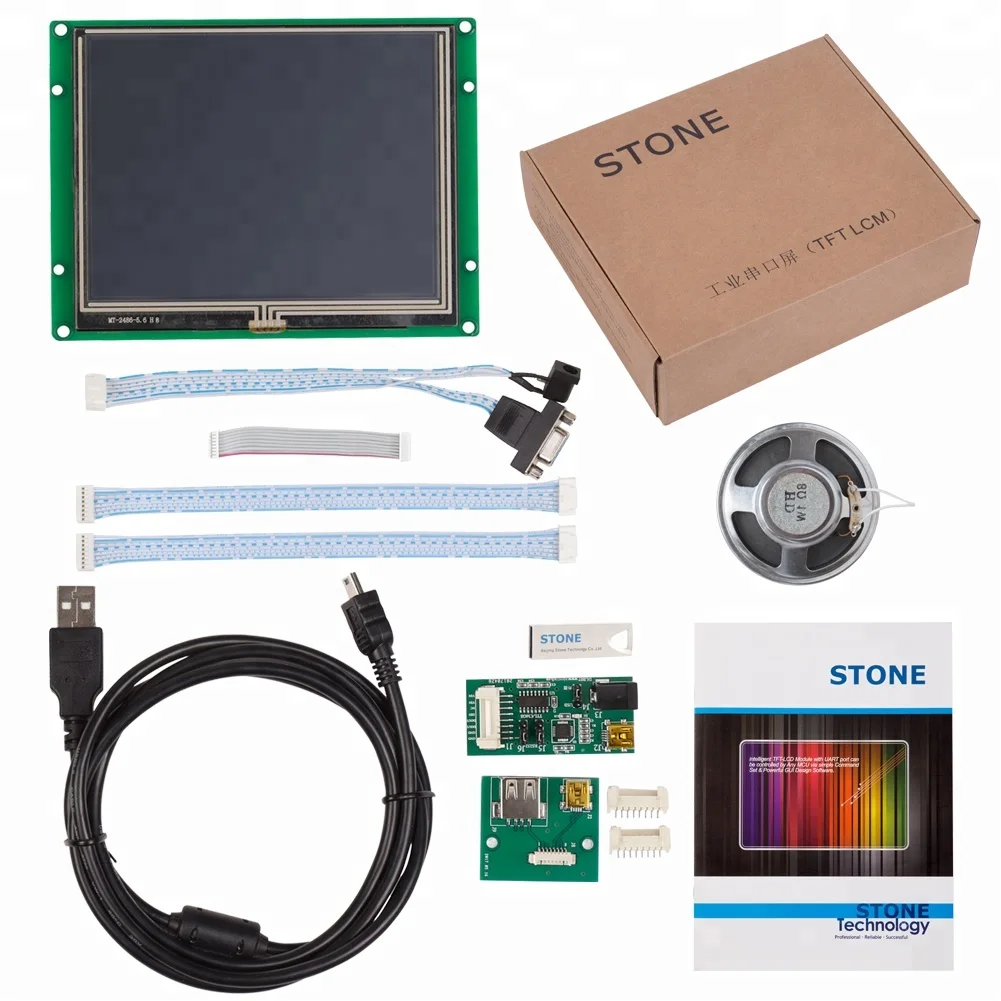

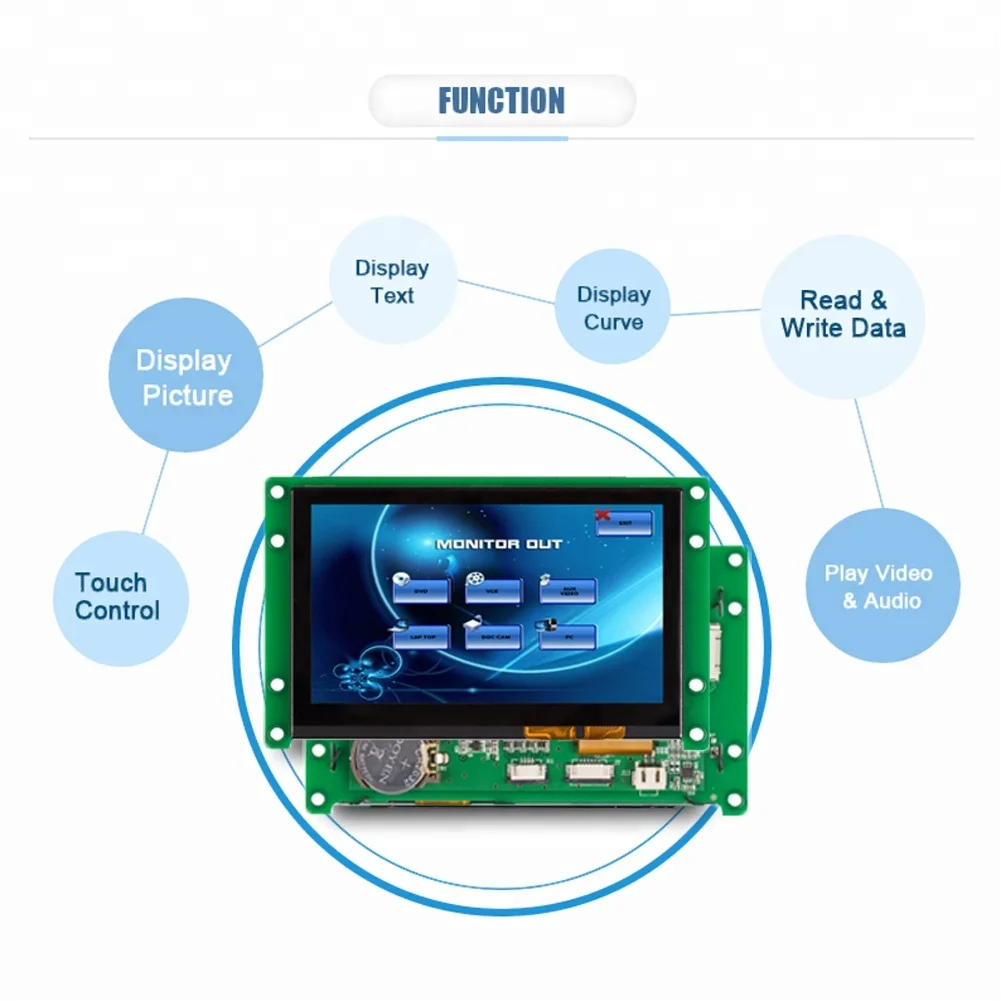

The STVI056WT-01 is the intelligent TFT LCD Module with UART PORT which can be controlled by ANY MCU via Simple Powerful Command Set. So it can be used as colourful TFT Display & Touch controller in various electronic equipment.

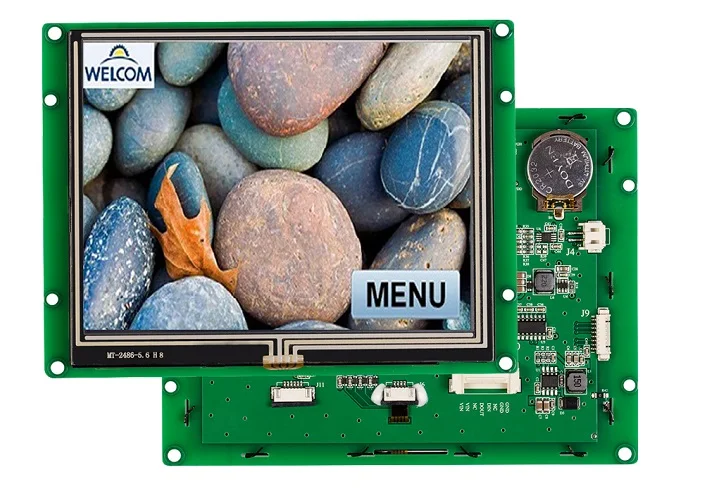

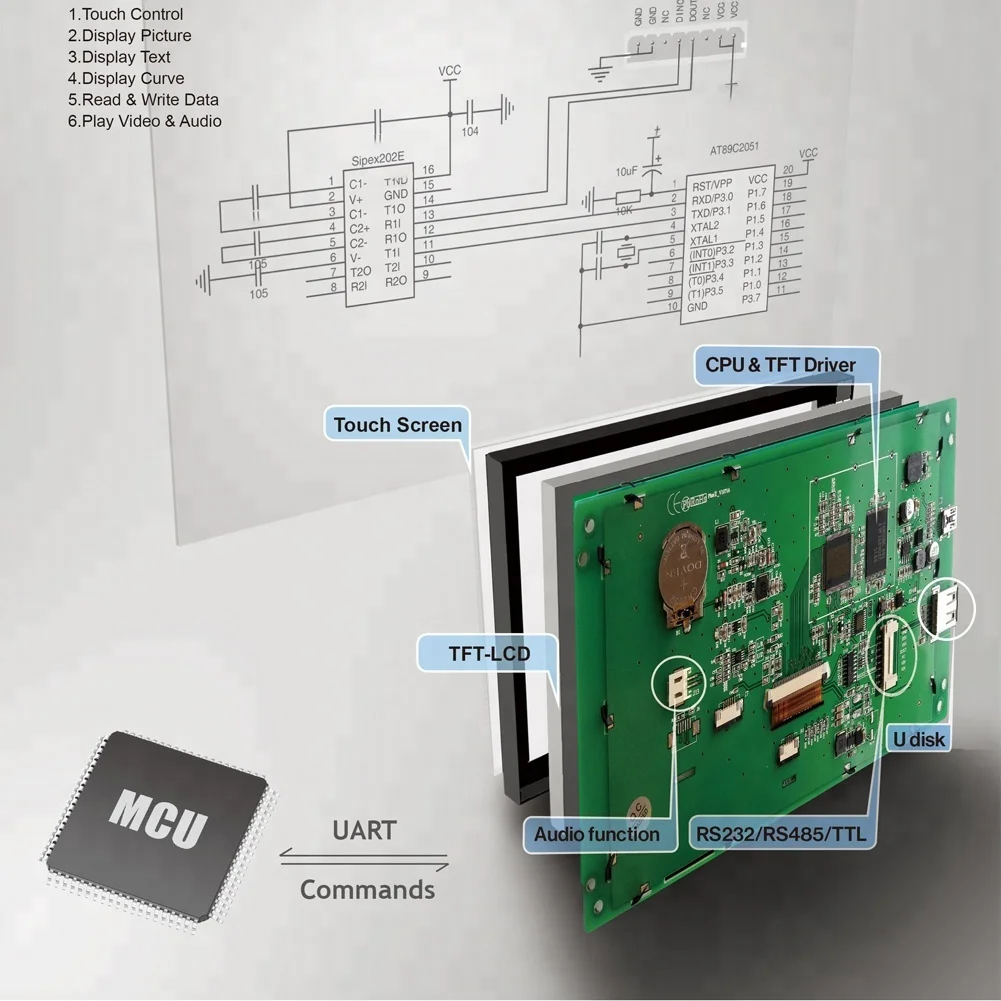

The STVI056WT-01 include CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it  has the ready-made Basic Control Program and Powerful Design Software,so that it can reduce much development time and cost for engineers.

Physical Parameter

Model

STVI056WT-01

Size (Inch)

5.6 inch

Resolution

640×RGB×480

Color

65536 colors (16 bit)

Viewing Area

112.9 mm × 84.7 mm

Pixel Spacing

 0.1905 mm × 0.0635 mm(H×V)

Overall Dimension

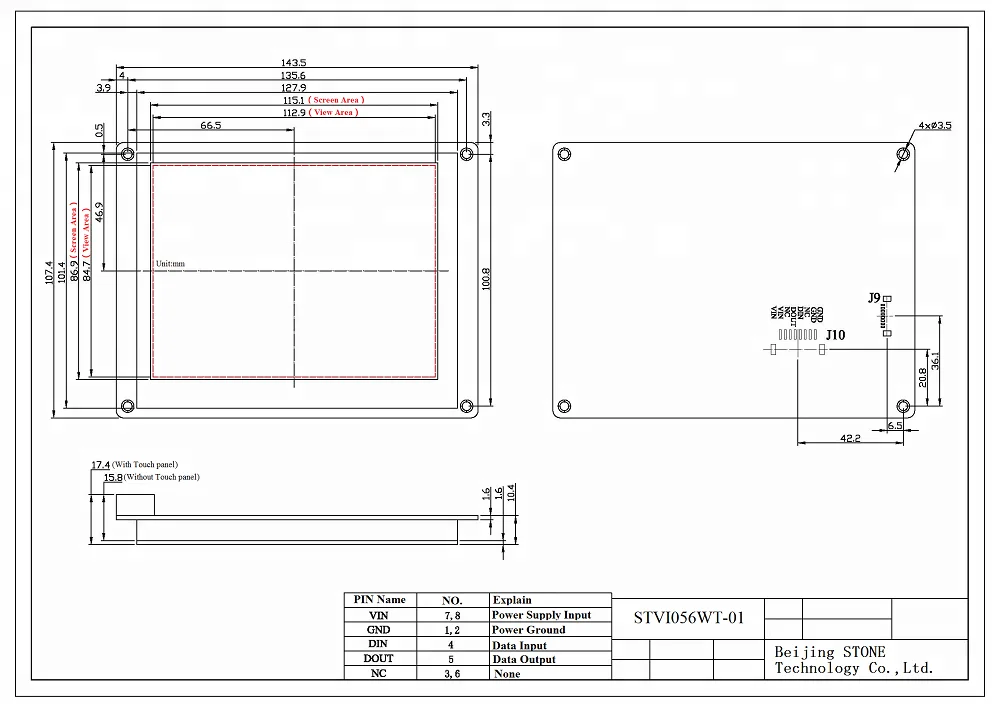

143.5mm×107.4mm×15.8mm(N)/17.4mm(T)

Net Weight

240g(N)/275g(T)

 TFT Panel

A Class Industry Panel

Touch Screen

Industry Level 4 wire resistance
Or without touch screen is optional.

Backlight Parameter

Backlight Type

LED

Brightness

300 cd/m2(Brightness can be adjustable in 100 levels.)

Contrast

500:1

Backlight life

300,000 hours

Viewing Angle

70°/ 70°/ 50°/ 70°(L/R/U/D)

Working Temperature

-20°C ~ +70°C

Working Humidity

55°C, 85%

Storage Temperature

-30°C ~ +80°C

Screen Mode

Digital

Performance Parameter

CPU

CortexM4

LCD Controller

CPLD EPM240

Refresh Rate

200MHz

Picture Switching Speed

30 ms/frame (33 images/s)

Flash Memory

Standard 128MB, Extension 1GB

Memory Amount for picture

According to the capability of the image, Suggest "JPG" format.

Interface

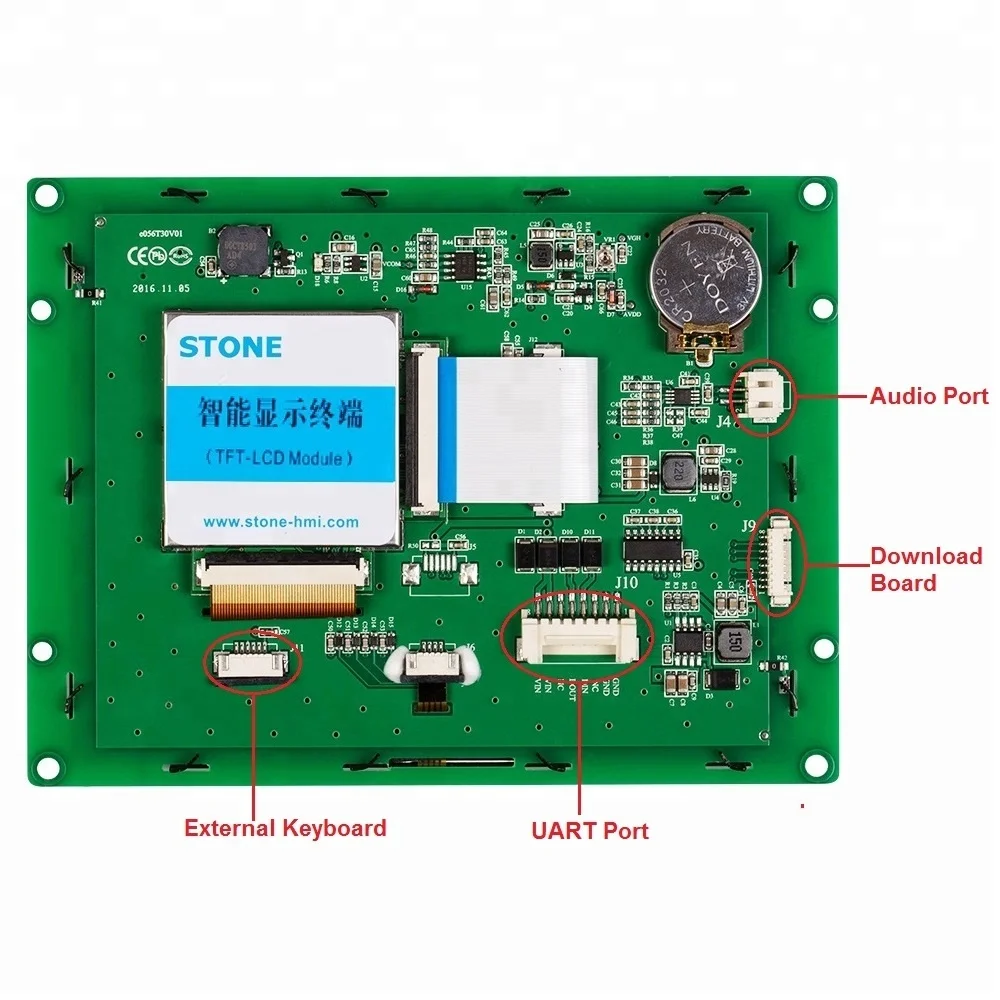

RS232/ USB Interface

Image downloading

USB2.0 (12Mbps) &U storage Disk downloading

Voltage Range

DC6.0V ~ 35V (typical value: 12V)

Power

2.2W

Test Report

MTBF

4,250,000H

Working Temperature

-20°C ~ +70°C

 Air Humidity

60°C, 90%

Continuous Vibration Testing

10-55Hz, 1.5mm, 10G

 Impact Acceleration Testing

6ms, 100G

ESD Testing

10KV

Radiation Reliability Testing

44W

Beijing STONE Technology Co.,Ltd. is a leading manufacturer of HMI product (Intelligent TFT LCD Module and Industrial PC).Characterized with cutting-edge technology and reliable support for customers from over 80 countries, And having specialized experience in TFT LCD Module and industrial PC's R&D, manufacture and market for more than 14 years from 2004.We always following the STONE spirit of "Professional Reliable Successful" these years, and have achieved tremendous success in the global market due to leading technology, reliable service and price domination.
