Высокое качество 2,2 кВт с водяным охлаждением мотор шпинделя cnc мотор шпинделя для деревообрабатывающего фрезерного станка с ЧПУ
- Category: Machine Tools Accessories >>>
- Supplier: Guangzhou,Dragon,Diamond,Technology,Co.,Ltd.
Share on:
Product Overview
Description
High Quality 2.2 Kw Water Cooled Spindle Motor cnc spindle motor For Woodworking Cnc Router
Product Description
Power ( Three bearings) | Inverter | Spindle Clamp | Collet | Pipes |
800W | Huanyang 800w | 65mm spindle holder | 13pcs ER11 (1-7mm) | 5m Pipes |
1.5kW | Huanyang 1.5kW | 80mm spindle holder | 11pcs ER16 (1-10mm) | 5m Pipes |
2.2kW | Huanyang 2.2kW | 80mm spindle holder | 1 set ER20 (1-13mm) | 5m Pipes |
3kW | Huanyang 3kW | 100mm spindle holder | 1 set ER20 (1-13mm) | 5m Pipes |
4kW | Huanyang 4kW | 100mm spindle holder | 1 set ER20 (1-13mm) | 5m Pipes |
5.5kW | Huanyang 5kW | 125mm spindle holder | 1 set ER25 (1-16mm) | 5m Pipes |
Other different details we can also customized for you. Please contact us for more details. | ||||
2.2kw Spindle Motor
GDZ-80-2.2
2.2kw 8A 2400rpm 400hz 220v
Prodect parameter
Model | GDZ-80-2.2B |
Rev(rpm) | 24000 |
Power(kw) | 2.2KW |
Voltage(V) | 220V(380Valsoinstock) |
Current(A) | 8 |
Frequency(HZ) | 400 |
Cool type | water cooling |
Diameter(mm) | 80 |
Lubricate | Grease |
Bearing | 7005C P4*2DT 7002C P4*1 |
Collet(mm) | ER20(standard size 6mm diameter) |
CNC tool | 1-13mm |
Repair time | Bearing(halfyear),spindle(oneyear) |

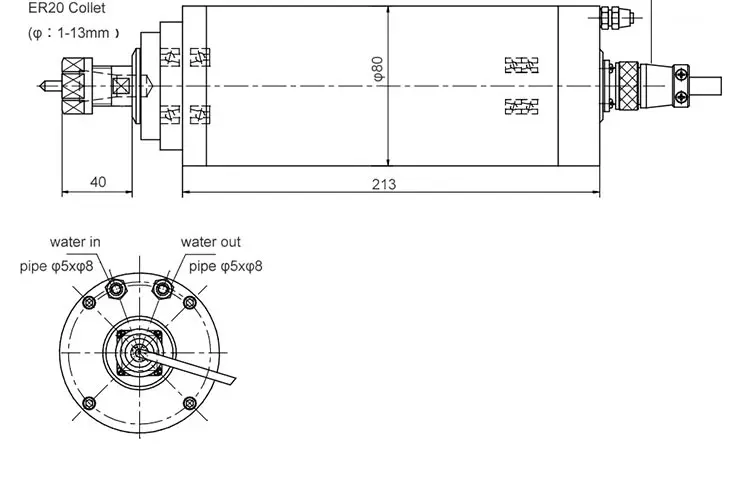

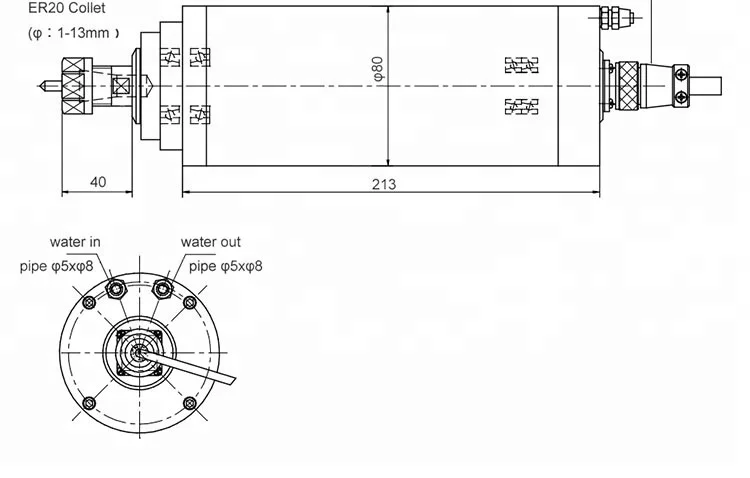

Size | 80mm*213m |

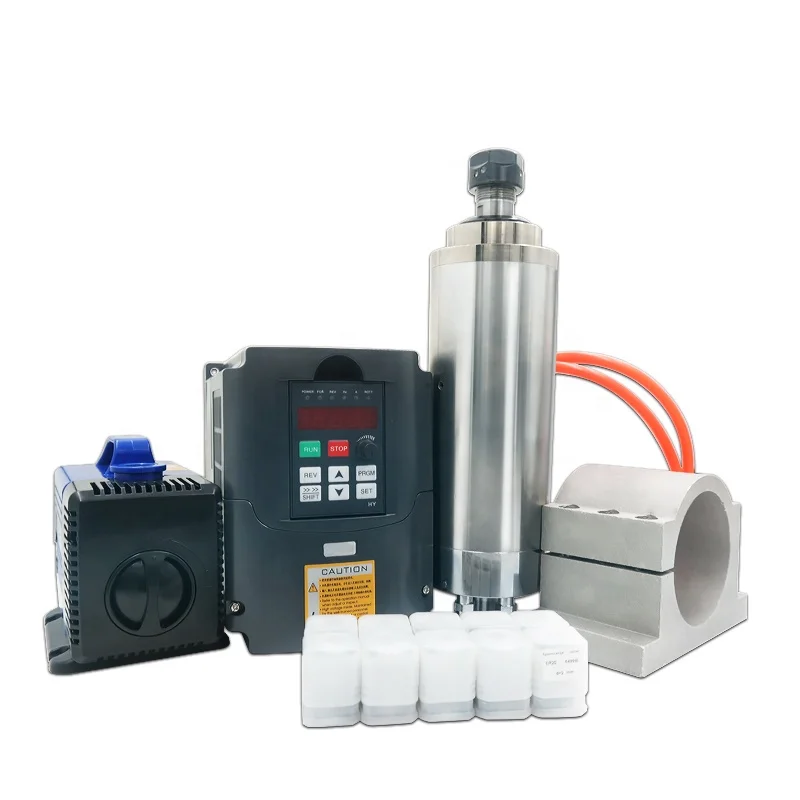

Packing list
1pcs CS 2.2KW 220V ER20 water cooled spindle
13pcs ER20 Collet (1,2,3,4,5,6,7,8,9,10,11,12,13mm)
1pcs 2.2KW 220V Matching VFD (BEST brand)
1pcs 80MM clamp
1pcs 3.5M 80W water pump
5M water pipes (Out size:8MM Inner size :6MM)
