Product Overview

Description



Alloy AZ91D is the most widely used magnesium die cast alloy and has an excellent combination of mechanical properties, corrosion resistance, and castability.

1.Corrosion resistance is achieved by enforcing very strict limits on three metallic impurities—iron, copper and nickel. These are limited to very low levels making it necessary to use primary magnesium in the production of this alloy

2.As with all magnesium alloys, special precautions must be taken when machining

Working with AZ91D

1.Designers of structural components must be aware of the creep limitations of magnesium alloys—generally with increasing temperature, the tensile strength, yield strength, and hardness of magnesium alloys decreases, while ductility increases

2.In addition to environmental effects, there is a change in the metallurgical structure of magnesium over a period of time, and/or at elevated temperatures, that affects the mechanical properties

3.This aging effect arises from the fact that the castings are produced under rapid solidification conditions which don’t allow the alloy to reach equilibrium (effectively, reactions between the alloy constituents have not been completed)

4.Because creep is an important consideration in magnesium parts for elevated temperature

use, stresses and times of operations should be known for both peak and normal conditions



Mechanical Properties

Material	Alloy	Elongation	Tensile  Strength	Yield strength (0.2%)	Impact Strength	Shear Strength	Hardness	Process
		%in 50mm	Mpa	Mpa	J	Mpa	Brinell (HB)
Magnesium Casting Metals	AZ91D	3	230	160	3	140	63	Hot  chamber Casting





Physical Properties

Properties	Mertic
Material	Magnesium Casting Metal
Alloy	AZ91D
Density ( g/cm3)	1.81
Melting Point (Average ±50°C )	533
Thermal Conductivity ( W/MK)	72
Coefficient of thermal Expansion (µm/m°C)	25.2
Electrical Conductivity	72.7 W/mK
Process	Hot  chamber Casting





Chemical Composition:( %)

AL	Mn	Zn	Si	Cu	Fe	Ni	Others	Mg
8.3-9.7	0.15-0.50	0.35-1	0.1	0.03	0.005	0.002	0.02	Remainder



Applications:

Magnesium AZ91D cast alloy is used in several components. Some of them are listed below:

Covers

Housings

Handheld tools

Sporting goods

Computer parts

Mobile and telephones

Household equipment

Automobile components.

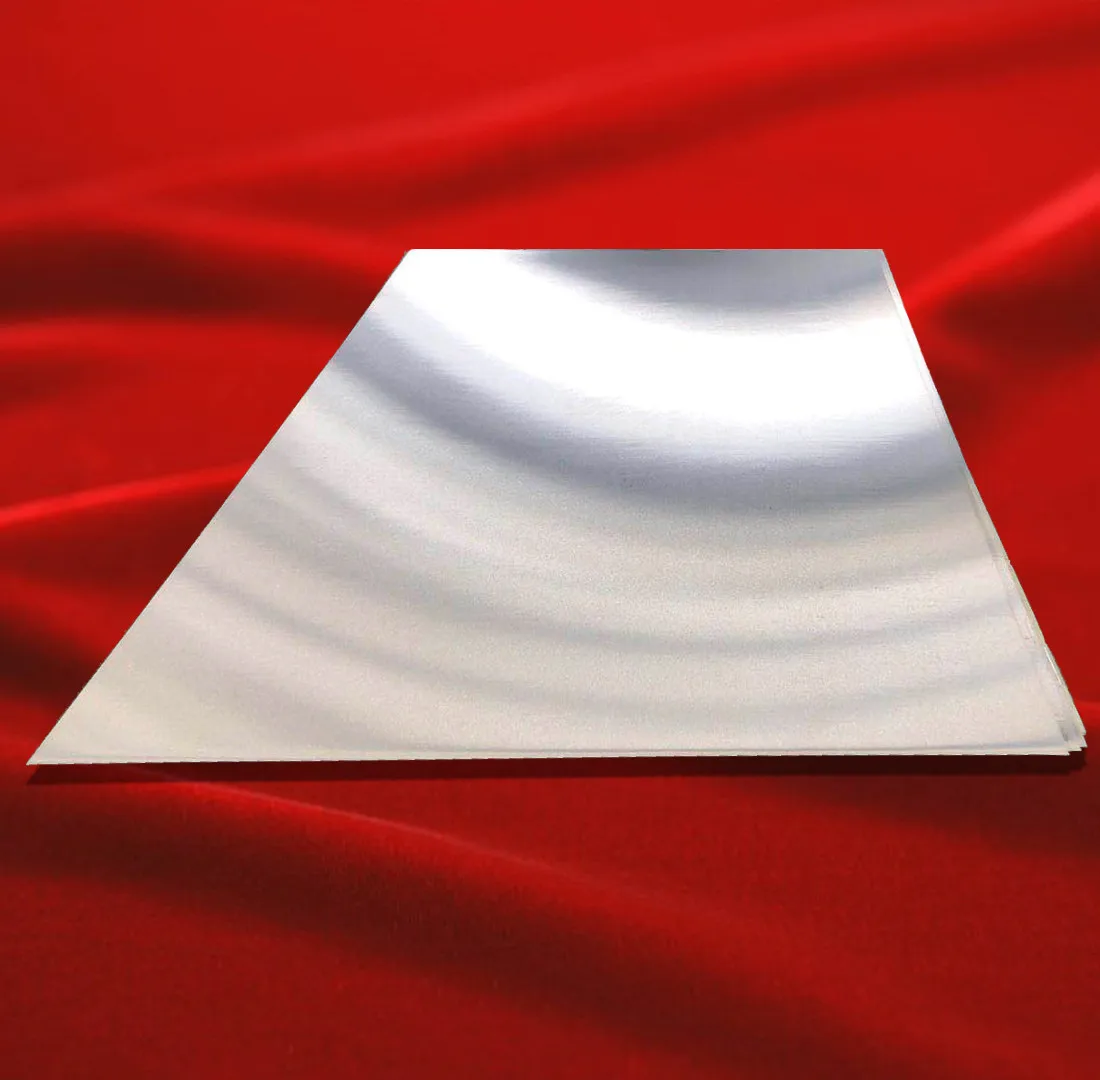

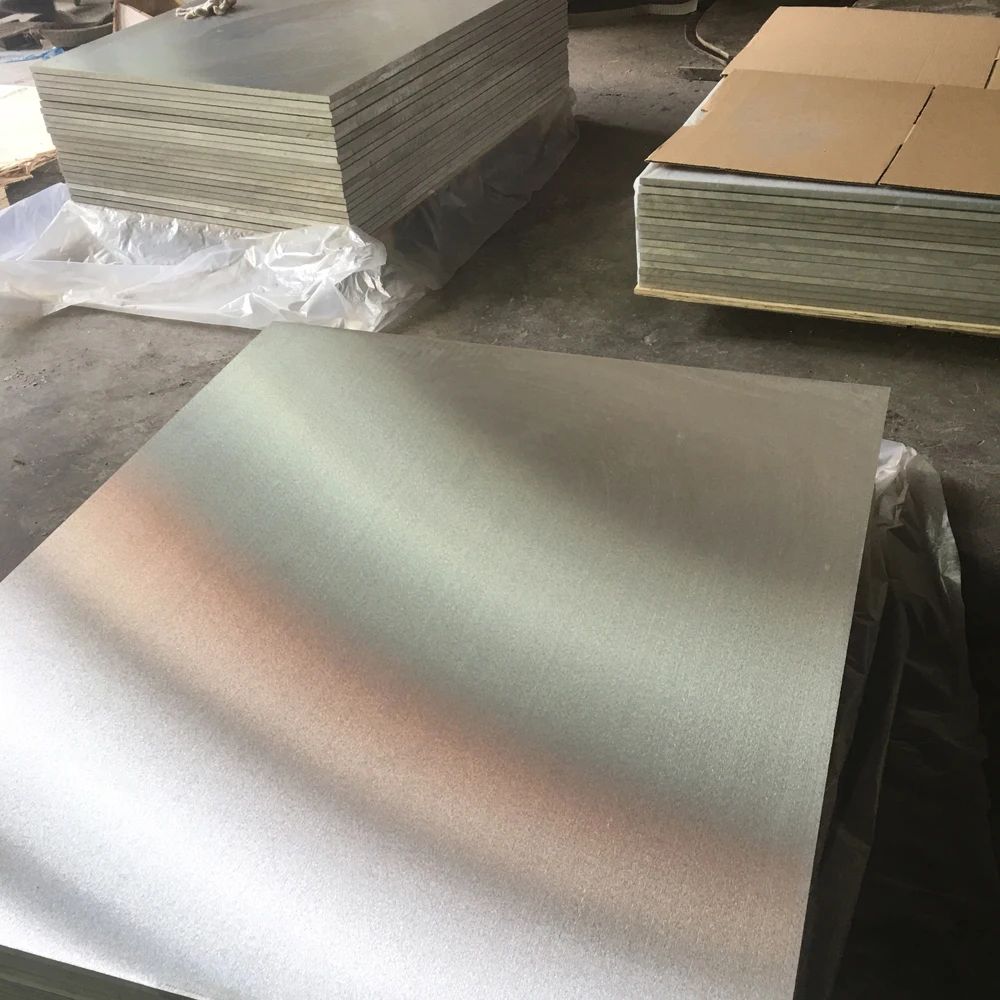

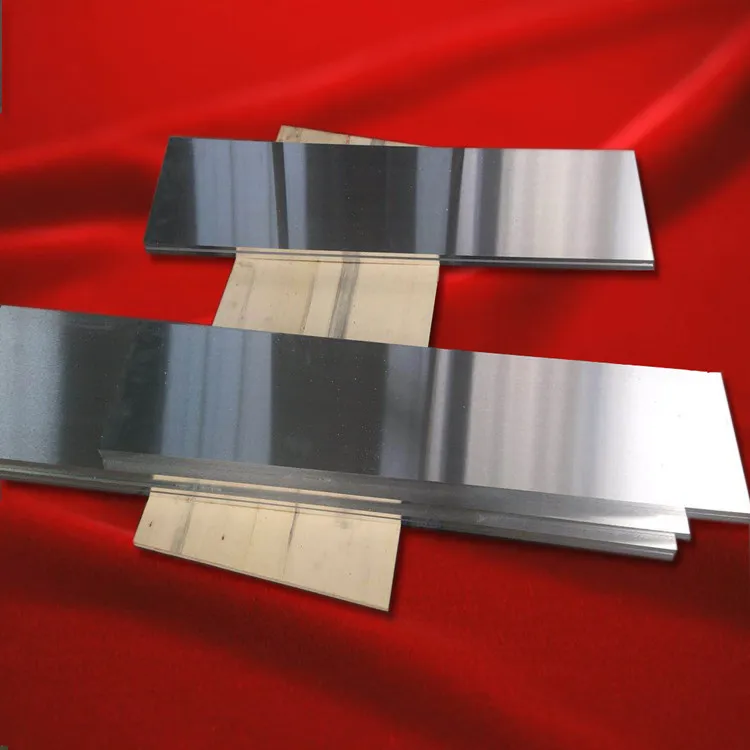

Magnesium Plate



Model No.: P003



Surface Treatment:

Polished or Wiredrawing



Common Size:

Width: max 3000mm

Thickness: 0.5mm-100mm.



Model:

WE43, WE54, ZK60, AZ31B, AZ61A, AZ80A, M1A, ZK40A, ZK60A, AZ91A, AZ91B, AZ91C, AZ91D, AZ91E, AM60B, AM50A, AZ63A, AS41A, AS41B, , AJ62A, AS21A, AS21B
