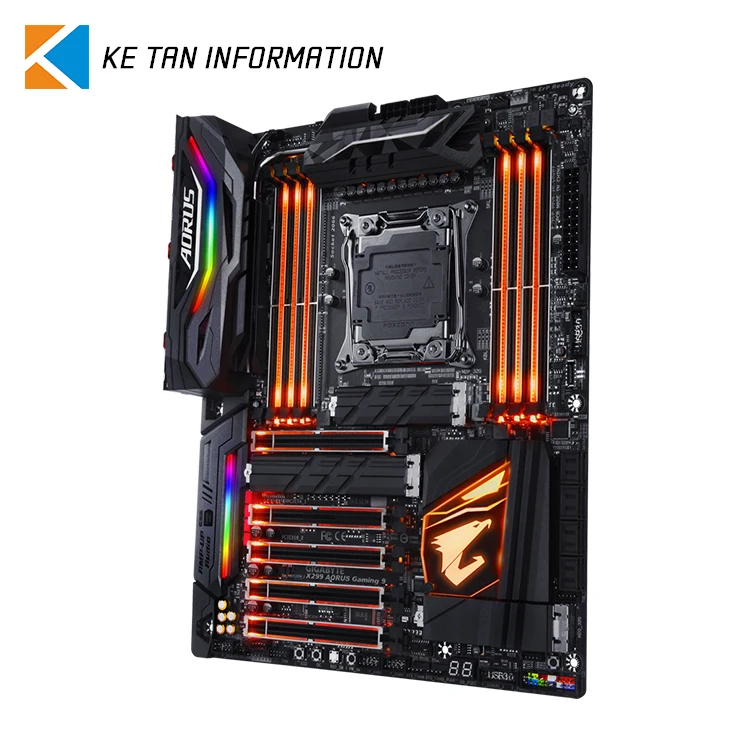

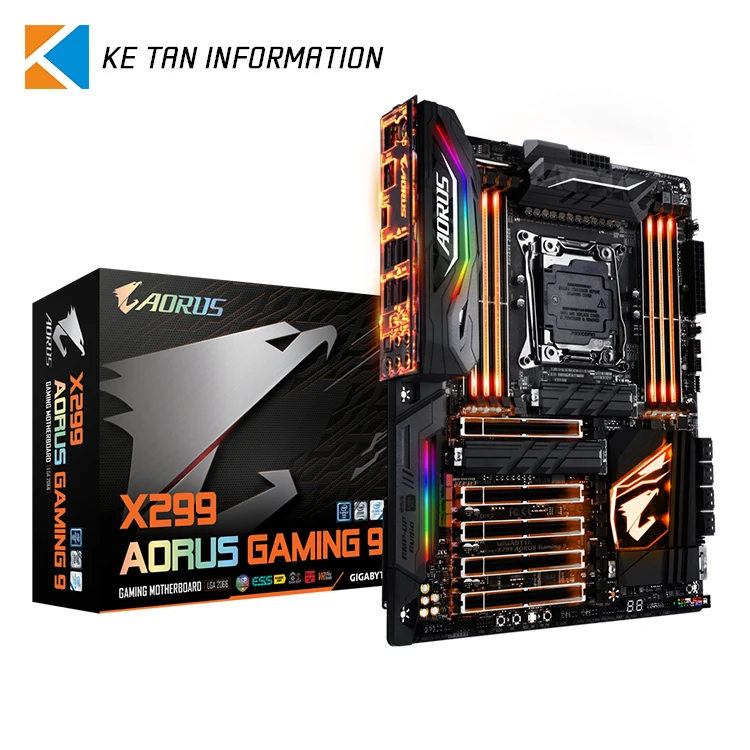

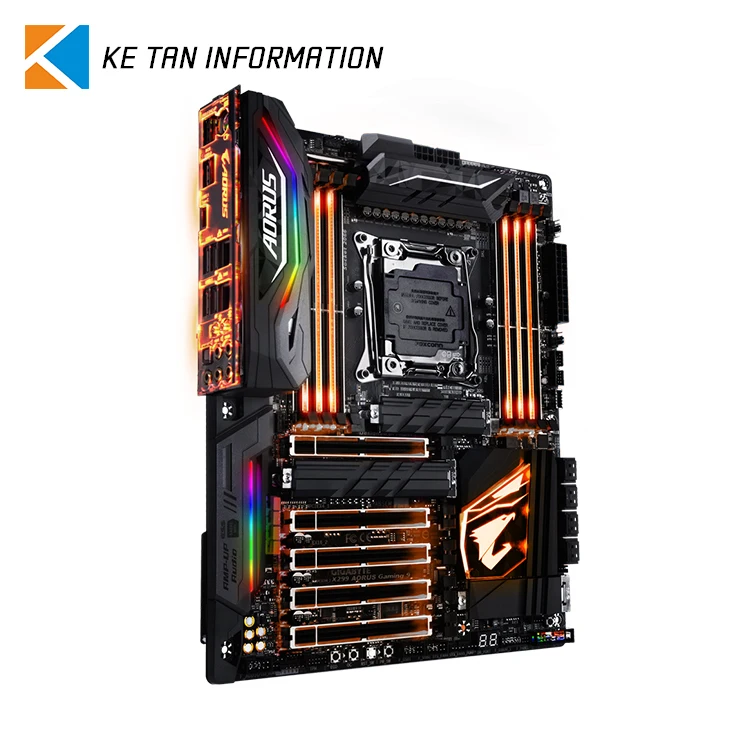

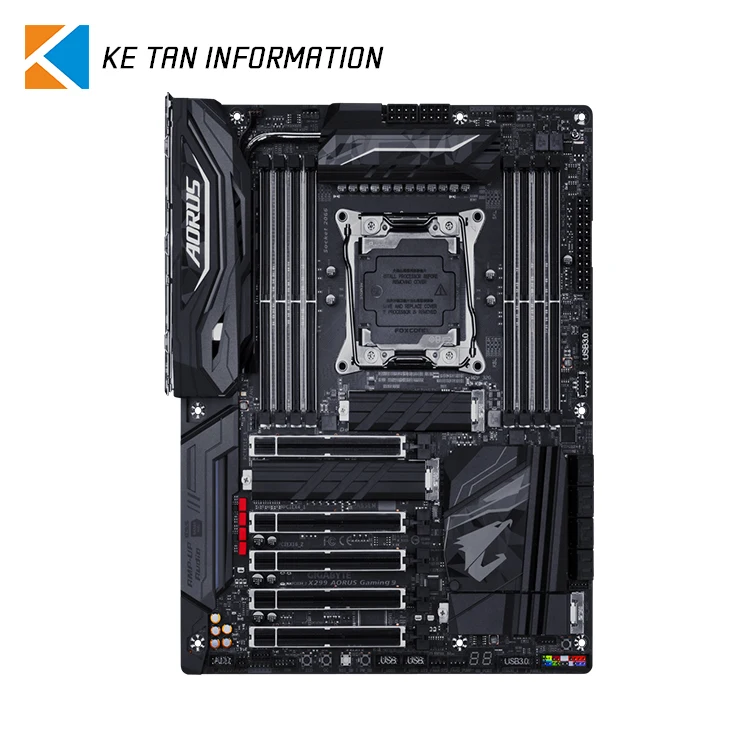

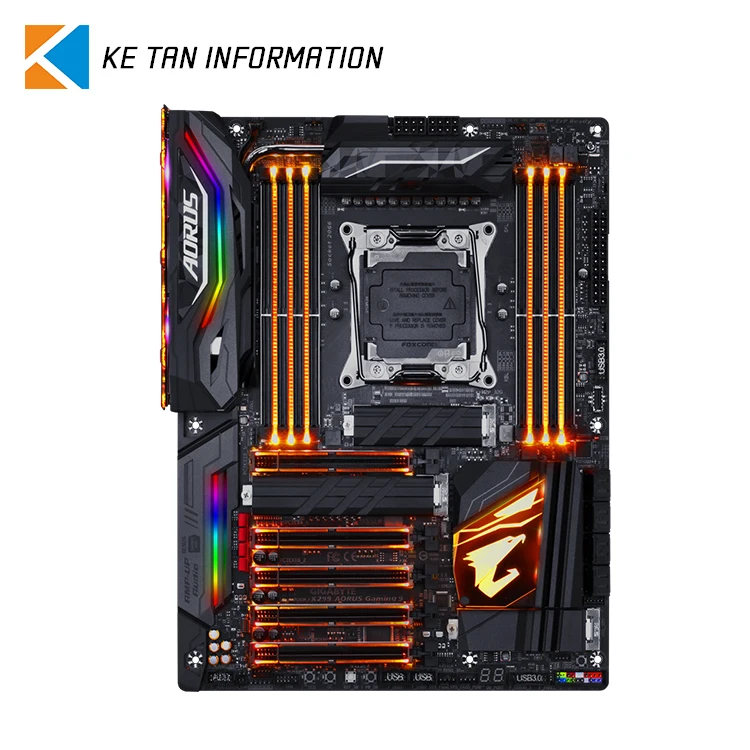

GIGABYTE X299 AORUS Gaming 9 Gaming Motherboard Intel X299 LGA 2066 motherboard for Desktop Motherboard in Used

Product Overview

Description

 Att:Page Price is Only for Reference, Actual Price is Subject to Our Confirmation.



Intel X299 Gaming motherboard with RGB Fusion, Digital LED, Triple M.2 with Thermal Guard, ESS SABRE 9018K2M DAC, Killer DoubleShot™ Pro, Front & rear USB 3.1 Gen 2 Type-C



Supports Intel® Core™ X-series Processor Family

Quad Channel Non-ECC Unbuffered DDR4, 8 DIMMs, DDR4400+(OC)

Intel® Optane™ Memory Ready

Intel® VROC ready

ASMedia 3142 USB 3.1 Gen 2 with USB Type-C™ and Type-A

Front USB 3.1 Gen 2 Header

3-Way Graphics Support with Dual Armor and Ultra Durable™ Design

Ultra Durable™ Base Plate Armor and Integrated I/O Shield Armor Design

Server-Class Digital Power Design

127dB SNR AMP-UP Audio with High-End ESS SABRE 9018K2M DAC, LME 49720 and OPA1622 OP-AMP, WIMA audio capacitor

Sound BlasterX 720°, the top-of-the-line audio engine solution for 4K gaming and entertainment

Killer DoubleShot™ Pro and Intel® GbE LAN for the best gaming networking experience possible

Killer 2x2 802.11ac Wireless – AC 1535

RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips

Swappable Overlay for Accent LED

Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP

Triple Ultra-Fast M.2 with PCIe Gen3 x4 interface and Thermal Guard

PCIe Gen3 x4 M.2 Add-In Card with Thermal Guard

NVMe PCIe Gen3 x4 U.2 adaptor

USB DAC-UP 2 with Adjustable Voltage

Precise Digital USB Fuse Design for Stronger Protection

Anti-Sulfur Resistor Design

Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection

Lightning-Fast Intel® Thunderbolt™ 3 support by option AIC

GIGABYTE UEFI DualBIOS™ with Q-Flash Plus USB port

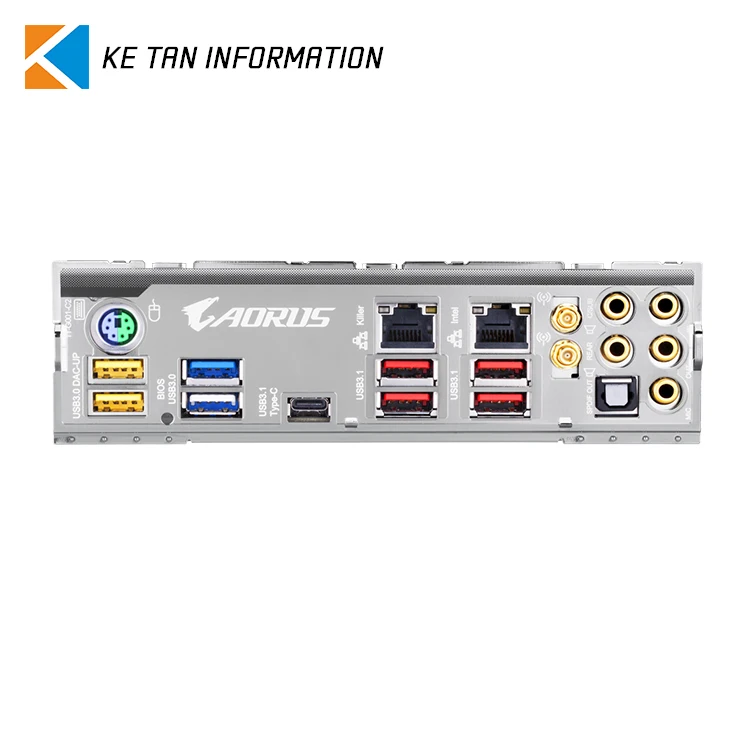

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

1 x system fan/water cooling pump header

1 x 3 Amp fan/water cooling pump header

1 x digital LED strip extension cable header

2 x RGB (RGBW) LED strip extension cable header

3 x M.2 Socket 3 connectors

8 x SATA 6Gb/s connectors

1 x Intel® VROC Upgrade Key header

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB 3.1 Gen 2 header

2 x USB 3.1 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x Thunderbolt™ add-in card connector

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x power button

1 x reset button

1 x Clear CMOS button

1 x ECO button

1 x OC button

2 x temperature sensor headers



Memory

8 x DDR4 DIMM sockets supporting up to 128 GB of system memory.

* Support for up to 512 GB of system memory when using Registered DIMMs.

* Supported when using a 44-lane or 28-lane CPU (6-core or above).

4 x DDR4 DIMM sockets supporting up to 64 GB of system memory.

* Supported when using a 16-lane CPU (4 core).

4 channel memory architecture.

* Supported when using a 44-lane or 28-lane CPU (6-core or above).

Dual channel memory architecture.

Supported when using a 16-lane CPU (4 core).

Support for DDR4 4400(O.C.) / 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules

Support for non-ECC Un-buffered DIMM memory modules

Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode)

* R-DIMM is only supported by BIOS version F7 and earlier versions.

Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)
