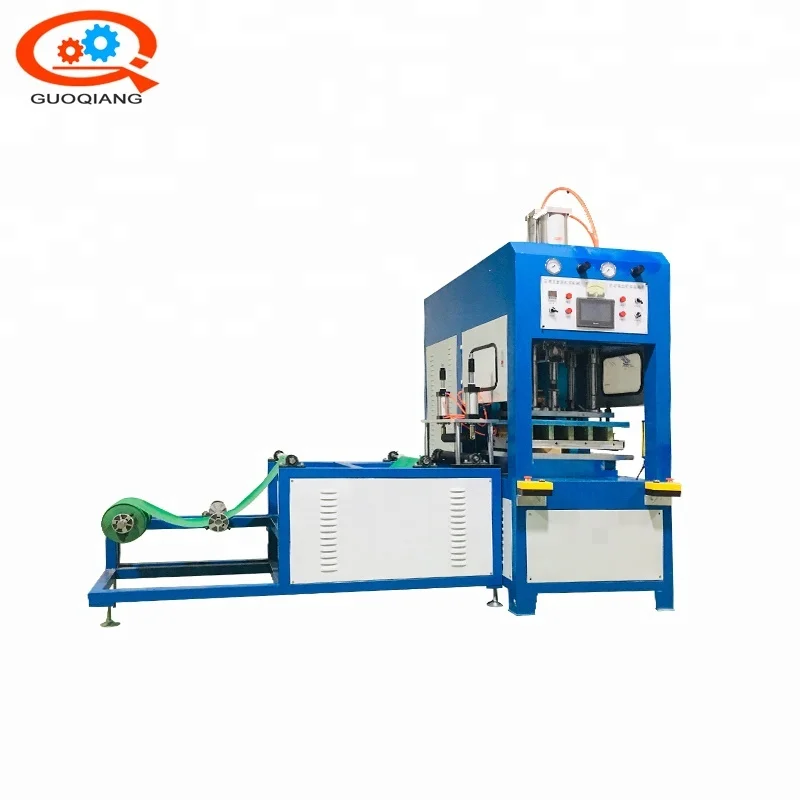

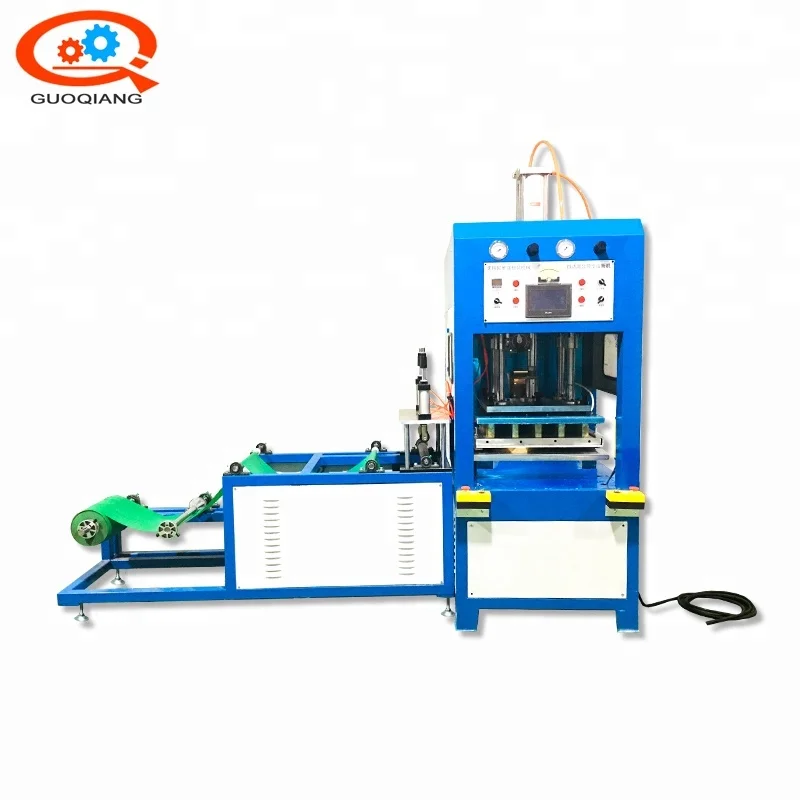

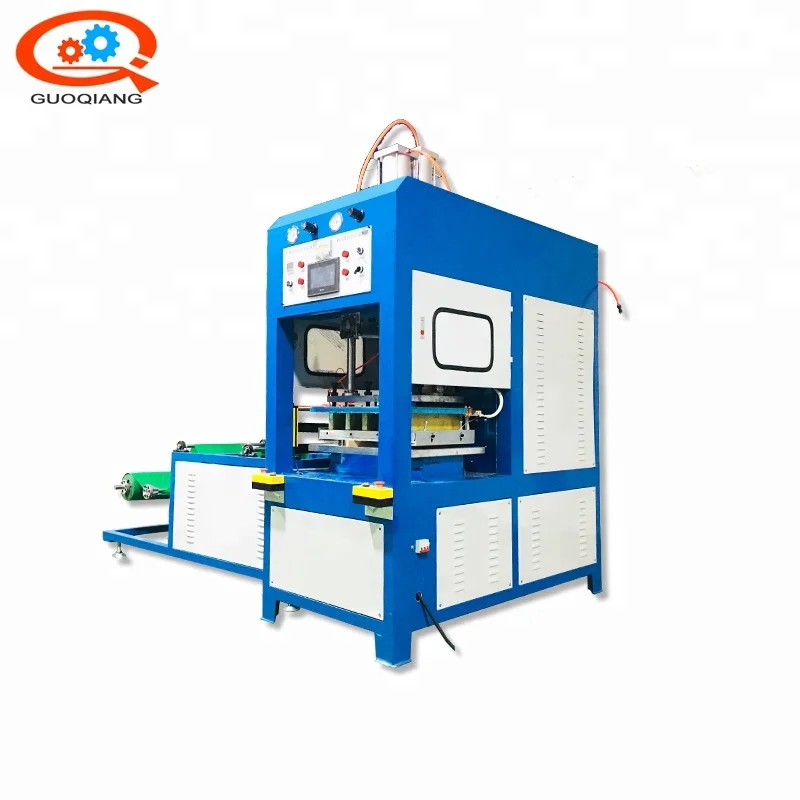

China best Pvc coated fabric Waterproof back pack bag HF welding machine

Product Overview

Description





The machine double station shuttle HF welders with 12, 15, 25kW stable controlled HF power outputs are designed for various industrial HF welding and heat sealing applications requiring precision flat surface for product positioning and complex shape welds. HF welder can be easily converted to a standard Heat Sealer for applications where HF welding is not necessary or impossible (eg: PP or PE materials). Machine is equipped with quick change 4 point electrode holder. Custom built tooling and electrodes are available upon request.





• High sensitivity spark protection circuit, which can effectively cut off cause of the sparks.


• Pneumatic devices, saving time, duplex, consistent and easy to operate.


• Square-sype level adjustment, time-saving and easy transfer mode.


• Dual working station, turntable alternative working.


• 27.12 Mhz standard frequency, no radiation.


• Fully imported pneumatic components, stable welding.


• The machine meet with CE requirement.


• Machine can be installing two molds, seperated operation.



Model No	GCQ-W12KW	GCQ-W15KW	GCQ-W25KW
Voltage	AC220/380/400/415/440V 50/60HZ(Customized)
Output Power	12KW	15KW	25KW
Input Power	15KVA	18KVA	28KVA
HF Frequency	27.12MHZ ±0.6%
Oscillation Tube	8T85RB	8T85RB	8T85RB
Anti-spark Tube	NL-5557	NL-5557	NL-5557
Gap of Electrode	200mm	200mm	200mm
Size of upper electrode	600×800mm	800×1000mm	900×1200mm
Machine Size	3700×1950×1950	3700×1950×1950	3700×1950×1950
Machine Weight	800KG	800KG	800KG
