Joyal Activated Charcoal Grinding mill plant grinding ball mill manufacture

Product Overview

Description

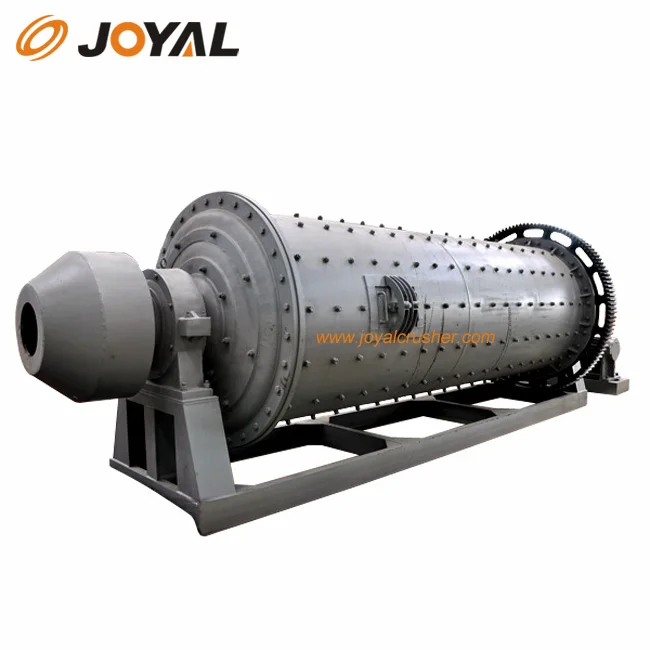

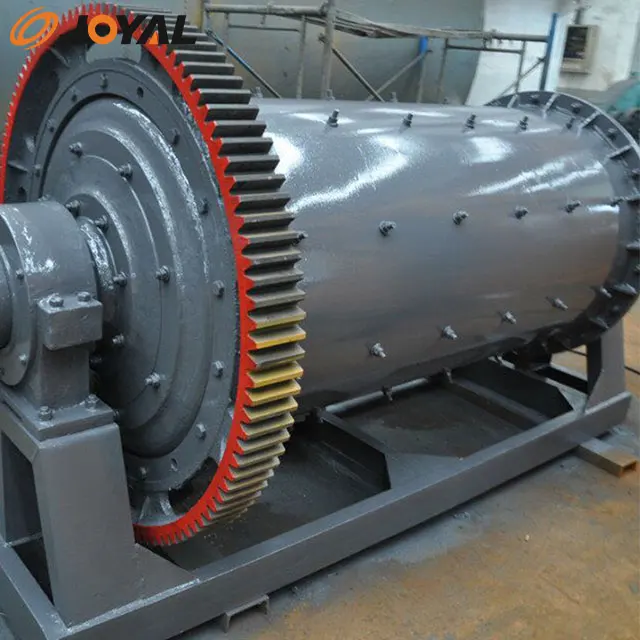

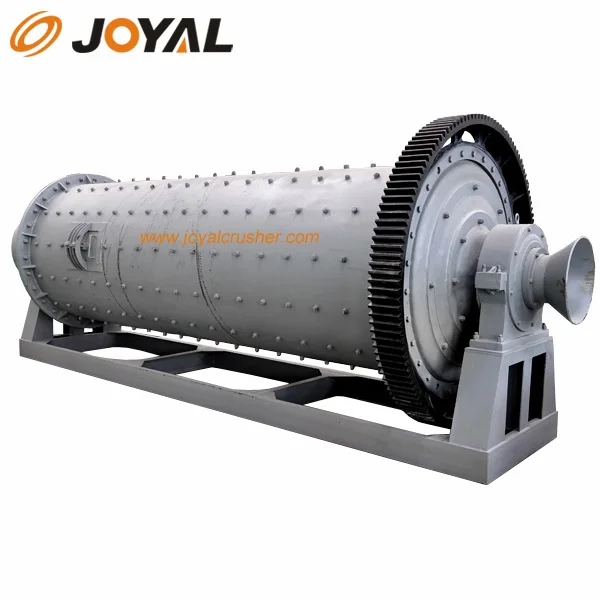

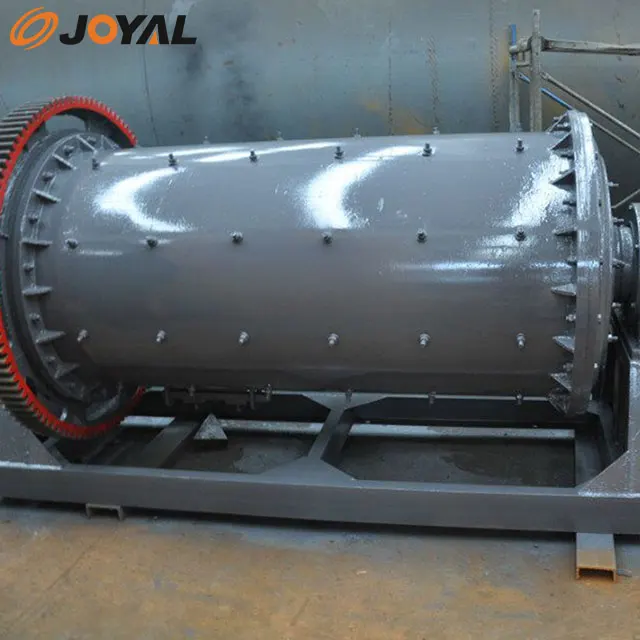

Introduction of Joyal Activated Charcoal Grinding mill plant grinding ball mill manufacture

Ball mill is the key equipment for secondary grinding after crushing. And it is suitable for grinding all kinds of ores and other materials, no matter wet grinding or dry grinding. Besides, it is mainly applied in many industries, such as ferrous&non-ferrous metal mine, building materials, chemical, electric power, coal, traffic, light industry, etc. In our company, this series of high-efficiency ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush. Therefore, it can save energy by 10-20%. According to different discharging ways, it can be divided into two kinds, grate type and overflow type.



Features Of Joyal Activated Charcoal Grinding mill plant grinding ball mill manufacture

This kind of machine has advantages of easy operation, convenient maintenance and reliable performance and so on.





Working Principle of Joyal Activated Charcoal Grinding mill plant grinding ball mill manufacture
The Ball mill can be divided into lattice type and overflow type according to different beneficiation methods, and this machine is two lattice-type ball mill.
The materials from the feeding fittings enter the first bin of the milling machine via the feeding hollow axis evenly when it works. There is a ladder-like or ripple-like scaleboard in the first bin, and different specification steel balls are installed in the bin. When the cylinder rotates, which generating centrifugal force to carries steel balls to a certain height and then balls fall to strike and grind the material. After primary grinding in the first bin, the material then enters into the second bin via a single layer partition board. There is a scaleboard and steel balls in the second bin, so the materials are further ground. In the end, the powder is discharged by output material board.



Main Specifications Of Joyal Activated Charcoal Grinding mill plant grinding ball mill manufacture

Model	Rotation Speed of Cylinder (r/min)	Loading of Ball (t)	Feeding Size (mm)	Output Granularity (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)
ø900×1800	38	1.5	<20	0.074-0.8	0.65-2	18.5	3.6
ø900×3000	38	2.7	<20	0.074-0.8	1.1-3.5	22	4.6
ø1200×2400	32	3.8	<25	0.074-0.6	1.5-4.8	45	12.5
ø1200×3000	32	5	<25	0.074-0.4	1.6-5	45	12.8
ø1200×4500	32	7	<25	0.074-0.4	1.6-5.8	55	13.8
ø1500×3000	27	8	<25	0.074-0.4	2-5	90	17
ø1500×4500	27	14	<25	0.074-0.4	3-6	110	21
ø1500×5700	27	15	<25	0.074-0.4	3.5-7	132	24.7
ø1830×3000	24	11	<25	0.074-0.4	4-10	180	28
ø1830×6400	24	23	<25	0.074-0.4	6.5-15	210	34
ø1830×7000	24	25	<25	0.074-0.4	7.5-17	245	36
ø2200×5500	21	30	<25	0.074-0.4	10-22	370	48.5
ø2200×6500	21	31	<25	0.074-0.4	14-26	380	52.8
ø2200×7500	21	33	<25	0.074-0.4	16-29	380	56
ø2200×9500	21	38	<25	0.074-0.4	18-35	475	62
ø2400×7000	20	39.5	<25	0.074-0.4	20-32	475	68
ø2700×3600	21	39	<25	0.074-0.4	13-28	400	77
ø3200×4500	19	65	<25	0.074-0.4	24-49	800	126
ø3600×6000	18	117	<25	0.074-0.4	38-82	1600	190
