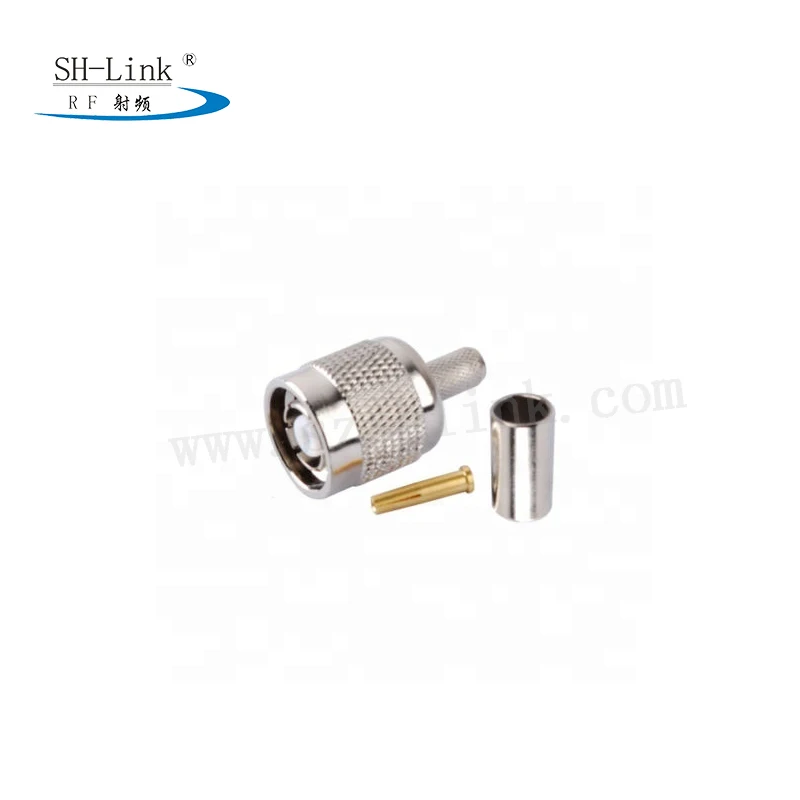

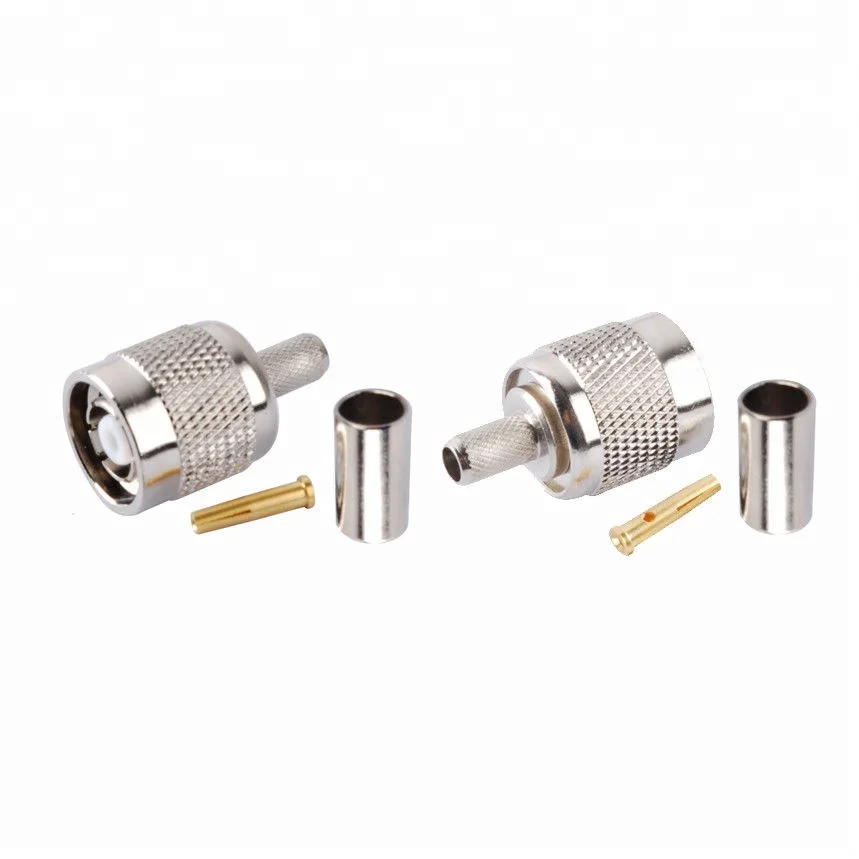

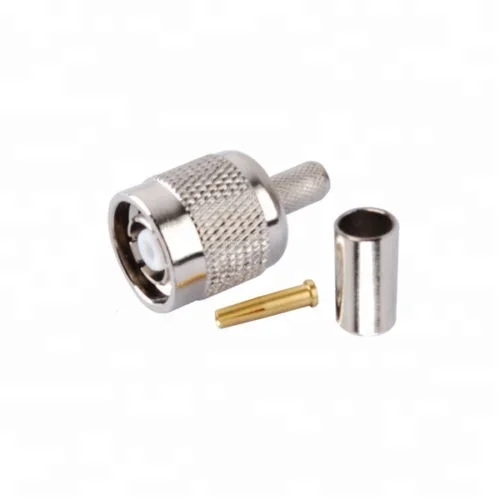

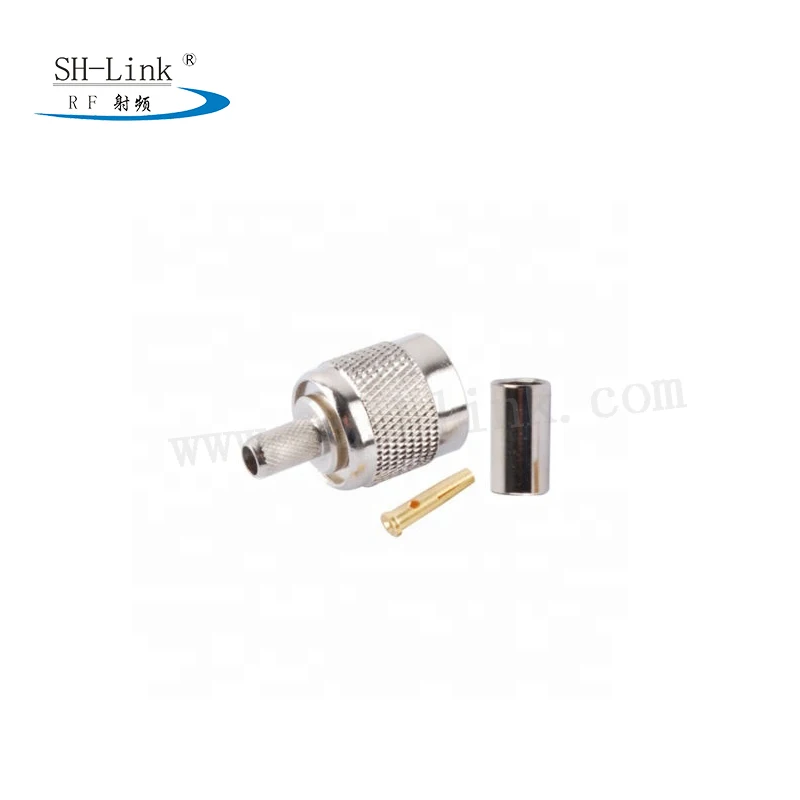

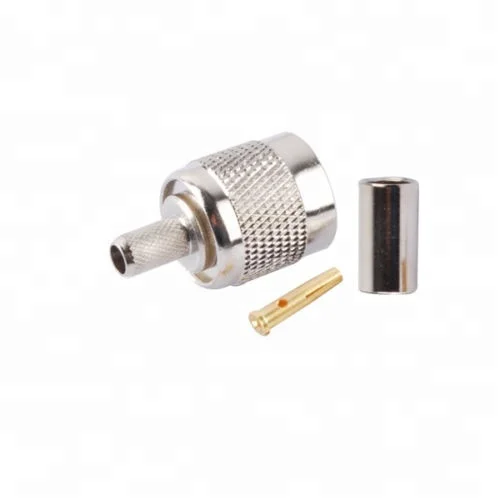

hot sale RP TNC Male Crimp Solder coaxial Connector for RG58 LMR 195 RG400 RG142 Cable use in radio station
- Category: >>>
- Supplier: Shenzhen Sihanming Technology Co. Ltd.
Share on (60791090989):
Product Overview
Description
Reverse polarity TNC connector,crimp,50 ohm.
High quality and favourable price
According to the request of customer,the reverse polarity connectors produced by our company is to distinguish with difference original series procucts.(for example SMA,TNC,BNC,etc).It can change the link form,prevent mistakes,and diminish the systematic wastage.It has the same technical characteristic,materials,standard same with the original series of products.
| MAJOR TECHNICAL CHARACTERISTICS | ||
| Temperature range | -55—+155℃(PE Cable -40—+85℃) | |
| Vibration | 150m/S²(10-2000Hz)15g | |
| Impedance | 50Ω | |
| Frequency range | DC-11GHz | |
| Working voltage | 500V r.m.s at sea level | |
| Withstanding voltage | 1500V r.m.s at sea level | |
| Contact resistance | ||
| Center contact | ≤10 mΩ | |
| Outer contact | ≤2.5 mΩ | |
| Insulation resistance | ≥5000MΩ | |
| Center conductor retention force | ≥0.57N | |
| Insertion loss | ≤0.20dB | |
| Voltage Standing Wave Ratio | ||
| Straight | ≤1.22/3GHz | |
| Right angle | ≤1.30/3GHz | |
| Durability(mating) | ≥500(Cycles) | |
| Material & Plating | ||
| body | brass | nickel plated |
| pin contact | brass | gold or silver plated |
| socket contact | beryllium-copper | gold or silver plated |
| resilient contact | Tin bronze | gold plated |
| insulator | PTFE | |
| crimp ferrule | copper alloy | nickel plated |
| O-ring sealing | 6146 silicone rubber | |
| Applicable standard | MIL-C-39012 | |
| CECC 22200 | ||
| IEC-60169-17 | | |
