IP65 easy disassembled Lifepo4 battery 60w all in one solar panel led street light with pole (60791125714)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description

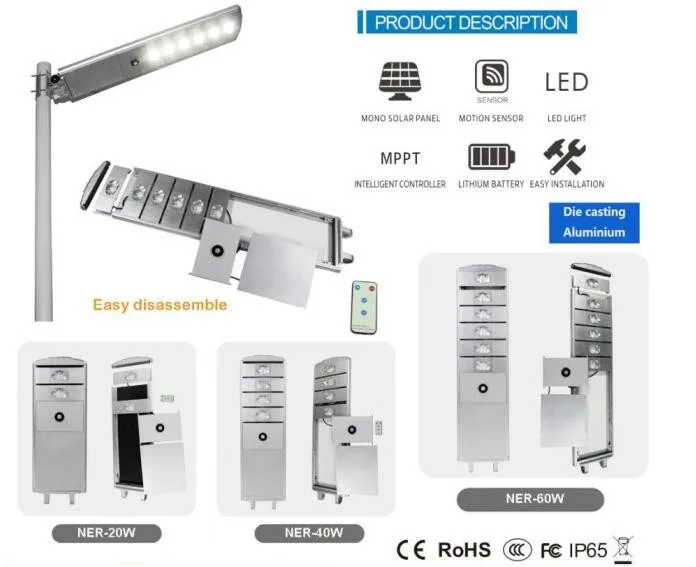

Product Description

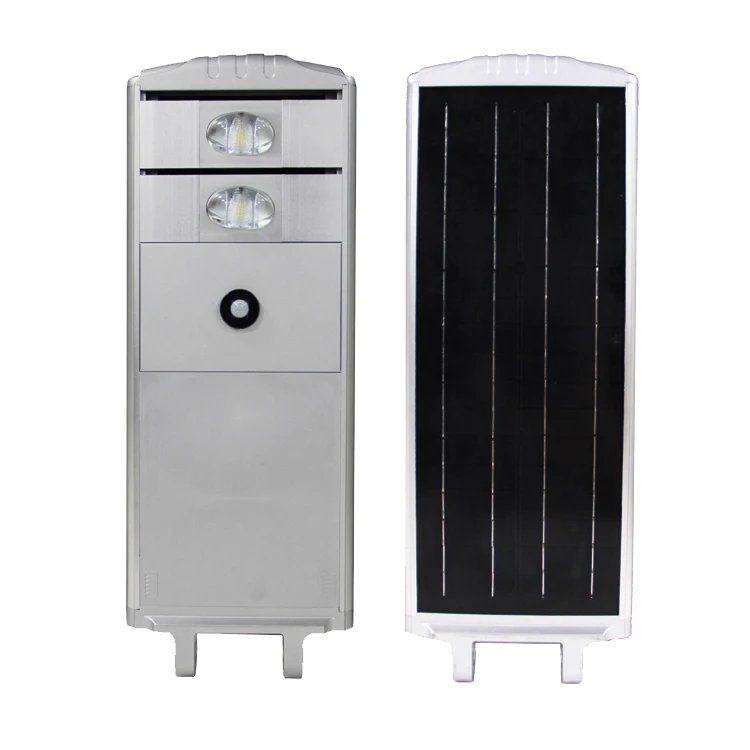

New Design --------All in one solar street light.


20w-40w-60w


1. Die-casting Aluminium Material, high Rust-proof, high dustproof.

2. COB LED chip------Higher bright

3. LifePo4 battery-----Top grad A

4. Replace bettery very easily.

Overview

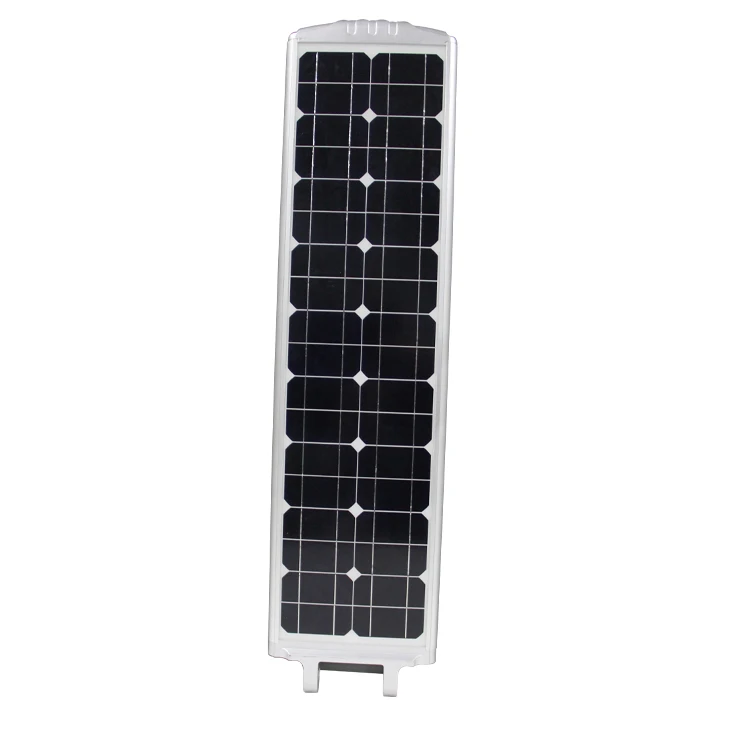

Design Principle It integrates solar cells, lithium batteries, LED light sources, human body infrared sensors, solar energy system controllers, aluminum frames and mounting fixtures. Also optimizing the electronic circuits, the advantage is easy to transport, installation, convenient maintain etc..

Operating Principle Through the light control + time control and PIR human infrared sensing working mode, the solar panel receives light during the day to charge the lithium battery. When the controller detects that the input voltage of the solar panel is lower than 5V, the controller starts to supply power to the LED light source. When the input voltage of the solar panel is higher than 5V, the controller will cut off the output power of the LED light source automatically, so as to achieve the purpose of light on at night, light off at day automatically.


Features

1. Bridgelux LED chips from US

The die-casting integrated solar street light uses the US Bridgelux LED source to provide superior lumen output, 140 lm/W (lumen/watt), long-lasting stability and excellent visual sense. Each Bridgelux LED has anti-static protection components to minimize LED damage caused by static electricity.

2. COB High transmittance lens

3. PIR human infrared sensing

The use of human body infrared sensor control technology, energy storage during the day, high brightness when human comes, dim when nobody around. The LED lights will work at night automatically. The smart sensor module controls the working status of the lamps. The full power lighting mode is provided when the person comes. The energy saving mode is provided when the person leaves. The factory default working mode: light on at night, light off at day automatically. (You can also customize the working mode according to the customer's requirements).

4. Angle of installation is adjustable

The use of die-casting special fasteners, humanized adjustable angle of 30°-150° according to the use of project areas in different latitude and longitude countries

5. High Capacity Lithium Battery

Using A level lithium iron battery, charge and discharge cycle 2000 times, the company has professional battery burn-in equipment test after 24 hours then assembly production, greatly reducing the product failure rate in the using process, we do each detail is to improve product quality and minimize the failure rate.

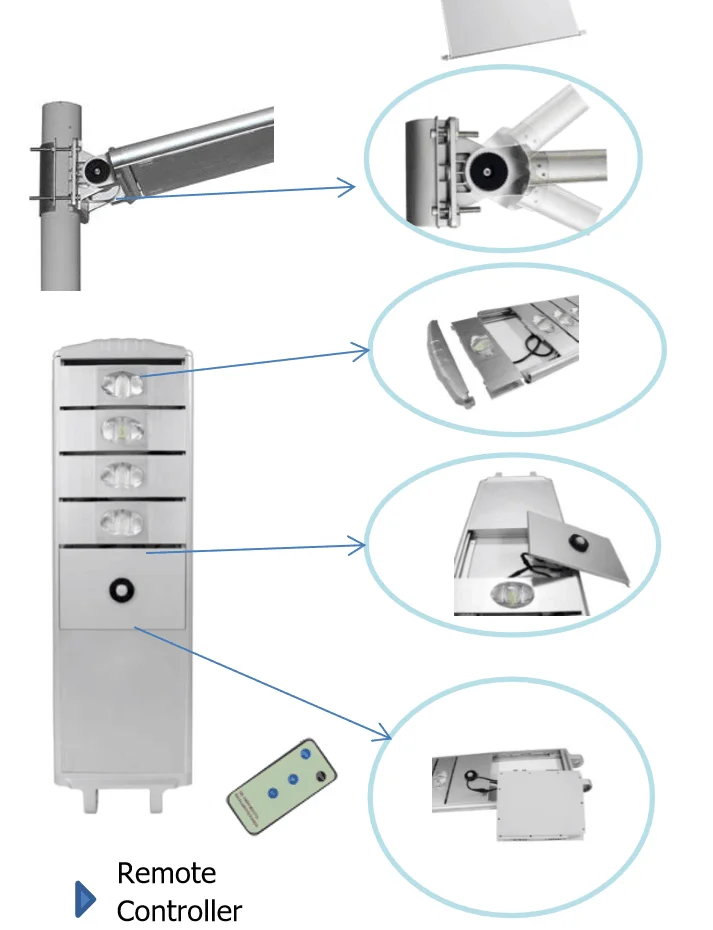

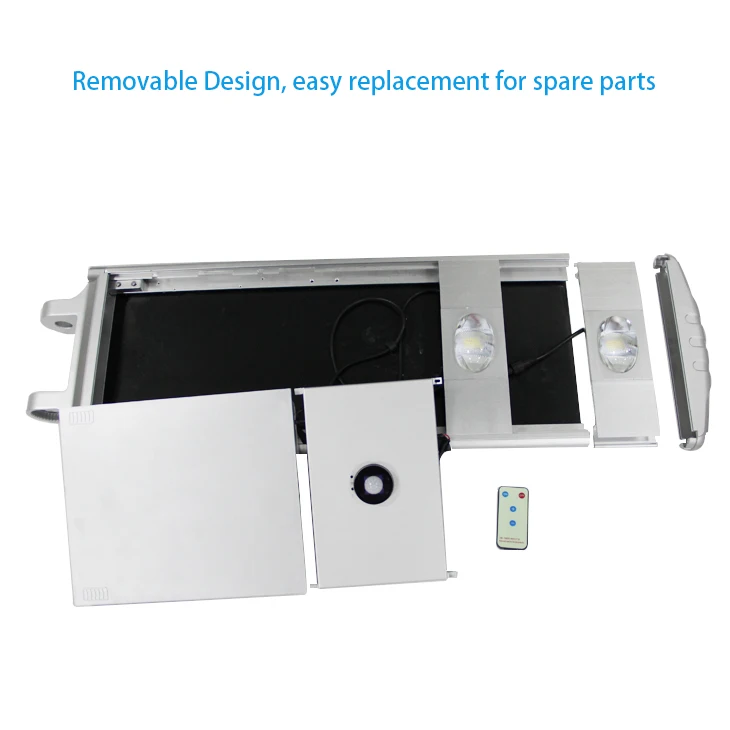

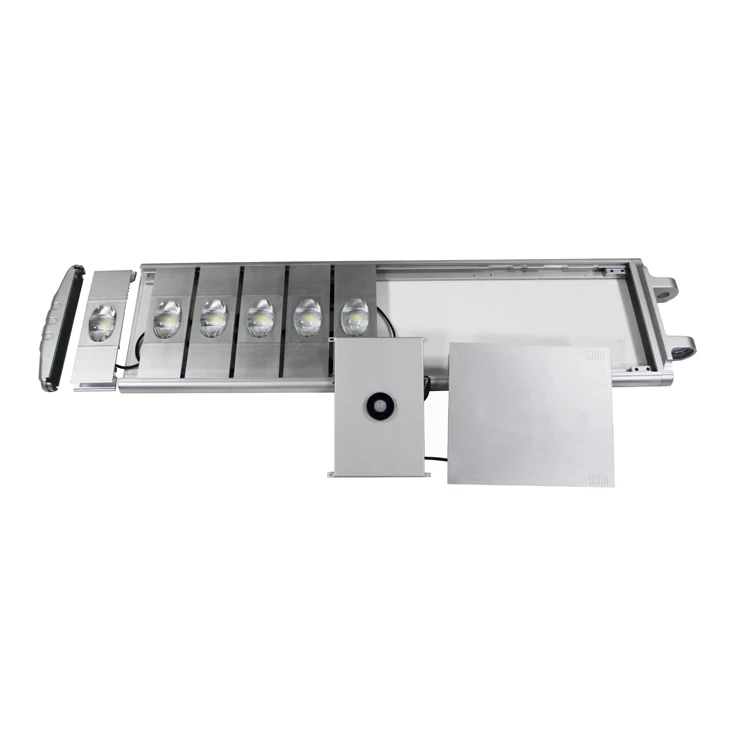

6. Integration Dismountable Design


The battery box is dismountable, IP68 protection level, save a lot of maintain cost in future.

Using A level lithium iron battery, charge and discharge cycle 2000 times, the company has professional battery burn-in equipment test after 24 hours then assembly production, greatly reducing the product failure rate in the using process, we do each detail is to improve product quality and minimize the failure rate.

LED module COB light source is dismountable, heat dissipation aluminum material, extend life span. Controller with PIR sensor in one design also dismountable, easy to maintain. Electronic switch instead of traditional button, avoid some issues because of the traditional switch flick automatically on transportation. Die-casting design, the manufacturing process is more delicate, the appearance is more exquisite, the function is more powerful.

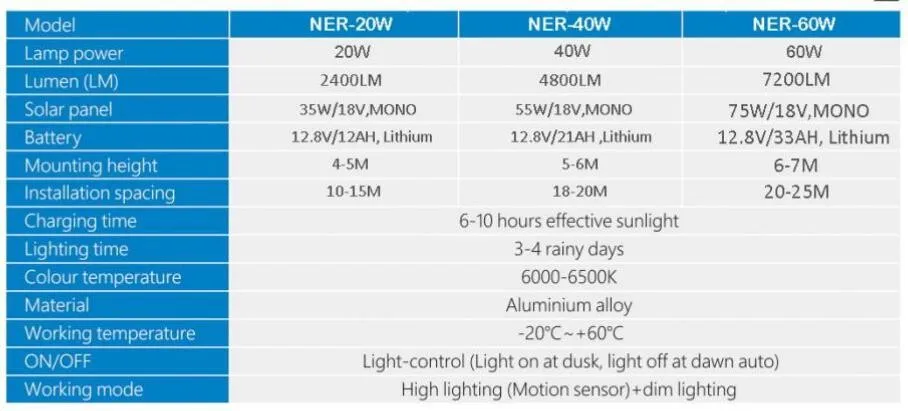

Specification

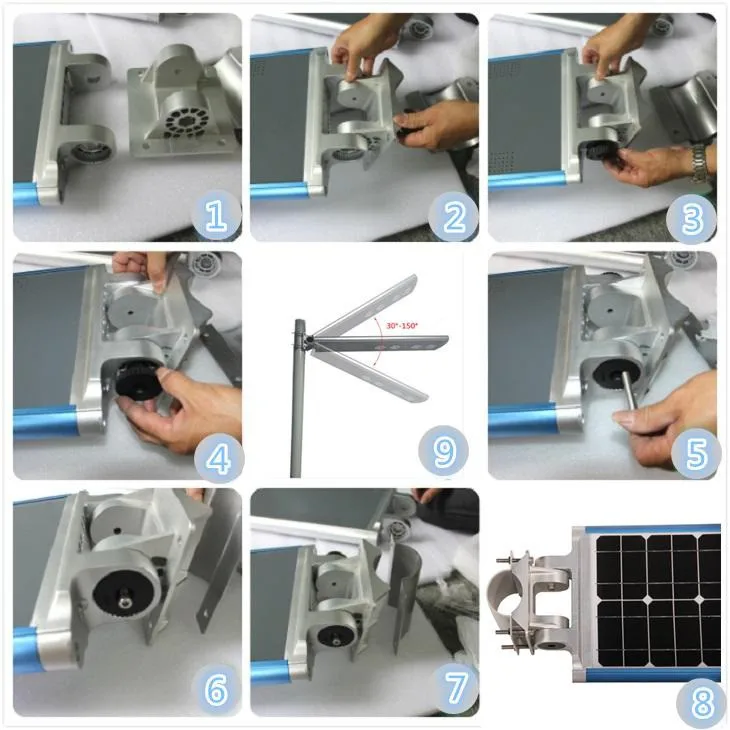

How to install

(1) Choose the best location for lighting to make the base of the pole firstly, the pole is recommmended to use the
height of 5-9 meters, the upper diameter of 60-110mm, the thickness of pole is greater than 2.3mm outdoor
anti-rust paint iron or hot dip galvanized steel pipe material.

(2) Open the package and check whether the accessories are complete.

(3) Before installing, adjust the angle according to you need to set, and use a special plug to fix the position of the lamp cap and fasteners before continuing to tighten the screws.

(4) The integrated lamp and the lamp post are fixed to each other, and it is necessary to tighten the hoop with screws.

(5) After confirming that the screw is fully tightened between the lamp and the lamp post, presss the switch on
the rear of the lamp and stand up the pole, then the lamp will work automatically. light on at night, light off at day automatically.

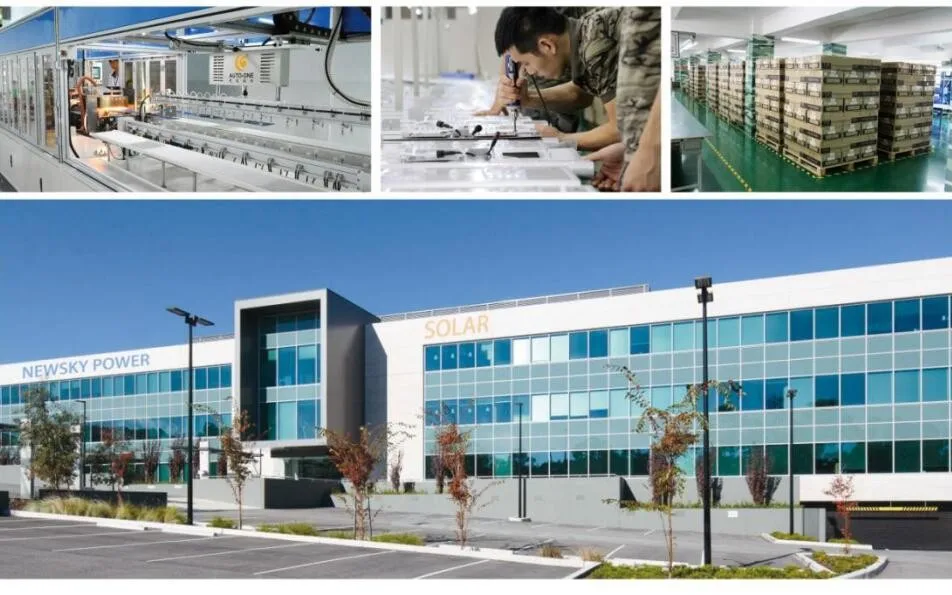

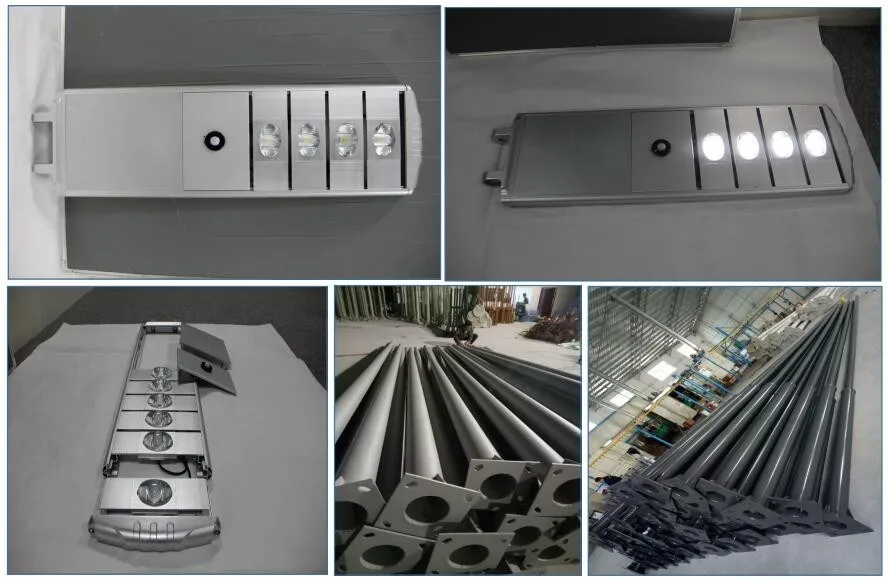

Workshop
Package and Delivery
About us


NEWSKY POWER (By Commercial Energy) is a Global solar lighting company with a head office in HONGKONG and sales office in Qingdao,China.

NEWSKY POWER was founded in 2008, with line of products including solar street lighting, solar garden lighting, solar wall lighting, solar lawn lighting, solar flood lighting...

NEWSKY POWER owns 3 factories on 40,000㎡ with 30 engineers and 400 highly trained workers..

NEWSKY POWER is certified ISO9001 and also has certifications for many countries including CE,ROHS,GS,FCC.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in household and industries.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
