  • Soundproof Tempered Low E Insulated Glass With Factory Price

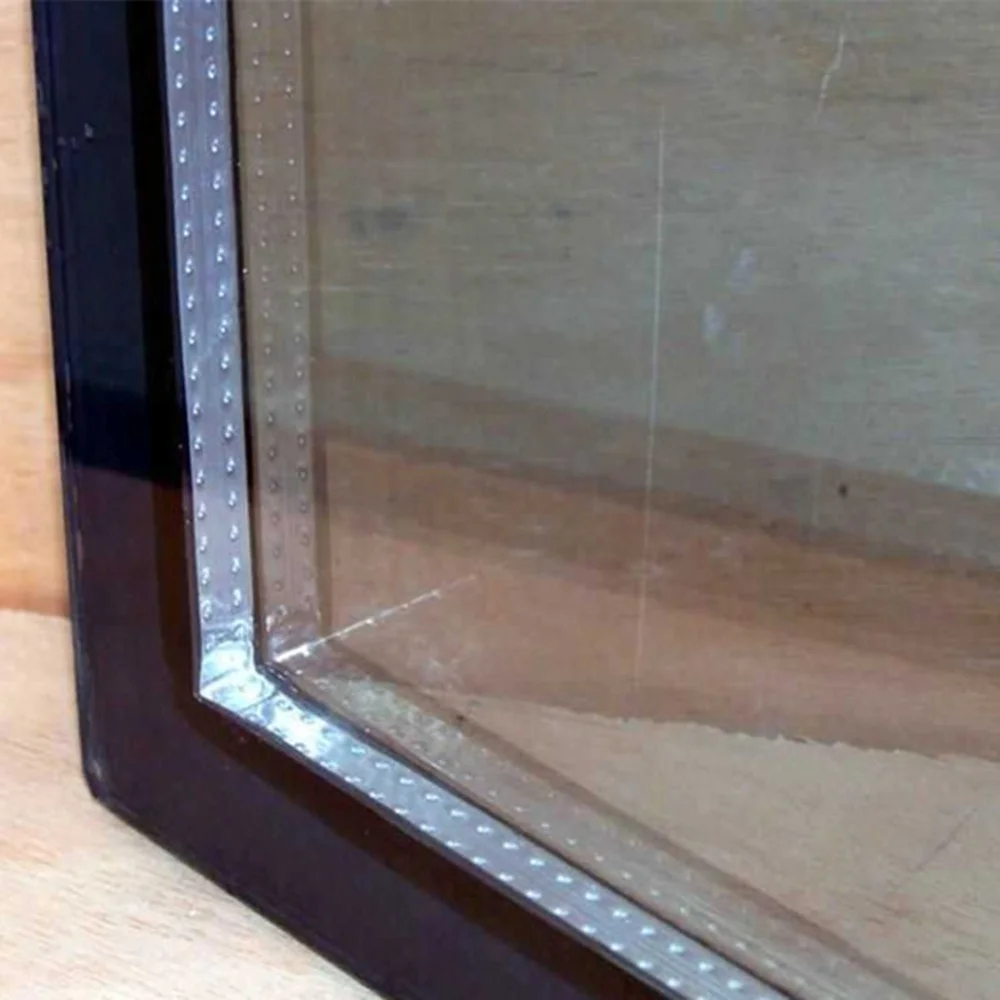

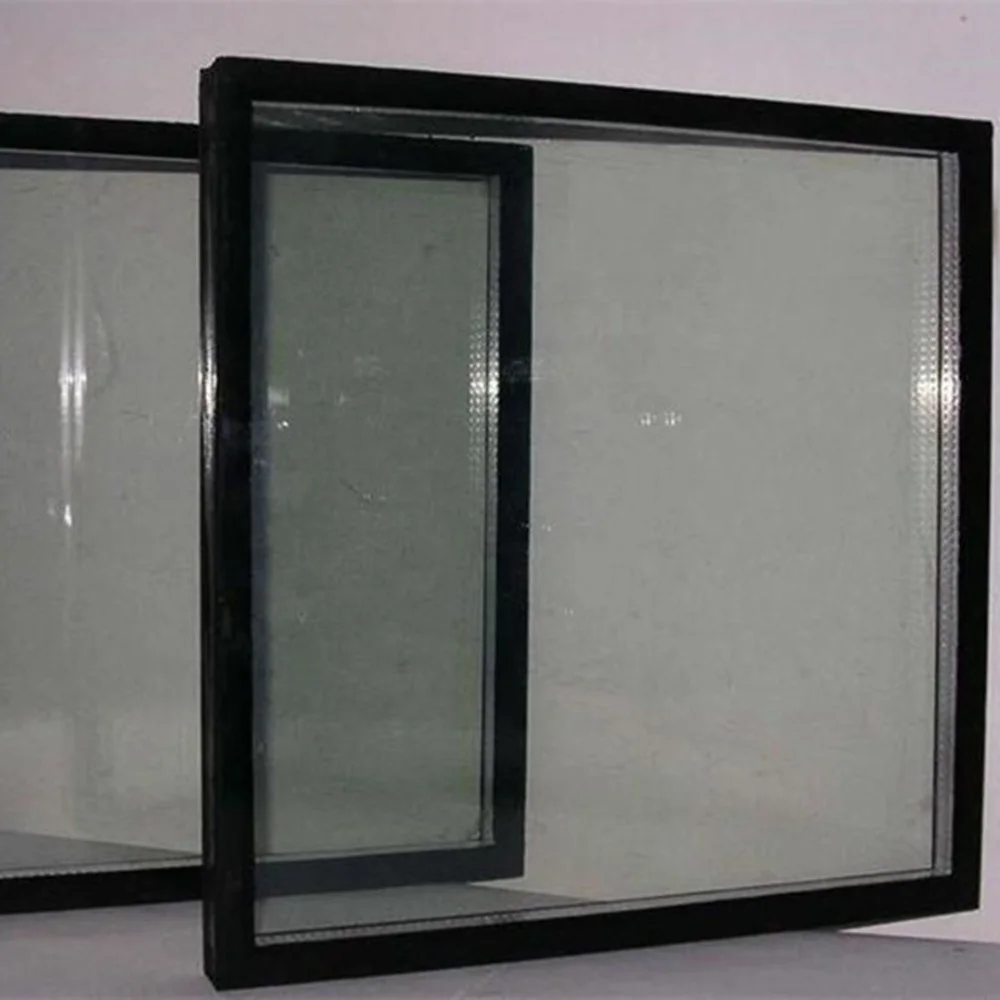

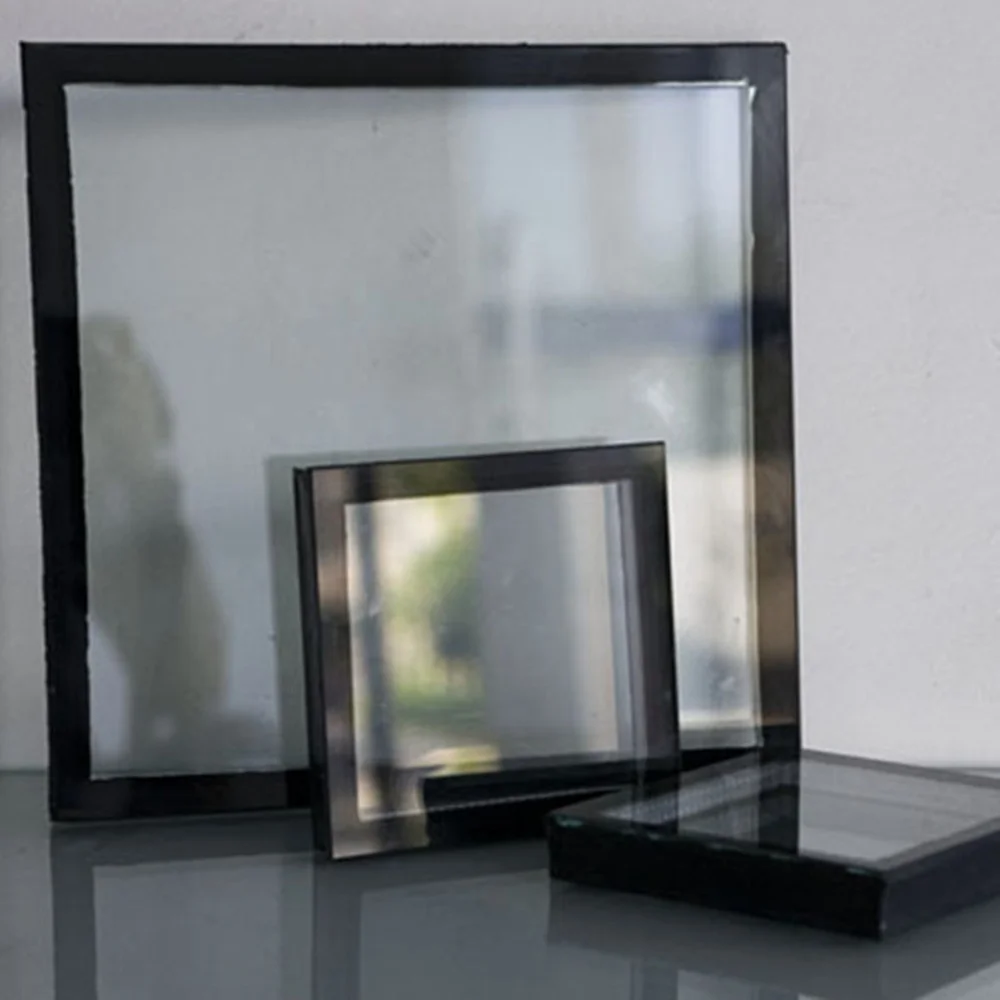

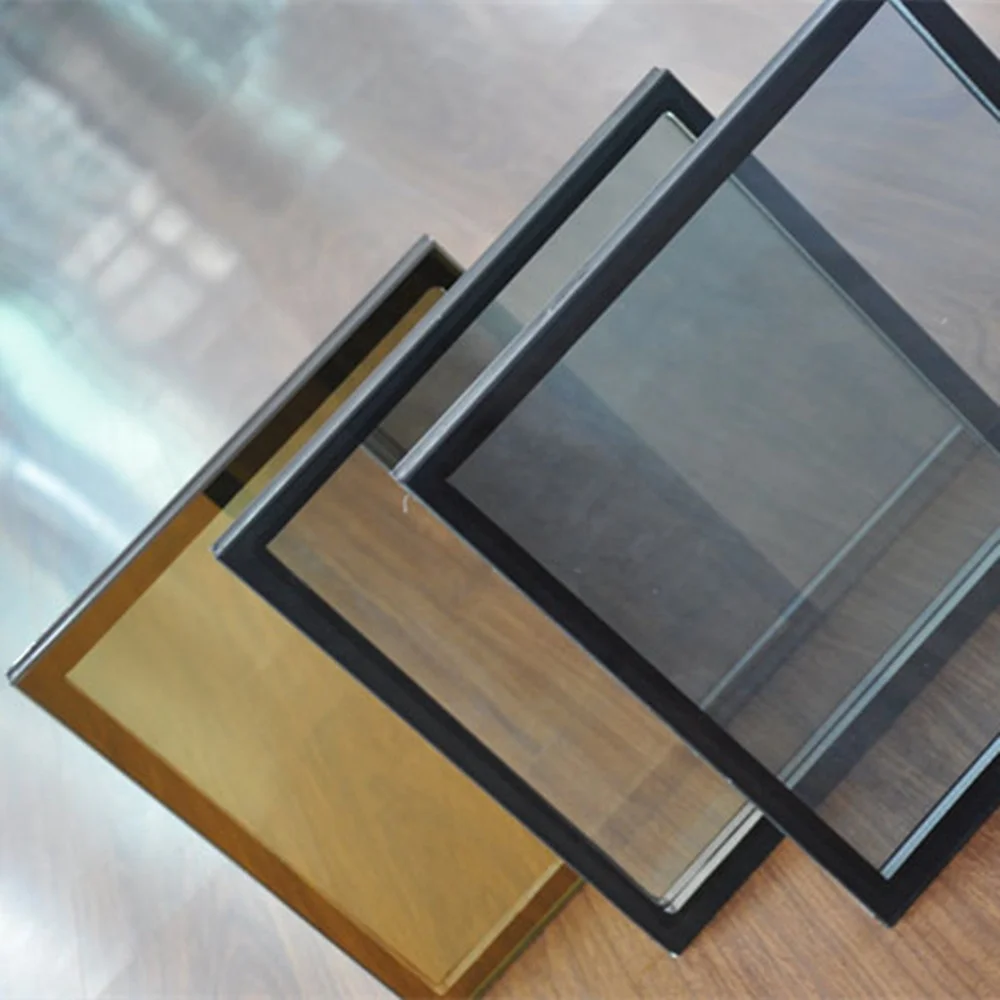

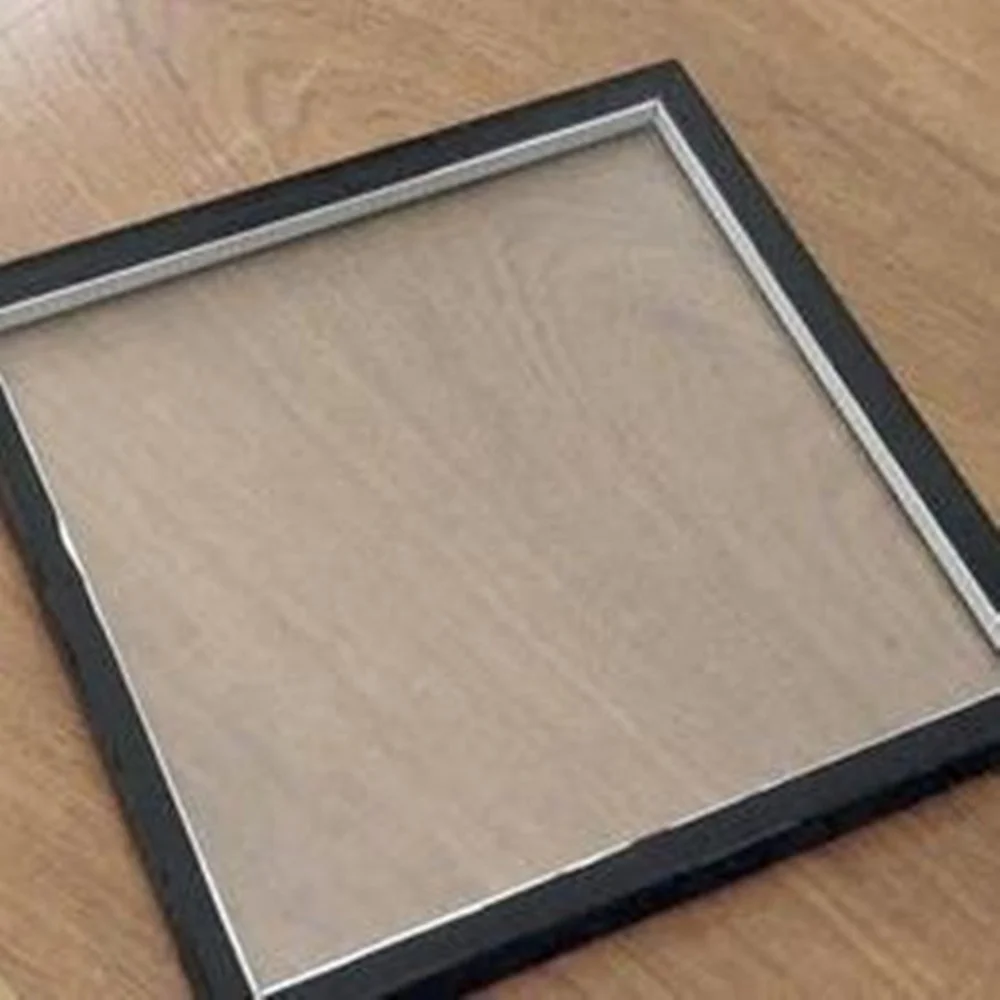

Soundproof Tempered Low E Insulated Glass With Factory Price
Soundproof Tempered Low-E Insulated Glass With Factory Price
Soundproof Tempered Low-E Insulated Glass With Factory Price
Soundproof Tempered Low-E Insulated Glass With Factory Price
Soundproof Tempered Low-E Insulated Glass With Factory Price
Soundproof Tempered Low-E Insulated Glass With Factory Price
Soundproof Tempered Low-E Insulated Glass With Factory Price

Soundproof Tempered Low E Insulated Glass With Factory Price

Share on (60791162378):


Price:

Quantity:


Product Overview

Description


Product Description

Soundproof Tempered Low-E Insulated Glass With Factory Price


Insulating Glass also known as double glazing are double or triple glass window panes separated by an air or other gas filled space to reduce heat transfer across a part of the building envelope.

Glass in windows is used to provide light and allow a view from either side to the other side. While the composition and manufacturing of glass is covered elsewhere, for the purposes of this article, its importance to the construction is its dimensional stability over a wide temperature range.

\t
Product Name
\t
Double Glazing Glass
\t
Material
\t
Float Glass, Low_E glass
\t
Color
\t
Clear, Ultra Clear
\t
Standard
\t
CE ISO
\t
Air
\t
Argon, Nitrogen
\t
Thickness
\t
As customers requriement
\t
Size
\t
All size can be customzied
\t
Used
\t
Window, Door and Wall
Glass Specification

 Insulated Glass Specification

Insulating Glass is manufactured with glass in range of thickness from 3 mm to 10 mm or more in special applications. Laminated or tempered glass may also be used as part of the construction. Most units are manufactured with the same thickness of glass used on both panes but special applications such as acoustic attenuation or security may require wide ranges of thicknesses to be incorporated in the same unit. To reduce shear effects on the sealed unit (a major cause of premature failure), manufacturers use a rule of thumb that permits a difference of 1 mm between panes of glass used in the unit and still maintain the warranty for the unit. For example, a unit may be ordered with a 4 mm pane on the exterior and a 3 mm pane on the interior. These variations are allowed for architectural and cost reasons. Other combinations can be specified and produced but the manufacturer may reserve the right to limit the term of the warranty or refuse to warranty the unit altogether.


\t
Insulated Glass Specification
\t
\t
\t





Thickness(mm)
\t
3+4A+3
\t
3+6A+3
\t
3+9A+3
\t
3+12A+3
\t
3+16A+3
\t
4+4A+4
\t
4+6A+4
\t
4+9A+4
\t
4+12A+4
\t
4+16A+4
\t
5+4A+5
\t
5+6A+5
\t
5+9A+5
\t
5+12A+5
\t
5+16A+5
\t
6+4A+6
\t
6+6A+6
\t
6+9A+6
\t
6+12A+6
\t
6+16A+6
\t
8+4A+8
\t
8+6A+8
\t
8+9A+8
\t
8+12A+8
\t
8+16A+8
\t
10+4A+10
\t
10+6A+10
\t
10+9A+10
\t
10+12A+10
\t
10+16A+10
\t
\t
\t
\t
\t
\t
Size
\t
MAX size: 2440x3300mm
\t
All size can be customized
\t
\t
Color
\t
Clear, green, blue, grey...etc
\t
Product Kinds
\t
Normally double glazed glass, Silk sreen double glazed glass, Low-e double glazed glass
Products Show
Our Service

High quality

Passed the ISO9001:2008 quality system authentication and CE authentication.

Rich Experenice

Rich experience in processing and international business.

24 Hours Severice

Any time, when you come, I am still waiting for you here.

Our Company

Factory

Our Factory

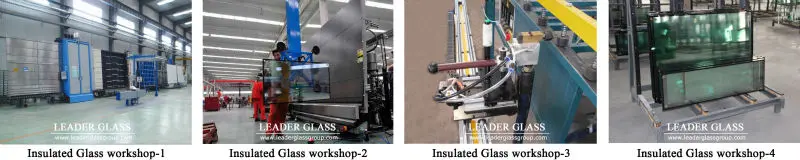

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

Packing Details  : Packing, wooden cases, strong packing for sea shipping.

Delivery Details : 10-30 days after order of Solid bicycle tire tubes

Product Kind

Normal Double Glazed Glass

Mataier: Clear float glass, Ultra clear float glass

Thickness: from 2 mm to 10mm

Size: all size can be customized.

Max size: 2440*3300mm

Low-e double glazed glass

Mataier: Low- E glass
Thickness: from 4 mm to 6mm
Size: all size can be customized.
Max size: 2440*3300mm

Silk Screen Double Glazed Glass

Mataier: Clear float glass, Ultra clear float glass
Thickness: from 2 mm to 10mm

Size: all size can be customized.
Max size: 2440*3300mm

Patterns: Any patterns is ok.

Insulated Glass Application

1. Glass Curtain wal
2. Glass windows
3. Glass Veranda
4. Glass tables...etc

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge, customized need to charges. But all sampels do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
