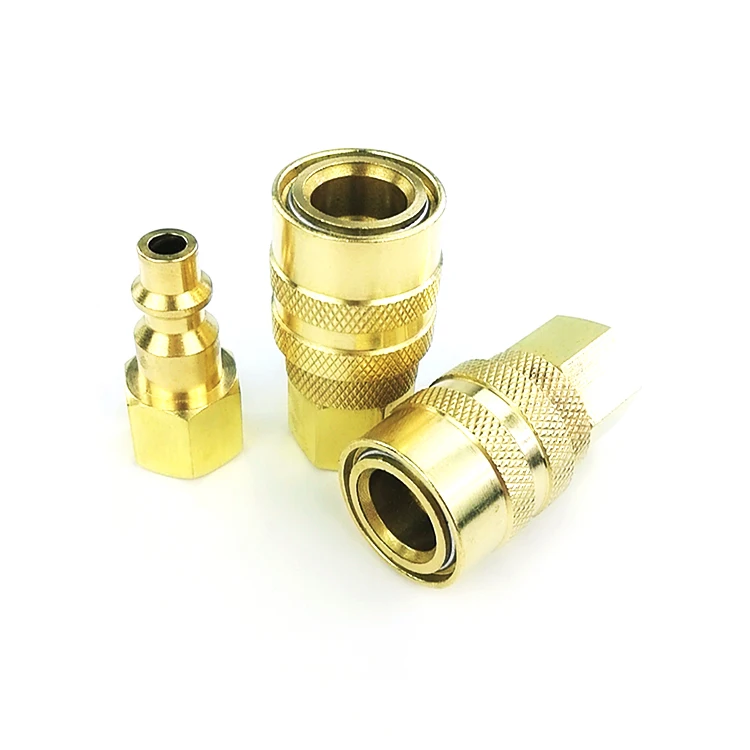

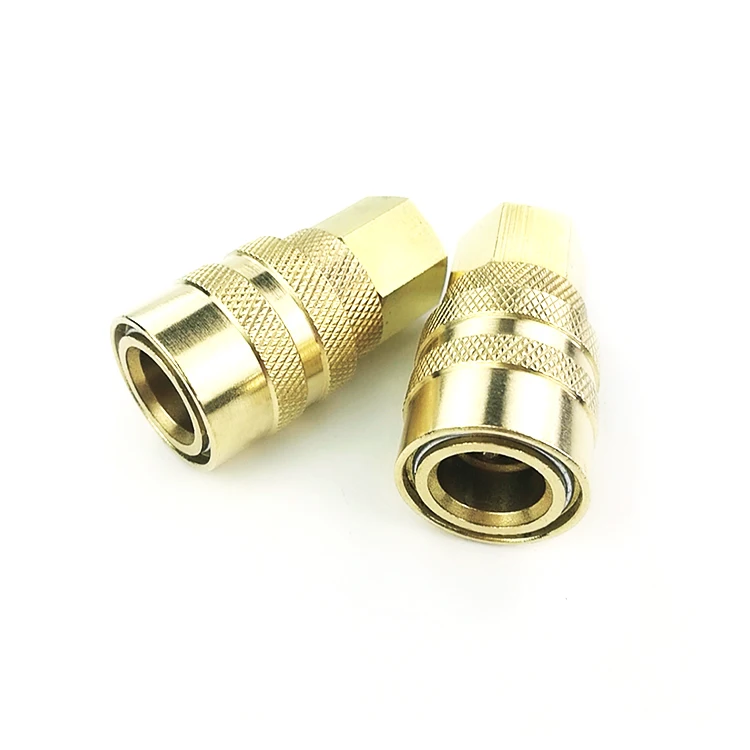

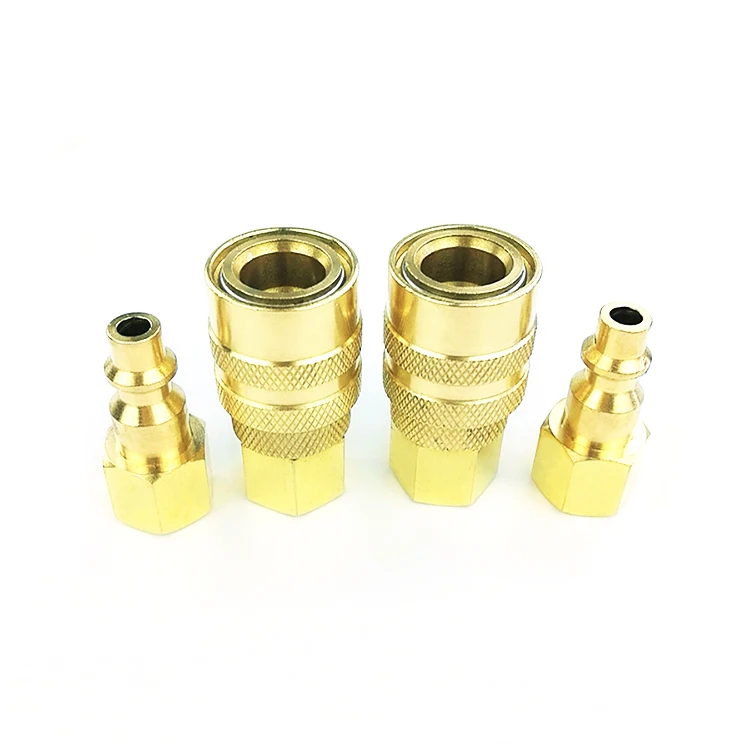

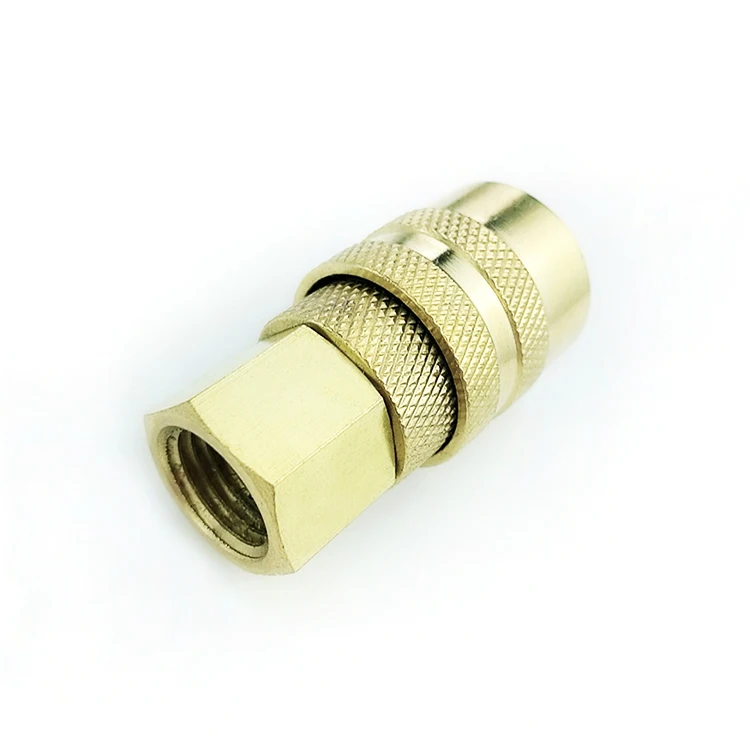

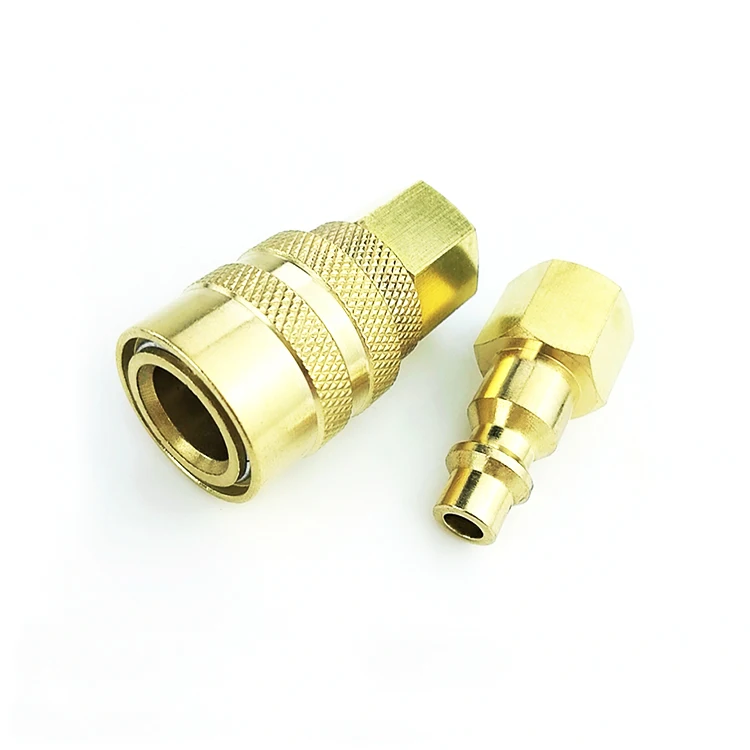

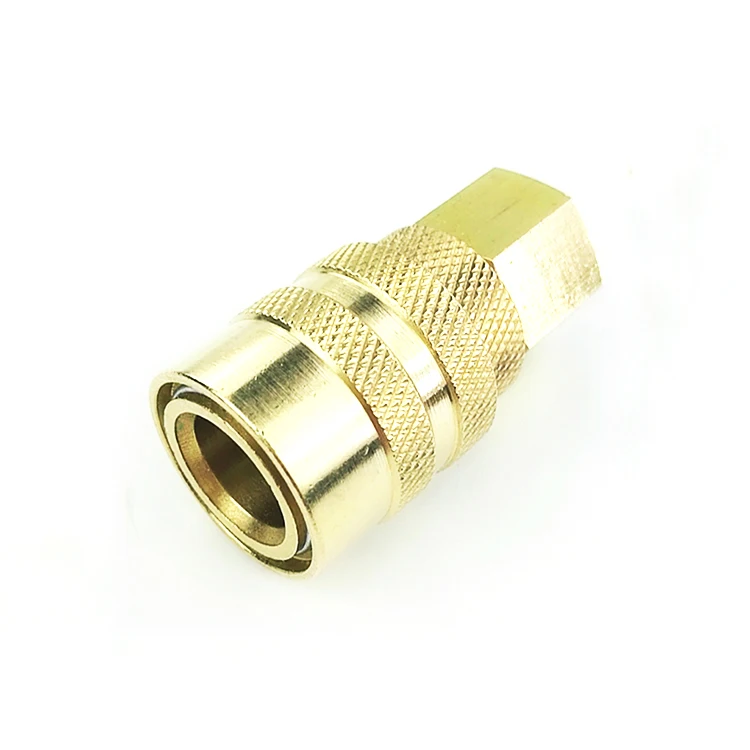

♦ Product name: M02-B series Brass Milton type pneumatic quick coupling
♦ Ordering code:
M 02 - SF - 02 B
Milton type Body size Connection Thread size Material
02 series SF: Female couplin 02:1/4"NPT Blank: Steel 03 series SM: Male coupling 03:3/8"NPT B: Brass 04 series SH:Hose barb coupling 04:1/2"NPT S: SS304 PF: Female plug PM: Male plug PH: Hose barb plug
♦ Characteristic:
1) Made in brass material or carbon steel with nickel plated, and sealed with NBR 2) Easy to connect tube by one touch, and the is applicable for Polyurethane tubing and Nylon tubing 3) Different thread type can be offered according to customers' requirements, e.g.:BSP, NPT,PT and Metric 4) We can provide female quick couplings and male plugs.
♦ Specification:
Specification
Parameter
Applicable medium
Compressed Air, Vacuum
Pressure range
0~1.0 MPa
Proof pressure
1.5 MPa
Negative range
-100kpa (10Torr)
Temperature range
5°C~60°C
Applicable tube
PU hose, Nylon hose, PE hose
Advantages
Production Flow
company profile
Certifications
FAQ
1) Can you provide a sample before a big order?
Answer: Yes, we can provide a sample.
2) What 's the delivery date?
Answer: It depends on the quantity you order. Normally, it will take 10~15working days for our regular products.
3) Can you make NPT thread for the port size?
Answer: Yes, we can make NPT thread. But here is MOQ requirement for the quantity.
4) Are you able to make Non-standard or customized air cylinders?
Answer: One of our biggest advantage is for non-standard and customized products.
