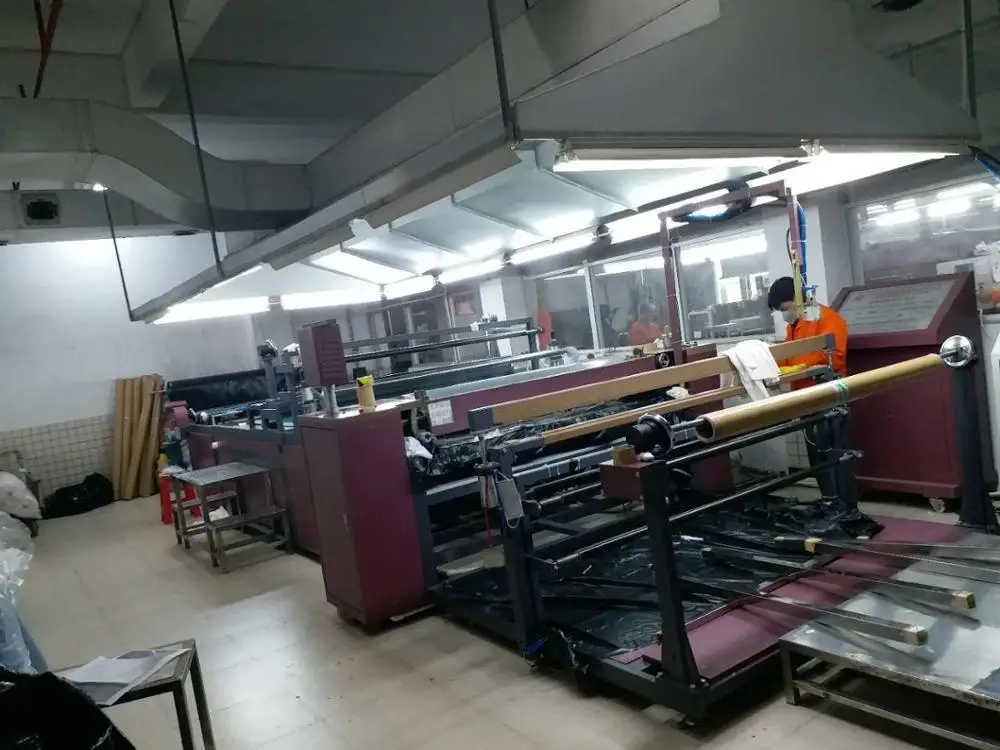

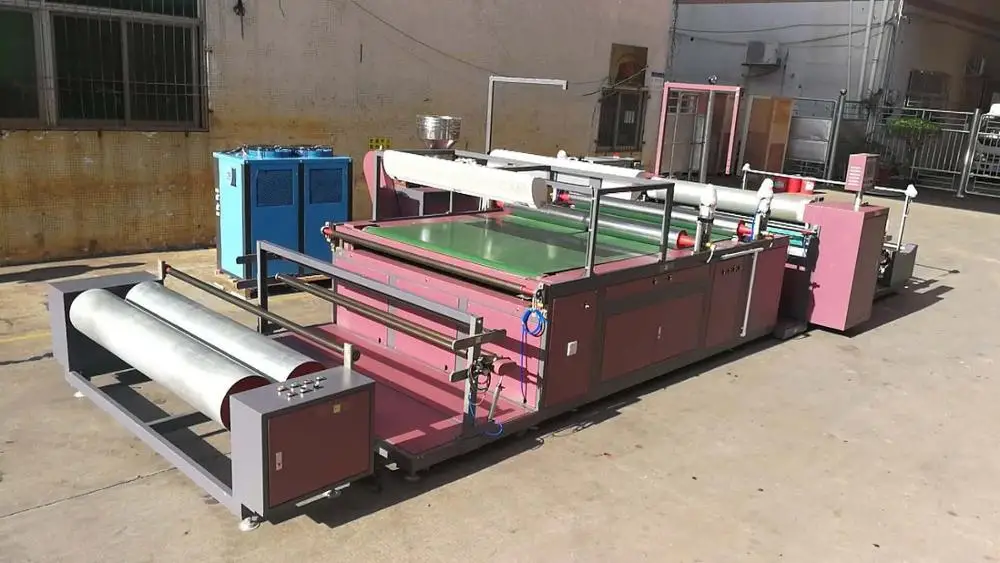

PUR 225 PUR горячий клей, текстильная пенопластовая машина для ламинирования тканей

Product Overview

Description



PUR-225 , It is suitable for the lamination of foam with other fabric

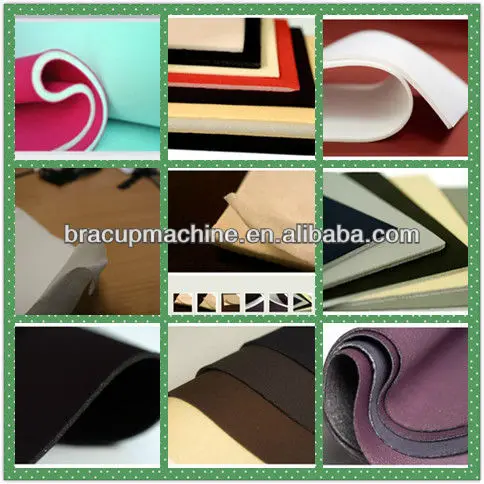

HOT MELT ADHESIVE LAMINATING MACHINE is a kind of using solvent-free green PUR hot melt glue,can glue fabric and fabric,fabric and yarn, fabric and sponge, etc. required by all kinds of composite material markets.The composite finished products have the characteristics of environment-friendly,non-toxic,adhesion and softness,low and high temperature resistance and not easy to be affected by temperature after moisture reaction,elastic durability,abrasion resistance,oil resistance and aging resistance.

In addition,PUR has excellent fog-face efficiency,low substance precipitation and neutral color characteristics,which can be applied to medical products that must be repeatedly disinfected.The composite finished product of PUR
Hot-Melt Glue Laminator has lower loss rate and higher washing fastness.
PUR Hot-Melt Glue Laminator can completely replace the traditional solvent laminatingequipment,no need to use flammable and poisonous solvent in the entire production process,so factory has no potential safety hazard,in
line with safety requirements of national security department.It can make the first-line workers avoid the harm of the solvent to the body,and the compound products have no solvent residue,which is completely in line with the export environmental protection standard of great social benefits.





Features:



1) Using of hot melt adhesive which an environmentally friendly solvent PUR hot melt
adhesive.
2) The hot melt moisture,without drying,composite speed.
3) The fitting process of wet solid reaction,irreversible,strong adhesion and washable.
4) It adopts PLC control and man-machine interface control,the whole process of joint
linkage control,substrate tension.
5)The heat is conducting oil heating,heating fast and evenly.
6)The hot melt adhesive system is independent,full laminating with high speed.
7)The dot texture gluing to make the finished product good air permeability.





Technical Specifications:



Voltage/Power	380V/33KW
Air Pressure	0.6~0.8Mpa
Lamination Speed	30m/min
Max Working width	1650mm
Dimension (L*W*H)	9900mmx3300mmx3200mm
Weight	7500KG

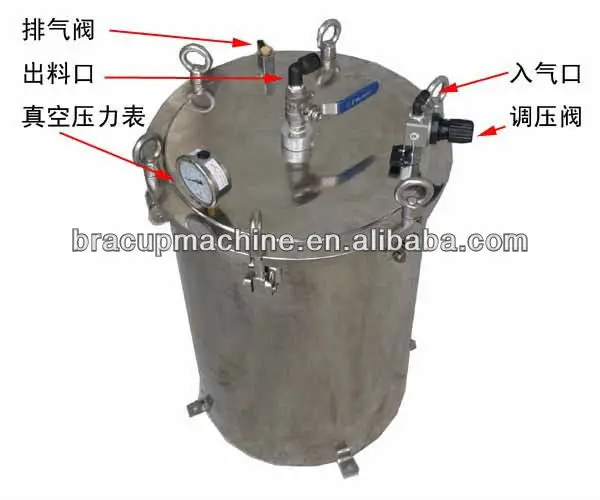

Glue bucket











1.  MOQ: 1 set



2.  OEM & ODM can be acceptable.



3.  We own all the original R & D Technology and Proficient Experience in this field over 13 years.



4.  All the Moulds can be customized according to your supplied samples.

     CNC Made or Manual Made to be Optical.



5.  The Molding Table Size can be bigger customized if required.



6.  The Molding time and temperature can be preset and adjusted freely through the timers and temperature controllers when we mold / press different materials.



7.  All the digital meters are easy to operate.



8.  All the spare parts can be matched to supply.



9.  All the electric fittings and pneumatic parts used in our machinery are with high-quality.



10. All the raw materials (machine frame, machine fittings and etc) are processed by our own factory.



11. We guarantee there is absolutely without jerry-built.



12. Good & Timely After-Sale Services.



13. Engineers & Technicians can be dispatched to buyer's plant.







We are the 1st professional manufacturer & supplier of underwear machinery in Shantou, China Mainland.   Besides, we also have own bra cup factories located in Xiamen City and Dongguan City. We can supply 400~500 sets of machinery monthly, and 1.5~2.0 million pairs of bra cups/pads in each factory.









  It will divided into several parts to load into the container.











If above details are still not clear for you, kindly please contact me without delay!



Looking forward to cooperating with you for long term!
