TT Battery copper crimping cable lugs terminal with bell end / standard barrel / 600v to 35 kv
- Category: Terminals >>>
- Supplier: Zhejiang,Wubai,Power,Fitting,Co.,Ltd.,[Zhejiang,China]Zhejiang
Share on:
Product Overview
Description
Product Description
1. Wire size : AWG 12 - 750 or 6 mm² - 400 mm²
2. Stud size : inch #8 - 3/4'' or 4.0mm - 20mm
3. Standard : DIN EN 61373 class 1B vibration-tested
4. Certification : ISO9001,SGS,CE,ROHS
| Product Name | TT series Cable lug |
| Material | C11000,C1100,CU-ETP,E-CU58 for high conductivity |
| Surface | Tin-plated to protect against corrosion for Salt spray experiment 48H |
| Hardness | HV: 120 - 70 |
| Maching acuuracy class | High |
| Pullout test | Conform to UL486 standard |
| Contact resistance | Conform to UL486 standard |
| Flammability rating of material | Conform to UL486 standard |
| Specific test date | Please mail us |

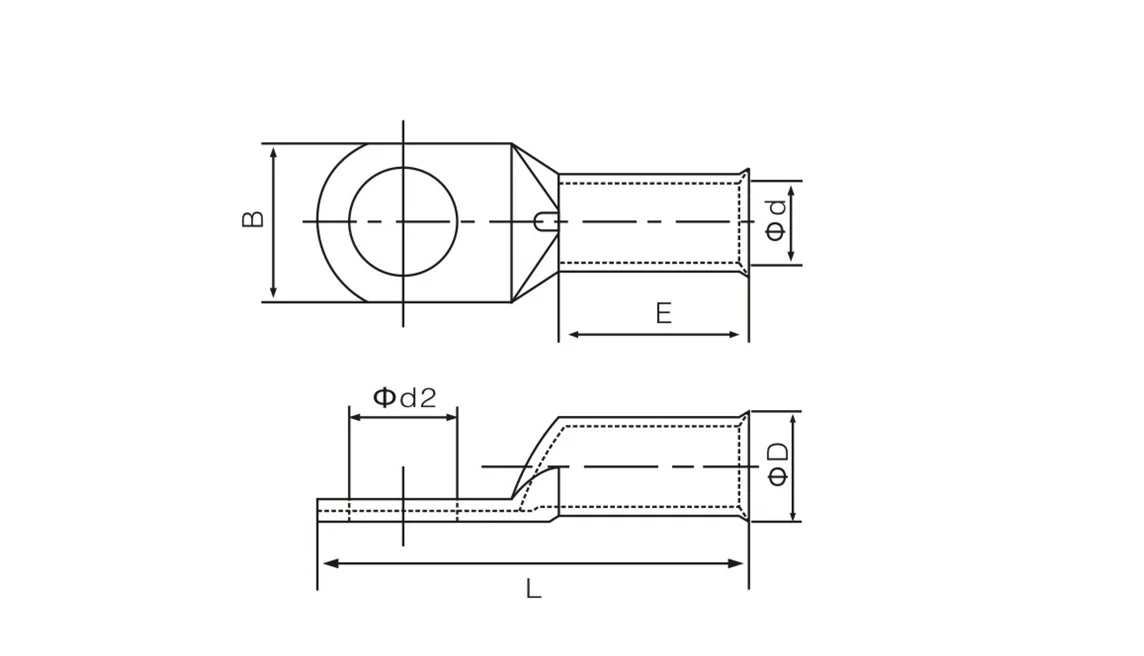

Product Parameter as following :
| PART NO | ITEM NO. | Dimension(mm) | |||||
| Φd2 | B | L | ΦD | Φd | E | ||
| WB0002-3001 | TT10-6 | 6.4 | 11.9 | 28 | 6.9 | 4.7 | 12 |
| WB0002-3002 | TT10-8 | 8.3 | 13.5 | 31 | |||
| WB0002-3003 | TT16-6 | 6.4 | 11.9 | 33 | 7.8 | 5.6 | 17 |
| WB0002-3004 | TT16-8 | 8.3 | 13.5 | 37 | |||
| WB0002-3005 | TT16-10 | 10.5 | 16 | 38 | |||
| WB0002-3006 | TT25-8 | 8.3 | 14 | 39 | 9.5 | 7.1 | 18 |
| WB0002-3007 | TT25-10 | 10.5 | 16 | 42 | |||
| WB0002-3008 | TT35-8 | 8.3 | 16.5 | 42 | 11 | 8.2 | 19 |
| WB0002-3009 | TT35-10 | 10.5 | 16.5 | 46 | |||
| WB0002-3010 | TT50-10 | 10.5 | 17.9 | 51 | 12.5 | 9.5 | 22 |
| WB0002-3011 | TT50-12 | 13 | 17.9 | 51 | |||
| WB0002-3012 | TT70-10 | 10.5 | 22 | 54 | 15 | 11.5 | 22 |
| WB0002-3013 | TT70-12 | 13 | 22 | 54 | |||
| WB0002-3014 | TT95-14 | 14.5 | 24.7 | 72 | 17 | 13.5 | 27 |
| WB0002-3015 | TT95-16 | 16.5 | 24.7 | 72 | |||
| WB0002-3016 | TT120-14 | 14.5 | 28.9 | 74 | 20 | 15.6 | 29 |
| WB0002-3017 | TT120-16 | 16.5 | 28.9 | 74 | |||
| WB0002-3018 | TT150-14 | 14.5 | 30.4 | 84 | 21 | 16.5 | 38 |
| WB0002-3019 | TT150-16 | 16.5 | 30.4 | 84 | |||
| WB0002-3020 | TT185-16 | 16.5 | 34 | 92 | 23.6 | 18.4 | 42 |
| WB0002-3021 | TT240-16 | 16.5 | 38.5 | 98 | 26.4 | 21.2 | 45 |
| WB0002-3022 | S-TT-6/4 | 4.3 | 10.3 | 25 | 5.5 | 3.8 | 11 |
| WB0002-3023 | S-TT-6/5 | 5.3 | 10.3 | 25 | |||
| WB0002-3024 | S-TT-6/6 | 6.4 | 10.3 | 26 | |||
| WB0002-3025 | S-TT-6/8 | 8.3 | 14 | 29 | |||
| WB0002-3026 | S-TT-10/4 | 4.3 | 11.9 | 26.5 | 6.8 | 4.7 | 11.5 |
| WB0002-3027 | S-TT-10/5 | 5.3 | 11.9 | 27 | |||
| WB0002-3028 | S-TT-10/6 | 6.4 | 11.9 | 28.5 | |||
| WB0002-3029 | S-TT-10/8 | 8.3 | 15 | 31.5 | |||
| WB0002-3030 | S-TT-10/10 | 10.5 | 18 | 35.5 | |||
| WB0002-3031 | S-TT-16/5 | 5.3 | 11.9 | 32 | 7.8 | 5.6 | 16.5 |
| WB0002-3032 | S-TT-16/6 | 6.4 | 11.9 | 34 | |||
| WB0002-3033 | S-TT-16/8 | 8.3 | 15 | 36.5 | |||
| WB0002-3034 | S-TT-16/10 | 10.5 | 18 | 40 | |||
| WB0002-3035 | S-TT-25/6 | 6.4 | 13.5 | 36 | 9.4 | 7.1 | 18 |
| WB0002-3036 | S-TT-25/8 | 8.3 | 15 | 39 | |||
| WB0002-3037 | S-TT-25/10 | 10.5 | 18 | 44 | 9.4 | 7.1 | 18 |
| WB0002-3038 | S-TT-25/12 | 13 | 21 | 46 | |||
| WB0002-3039 | S-TT-35/6 | 6.4 | 16 | 37 | 11.3 | 8.7 | 19 |
| WB0002-3040 | S-TT-35/8 | 8.3 | 16 | 38 | 16 | ||
| WB0002-3041 | S-TT-35/10 | 10.5 | 19 | 45 | 19 | ||
| WB0002-3042 | S-TT-35/12 | 13 | 21 | 47 | |||
| WB0002-3043 | S-TT-50/6 | 6.4 | 17.9 | 44 | 12.6 | 9.8 | 22 |
| WB0002-3044 | S-TT-50/8 | 8.3 | 17.9 | 46 | |||
| WB0002-3045 | S-TT-50/10 | 10.5 | 20 | 50 | |||
| WB0002-3046 | S-TT-50/12 | 13 | 21 | 54 | |||
| WB0002-3047 | S-TT-70/8 | 8.3 | 21.5 | 49 | 14.7 | 11.5 | 23 |
| WB0002-3048 | S-TT-70/10 | 10.5 | 21.5 | 55 | 25 | ||
| WB0002-3049 | S-TT-70/12 | 13 | 21.5 | 55 | 23 | ||
| WB0002-3050 | S-TT-95/8 | 8.3 | 24.7 | 58 | 16.9 | 13.5 | 30 |
| WB0002-3051 | S-TT-95/10 | 10.5 | 24.7 | 61 | |||
| WB0002-3052 | S-TT-95/12 | 13 | 24.7 | 63 | |||
| WB0002-3053 | S-TT-95/14 | 14.5 | 24.7 | 67 | |||
| WB0002-3054 | S-TT-95/16 | 16.5 | 27 | 70 | |||
| WB0002-3055 | S-TT-120/10 | 10.5 | 28.9 | 62 | 19.9 | 15.6 | 30.5 |
| WB0002-3056 | S-TT-120/12 | 13 | 28.9 | 67 | |||
| WB0002-3057 | S-TT-120/14 | 14.5 | 28.9 | 74 | |||
| WB0002-3058 | S-TT-120/16 | 16.5 | 28.9 | 74 | |||
| WB0002-3059 | S-TT-150/10 | 10.5 | 30.4 | 75 | 20.9 | 16.5 | 38 |
| WB0002-3060 | S-TT-150/12 | 13 | 30.4 | 81 | |||
| WB0002-3061 | S-TT-150/14 | 14.5 | 30.4 | 85 | |||
| WB0002-3062 | S-TT-150/16 | 16.5 | 30.4 | 85 | |||
| WB0002-3063 | S-TT-185/12 | 13 | 34 | 87 | 23.7 | 18.8 | 41 |
| WB0002-3064 | S-TT-185/14 | 14.5 | 34 | 91 | |||
| WB0002-3065 | S-TT-185/16 | 16.5 | 34 | 92 | |||
| WB0002-3066 | S-TT-240/12 | 13 | 38.4 | 93 | 26.2 | 21.2 | 45 |
| WB0002-3067 | S-TT-240/14 | 14.5 | 38.4 | 97 | |||
| WB0002-3068 | S-TT-240/16 | 16.5 | 38.4 | 98 | |||
| WB0002-3069 | S-TT-240/20 | 21 | 38.4 | 98 | |||
| WB0002-3070 | S-TT-300/14 | 14.5 | 41.7 | 100 | 28.6 | 23.4 | 49 |
| WB0002-3071 | S-TT-300/16 | 16.5 | 41.7 | 106 | |||
| WB0002-3072 | S-TT-400/16 | 16.5 | 47.8 | 115 | 32.8 | 26.8 | 54 |
Product Effects
When you see this picture, do you want to know why ?
There are two main reasons:
1. the quality problem of a product itself.
2. the quality problem of product crimping .
We have a strong datebase on the quality and crimping of cable lug .
If you are interested in these date , please mail us and discuss them together .we look forward to your consultation .
