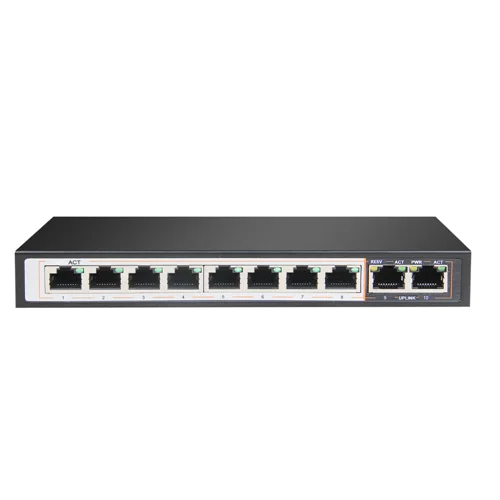

Todaair 8 ports ethernet poe switch 48v for outdoor cpe device

Product Overview

Description

Todaair 8 ports ethernet poe switch 48v for outdoor cpe device







Features

•       8+2 Port PoE Switch, 100Mbps

•       Auto-Negotiation RJ45 ports with 8 PoE port

•       Complies with IEEE802.3af standard

•        Each port support auto-negotiation-10/20, 100/200Mbps (Fast Ethernet)

•        Bandwidth 1.8Gbps

•        Supports PoE power up to 15.4W for single PoE port

•        Supports automatically detect function to protect the system when the system power is overloaded or there is non-POE device

•        LED indicators for monitoring power, link, activity and speed

•        96W external power adapter





Technical Specification

Model	TT-POE1082
Standard	IEEE802.3, 802.3u, 802.3af, 802.3x,
	CSMA/CD, TCP/IP



Basic Function	Wire-speed Performance
	IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Bandwidth	2.0Gbps
Power support	Max power: 15.4W for single POE port
	96W Power adapter
Transmission Method	Store-and-Forward
Ports	8+2 Port PoE Switch, 10/100/Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
Network Media	10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
	EIA/TIA-568 100Ù STP (maximum 100m)
	100Base-Tx: UTP category 5, 5e cable (maximum 100m)
	EIA/TIA-568 100Ù STP (maximum 100m)
	1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicators	Power, Link/Act ( 10/100Mbps)
Safety & Emission	FCC, CE, ROHS
Environment	Operating Temperature: 0°C~50°C
	Storage Temperature: -10°C~70°C
	Operating Humidity: 10%~90% non-condensing
	Storage Humidity: 5%~90% non-condensing
Product Size:	185*95*28mm
Weight	1.1kg
