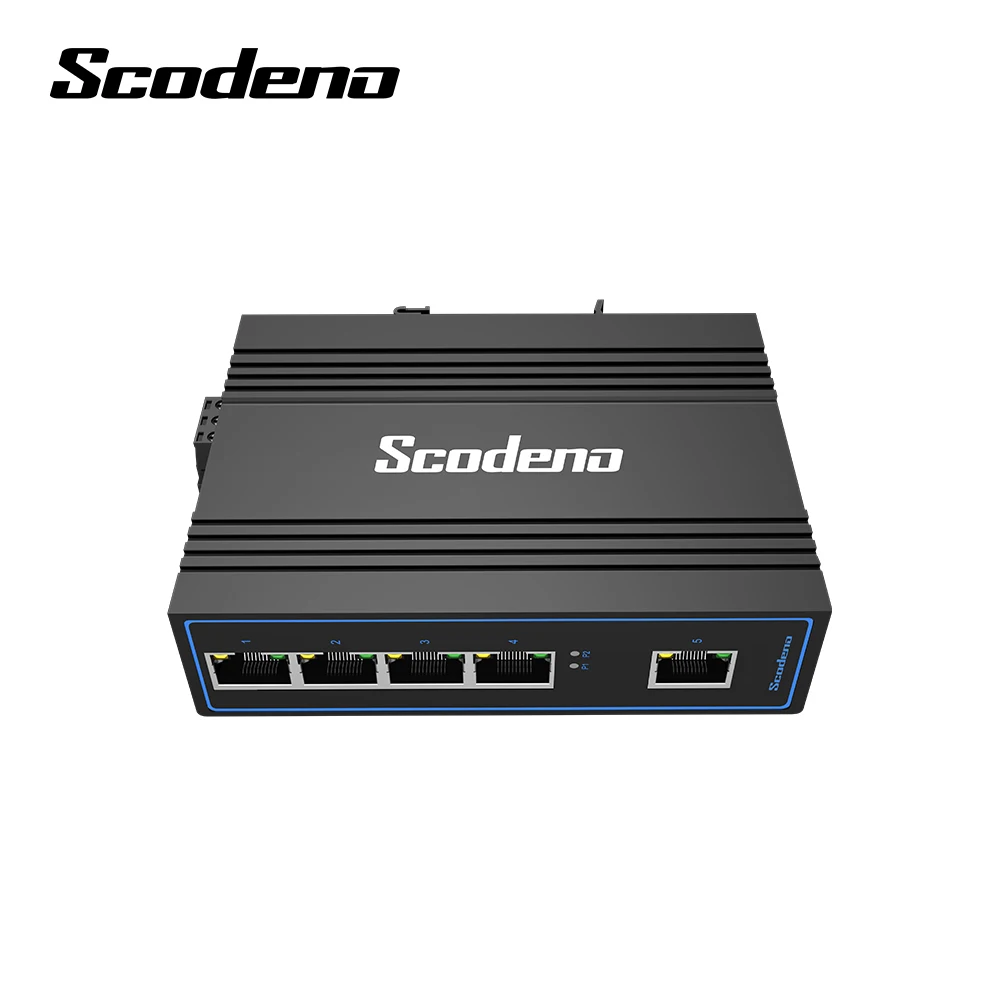

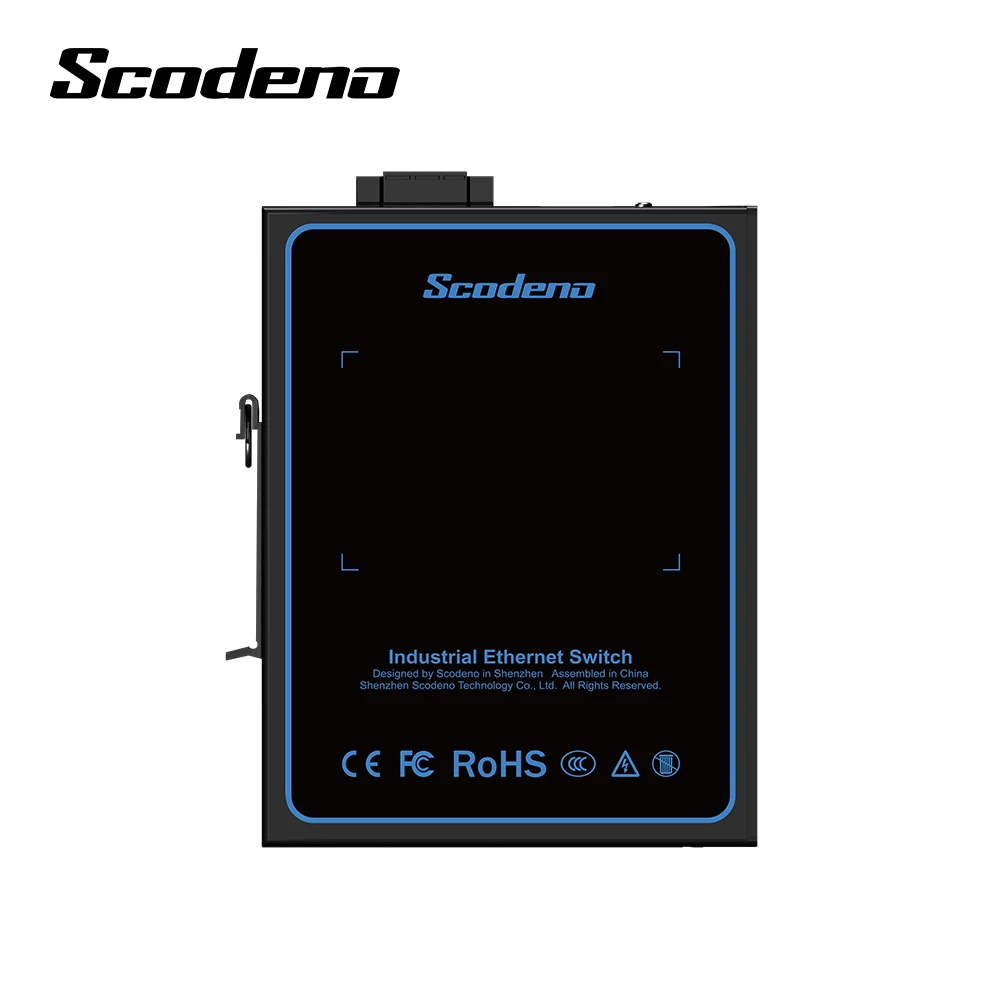

HOT IP40 Industrial 100Mbps 4 Port PoE Din rail Ethernet Switch for Outdoor
- Category: >>>
- Supplier: Shenzhen,Scodeno,Technology,Co.,Ltd.
Share on:
Product Overview
Description
HOT IP40 Industrial 100Mbps 4 Port PoE Din-rail Ethernet Switch for Outdoor
Product Description
Provider Mode Ports | |
Fixed port | 5*10/100 Base-T |
Power interface | Phoenix terminal, dual redundant power supply |
Interface indicator lamp | PWR, OPT |
Cable Type&Transmission Distance | |
Twisted-pair | 0-100m(CAT5e,CAT6) |
Mono mode optical fiber | 20/40/60/80/100km |
Multi mode (optical) fiber | 550m |
Net Topology&Networking Scale | |
Ring topology | Unsupported |
Star topology | Support |
Bus topology | Support |
Tree topology | Support |
Electrical Specifications | |
Input voltage | DC12-58V |
Power consumption | Non PoE <5W, PoE<125W |
PoE (Support Optional) | |
PoE port | 1-4 |
| PoE Protocol | 802.3af, 802.3at |
Pin Assignment | 1,2,3,6 |
PoE Mode | Standard mode |
Layer 2 Switching | |
Switching capacity | 1G |
Packet forwarding rate | 0.744Mpps |
MAC address table | 2K |
Buffer | 768K |
Forwarding delay | <5us |
MDI/MDIX | Support |
Flow Control | Support |
Jumbo Frame | 2K bytes |
Environment | |
Operating temperature | -30℃-+75℃ |
Storage temperature | -30℃~ +75℃ |
Relative humidity | 5%~95% (non-condensing) |
Thermal methods | Fan-free,natural cooling |
MTBF | 100,000 hours |
Mechanical Dimensions | |
Product size | 91*118*31mm (W×H×D) |
Installation method | Din-rail |
Weight | 0.6KG around |
EMC&INGRESS Protection | |
IP level | IP40 |
Surge protection of power | IEC 61000-4-5 Level 4+(4KV/2KV)(8/20us) |
Surge protection of ethernet port | IEC 61000-4-5 Level 4+(4KV/2KV)(10/700us) |
| RS | IEC 61000-4-3 Level 3(10V/m) |
| EFI | IEC 61000-4-4 Level 3(1V/2V) |
| CS | IEC 61000-4-6 Level 3(10V/m) |
PFMF | IEC 61000-4-8 Level 4(30A/m) |
DIP | IEC 61000-4-11 Level 3(10V) |
EMI | CLASS A |
ESD | IEC 61000-4-2 Level 4 (8K/15K) |
Free fall | 0.5m |
Accessories | |
Accessories | Device, Terminals, Specification, Certificate, Power adapter(optional) |
Optional Model | |
XPTN-9000-65-5TP-M | 5*10/100M RJ45 Port, PoE support 802.3af & at |
OEM/ODM or more requirements, welcome to
Company Information
Our Partner
Packaging & Shipping
FAQ
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM/OEM?
A: Yes. We provide customized service.
Q: What is your minimum order quantity?
A: MOQ is 1 unit.
Q: What’s the payment type?
A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.
Q: What’s the accepted trade terms?
A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.
Q: How about shipping time?
A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.
Q: How about after-sales service?
A: 7/24 hours online and respond to user's field device problems in time.
Q: How about the warranty?
A: 5 years.
