Customize Touch Screen WiFi Room Thermostat with APP Control
- Category: >>>
- Supplier: Beijing Dashiweiye Tech Co. Ltd.
Share on (60791309733):
Product Overview
Description
Customize Touch Screen WiFi Room Thermostat with APP Control
Technical Information:
INPUT VOLTAGE | 230 VAC 50/60 Hz |
WIFI | 802.11 b/g/n (2.4G) |
LCD SCREEN SIZE | 3.5 Inch TFT |
LCD RESOLUTION | 480*320 |
LCD VIEW AREA | 73.44 * 48.96 mm |
TOUCH | Capacitive |
LANGUAGE | English, Chinese, Spain, Italian, Russian, |
MODEL | HVAC; Boiler; Water floor heating; Electric |
GRADE OF PROTECTIOIN | IP 40 |
TEMPERATURE RANGE | 05-35C |

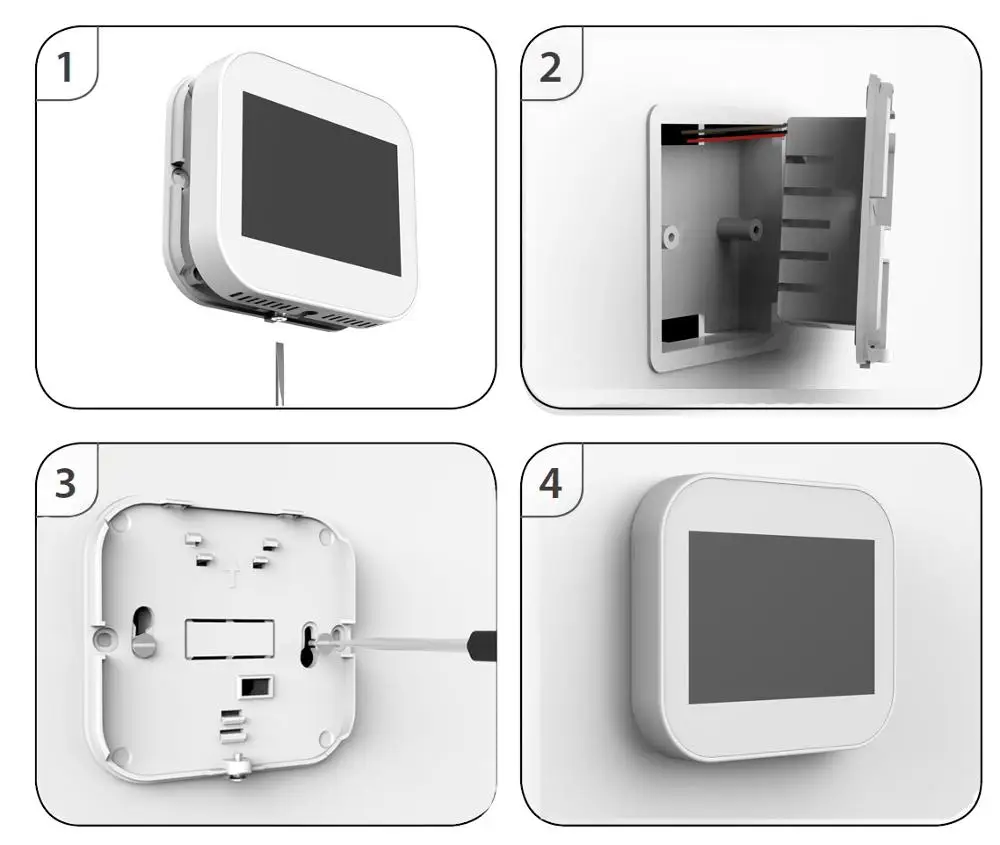

INSTALLATION | Flush (with a power supply) |
OUTPUT | Volt free switch; Changeover switch; |
MAX SWITCHING CURRENT | 5A,16A |
SETTING TEMP RANGE | 5-35℃ |
WORKING TEMP RANGE | -10-45℃ |
TEMPERATURE ACCURACY | ±1℃ |

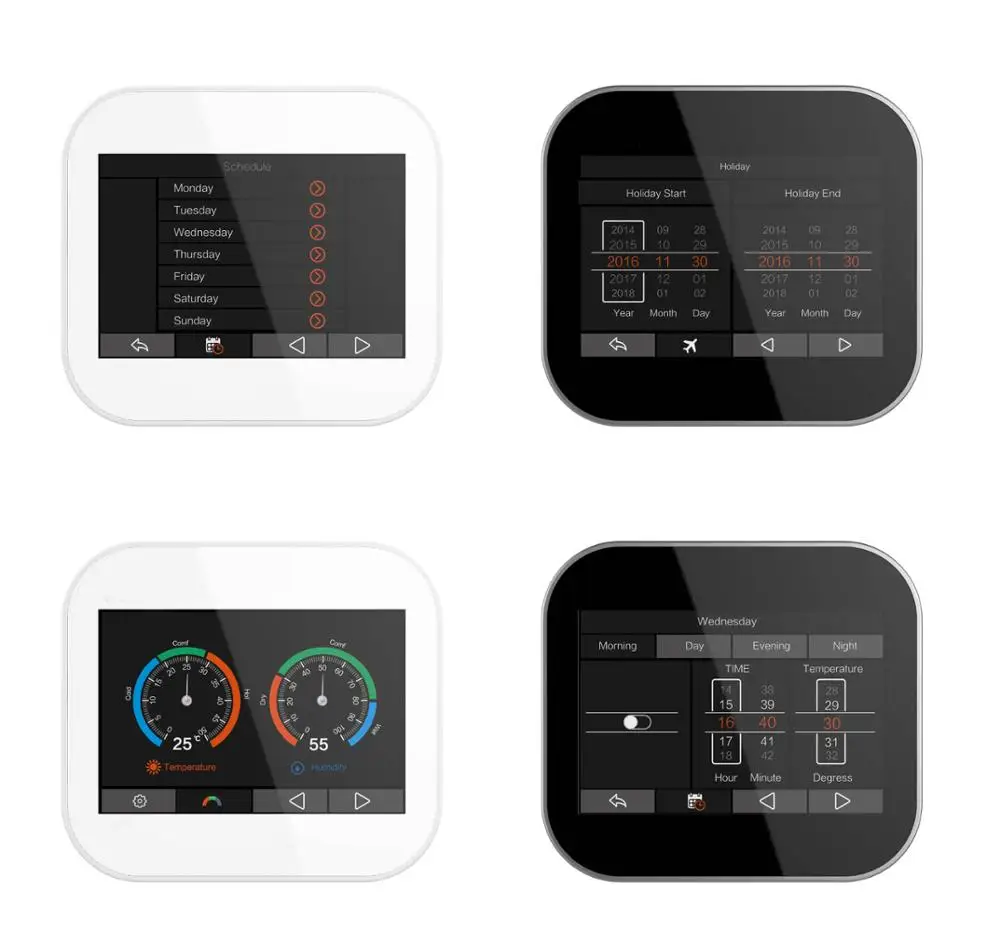

5/2 DAY PROGRAMMING MODE | Yes |
24HR PROGRAMMING MODE | Yes |
7 DAY PROGRAMMING MODE | Yes |
SELF LEARNING PREHEAT | Yes |
HOLIDAY FUNCTION | Yes |

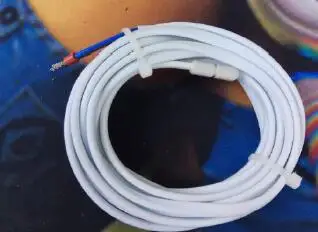

EXTERNAL SENSOR | Yes (10k B=3950) |
FLOOR SENSING MODE | Yes |
HUMIDITY SENSOR | Yes |
FIRE INPUT | Yes (DX) |
WINDOWS INPUT | Yes (DX) |
Outline Dimension | 96 * 86 * 13.4 (W*H*D) mm |

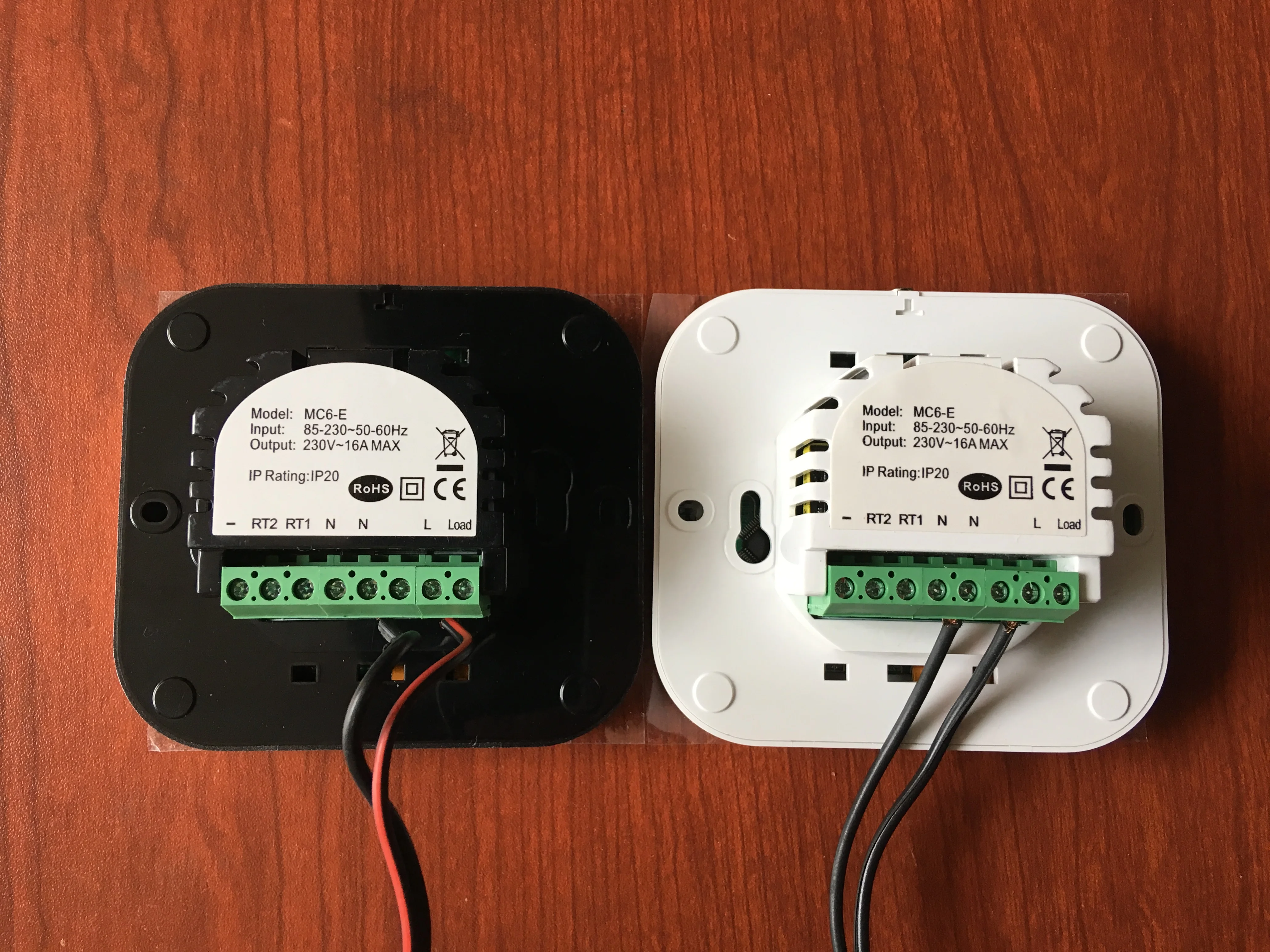

Wiring Diagram:
Company Introduction
Who we are:
Established in year of 1997, Beijing Dashiweiye Tech Co., Ltd strives for providing one-stop service from product apperance design, structure design, fast prototype, mold development, enclosure production for customer or company who are exhausted in finding the best and trust-worthy partner on new product development.
We combine appearance design with structure design, our staff are not only designer but also technical people in many industries.
As time goes by, we have been expert in this region and thanks to trusts from customers from all over the world in different industries and hope to communicate with your esteemed company on new projects and difficulties.
What we do, what we good at:
Appearance design, structure design
Rapid prototyping , Mold development
Plastic enclosure production with different processing
New product development according to sample or drawings offered
We gained rich experience of enclosure & housing development for heat meter, water meter, thermostat, gas detection products, heat detection products, medical equipments, security & protection products, etc.
