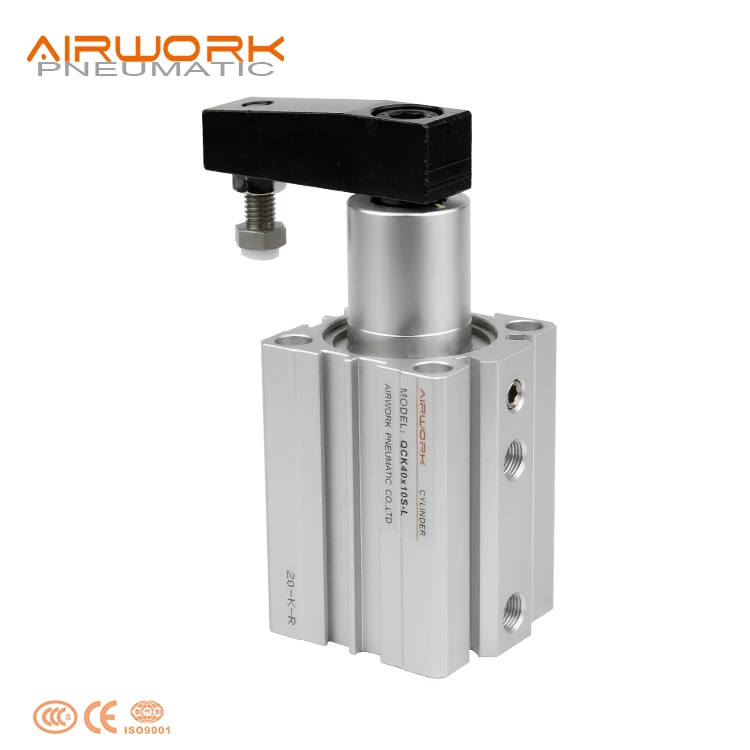

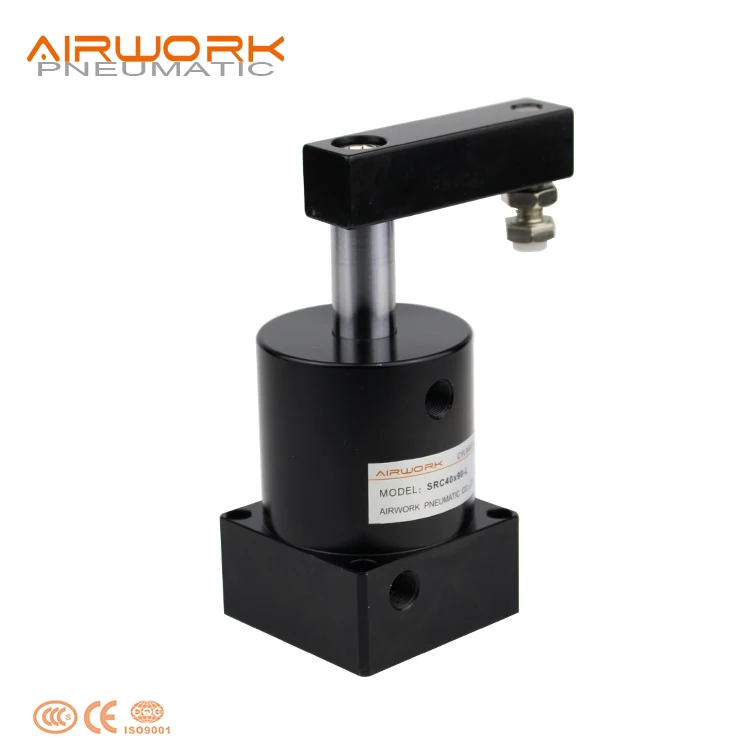

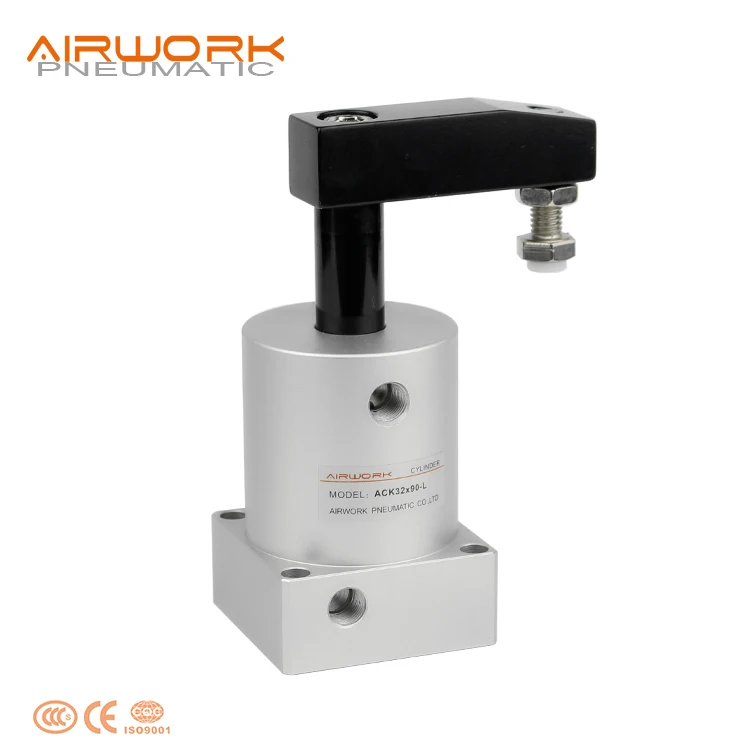

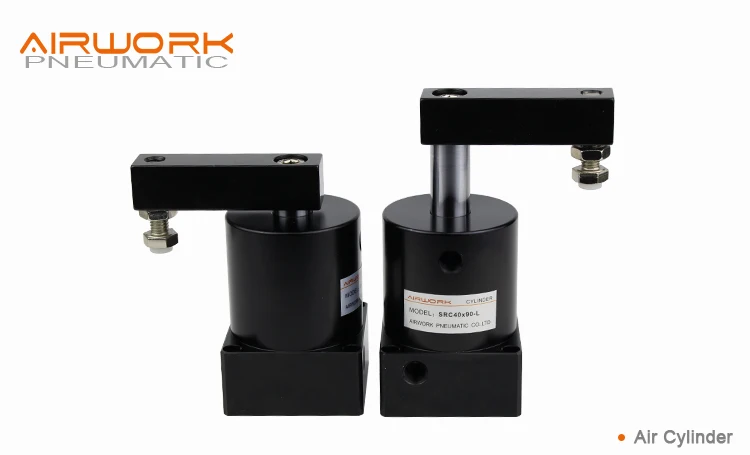

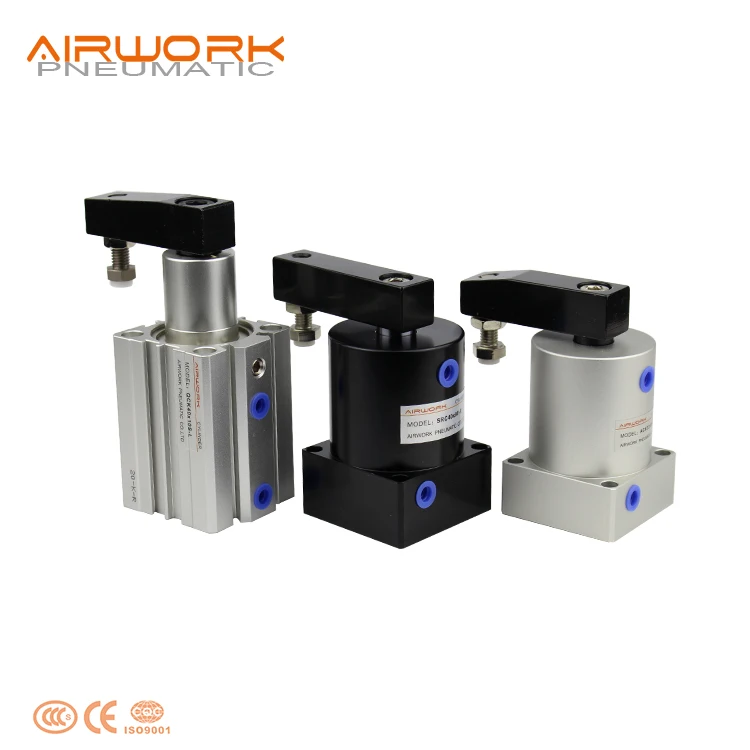

SRC chelic type pneumatic rotary rotating clamp clamping cylinder

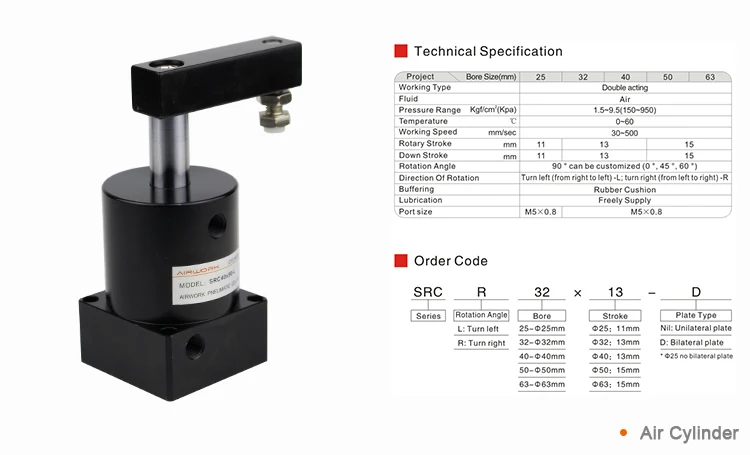

Bore Size(mm)
25
32
40
50
63
Working Type
Double Acting
Working Media
Cleaned Air
Working Pressure
0.15~0.95Mpa
Working Temperature
0~60℃
Working Speed
30~500mm/sec
Rotary Stroke
11mm
13mm
15mm
Down Stroke
11mm
13mm
15mm
Rotation Angle
90° can be customized(0°, 45°, 60°)
Direction of Rotation
Turn left(from right to left)-L; turn right(from left to right)-R
Buffering
Rubber Cushion
Port Size
M5X0.8
M5X0.8
Lubrication
Freely supply
