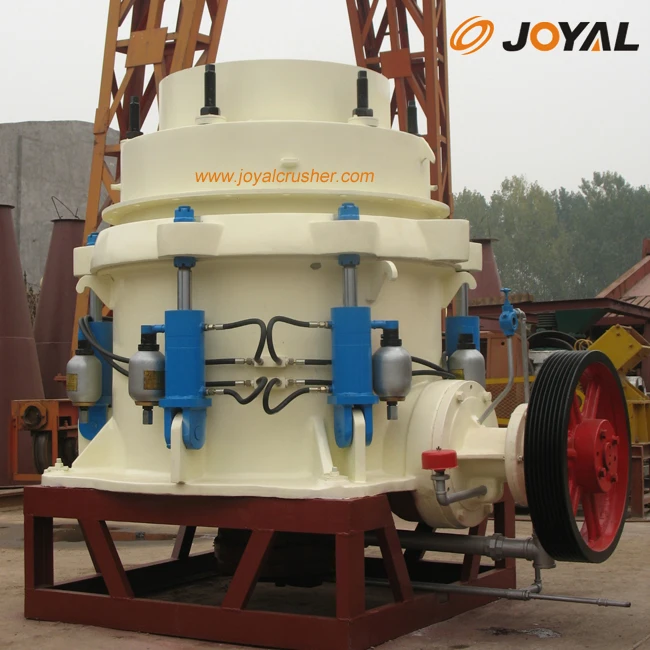

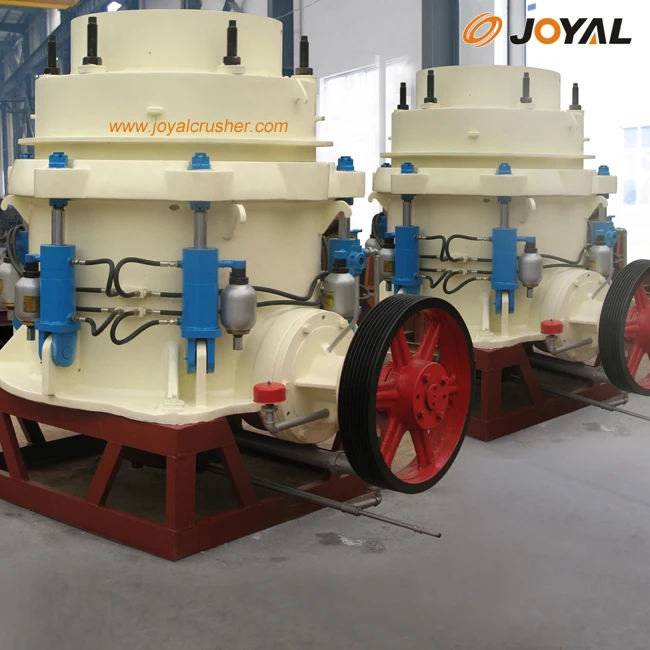

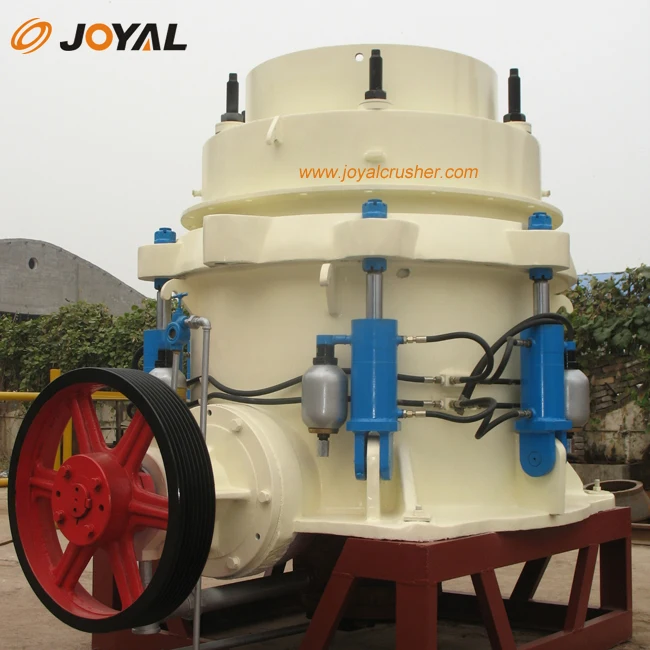

JOYAL pine cone crusher stone cruhing machinery , electric stationary stone crusher,hydraulic cone crusher

Joyal plant cone crusher Construction crusher Energy efficient

Good Quality Stone Hydraulic Cone Crusher with ISO9001 Certificated is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgy and so on. It can crush materials with middle and high hardness such as ironstone, copper ore, granite, basalt, cobblestone, marble, limestone and so on. It is widely used in the high automatic crushing line which has strict requirement for the shape and crushing ratio of the end products.

Features of Joyal plant cone crusher Construction crusher Energy efficient

1. HCC Hydraulic Cone Crusher is equipped with a hydraulic protecting system including protecting oilcan, locking oilcan and hydraulic driving oilcan, which deal with all kinds of problems during the operation without disassembling the machine;
2. It is easy in operation, reliable in performance and adjustable in the size of the end products;
3. The crushing cavity is specially designed according to the inter-particle laminating principle. The specially-designed cavity and the adjustable rotating speed improve the crushing ratio and capacity as well as the percentage of cubically shaped products;
4. If something abnormal happens, for instance, the iron is fed into the crushing cavity, or there is a jam in the cavity, the upper cover will be lift up and the materials will be discharged automatically, thus obviating the stoppage of machines to discharge the materials with human help. And it’s also easy to maintain, and the cost is much lower than Spring Cone Crusher;
5. Its reliable performance is guaranteed by the hydraulic adjusting system and dilute oil lubricating system. The labyrinth-like sealing system eliminates the mixture between water and oil in the traditional Spring Cone Crusher;
6. The mantle and bowl liner are made of high manganese steel. The special design of crushing cavity and inter-particle laminating principle reduce the abrasion of spare parts, thus the service time 30%-80% longer than that of traditional cone crushers.

Application of Joyal plant cone crusher Construction crusher Energy efficient

The machine is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgy and so on. It can crush materials with middle and high hardness such as ironstone, copper ore, granite, basalt, cobblestone, marble, limestone and so on. It is widely used in the high automatic crushing line which has strict requirement for the shape and crushing ratio of the end products.

Technical data of Joyal plant cone crusher Construction crusher Energy efficient

Pre-sale services,we do

Act as a good adviser and assistant of clients; enable them to get rich and generous returns on their investments;

1. Select equipment model;
2.Sdeign and manufacture products according to clients' special requirement;

3. Train technical personnel for clients.

Services during the sale,we do

Respect clients; devote ourselves to improving the total value of clients.

1. Pre-check and accept products ahead of delivery;
2. help clients to draft solution.

After-sales service,we do

Provide considerate services to minimize clients' worries.

1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators on site;
4. Examine the equipment regularly;
5. Take initiative to eliminate the troubles rapidly at site;
6. Distribute the guarantee fittings door-to-door;
7.provide perfect service;
8. Provide technical exchanging;
9. Provide maintenance for big items.

Shanghai Joyal Machinery Co., Ltd is a high-tech enterprise, which is specializing in the research, development, and manufacture of industrial stone crushing & screening equipments, grinding mills, mining equipments and so on. Our company has already formed a full set of modern production line, equipped with intelligent and standardized testing, controlling laboratories, and owned a professional team of R & D, production, sales and service.
