MG-Block MG Series - Block 1. Tiny and light weight, suitable for miniature equipment. 2. All materials for block and rail, including rolling balls and ball retainers, are in special grade of stainless steel for anti-corrosion purpose. 3. Gothic arch contact design can sustain loads from all directions and offer high rigidity and high accuracy. 4. Steel balls will be held by miniature retainer to avoid balls from falling out even when the blocks are removed from the rail installation. 5. Interchangeable types are available in certain precision grades.
Product Name

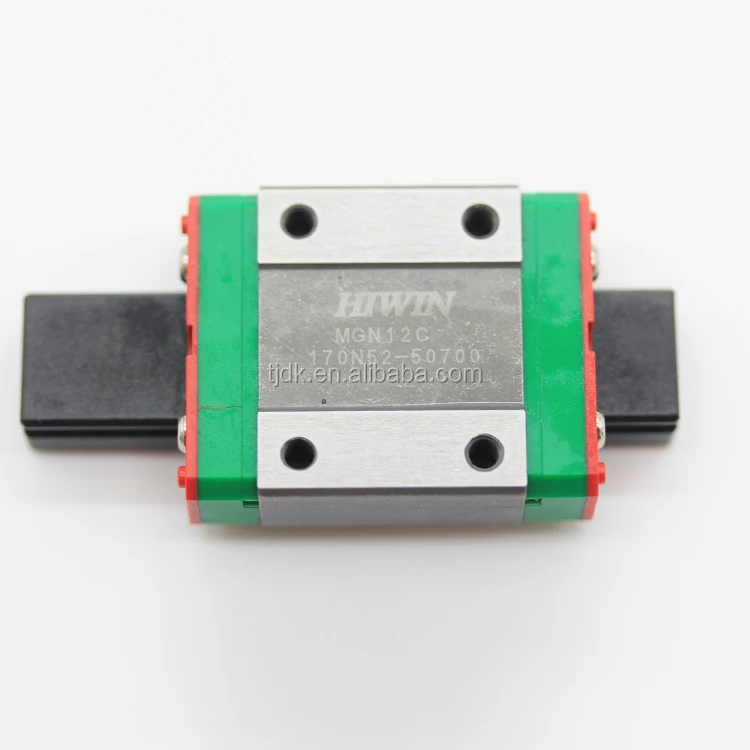

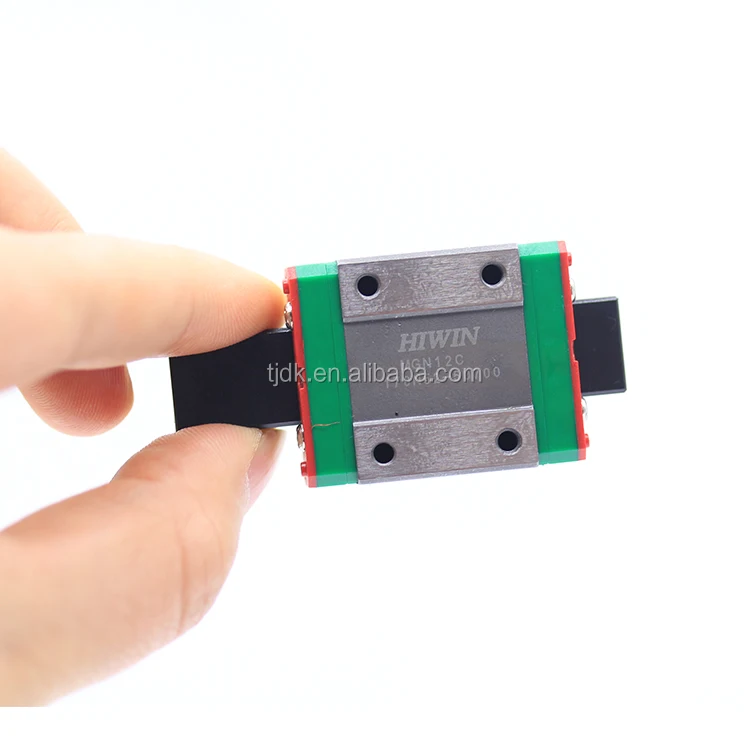

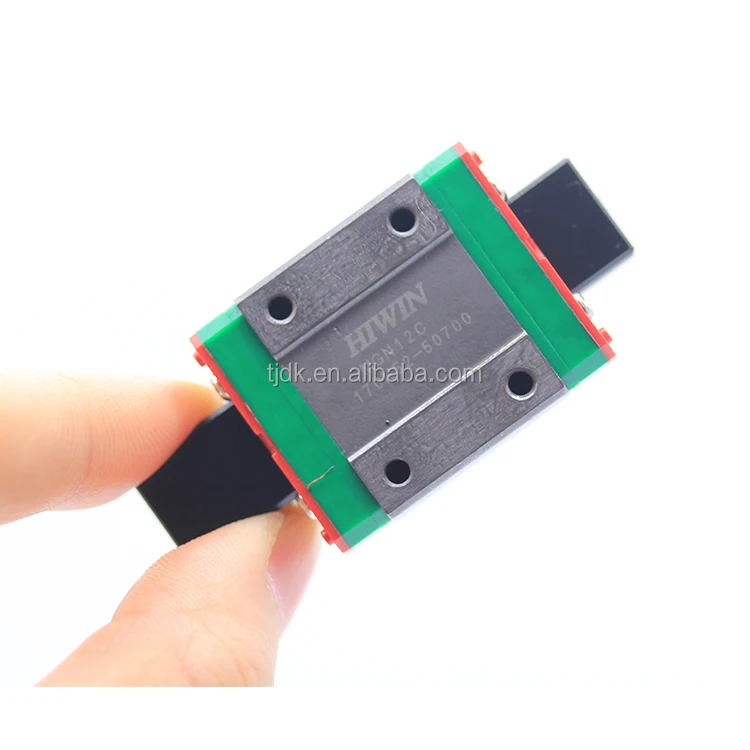

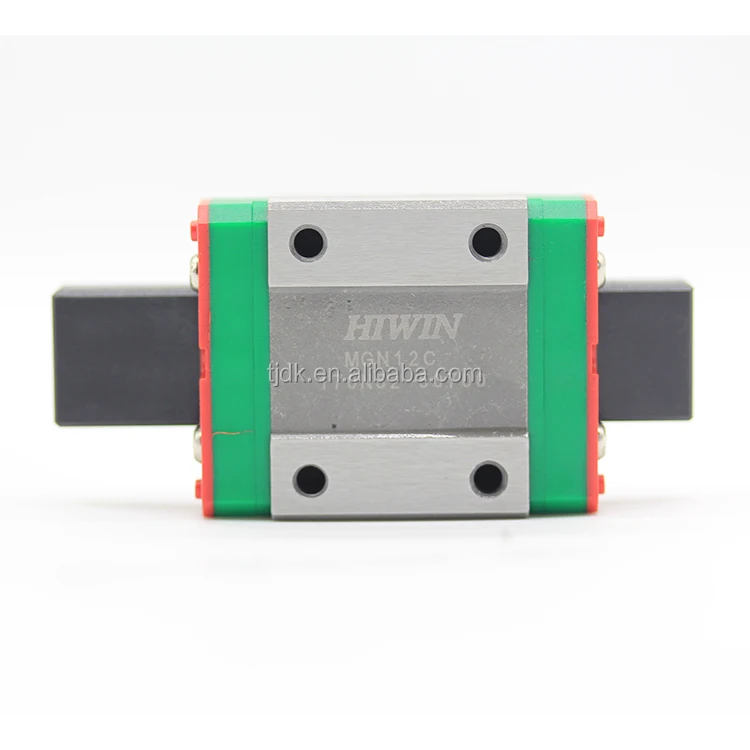

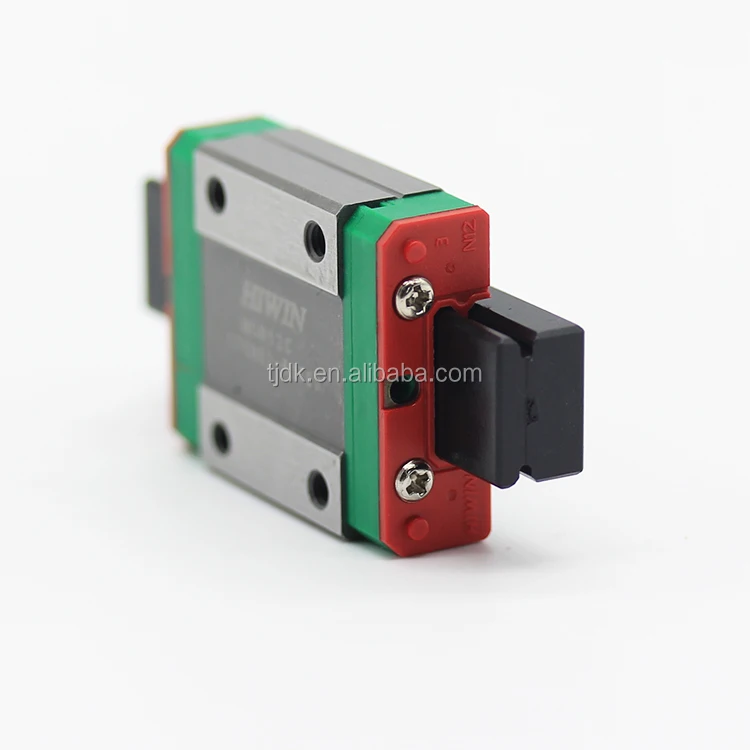

HIWIN Linear Guides MGN5C/5H/7C/7H/9C/9H/12C/12H/15C/15H
Type
Linear Guides
Accuracy
C,H,P
Applincation
cnc Printer tool
Structure
structure
Color
silver
New
yes
Stocks
Rich

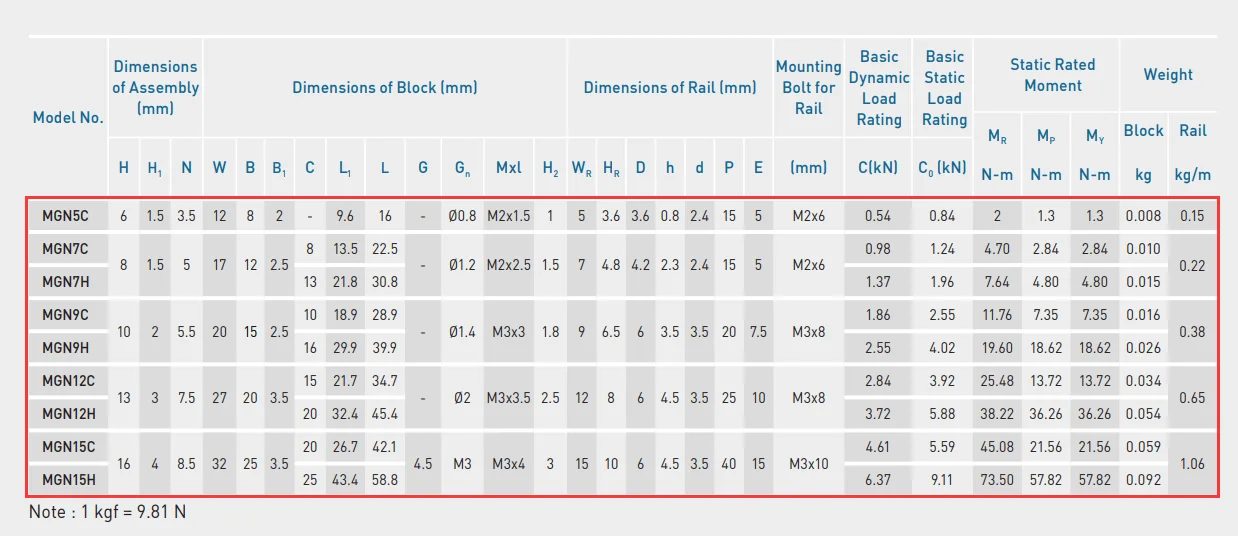

Basic Dynamic Load Range: 0.68 kN - 8.93 kN

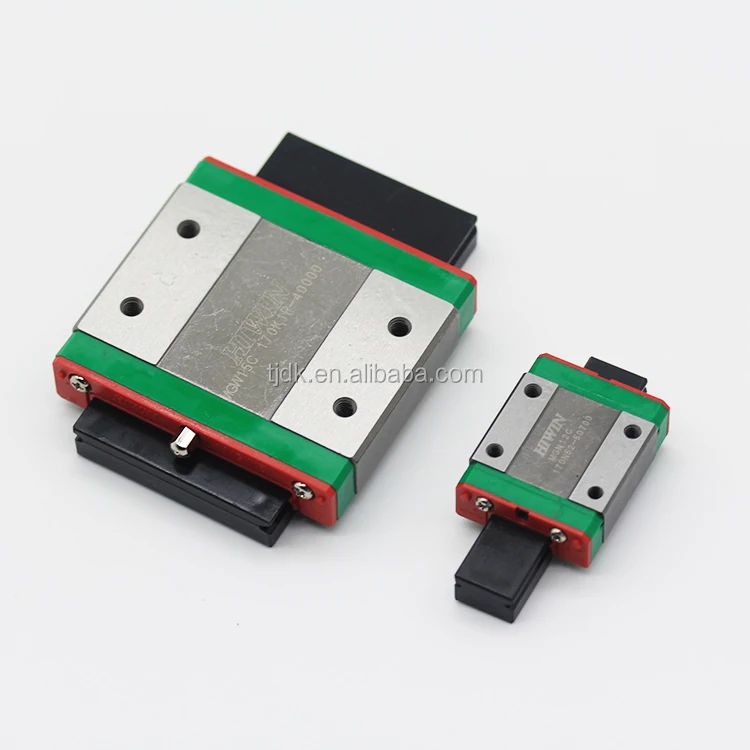

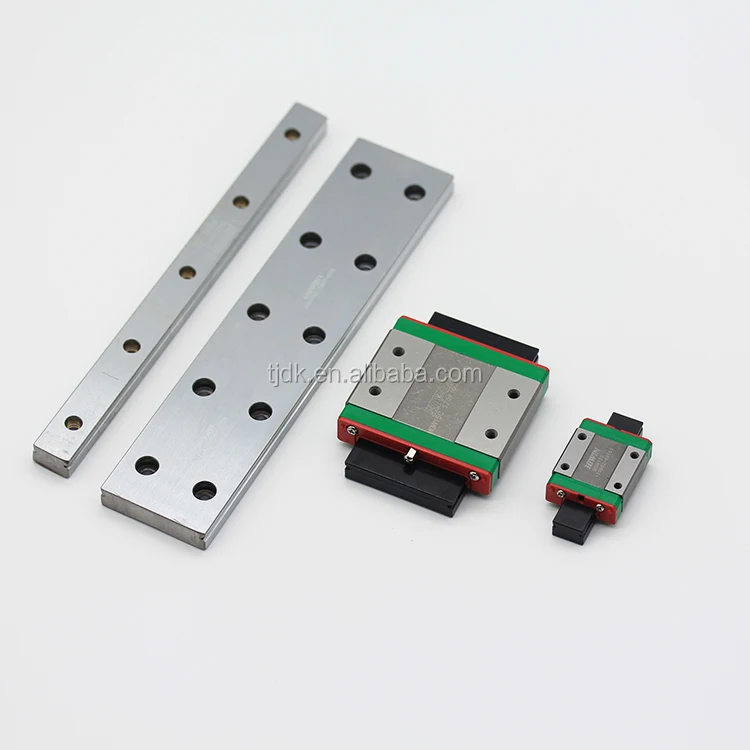

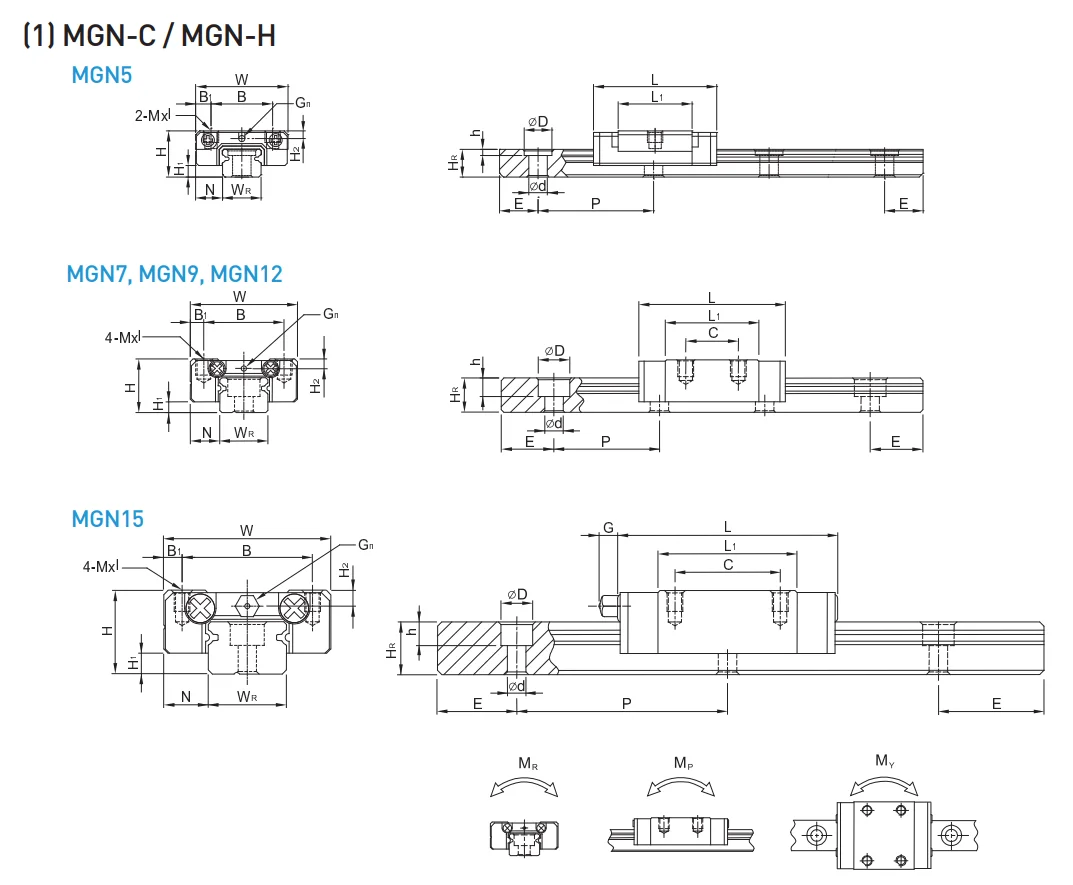

The MG series is a miniature linear guideway that comes in a compact size with a Gothic arch contact design that offers high stiffness and high rigidity against moment loads in all directions. The MG series also offers anti-corrosion protection which all material is in a special grade of stainless steel for compatibility in various working environments. The MG series is available in a narrow block type (MGN) and also with an enlarged width (MGW).
Q: Are you trading company or manufacturer ?
A: Manufacture
Q: How long is your delivery time?
A: 2 days
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
