Main Profile | Material: Hard pressed extruded aluminium 6082-T6, 6061/T6 Features: Stainless | ||||||
Cover | Material: Double PVC-coated polyester textile, 750g-900g/m² Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant | ||||||
Eave Connection | Hot-dip Galvanized twin steel plate | ||||||
Wind Loading | 100km/hour | ||||||

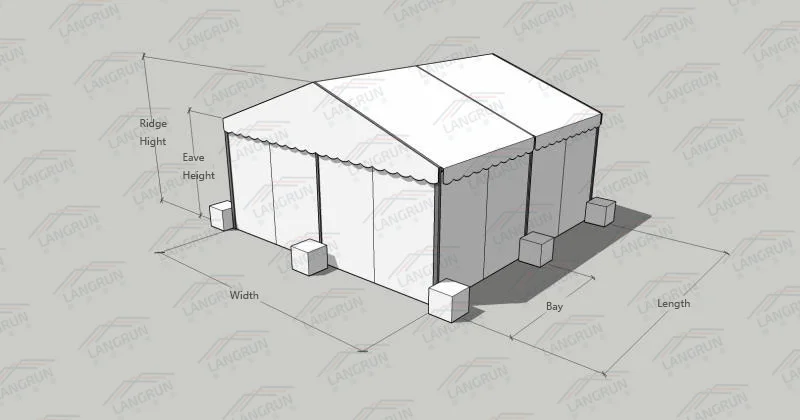

Item | Width | Eave height | Ridge height | Bay distance | Main profile | |||||
ET3 | 3m | 2.6m(3m/3.5m) | 3.3m(3.7m/4.2m) | 3m | 84*48*3mm | |||||
ET5 | 5m | 2.6m(3m/3.5m) | 3.6m(4m/4.5m) | 3m | 84*48*3mm | |||||
ET6 | 6m | 2.6m(3m/3.5m) | 3.7m(4.1m/4.6m) | 3m | 84*48*3mm | |||||
ET8 | 8m | 2.6m(3m/3.5m) | 4.2m(4.6m/5.1m) | 3m | 84*48*3mm | |||||
ET10 | 10m | 2.6m(3m/3.5m) | 4.5m(4.9m/5.4m) | 3m | 84*48*3mm | |||||
The length can be extended by 3m bay such as 3m, 6m, 9m, 11m... Customized size is available. | ||||||||||
