Battery Production Line Automatic Coating Machine Equipment

Product Overview

Description

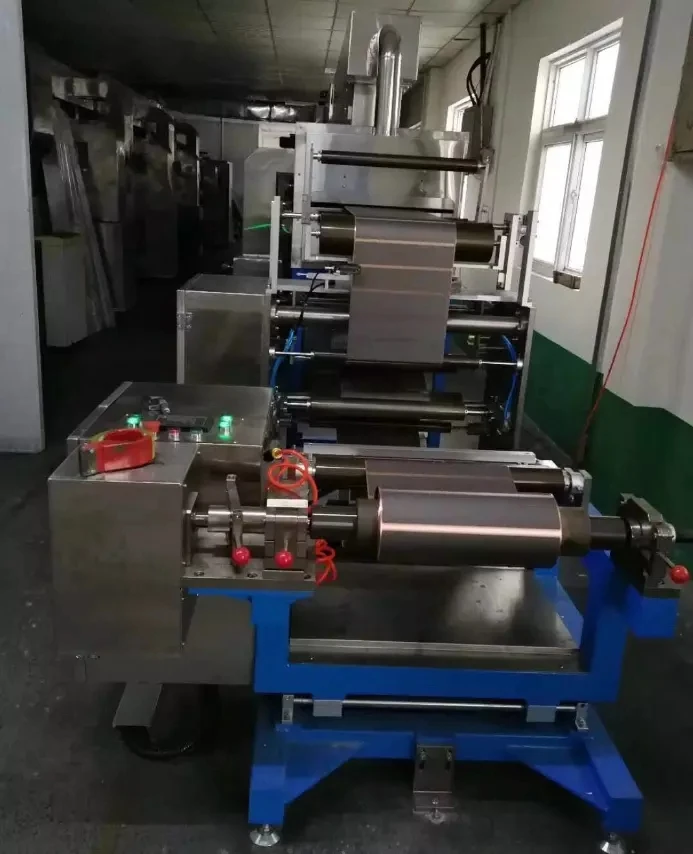

TMAX600 / TMAX750  is a CE Certified and UL inspection ready automatic and faster roll to roll coatingsystem for battery electrode with 15m/minute max coating speed . It is perfect for prototypes of new generation rechargeable batteries. It is integrated with the functions/ features of metallic foil roll unwinding (reeling out), slurry feeder, coating blade, baking oven, and final electrode winding (reeling in) together with touch screen operation for customer's utmost convenience. For Roll to Roll Coater Service, please fill in the Roll to Roll Request Form.



Features

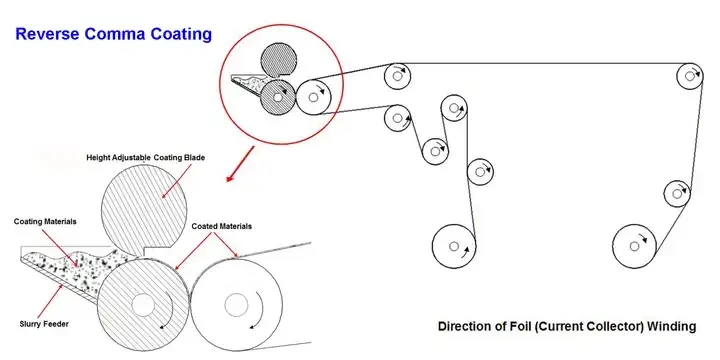

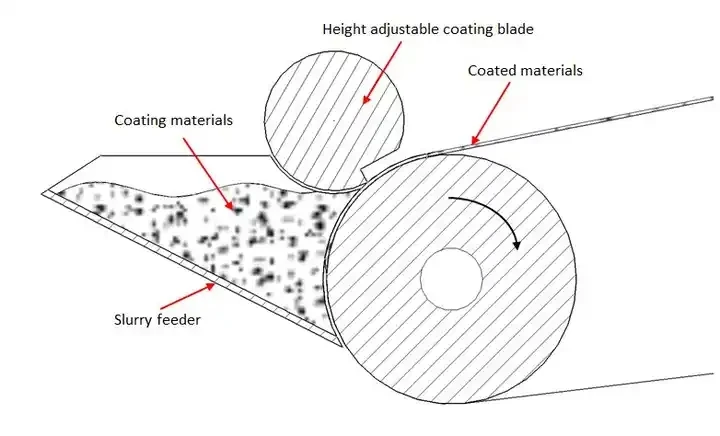

1.Coating method: Transfer coating (to achieve continuous, intermittent, tracking);
2.The coater head support base: the overall vertical plate is the high-rigidity wall type design;
3.The double rolling and unreeling: efficient large-scale production;
4.The coater drive: servo motor drive the back roll moving;
5.The scraper adjustment: servo motor regulation, ultra precision grating sensor closed-loop control, scraper linear degree is adjustable;
6.The oven: upper and lower circulation blower, anterior main drive oven, posterior floating type oven;
7.The appearance: all stainless steel outside and cladding treatment, neat and easy to clean ;
8.The comma knife, coater roller special materials is ultra precision machining;
9.The wall is made of high quality steel and is processed by CNC;
10.All the base eliminate stress.



Technical Parameter

Type Item	TMAX600	TMAX750
Coating width	Max:500mm	Max:650mm
Maximum coating speed	15m/min	15m/min
Machine speed	0~18m/min	0~18m/min
Single thickness accuracy	±1.5µm	±1.5µm
The areal density the error	≤ ±1.5%	≤ ±1.5%
Minimum gap	5mm Related to the characteristics of the coating speed	5mm Related to the characteristics of the coating speed
Positive and negative coated overlay error	±0.5mm	±0.5mm
10mm thickness error within the coater head and tail	-10µm~ +5µm(single surface)	-10µm~ +5µm(single surface)
Length error	±0.5mm	±0.5mm
Orderly winding error	±0.5mm	±0.5mm
Retractable roll diameter	Max:φ550mm	Max:φ550mm
Retractable roller diameter	2µm/m	2µm/m
Coater roller straightness	φ160mm Circular Run ≤ 1.5µm	φ160mm Circular Run ≤ 1.5µm
Air pressure	Over 0.5Mpa	Over 0.5Mpa
Power	120Kw/160Kw	120Kw/160Kw
Machine Dimensions(LxWxH)	25mx2.5mx2.7m (drying box 18m) 31mx2.5mx2.7m (drying box 24m)	25mx2.5mx2.8m(drying box 18m) 31mx3.5mx3.6m(drying box 24m)
