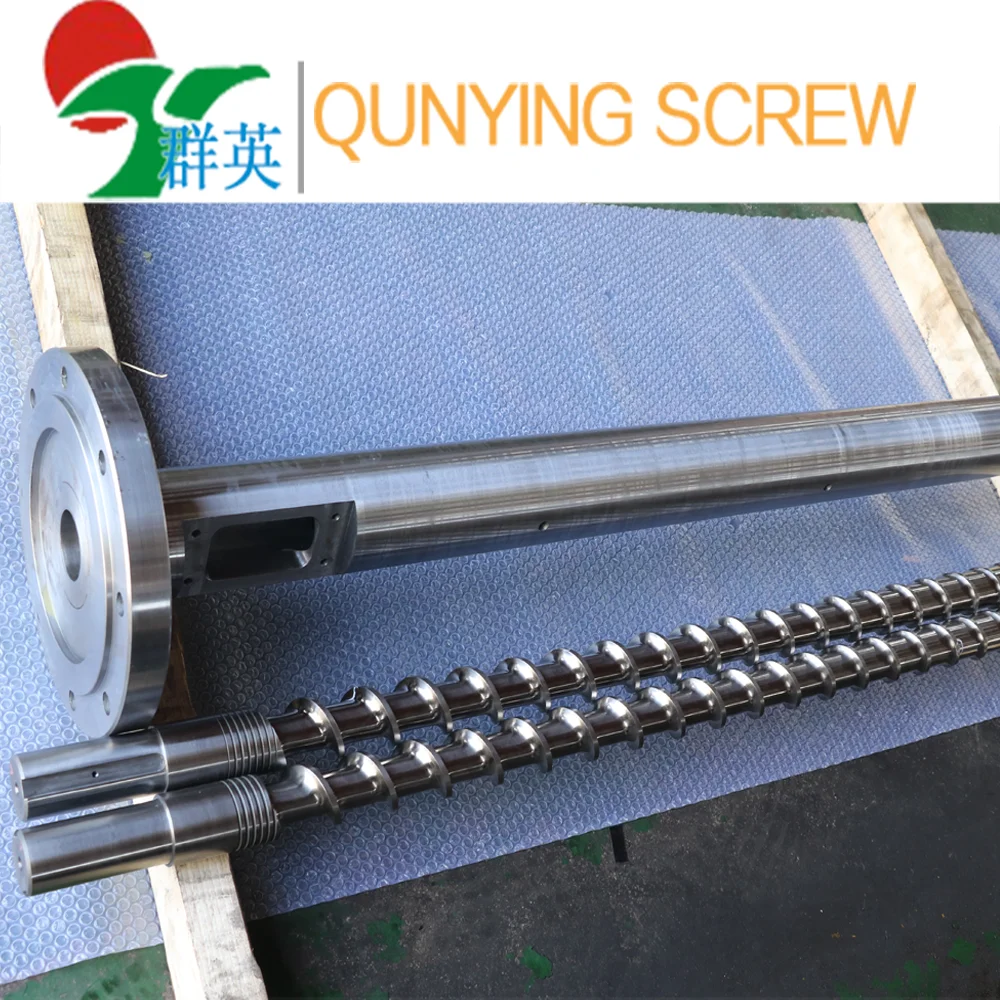

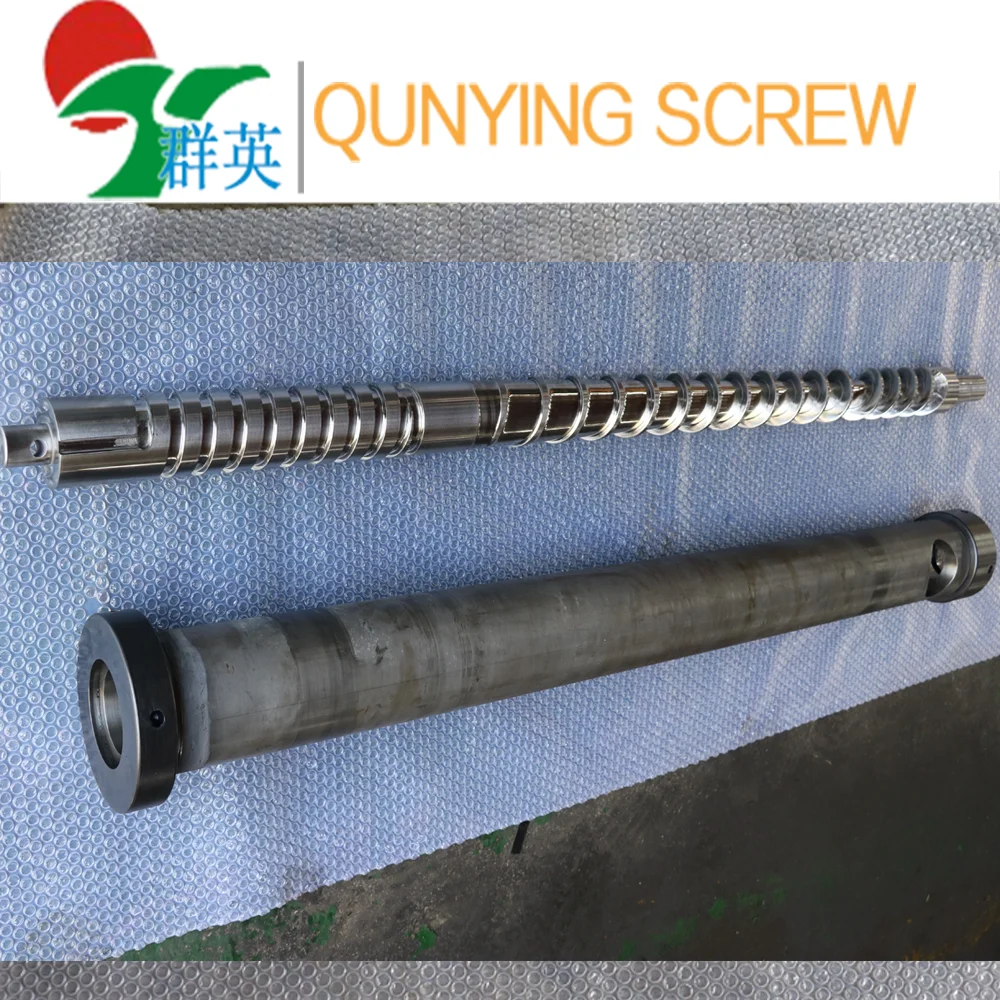

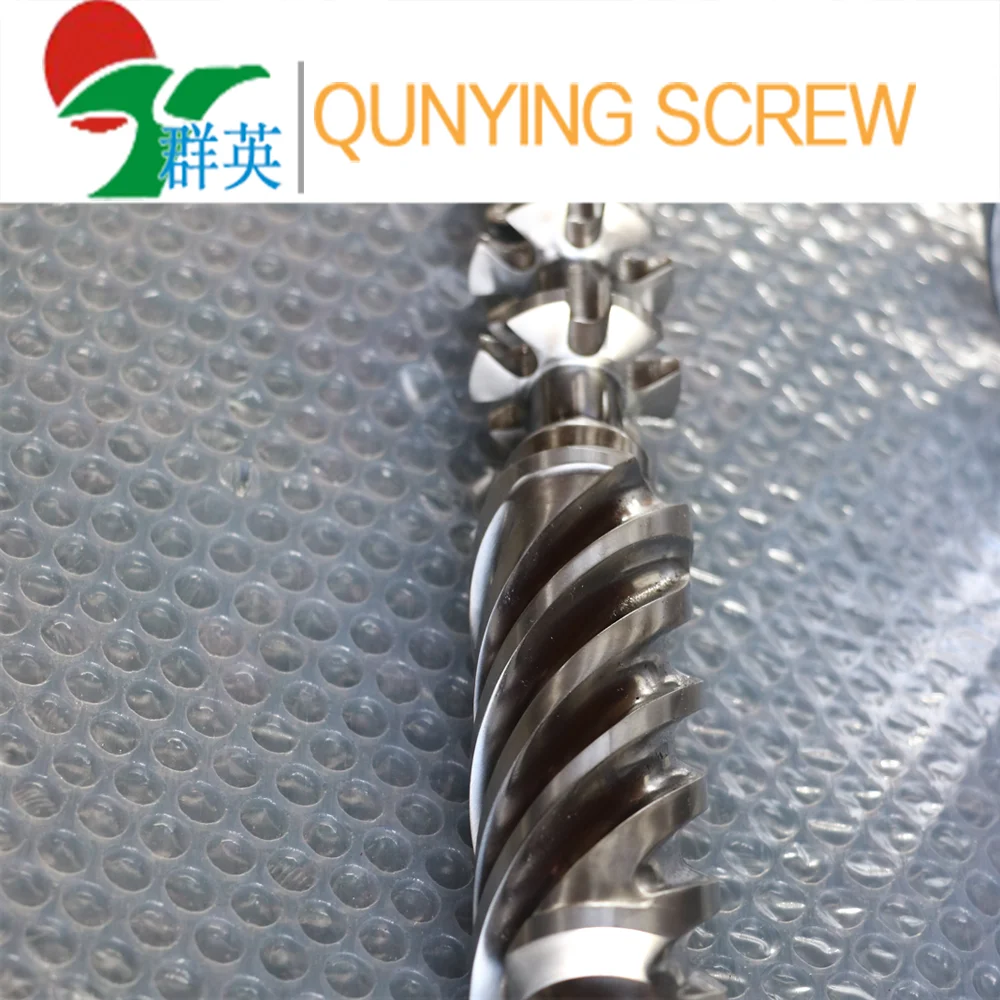

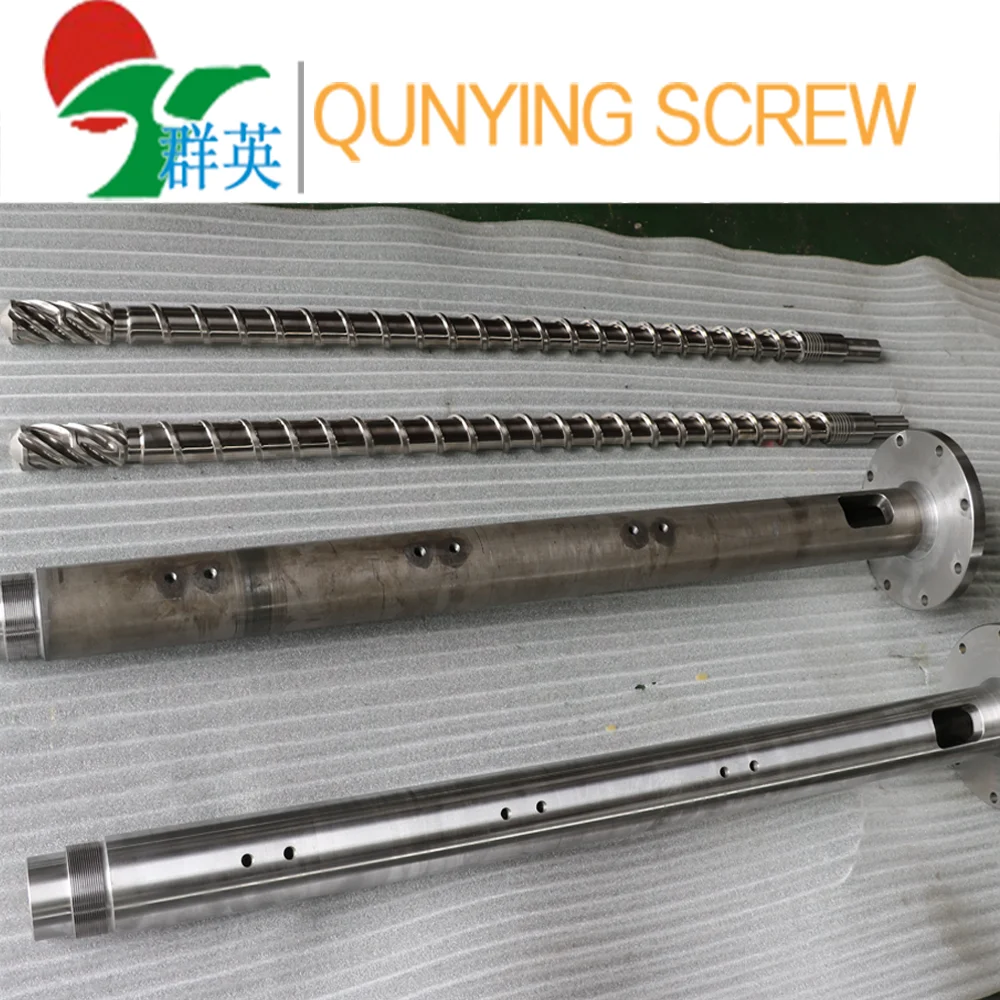

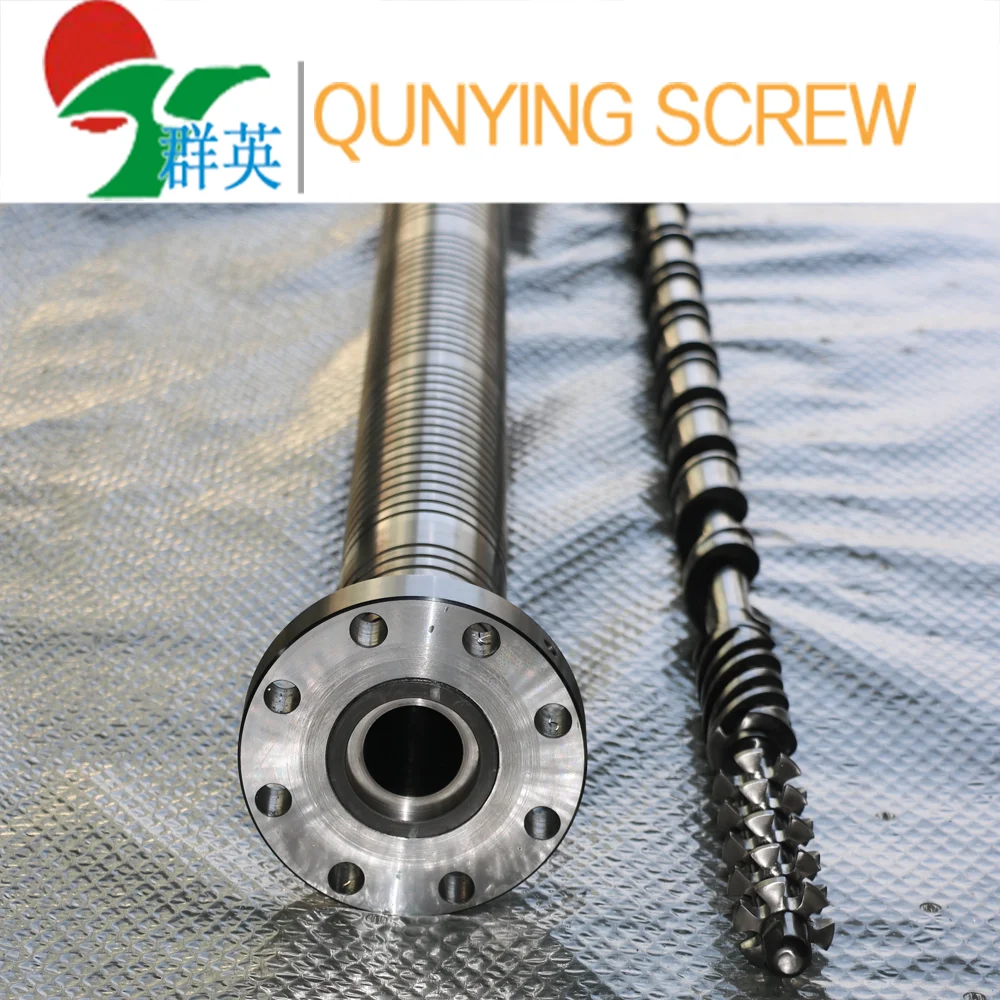

65mm screw cylinder bimetallic for extrusion

Category: Plastic & Rubber Machinery Parts >>>
Supplier: Zhoushan Qunying Plastic Machinery Manufactory

Price:$880.00 - $950.00

Quantity:

Product Overview

Description

Product Description

Qunying is one of the best machinery supplier in China. We cooperate with many machine factories. Waiting for your cooperate with us,you best choice!

For good plasticizing effect,we have different designs of screw and barrel for injection machine to meet customer's demand.Our factory manufactures with high-quality material, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness.

Extruder screw diameter: 15 - 300 MM

LD for extruder screw: 1:5 - 1:65

Extruder barrel OD: 20-500 MM

\t Product Name	\t 65mm screw cylinder bimetallic for extrusion
\t Base Material (steel)	\t 38 CrMoAlA(JIS SACM645); 42 CrMo(AISI 4140); Cr12MoV(JIS SKD-11); 4Cr5MoSiV1(JIS SKD-61)
\t Process ( hot treatment)	\t Nitriding treatment 72 hours Bimetallic treatment
\t Hardness after hardening and tempering	\t HB260-320
\t Nitrided Hardness	\t HV900-1000
\t Nitrided Case Depth	\t 0.5 - 0.8 mm
\t Nitrided Brittleness	\t Less than Grade 2
\t Surface Roughness	\t Ra 0.4
\t Screw Straightness	\t 0.015 mm
\t Bimetallic Hardness	\t HRC 53-65
\t Bimetallic Depth	\t 0.8-2.0mm for screw ; 1~3mm for barrel
\t Chromium plating Depth	\t 0.05~0.10mm
\t Hardess of surface chromium-plating after Nitriding	\t HV≥950HV

Products Show

For good plasticizing effect, we have different designs of screw and barrel for extruder or injection to meet customer's demand.Our factory manufactures with high-quality material, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness. We can produce for Haitian, Chenhsong, Demag, Engle, Nigrobossi, KMD, NPM, BOY, HUSKY, Nippon Steel, Toshiba, Nissei, Mitsubishi, CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO, WEBER, AMUT and so on.
