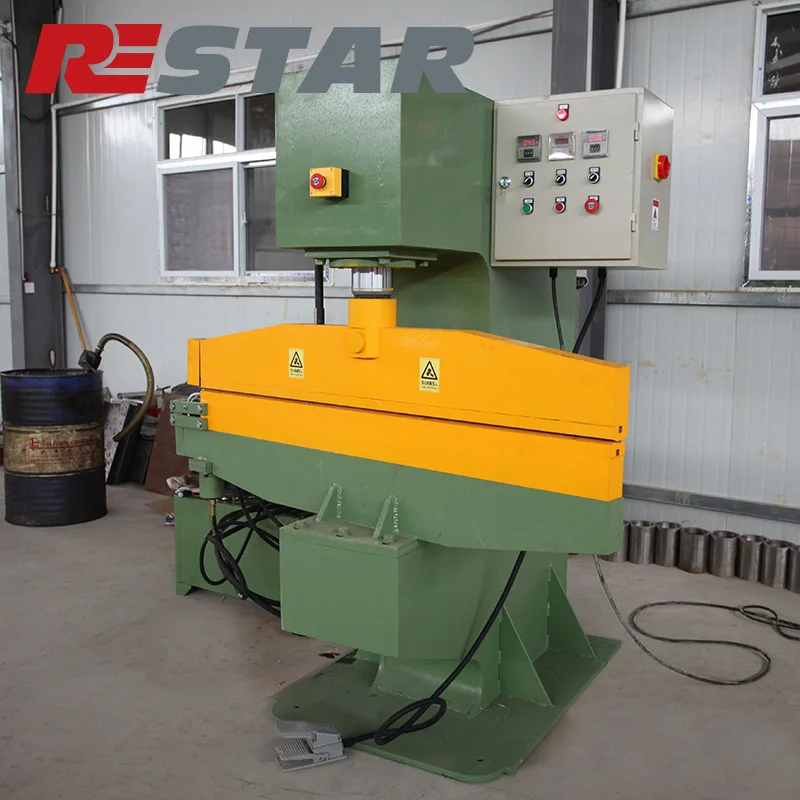

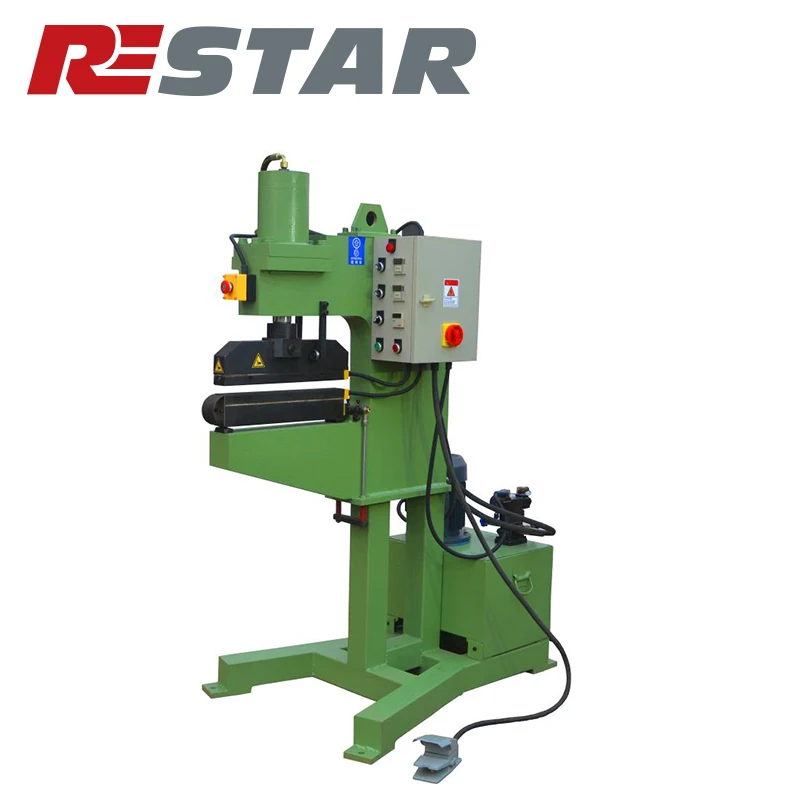

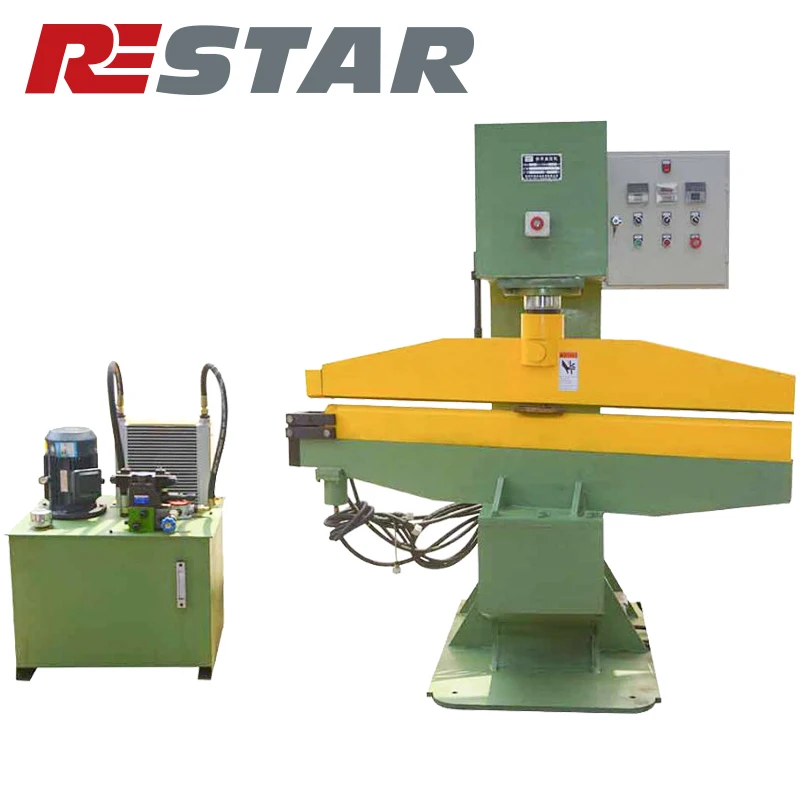

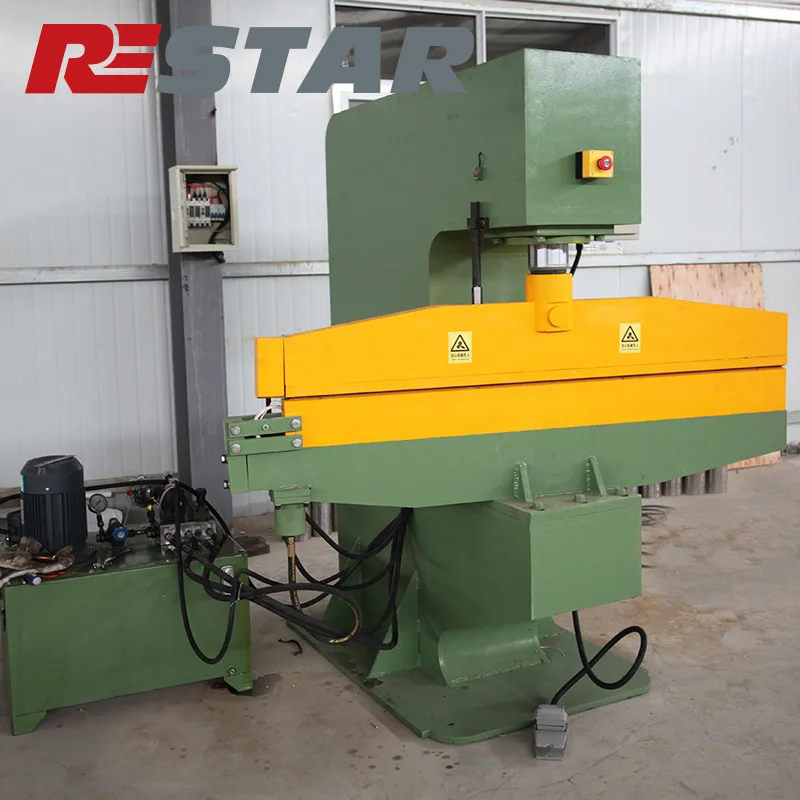

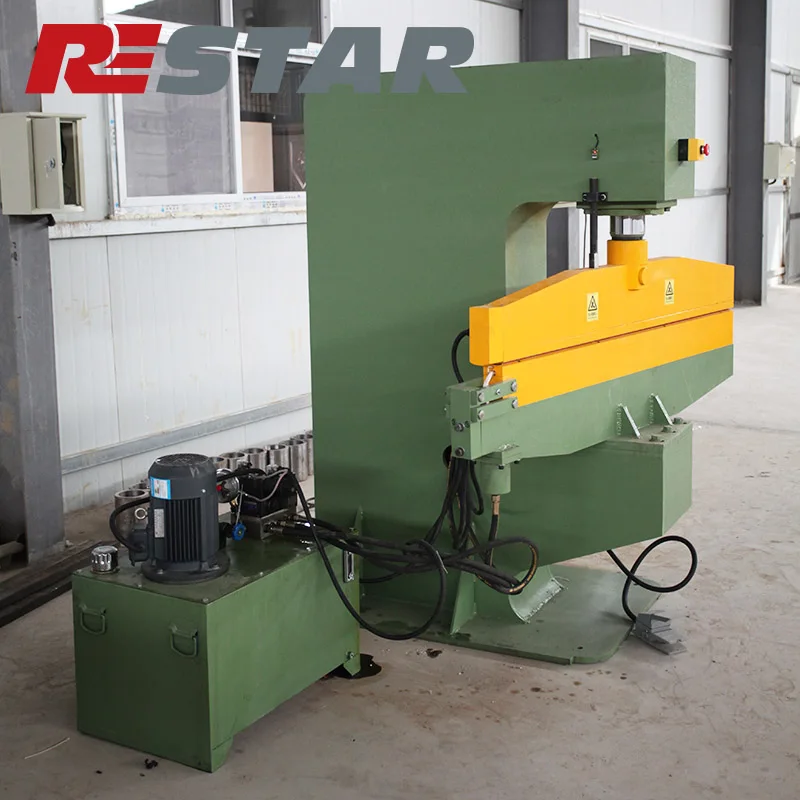

40T/25T Sanding Belt Press Machine
- Category: >>>
- Supplier: Henan Restar Abrasive Technology Co. Ltd. [Henan China]Henan
Share on (60791471222):
Product Overview
Description
Product Description
Abrasive Belt Press Machine
Abrasive Belt Press Machine
The Abrasive Belt Press Machine is designed to press the joints of cloth and paper for both wide and narrow belts.
| Item Name | 40T/25T Abrasive Belt Press Machine |
| Mpa | 40T(Adjustable Continously) |
| Working Surface Length | 1600mm |
| Pressure Temperature | 20--60Centigrate |
| Pressure Tiem | 1---99Seconds |
| Power | 3KW +2KW(Eletronic Heater) |
| Guaranteed | 1 Year |

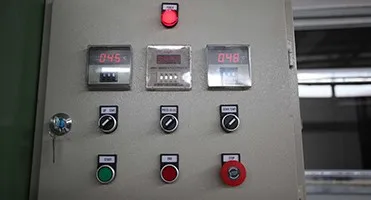

Control Panel

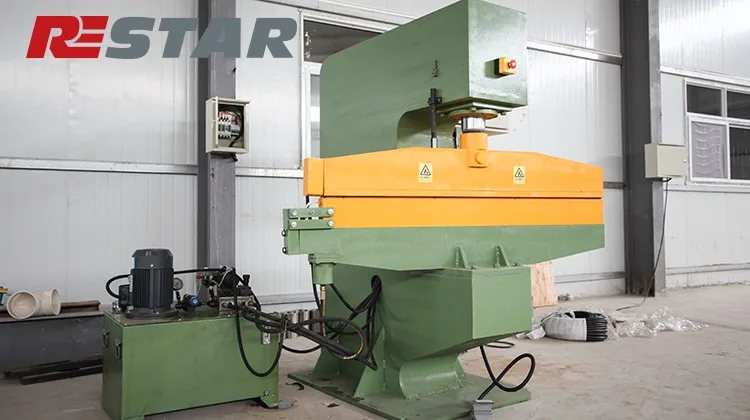

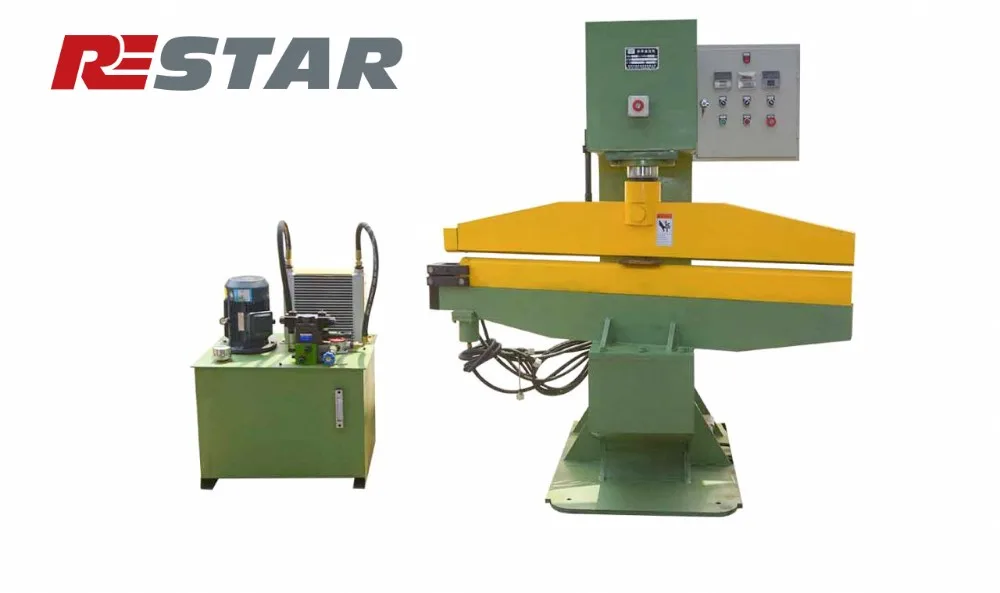

Product Show
Belt Making Process
Contact Us
JULY ZHANG
CEL: +86 13590519077
QQ: 12614219473
SKYPE: july9077
WHATSAPP: +86 13590519077
EMAIL: july@restarabrasive, com
Belt Making Machine
Jumbo Roll Slitting Machine
It is mainly for cutting the abrasive jumbo rolls into the small rolls with different specifications.
Slitter Width:50mm-1650mm
Slitter Speed: 2-10M/MIN
Cutter Loading: 200-800Kgf
Slitting Precision: +/-0.5mm
Electromagnetism Tension : 25N.m
Air Power: 0.7Mpa
S/Straight Cutting Machine
Cut to Length machine is designed to cut wide belts of abrasive paper and cloth.
Cutter Length: 1600mm, 2050mm
Cut Method: Reciprocating rolling
Cuttter Loading Pressure: Air Powered
Cutter Angle: (+/-)67° (Adjustable)
Power Rating: 0.75KW
Air Pressure: 0.7Mpa
Skiving/Glueing Machine
Line of Skiving Machine is designed for skiving/gluing and tape abrasive belts.
Skiving Width: Continous Feeding, Width no Limit
Skiving Speed: 4M/Min(Stepless Regulation)
Skiving Method: By Belts,Diamond, Wire Wheel
Power Rating: 10KW
Air Pressure: 0.7Mpa
Pressing Machine
The roller press is designed to press the joints of cloth and paper belts.
Mpa: 40T(Adjustable Continously)
Working Surface Length: 1600mm
Pressure Temperature: 20--60Centigrate
Pressure Time: 1---99Seconds
Power: 3KW +2KW(Eletronic Heater)
Narrow Belt Slitter Machine
The belt slitter is designed to slit narow belts of abrasive paper or cloth.
Slitting Width: 10---650mm
Slitting Length: 530--4000mm
Cuttter Loading Pressure: 500KGf(Adjustable)
Tenstion Force: 180Kgf
Power Rating: 2.2KW
Air Pressure: 0.7Mpa
Related Products
FLAP WHEEL
91.8% Response Rate
FLOWER FLAP DISC
91.8% Response Rate
SANDING BELT
91.8% Response Rate
Packing & Delivery
| Package | |
| Size | 2800X1700X1700MM |
| Weight | 1200KGS |
| Packaging Details | Wooden Case for Shipment. Wooden case will be fumigated. |
Our Company
OUR STRENGTH
Restar Technology co. Is a reputed manufacturer and supplier of Coated Abrasive Products and more. Our broad range of Coated Abrasive Products include Coated Abrasive Flap Wheels, Abrasive Belts, Spindle Mop Wheels, Abrasive Rolls, Portable Sander Belts, Radial Flap Discs (Cup Wheel), PSA Discs, Cloth Discs, Abrasive Sheets, Mounted Points (Grinding Wheel), Fibre Discs, Non Woven Wheels, Non Woven Wheel With Spindles and Felt Discs.
Our speciality is that we produce both high grade raw materials and finished coated abrasive products meanwhile, so as to make our products more reliable and cost-saving.
Our aim is to go beyond selling products, but offer you individual polishing solutions in diverse industries such as Automotive Industries, Cycle & Motor Cycle Industries, SS Fabrication Industries, Hand Tool Industries, Paper Cone Industries, Wood Working Industries, Plywood Industries and Ferrous & Non-Ferrous Industries.
Our Advantages
• 25 Years Manufacturer's Experience
• 2 Production Iines and 4 Converting Producton Lines
• Domestice and imported Materials
• Advanced Equipment and Professional technicians.
