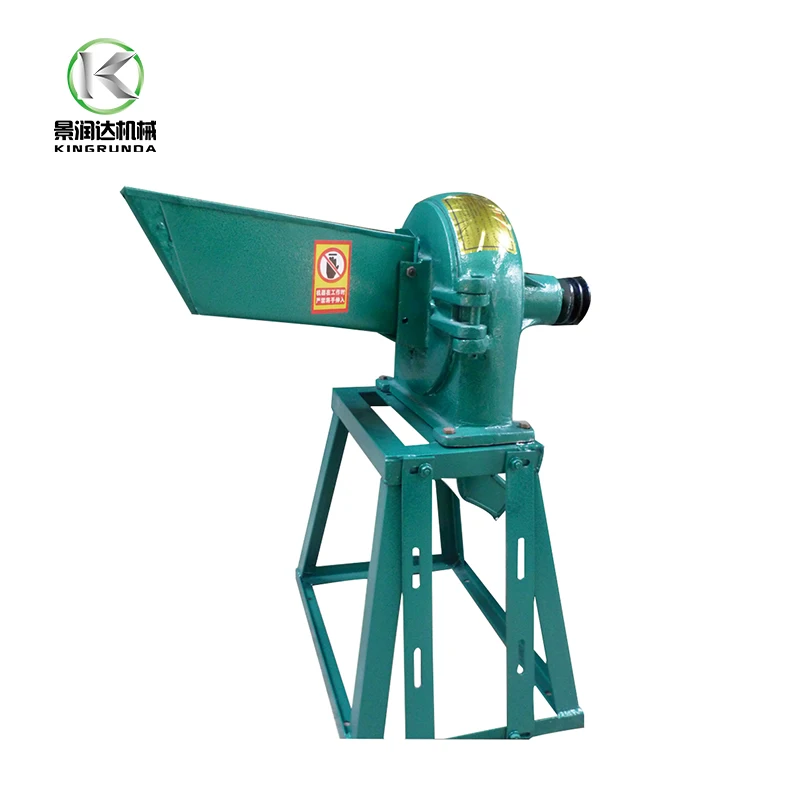

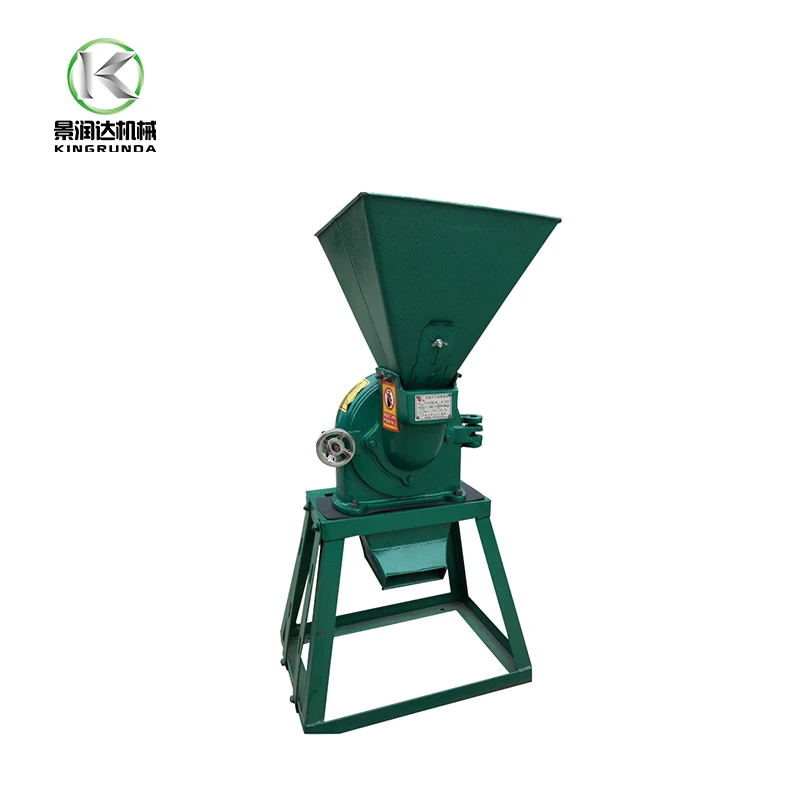

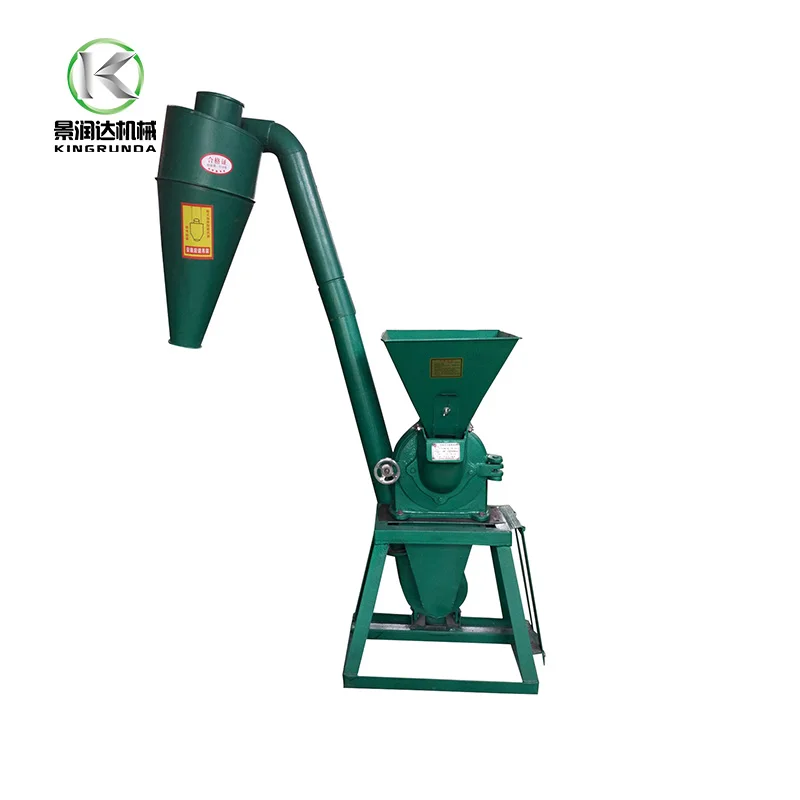

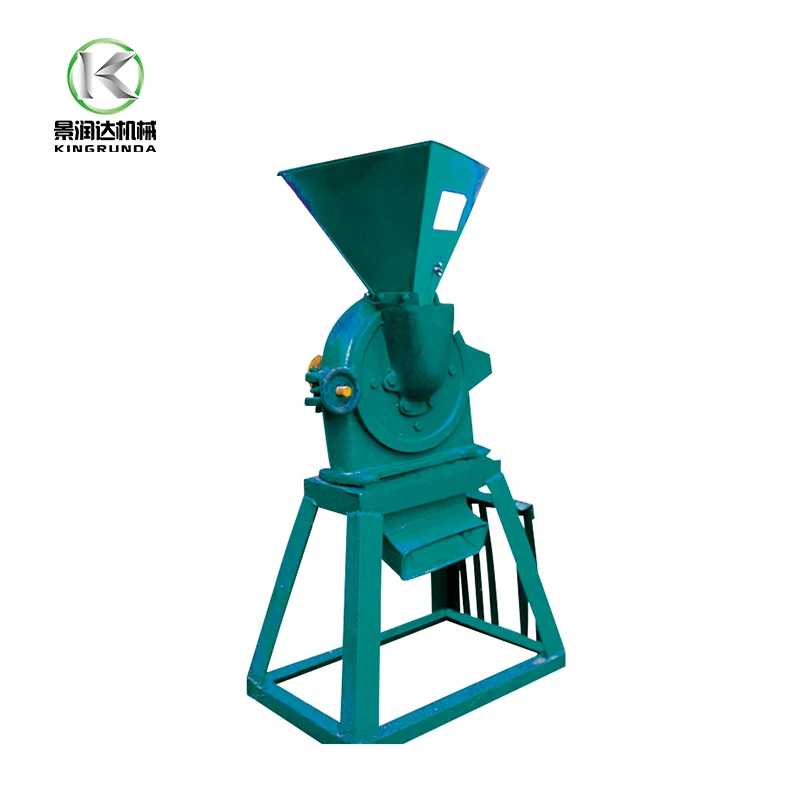

All types of maize milling machine corn crushing machine electric corn mill

Product Overview

Description





Model: FFC-200

Name: Classic powder crushing disk mill



General introduction

It is more than 30 years classic powder crushing disk mill. This model is specially designed for crushing herbal medicine, pepper and other spice material.



Quality Guarantee

1.    All machine steel material conforms to national standard, quality higher than industrial level. Main shaft is made in 45# iron steel formed by CNC one time, high precision, little tolerance, concentricityhigh.

2.    Machine rotator plate is made in high strength globular graphite cast iron, never deform lifelong, strong.

note. Steel rotator plate is light in weight, low strength, low anti-stretching property, easily deform after long time use.

3.    All flat teeth are made in high strength forged material, no soldering part, not break lifelong.

4.    All machine bearings adopt machine tools special use bearings, low noise, high working load, strong and reliable. Normally use, they can work more than 10 years.

5.    Machine bottom is soldered by reversible variable carbon-dioxide arc welding, strong, soldering not break, nice looking.

6.    All rotating parts are with retaining washer.

7.    Machine heart parts are connected with 8.8 grade high strength screws.











Technical details



Model	Power	Phase	Main shaft rmp	Weight (kg)	Bearing	Rotating diameter (mm)	T flat teeth (pc)	Capacity (kg/h)	V-belt (mm)
FFC-200	2.2kw	Single phase	6000	45	6206	200	3	150kg/h for 1.8-4mm sieve	1200
