Multiparameter Monitor Medical Equipment ECG/EEG Machine Monitor
Polysomnography (Sleep Study)
Sleep Fairy-A22 Polysomnography, also called a sleep study, is a test used to diagnose sleep disorders. VentMed Polysomnography analyzes physiological signals included EEG, ECG, EOG, EMG, leg movement, chest & abdomen movement, nasal airflow, snoring, SpO2, body position etc. Comprehensively evaluates sleep status. In addition to helping diagnose sleep disorders, polysomnography may be used to help adjust your treatment plan if you've already been diagnosed with a sleep disorder.
Application

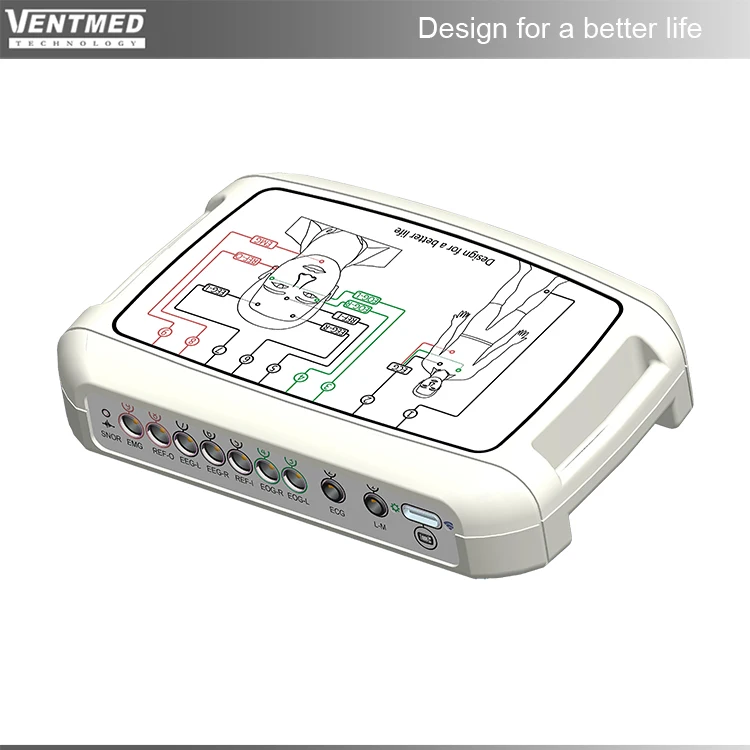

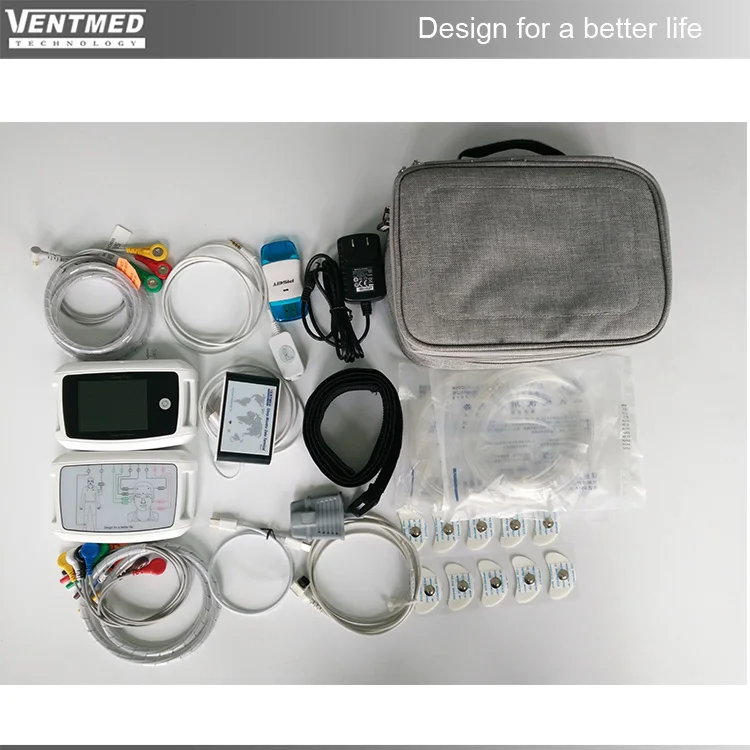

This product is composed by main device, bioelectricity box, data terminal, leg movement sensor, software and accessories. Accessories included Type C connector wire, EEG channel wires, ECG channel wires, fixing band, Spo2 sensor, nasal cannula etc. It can record EEG, ECG, EOG, EMG, snoring, nasal airflow, SpO2, chest movement, abdomen movement, leg movement, pulse, pulse waveform, body position,
body movement and CPAP pressure. Need to be used under the guidance of physicians or professionals.
body movement and CPAP pressure. Need to be used under the guidance of physicians or professionals.
Product Specification

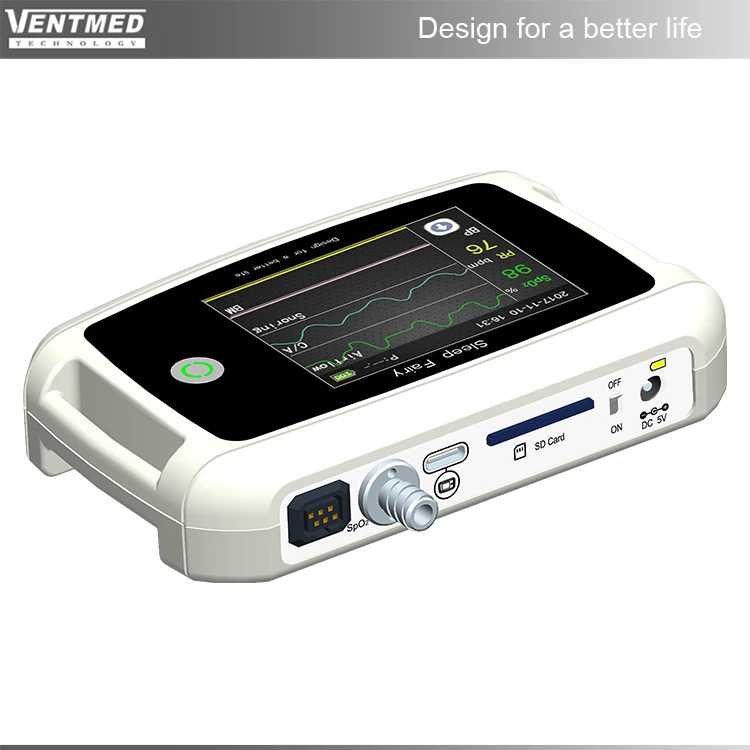

Host Device | Size | 125*80*24（mm） |
Weight | ≤200g | |
Material | ABS | |
Size | 125*80*24（mm） | |
Weight | ≤120g | |
Material | ABS |
Product Structure

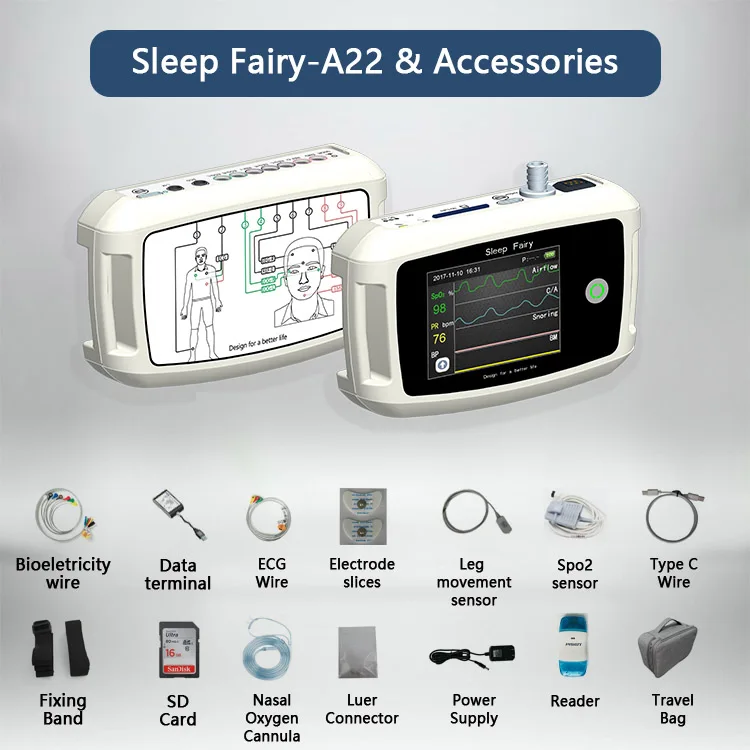

Product Accessories
Technical parameters
EEG CMRR≥110dB; Impedance: ≥20MΩ; Noise Level (convert to input end): ≤1.8uV p-p; Operating Frequency Range: 0.1-50HZ; AD Accuracy
12bits; Acquisition Frequency 2048HZ.
EOG CMRR≥110dB; Impedance: ≥20MΩ; Noise Level (convert to input end): ≤1.8uV p-p; Operating Frequency Range: 0.1-50HZ; AD Accuracy
12bits; Acquisition Frequency 2048HZ.
EMG CMRR≥110dB; Impedance: ≥20MΩ; Noise Level (convert to input end): ≤1.8uV p-p; Operating Frequency Range: 0.5-30HZ; AD Accuracy
12bits; Acquisition Frequency 2048HZ.
ECG CMRR≥85dB; Impedance: ≥10MΩ; Noise Level (convert to input end): ≤20uV p-p; Heart Rate Range: 25-250 bits/min; AD Accuracy
12bits; Acquisition Frequency 2048HZ.
SpO2: 80%-100%, tolerance≤2%;
SpO2: 70%-79%, tolerance≤3%;
Pulse: 30bpm-240bpm, tolerance≤2bpm;
Respiratory Airflow: high sensitivity pressure sensor, frequency range: 5-60 bits/min; tolerance≤±2 bits/min;
Chest and abdomen movement: 3D sensor, tolerance≤±2 bits/min;
Leg movement: 3D sensor, tolerance≤±2 bits/min;
Snoring: sensor built into the EEG box.
Power： Lithium-ion battery
Anti electric shock type： Internal power supply
Anti electric shock level： BF application part
Protection degree of harmful liquid:： Common device, IPX0
Fuse Protector： None
Operating Mode： Continuous operating
Operating Conditions:
Ambient temperature: 10°C～40°C
Relative humidity: 30%～80%
Barometric pressure: 700hPa～1060hPa
12bits; Acquisition Frequency 2048HZ.
EOG CMRR≥110dB; Impedance: ≥20MΩ; Noise Level (convert to input end): ≤1.8uV p-p; Operating Frequency Range: 0.1-50HZ; AD Accuracy
12bits; Acquisition Frequency 2048HZ.
EMG CMRR≥110dB; Impedance: ≥20MΩ; Noise Level (convert to input end): ≤1.8uV p-p; Operating Frequency Range: 0.5-30HZ; AD Accuracy
12bits; Acquisition Frequency 2048HZ.
ECG CMRR≥85dB; Impedance: ≥10MΩ; Noise Level (convert to input end): ≤20uV p-p; Heart Rate Range: 25-250 bits/min; AD Accuracy
12bits; Acquisition Frequency 2048HZ.
SpO2: 80%-100%, tolerance≤2%;
SpO2: 70%-79%, tolerance≤3%;
Pulse: 30bpm-240bpm, tolerance≤2bpm;
Respiratory Airflow: high sensitivity pressure sensor, frequency range: 5-60 bits/min; tolerance≤±2 bits/min;
Chest and abdomen movement: 3D sensor, tolerance≤±2 bits/min;
Leg movement: 3D sensor, tolerance≤±2 bits/min;
Snoring: sensor built into the EEG box.
Power： Lithium-ion battery
Anti electric shock type： Internal power supply
Anti electric shock level： BF application part
Protection degree of harmful liquid:： Common device, IPX0
Fuse Protector： None
Operating Mode： Continuous operating
Operating Conditions:
Ambient temperature: 10°C～40°C
Relative humidity: 30%～80%
Barometric pressure: 700hPa～1060hPa
Product Features
Why Buy from VentMed
1. Top Quality
Experienced manufacturer of sleeping & breathing products, coming from good materials and technology.
2. Excellent Service
We treat clients as friend and aim at building long term business relationships. 7/24 service for you, all the question will be detailed within 24 hours.
3. After-Sale
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, online chat (WhatsApp, WeChat, Skype). Please contact us once the machine has any problem. Best service will be offered.
4. Warranty
Two years warranty on the host machine and humidifier is given. 90 days for humidifier water tanks.
5. OEM/ODM Service
We can offer you better OEM and ODM services. We have our own R&D department with many experienced designers and engineers and many production lines, so we have the great capacity to offer you high-quality machines according to your needs, ideas and samples.
Experienced manufacturer of sleeping & breathing products, coming from good materials and technology.
2. Excellent Service
We treat clients as friend and aim at building long term business relationships. 7/24 service for you, all the question will be detailed within 24 hours.
3. After-Sale
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, online chat (WhatsApp, WeChat, Skype). Please contact us once the machine has any problem. Best service will be offered.
4. Warranty
Two years warranty on the host machine and humidifier is given. 90 days for humidifier water tanks.
5. OEM/ODM Service
We can offer you better OEM and ODM services. We have our own R&D department with many experienced designers and engineers and many production lines, so we have the great capacity to offer you high-quality machines according to your needs, ideas and samples.
Company Information

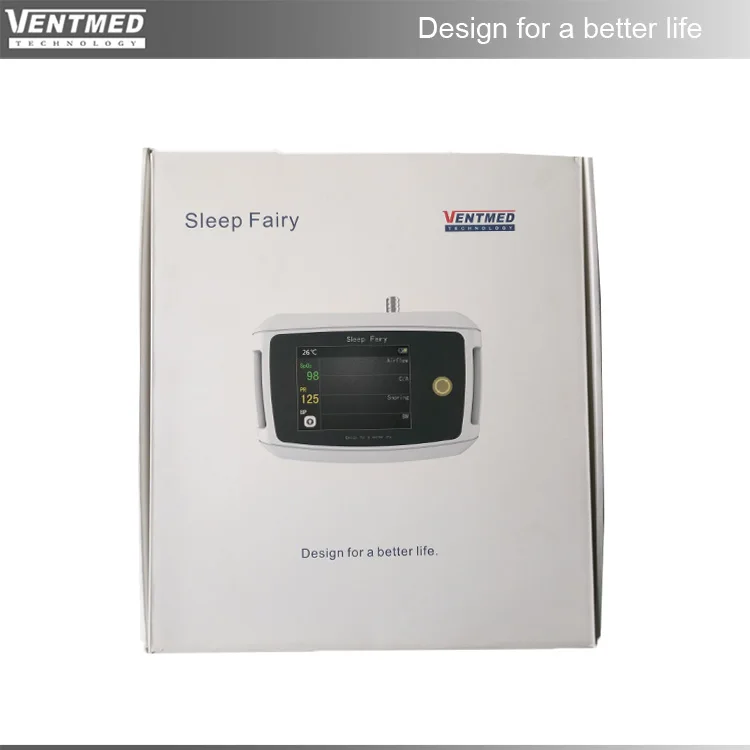

Packaging & Shipping
Shipping and Packing | ||
Shipping | DHL/Fedex/UPS/TNT/EMS Express/by sea/by air. | |

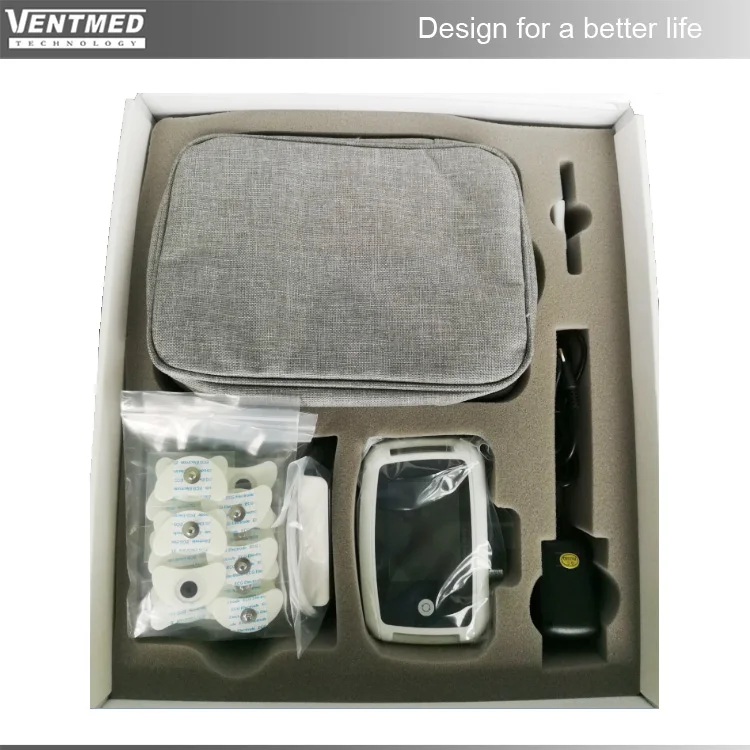

Packing | Packed in travel bag with inner colorful carton, outer standard carton. | |
Carton Size | ||
1 Piece | 37.5L*34.5W*15H | |
2 Piece | 39L*30W*38H | |
3 Piece | 52L*39.5W*37.5H | |
