Used in oilfield API 8C type DDZ drill pipe elevators

Product Overview

Description

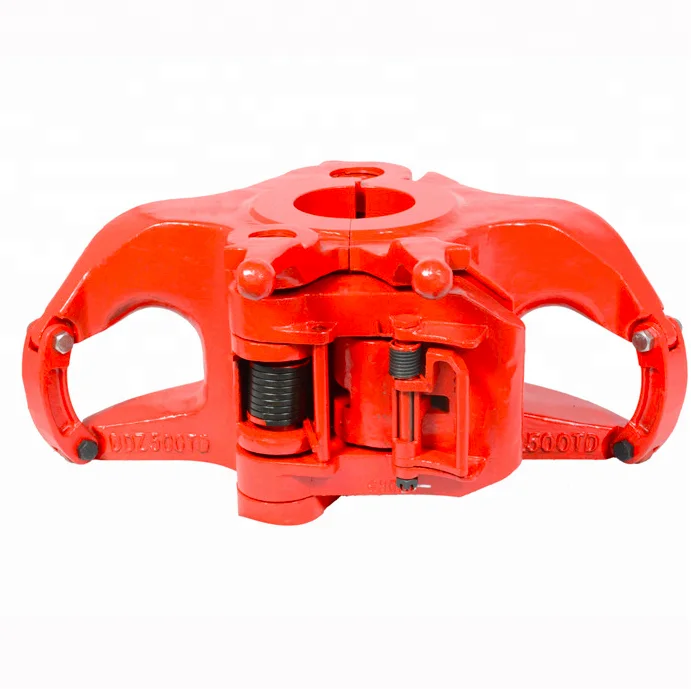

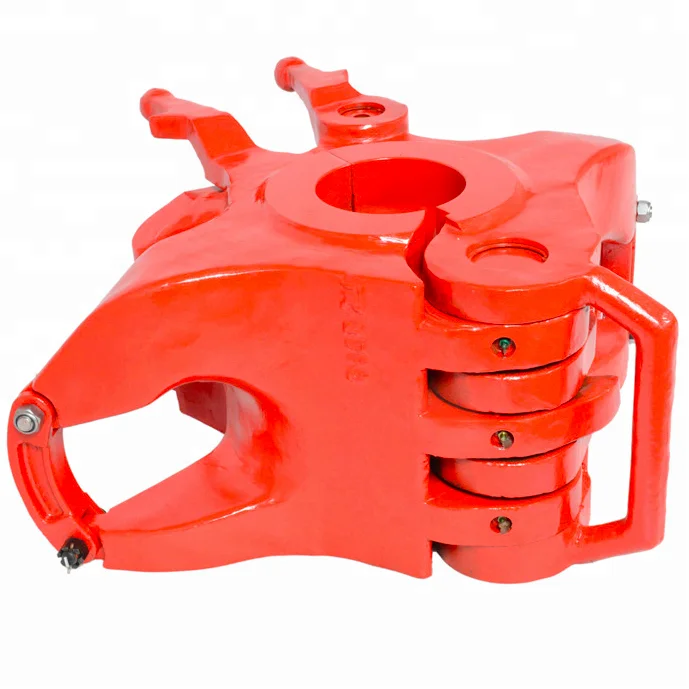

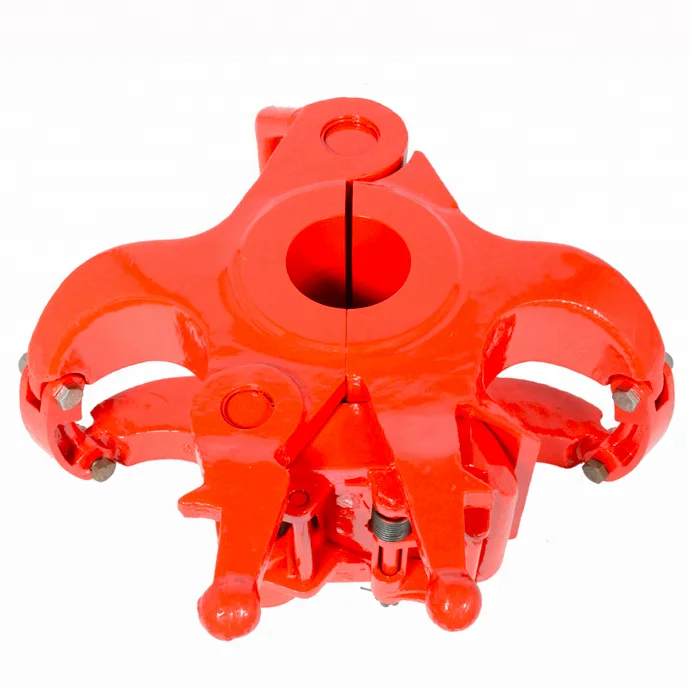

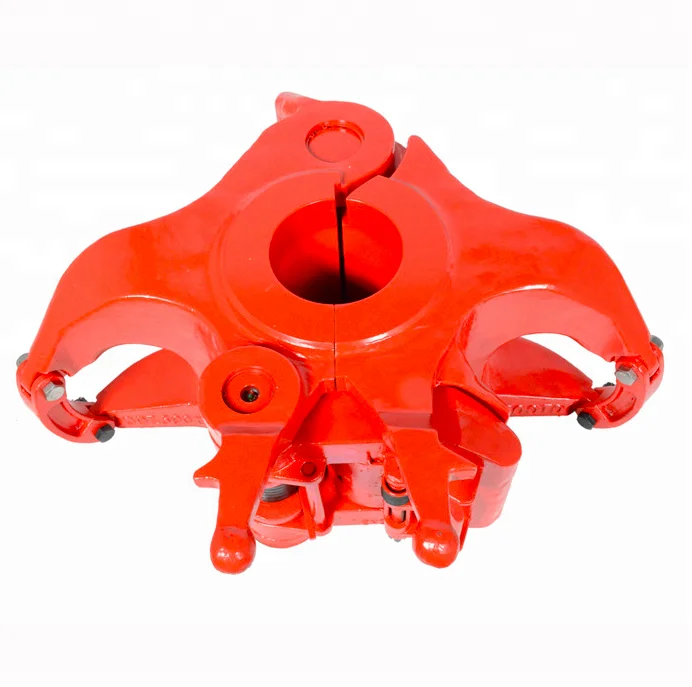

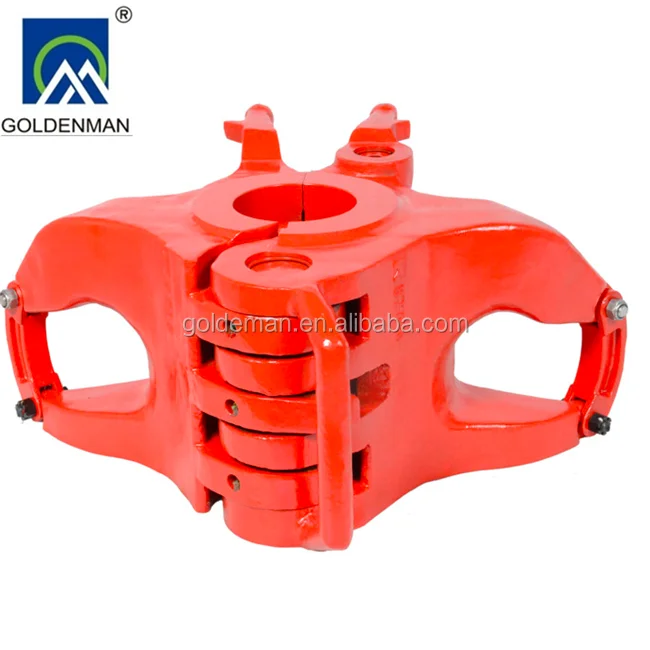

Used in oilfield API 8C type DDZ drill pipe elevators

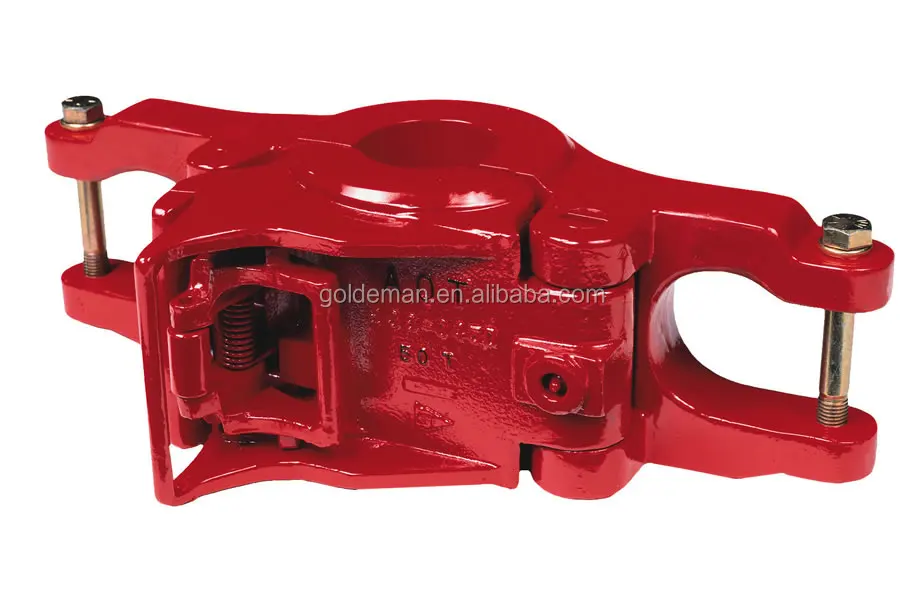

DDZ Drill Pipe Elevators handling 18° taper shoulder


Model DDZ( Center Latch Elevators) 18 degree drill pipe elevator handling tools

are suitable for handling 18°taper shoulder drill pipe, drilling tools and etc. The Elevators are designed and manufactured according to API Spec 8A-Specification for Drilling and Production Hoisting Equipment.

Technical Specifications:

Model	Drill pipe size and style	Elevator bores	Rated Capacity	Remark
DDZ100	2-3/8" to 5"	100	2 3/8EU	MG
DDZ150	2-3/8" to 5-1/2"	150	2 7/8EU	RG
DDZ250	2-3/8" to 5-1/2"	250	3 1/2EU	MGG
DD350	3-1/2" to 5-7/8"	350	4 IU	GG
DDZ350TD	3-1/2" to 5-7/8"	350	4 EU	For Tope Drive
DDZ500	3-1/2" to 6-5/8"	500	4 1/2EU	HGG
DDZ500TD	3-1/2" to 6-5/8"	500	4 1/2EU	For Tope Drive
DDZ750	4-6-5/8"	750	4 1/2EU
