stainless steel 304 drum pump/diesel barrel 200L chemical pump/Portable Electric Barrel Oil Pump

Product Overview

Description

Introduction:
SB Series Electric Transfer Pump is a kind of barrel pump, it is easy to use and
maintenance, and high efficiency. SB Series Electri Transfer Pump can put the tube into the drum to pump liquid. It is widely used to transfer acid, alkali, oil and drink, and some low-viscosity liquid in industry of chemical plant, petrochemical industry, Fine Chemicals,dye chemical, water treatment and food section etc.

SB Series Electric Transfer Pump is also an ideal oil transfer tool in oil station, oil tanker, ship, truck etc.

According to different liquid, the pump tube material can be aluminum alloy or
stainless steel 304 or 316L. The electric motor can be ex-proof motor or standard normal motor. There are 3 series and 12 models according to different material and motor type.



Advantage:

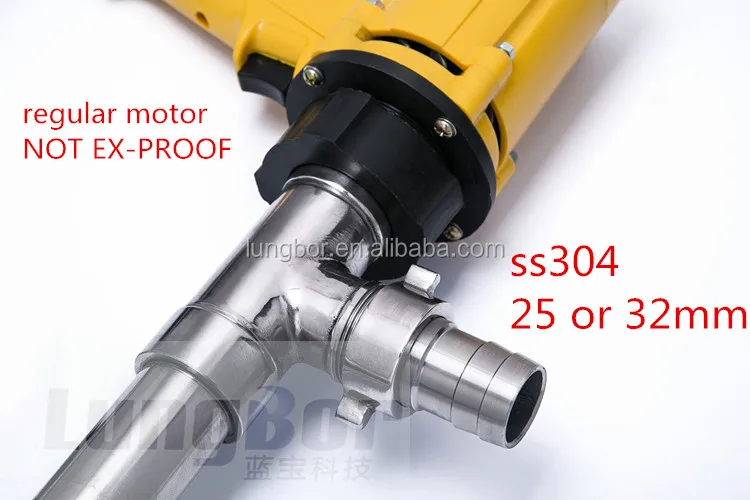

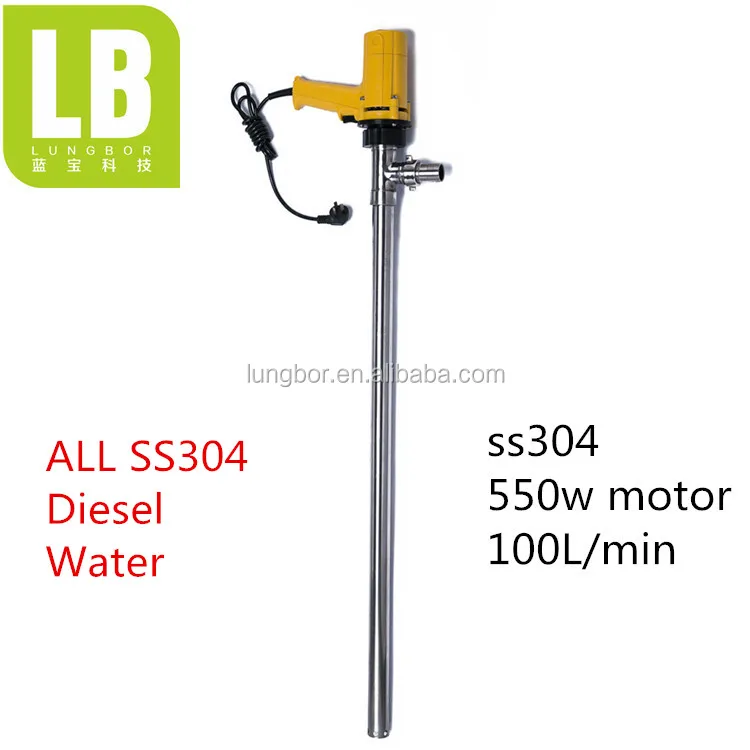

1:Stainless steel 304 material,plant oil,chemical liquid,disel,cooking oil.

2:Corrosion protection pump body.

3:viton seal for chemical.

4:220V,550W motor,regular motor,not for gasoline.

Model	SB-6	SB-7
Flow rate	100L/min	100L/min
Discharge head	7m	7m

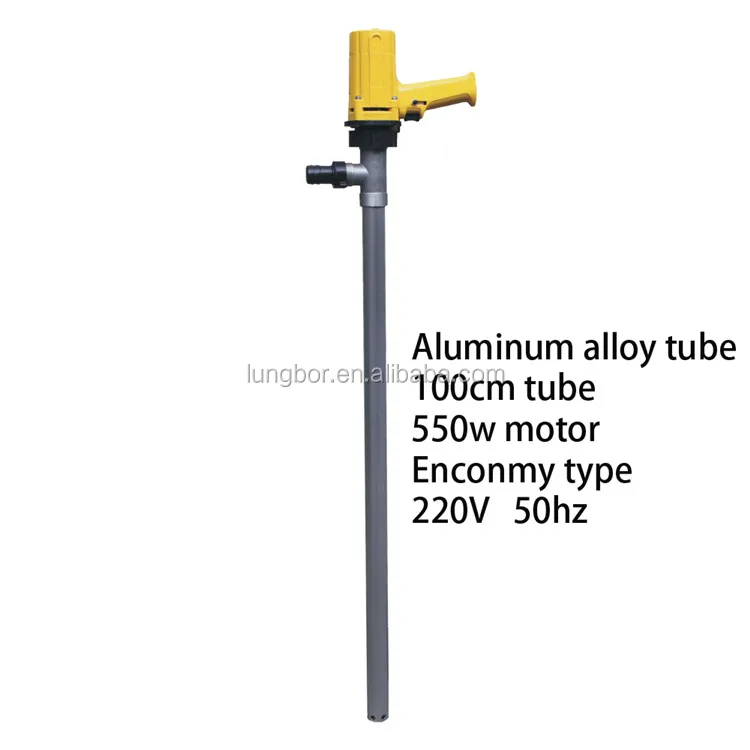

Tube material	Stainless steel 304	Aluminum alloy
Impeller material	Stainless steel 304	Polyproplene
Tube dia	40mm	40mm
Outlet dia	25mm	25mm
Voltage	220V	220V
Frequency	50hz	50hz
Current	2.5A	2.5A
Power	550W	550W
Weight	6kg	4kg
