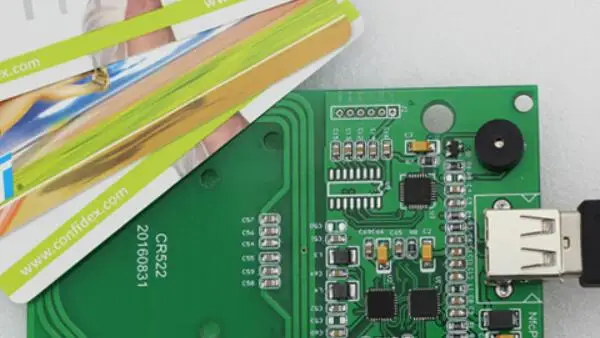

USB rfid Reader RFID 13.56M CR508AU emulation Keyboard Reader

· Power supply: 5V, 80-100mA

· USB Virtual Keyboard

· USB HID ,USB Virtual RS232

· Read distance of up to 60mm, depending on TAG

· Storage temperature: -40 ºC ~ +85 ºC

· Operating temperature: -25 ºC  ~ +65 ºC(I)

               Customer  OEM  ODM

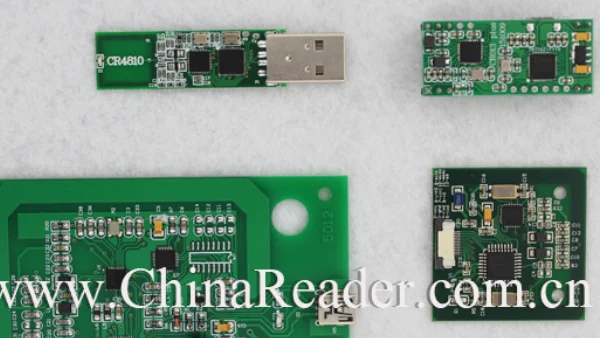

USB CARD Reader

TYPE A B  NFC 1k/4k Ultralight C   SR176 SRI4k SRI512

Usb Keyboar Emulation

   Example: mifare 1k block 0 data as

    BC 9A 78 56 xx xx xx xx xx xx xx xx xx xx xx xx  (Block 0 Data)

Mode 1 :   sent out four byte card SNR  Hex

           Eg:   56 78 9A BC

Mode 2 :   sent out four byte change to  10 decimal

           Eg:  card snr is  56 78 9A BC

           Sent out :   1450744508

Mode 3 :  sent out 7 byte card SNR  Hex (mifare ultralight ,desfire or other 7bytes UID TypeA card)

Mode 4 :  0x78H change to 3Dec = 120 ,  0x9A BC change to 5 Dec = 39612

           Sent out :   12039612

Mode 07    6H8D

Customer firmware service

              Carton

DHL FEDEX UPS TNT EMS

FREE SDK

ODM OEM CUSTOMER Design
