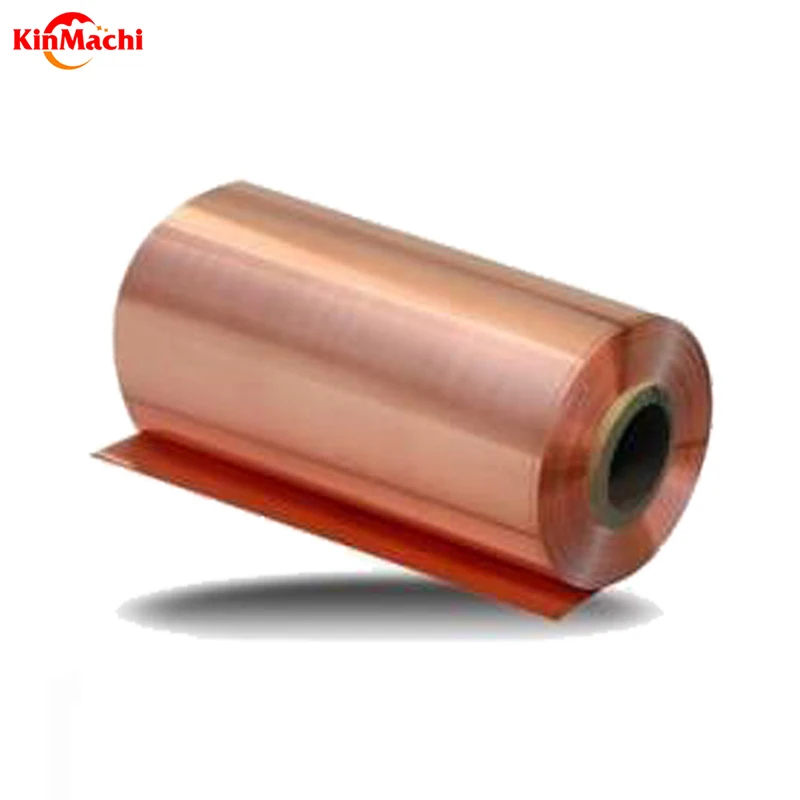

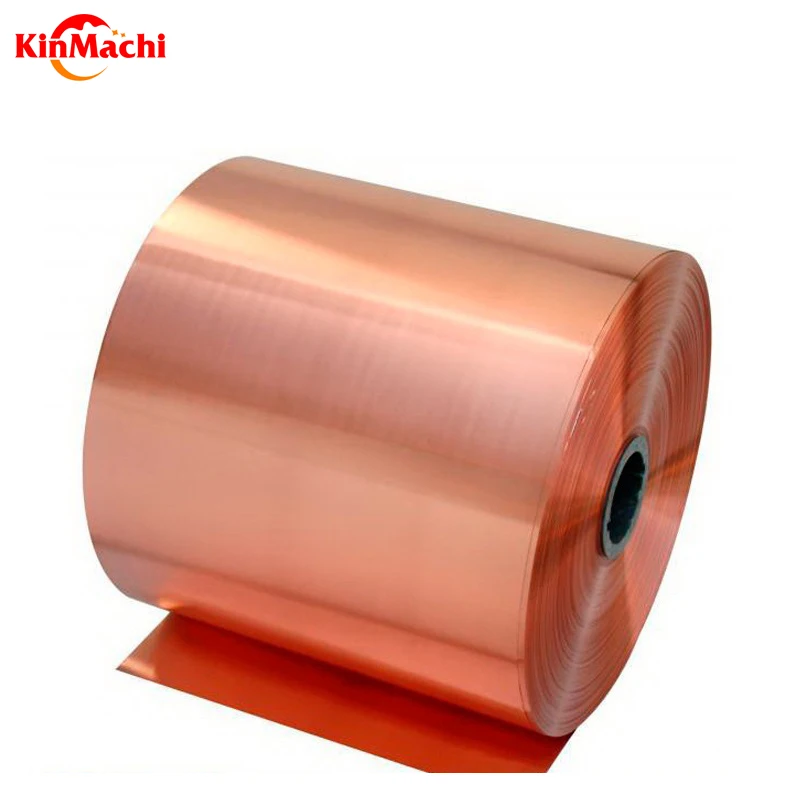

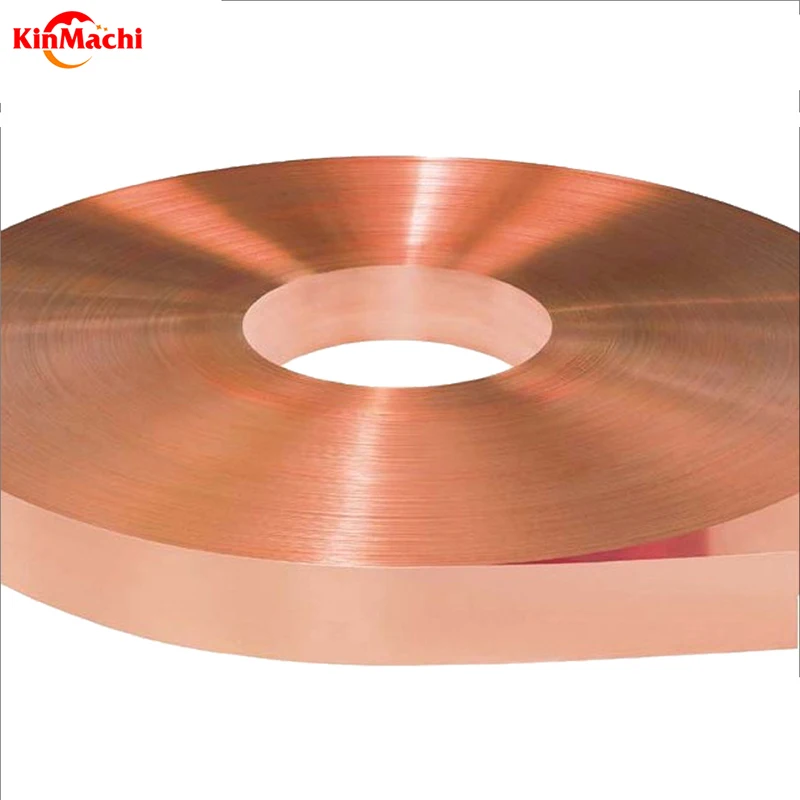

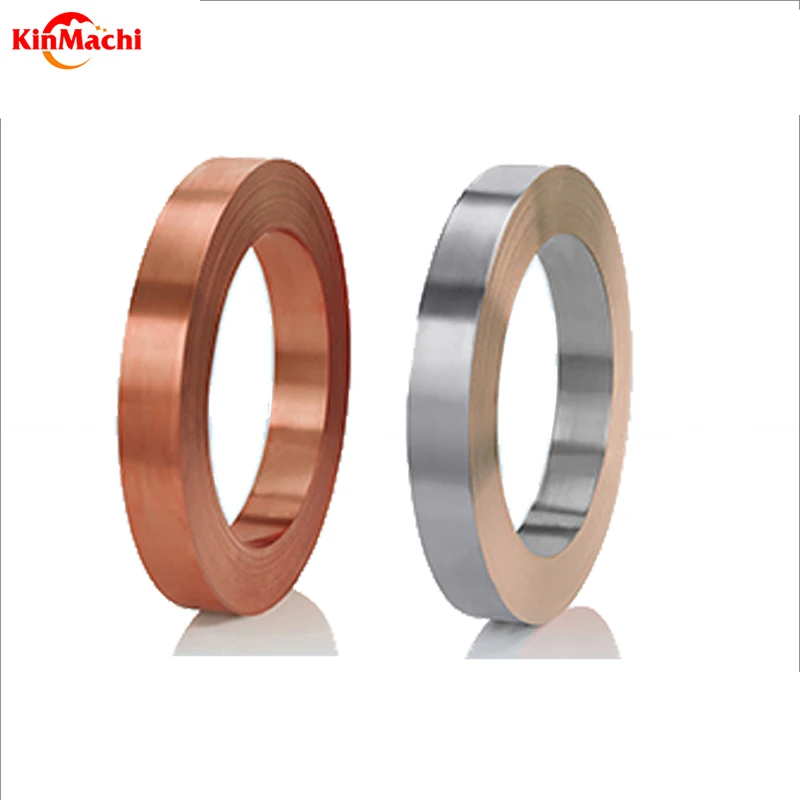

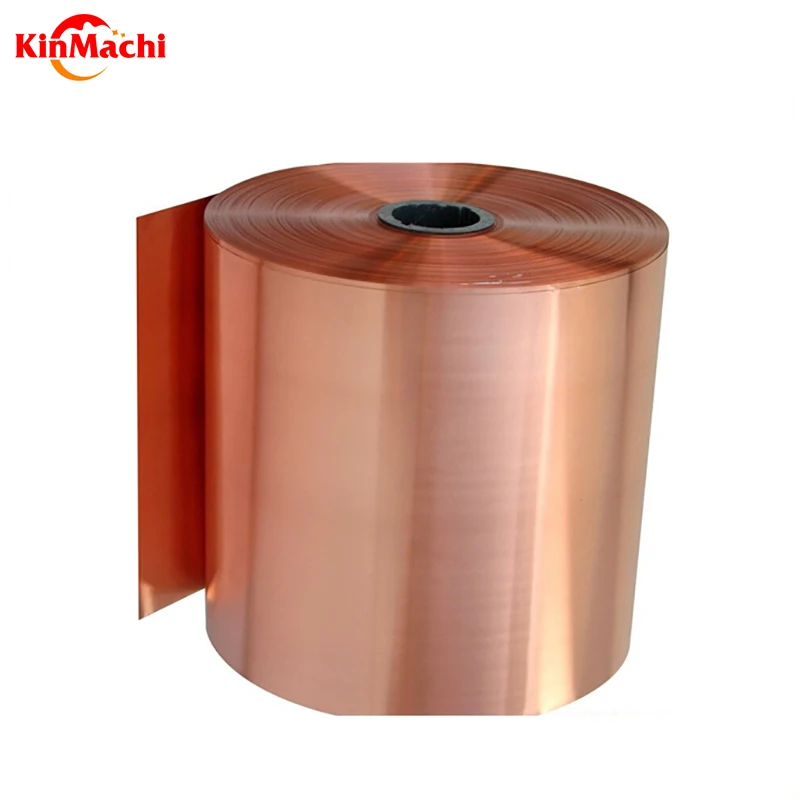

Se Cu58 C10300 Nickel Plated Copper Foil
Se Cu58 C10300 Nickel Plated Copper Foil
Se Cu58 C10300 Nickel Plated Copper Foil
Se Cu58 C10300 Nickel Plated Copper Foil
Se Cu58 C10300 Nickel Plated Copper Foil
Se Cu58 C10300 Nickel Plated Copper Foil
Se Cu58 C10300 Nickel Plated Copper Foil

Se Cu58 C10300 Nickel Plated Copper Foil

Share on (60791629672):


Price:

Quantity:


Product Overview

Description


1

02

High Conductivity Copper C10300
Standard
DINENASTM JIS
Material code   No.Material code   No.UNS No. JIS  No.
SE-Cu 582.007Cu-PHCCW020A10300 C1030
Applications
 submarine fibre optic cable,  Longitudinally welded cables, Radio Frequency(RF)Cables, Copper tape screen for XLPE cable, Components for the electrical industry, Heat Sinks
     Chemical Composition (%)
Cu  P
≥99.95  ≈0.003

Electrical conductivity IACS%(20℃)100Thermal conductivity W/(m*K)390
Modulus of elasticity (KN/mm2)  127
Merit
With high purity,excellent thermal and electrical conductivity, great machinability, solder ability and corrosion resistance

Mechanical Properties
Temper ClassTemperTensile StrengthYield StrengthElongation A50Vickers HardnessBending Test
     90 degree (R/T)
(Rm,Mpa)(Rp0.2,Mpa)(%)  (HV)GWBW
R220O220-260140max33min40-6500
R2401/4H240-300180min8min65-9500
R290H290-360250min4min90-11000
R360EH360min320min2min110min00.5

Inventory: Thickness: 0.1-3.0mm  Hardness Temper: Soft, 1/4H & H
 Material Features:

   1.  It has good weldability, brazability and hydrogen embrittlement

    2.  It has excellent cold and hot  formability  and good corrosion resistan. Soft conductivity

   IACS can reach more than 100%



1

 QQ20180829150828

1 .Application areas are electrical engineering, power module backplane, process equipment

manufacturing and cable industry.

2. Power distribution system.

3. Communication cable.

4. Electrical and electronic applications.

10



     Shanghai Kinmachi Industry Co.,Ltd. is a professional servicer of providing metal materials and solutions

for the automotive electronics industry.

    After many years of accumulation and development in theautomotive electronics industry, we accumulated

rich experience and a large number  of  professional  data we can provide new  material and optimization  of

high -performance  and  low-costwhich  including raw materials, electroplating, stamping, assembly, injection

molding  and  so on. We  have  become  the  first  choice  as  a major  service  provider  for many automotive

electronics manufacturers
