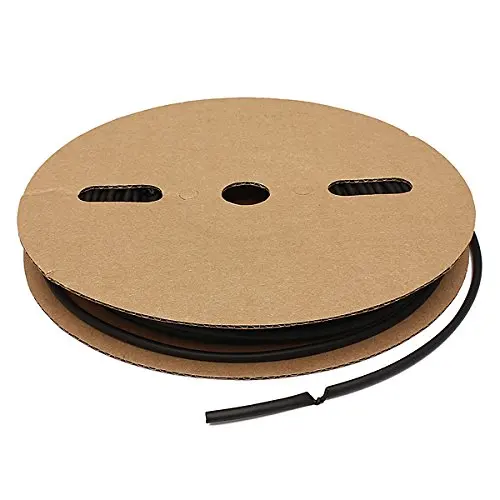

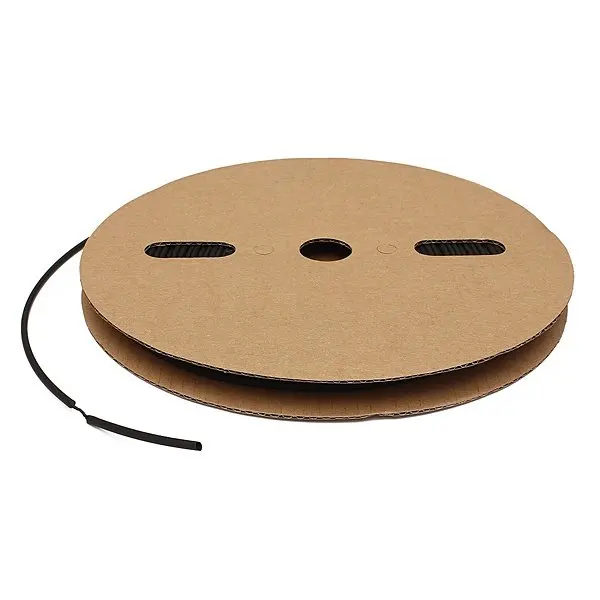

Low Voltage, 2:1, normal wall, flame retardant, heat shrink tubing

Share on (60791656087):


Price:RUB 1,760.83

Quantity:


Product Overview

Description

2:1, Normal-wall, Halogen-free, Flame-retardant, Heat-shrinkable tubing

Product Description



cable sleeve.jpg

Material: Irradiation cross-linked polyolefin

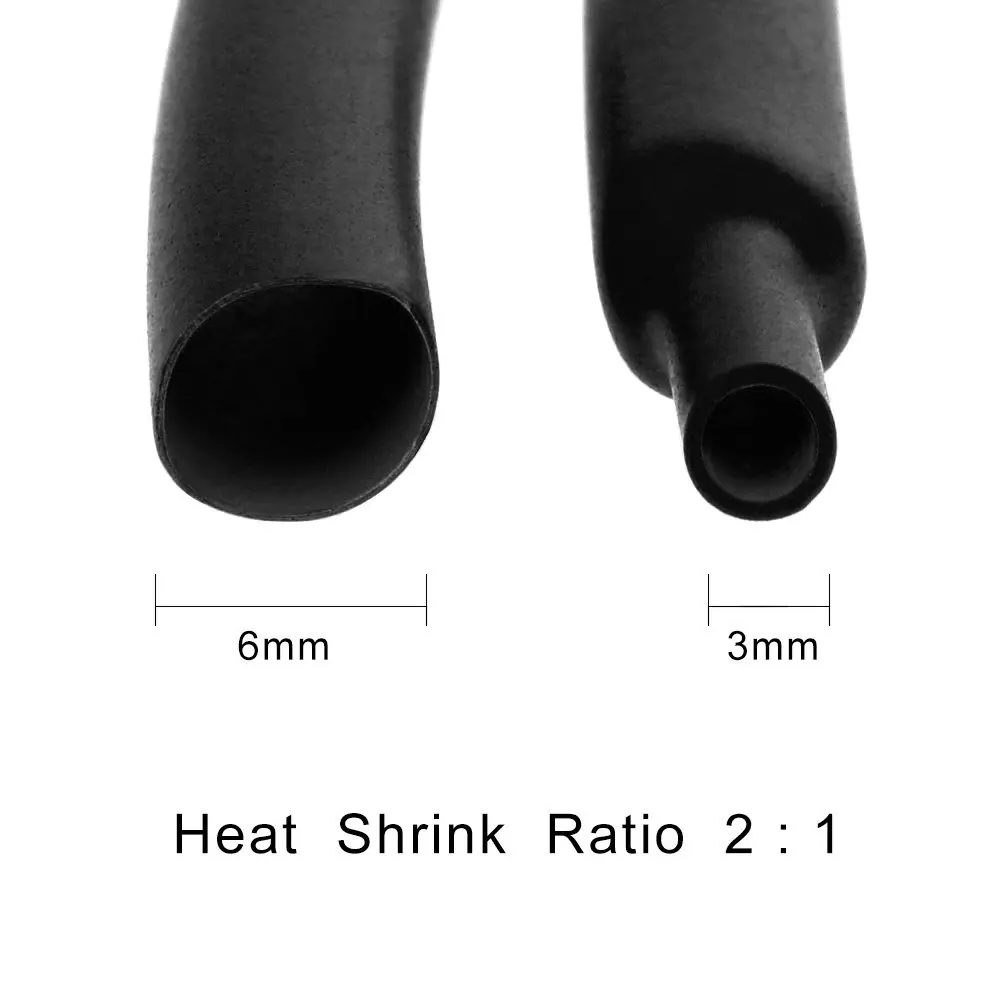

Shrinkage Ratio: 2:1 ( will maximum shrink to 1 / 2 of its supplied diameter )

Installation:

-Minimum shrink temperature: 70°C

-Minimum full recovery temperature for normal-wall tubing: 125°C

-The longitudinal shrinkage rate is not more than ±5%

-To ensure the full shrink, it is suggested to use forced-draught, contant-temperature oven, and the shrink temperature shall be controlled in 125°C.

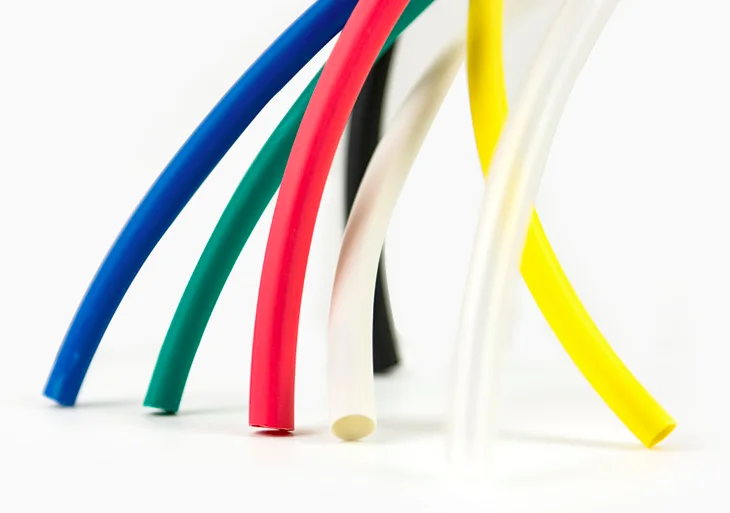

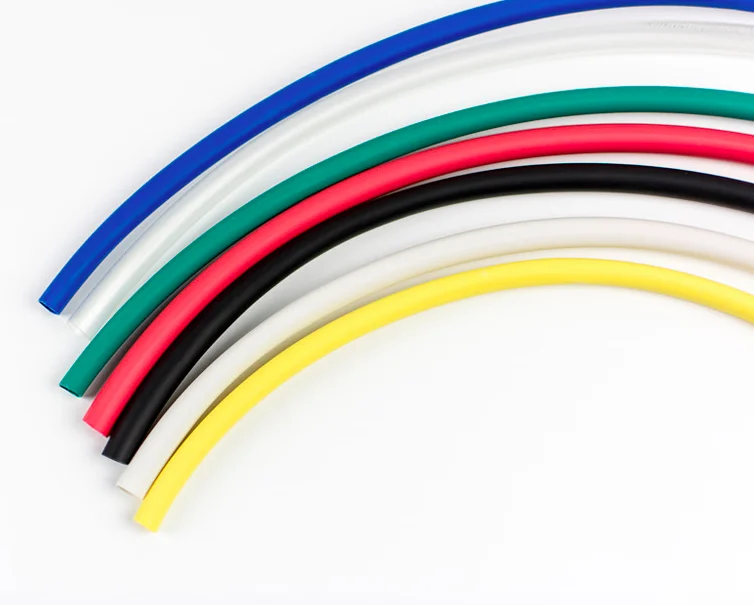

Color:

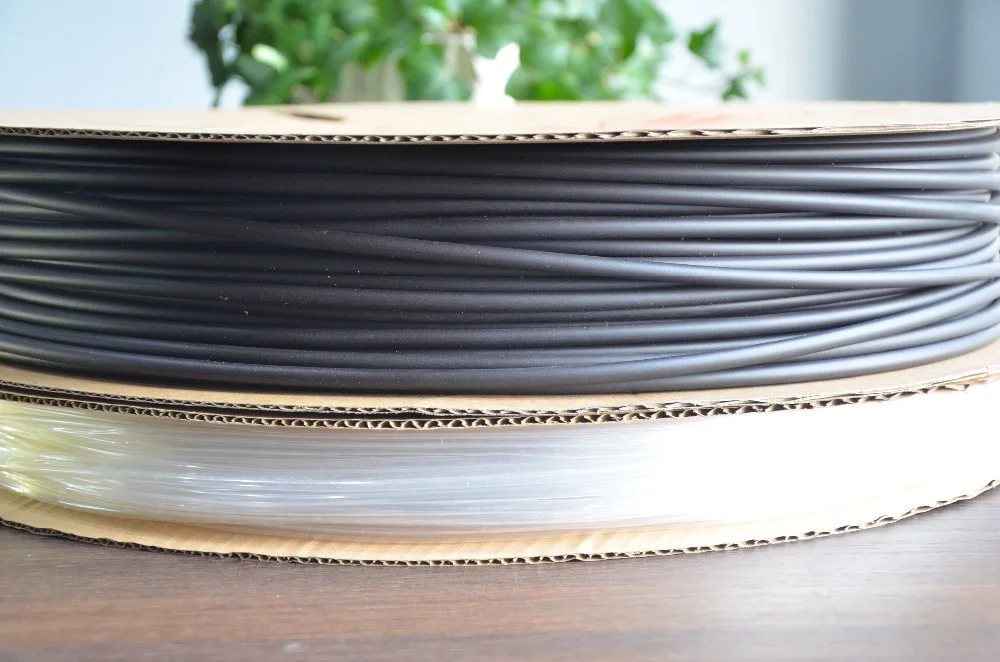

-Standard colors: black, red, blue, yellow, green, white and clear.

-Other colors like purple, gray, brown, etc. can be customized.

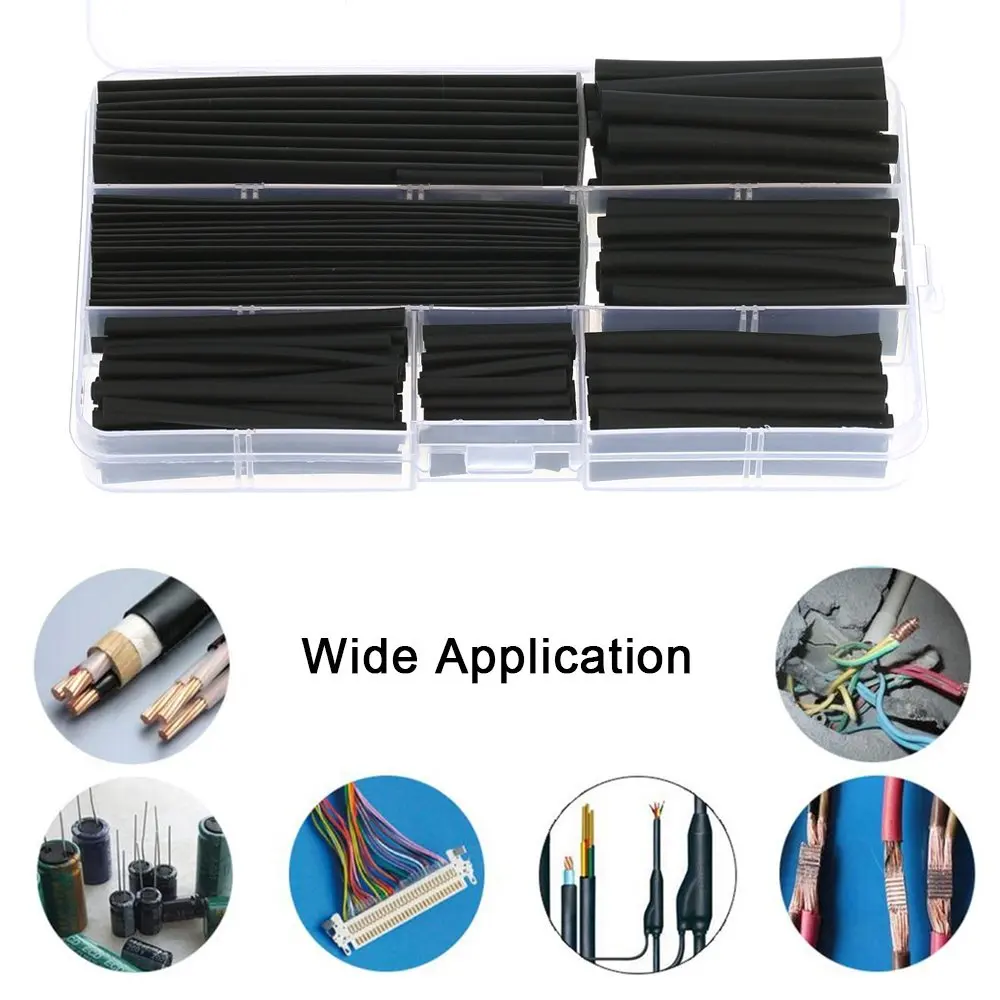

Product Applications



heat shrink usage.jpg

RSFR-H is a tough, flexible, general purpose polyolefin tubing with good resistance to common fluids and solvents and a high dielectric strength. Its unique blend of chemical, electrical, and physical properties makes it suitable for a wide range of applications, including:

-electrical insulation

-strain relief

-cable bundling

-color coding

-identification of wires, cables, pipes and electrical and electronic components

-mechanical protection

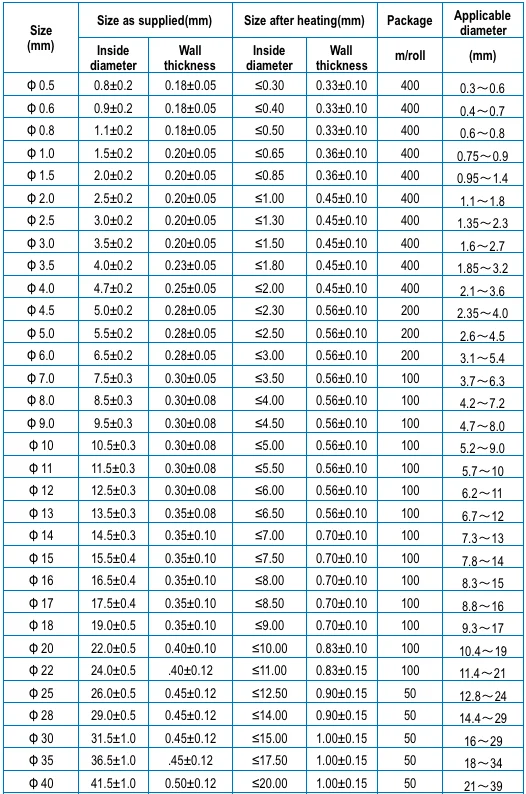

Product dimensions

 cable sleeve.png
