Dental stomatology oral maxillofacial surgery stereo surgical operating microscope ISO certified CCD camera 520

Product Overview

Description

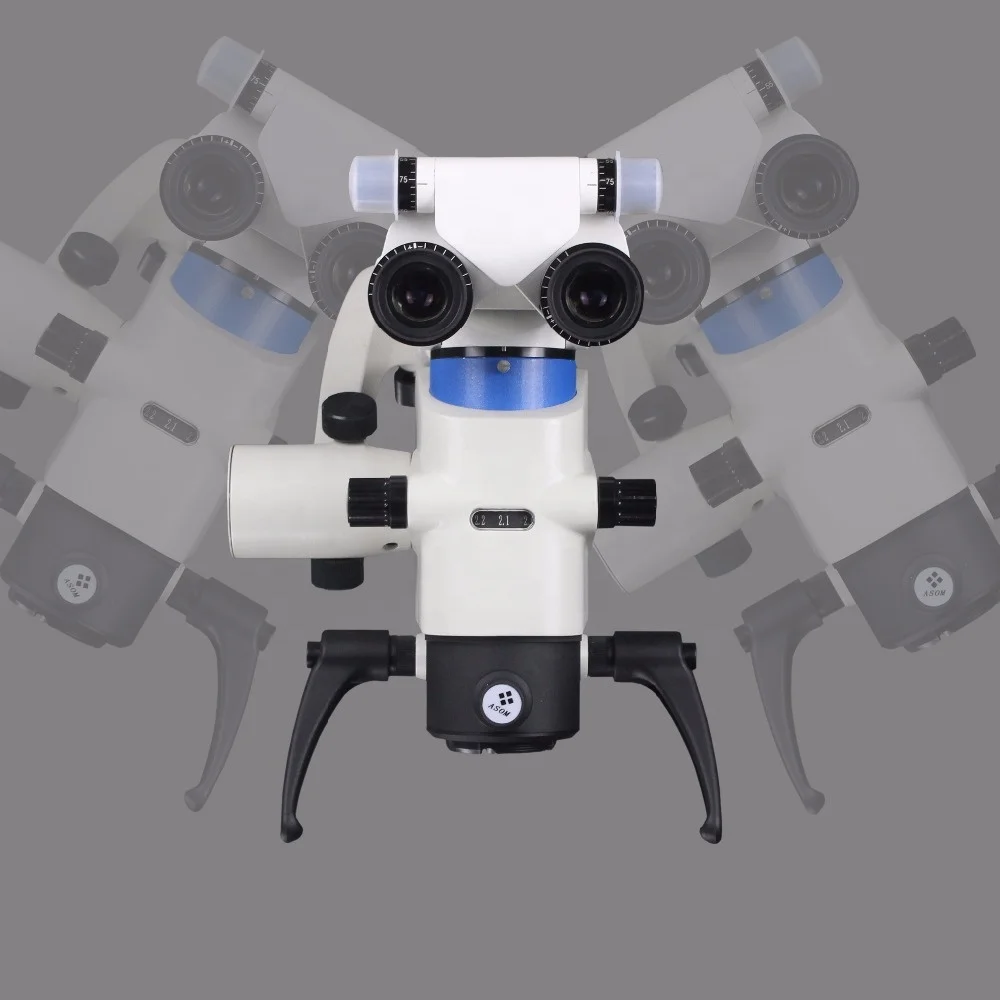

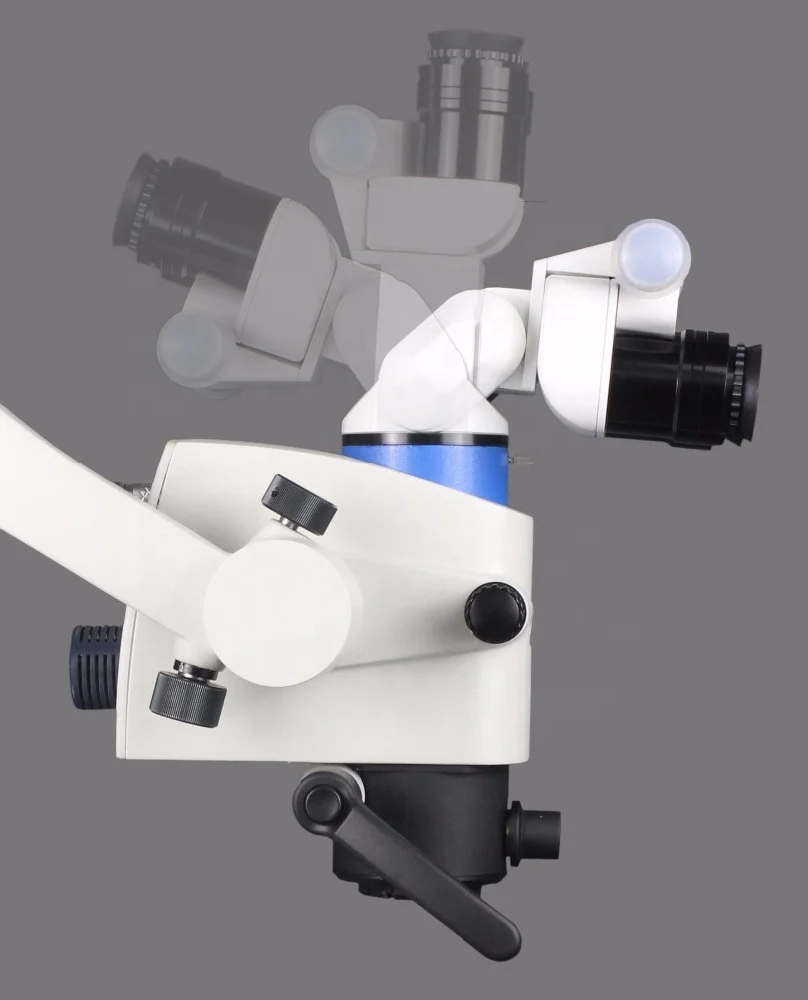

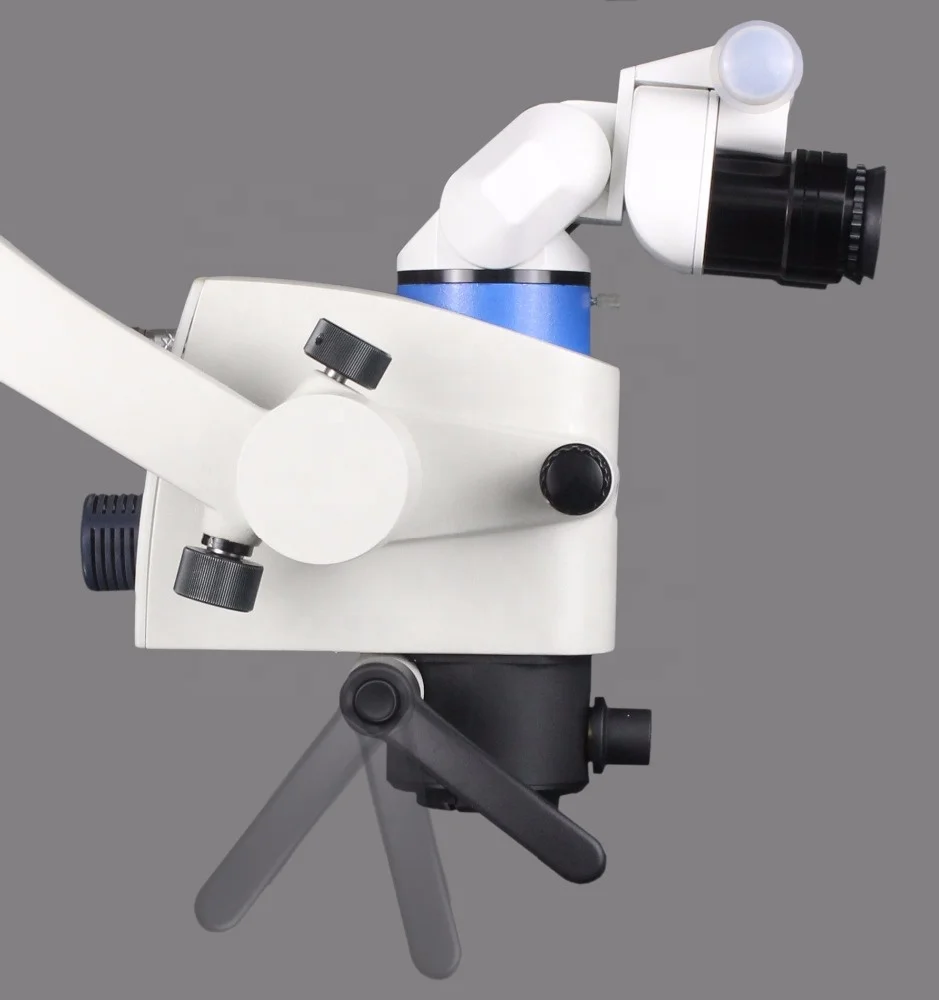

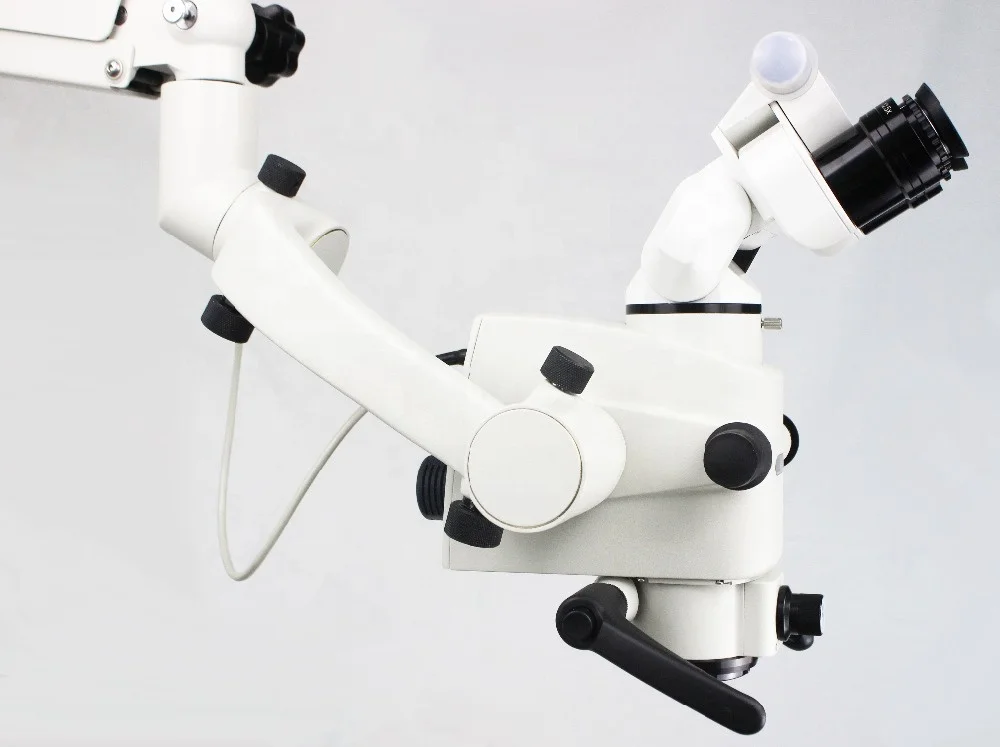

Dental stomatology oral maxillofacial surgery stereo surgical operating microscope ISO certified CCD camera  ASOM-520



 ASOM-610-6A microscope was generally welcomed in Dental stomatology oral maxillofacial surgery.





Specification

Eyepieces	magnification 12.5x, pupil distance adjustable range 55mm~75mm, diopter adjustment range +6D ~ -6D.
Binocular tube	high brightness 0~200°binocular tube
Magnification	1:6 manual continuous zoom, magnification 2.5x~21x; field of view Φ78.6~Φ9mm
X-Y movement device	X direction swing 45°, Y direction swing 45°
Coaxial illumination	LED cold light ,illumination diameter of light spot Φ80mm, illumination intensity 60000lux build-in small-spot, both blue and yellow light filter.
Objectives	180mm -300mm zoom lens(Optional F=175mm,200mm350mm,400mm etc )
Maximum length of arm	1100mm
New stand	swing angle of the carrier arm 0 ~300°,height from objective to floor 730mm<H<1250mm
Foot switch	waterproof
Weight	107kg
