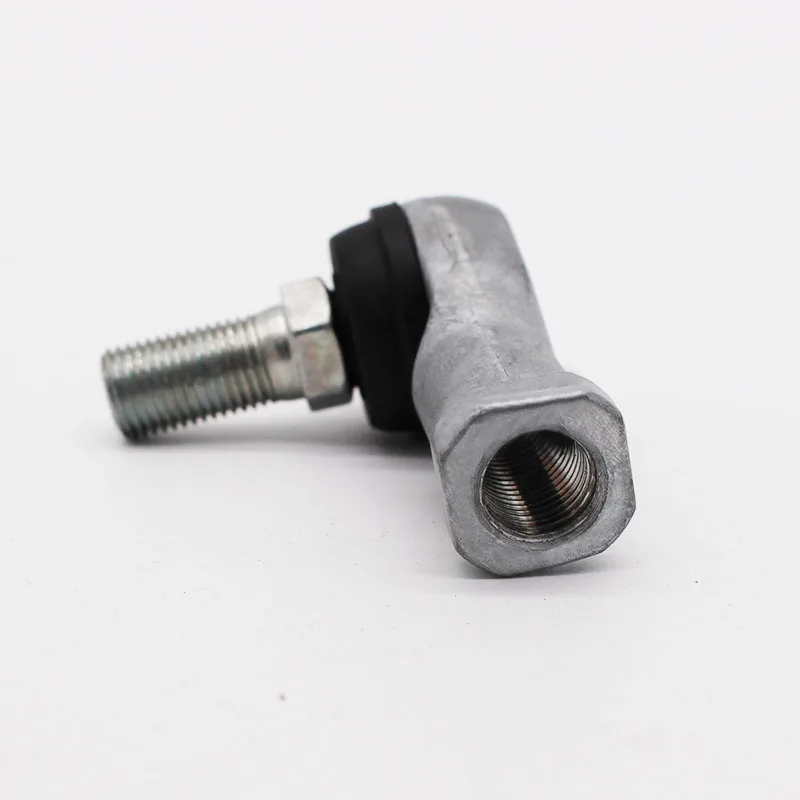

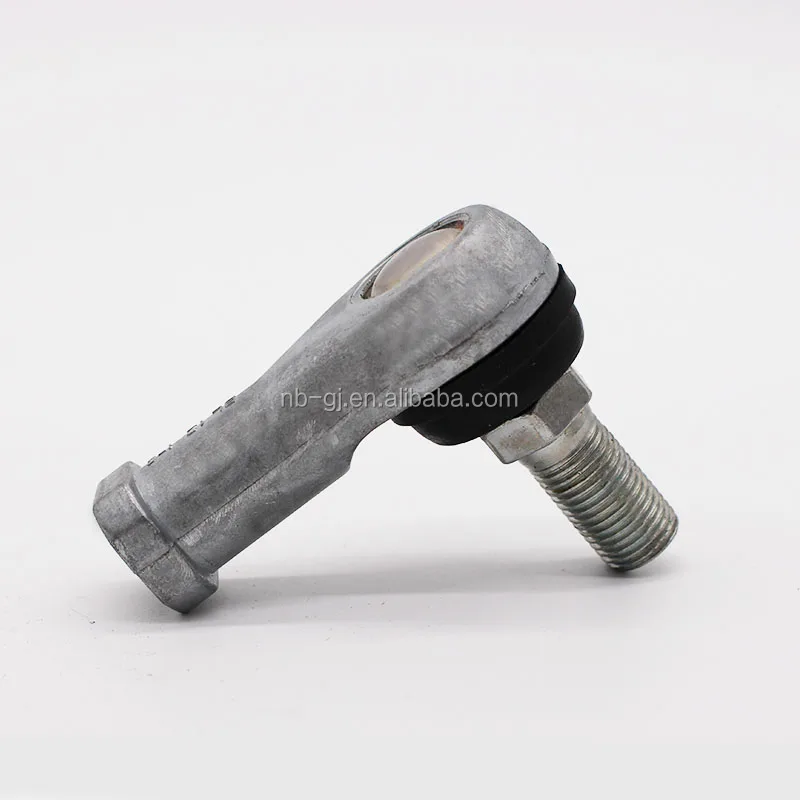

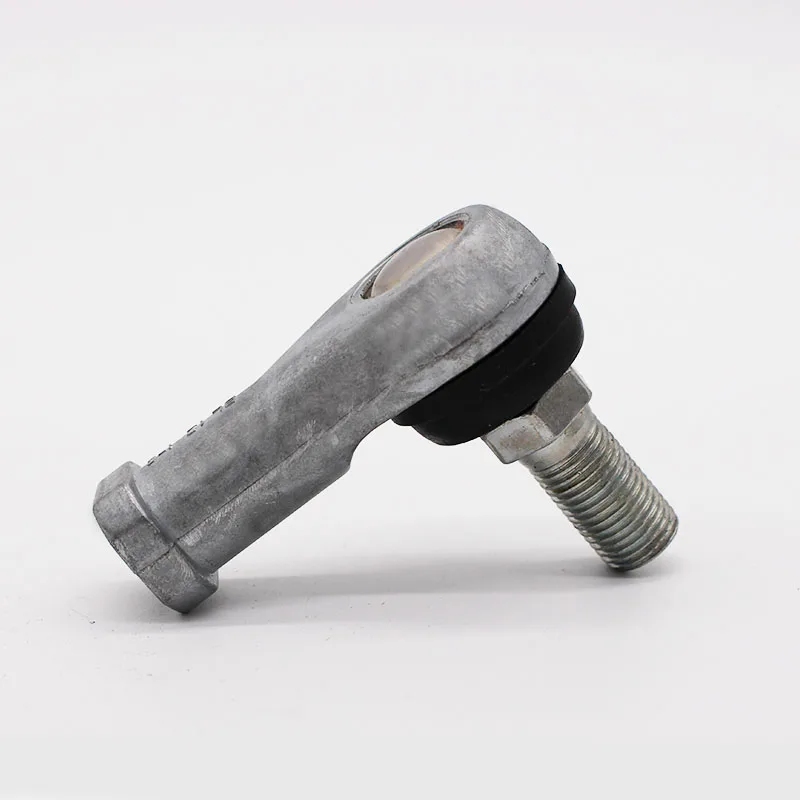

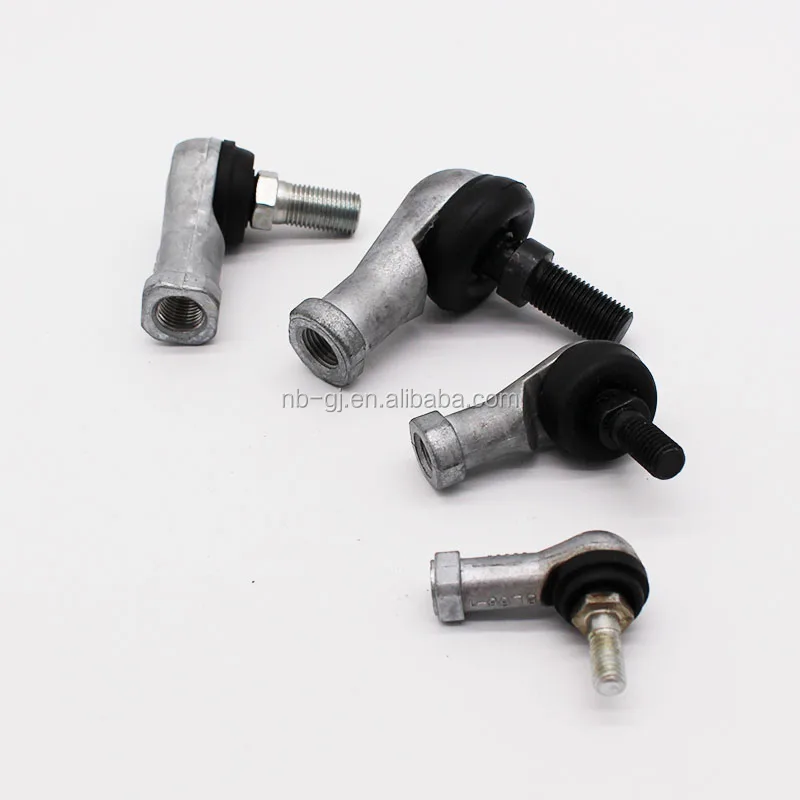

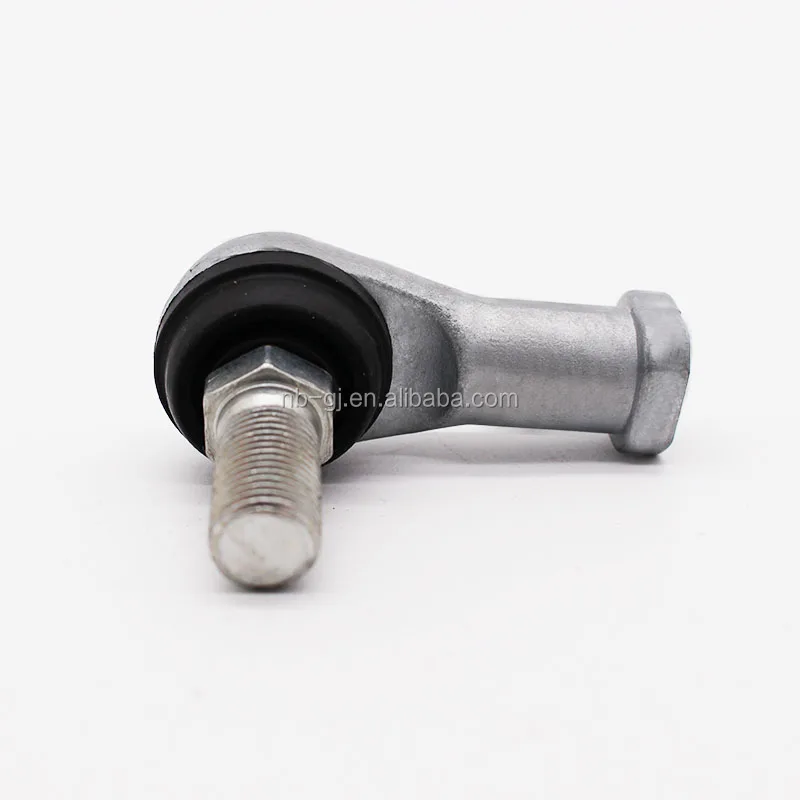

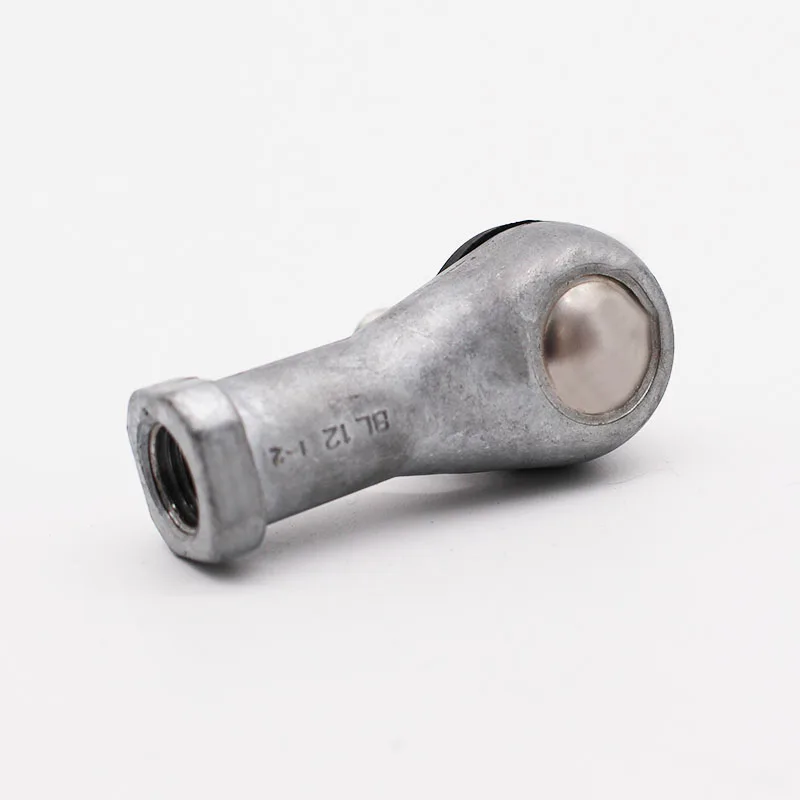

Auto spare parts BL M12X1.75 BL series ball joint

Product Overview

Description





 Product detail

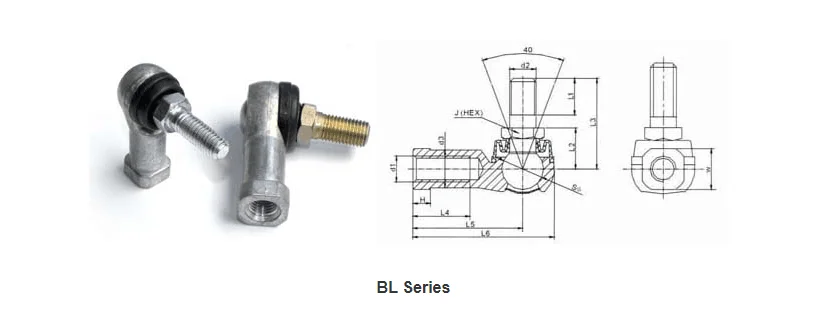

Part No.	Dimension										Static Load ratings(KN )
	D1                          6H	D2                6g	L1           Min	L2            ±0.5	L3                 ±0.5	L4          Min	L5               ±0.5	J                -0.3	W              -0.3	SΦ               ±1.0
BLM5	M5×0.8	M5×0.8	8.0	10.0	20.0	14.0	27.0	8.0	10.0	10.000	2.0
BLM5L	M5×0.8-LH	M5×0.8	8.0	10.0	20.0	14.0	27.0	8.0	10.0	10.000	2.0
BLM6	M6×1	M6×1	11.0	11.0	26.0	16.0	30.0	10.0	11.0	11.112	3.9
BLM6L	M6×1-LH	M6×1	11.0	11.0	26.0	16.0	30.0	10.0	11.0	11.112	3.9
BLM8	M8×1.25	M8×1.25	12.0	14.0	31.0	19.0	36.0	12.0	14.0	12.700	6.0
BLM8L	M8×1.25-LH	M8×1.25	12.0	14.0	31.0	19.0	36.0	12.0	14.0	12.700	6.0
BLM10	M10×1.5	M10×1.5	21.0	17.0	43.0	23.0	43.0	14.0	17.0	15.875	11.0
BLM10L	M10×1.5-LH	M10×1.5	21.0	17.0	43.0	23.0	43.0	14.0	17.0	15.875	11.0
BLM12	M12×1.75	M12×1.75	24.0	19.0	49.0	26.0	50.0	17.0	19.0	19.050	16.0
BLM12L	M12×1.75-LH	M12×1.75	24.0	19.0	49.0	26.0	50.0	17.0	19.0	19.050	16.0
BLM14	M14×2	M14×2	28.0	21.5	62.0	30.0	57.0	19.0	22.0	22.225	19.0
BLM14L	M14×2-LH	M14×2	28.0	21.5	62.0	30.0	57.0	19.0	22.0	22.225	19.0
BLM16	M16×2	M16×2	29.0	23.5	66.0	34.0	64.0	22.0	24.0	22.225	26.0
BLM16L	M16×2-LH	M16×2	29.0	23.5	66.0	34.0	64.0	22.0	24.0	22.225	26.0



Technology Condition:
1.Spherical surface clearance:Vertical angle of axes 0.02-0.065mm.Axes Direction < 0.3mm.
2. Screw thread grades "6H".
3.Shaft:Steel bearing,shaft 35#,40Cr steel.
4.Housing:High rigidity Zinc alloy.
5.Work on -40℃-120℃ temperature.Excellent performance.
