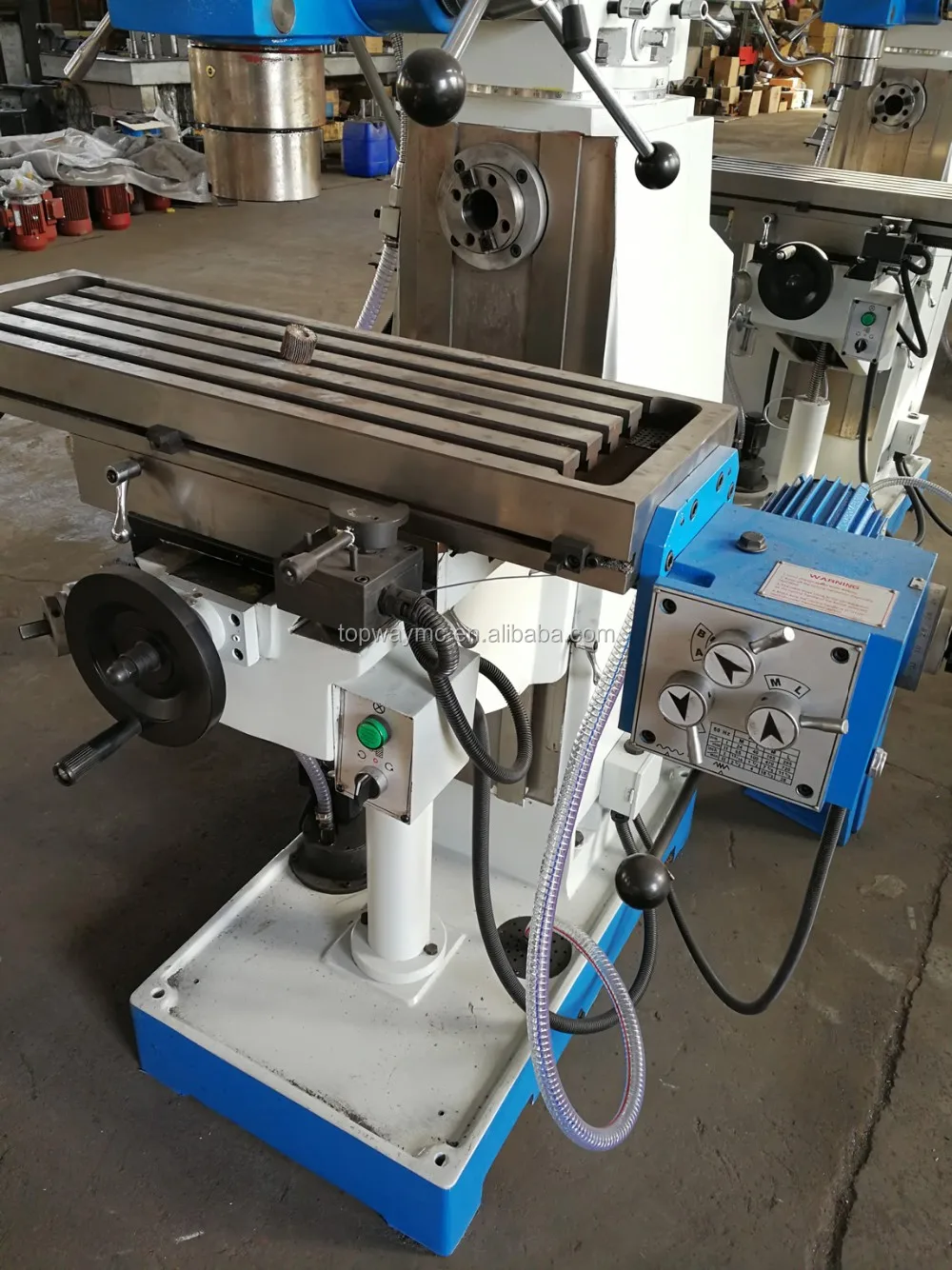

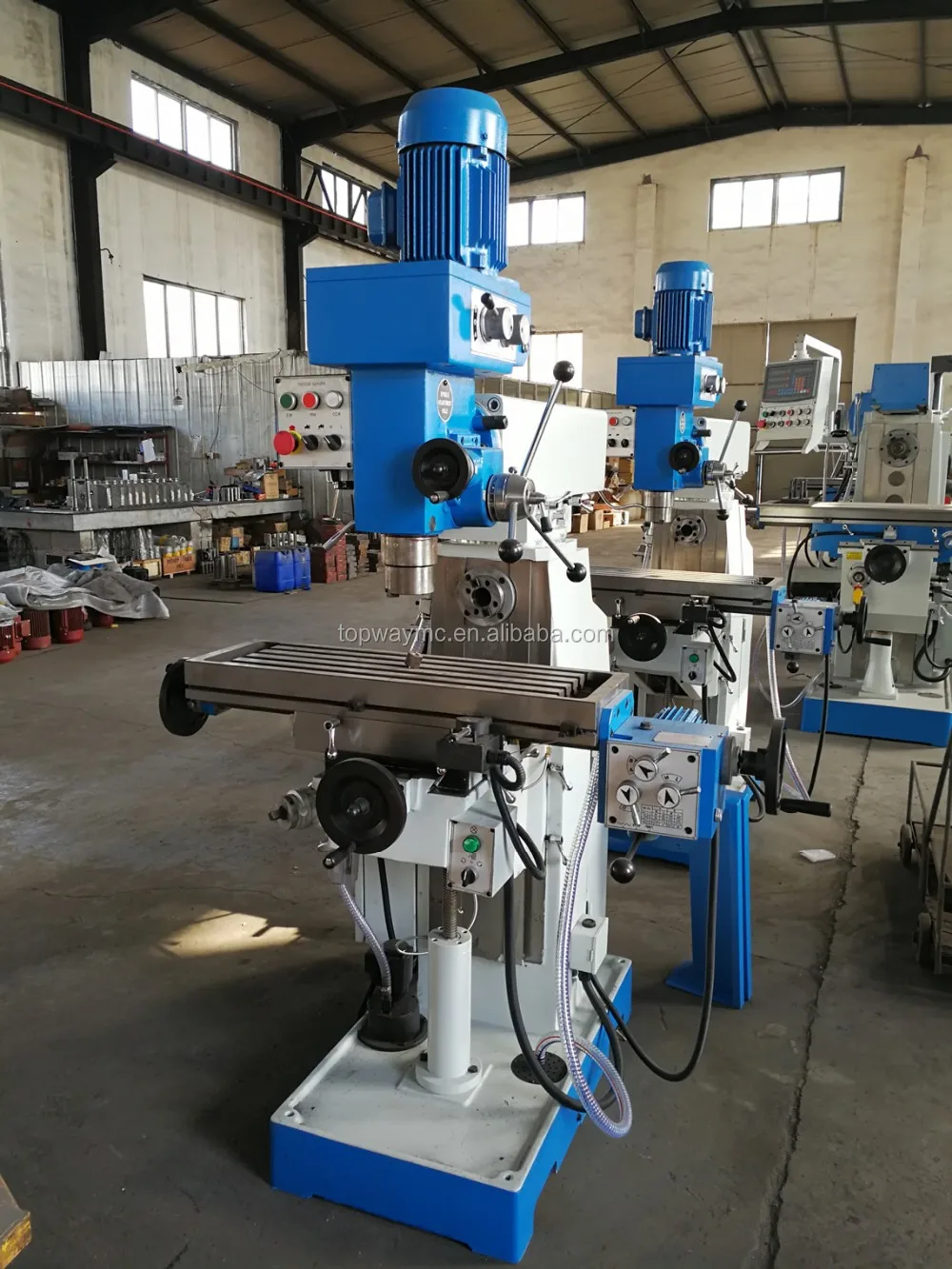

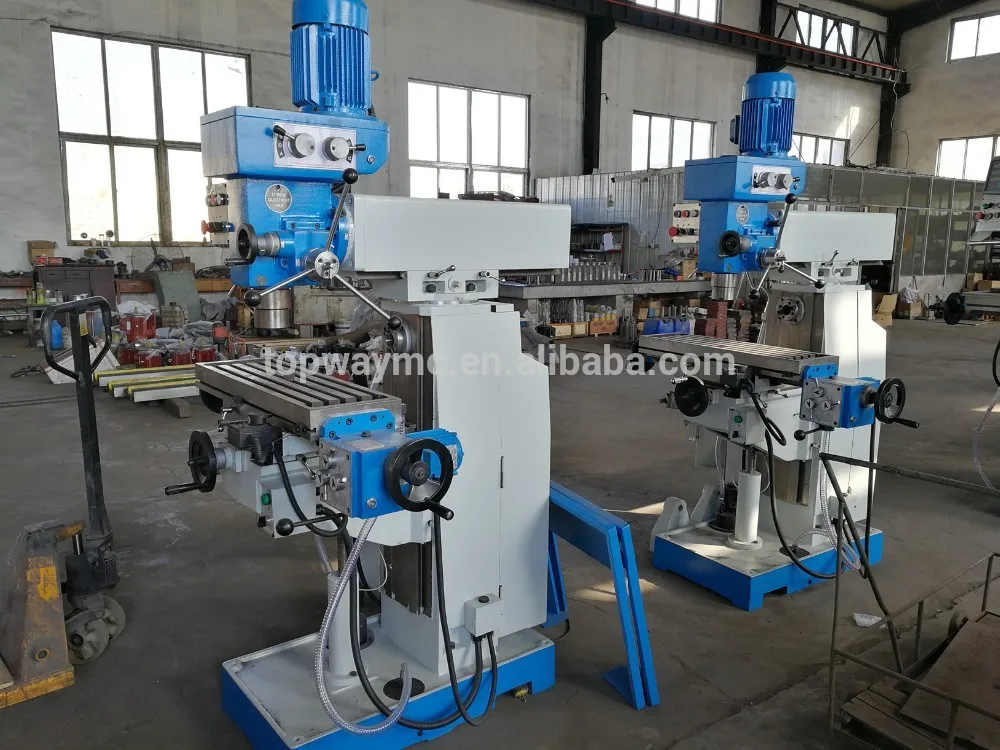

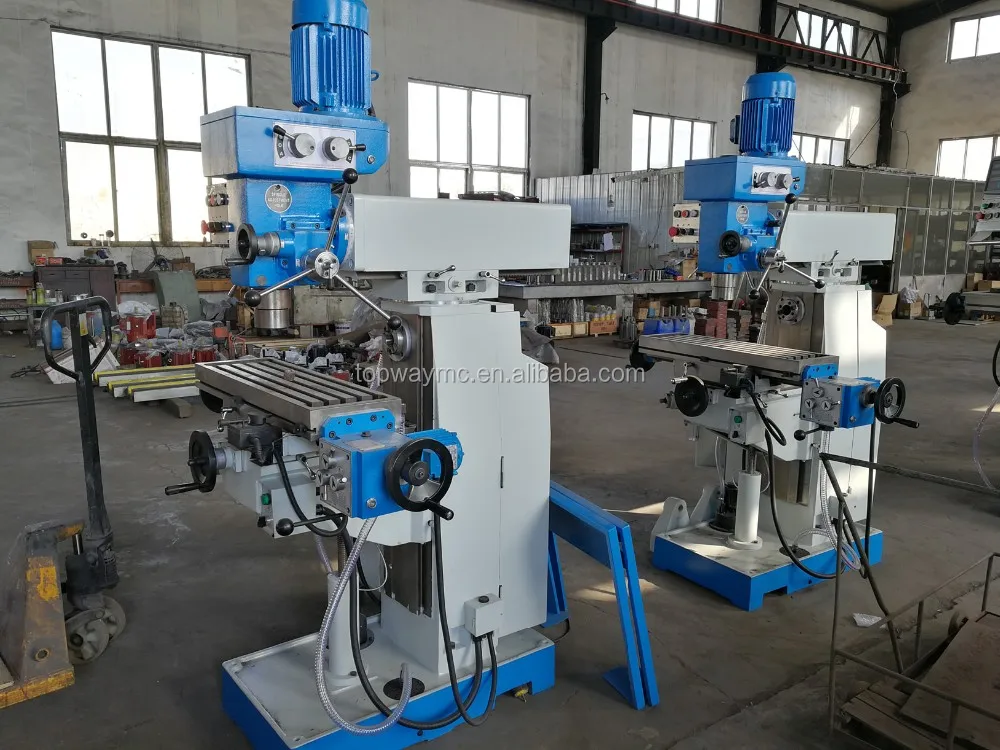

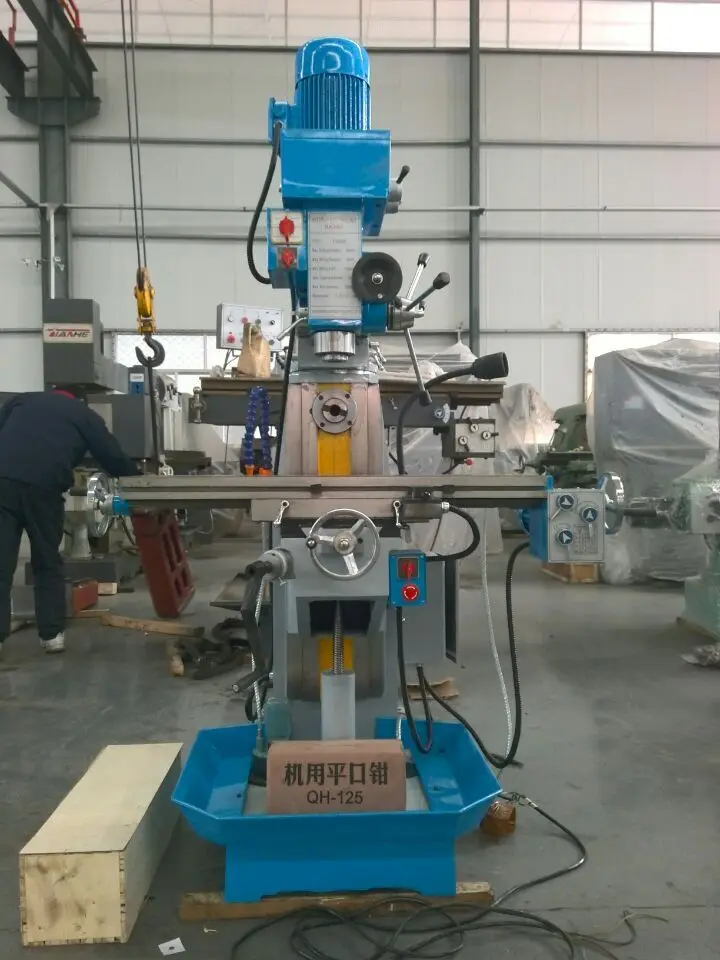

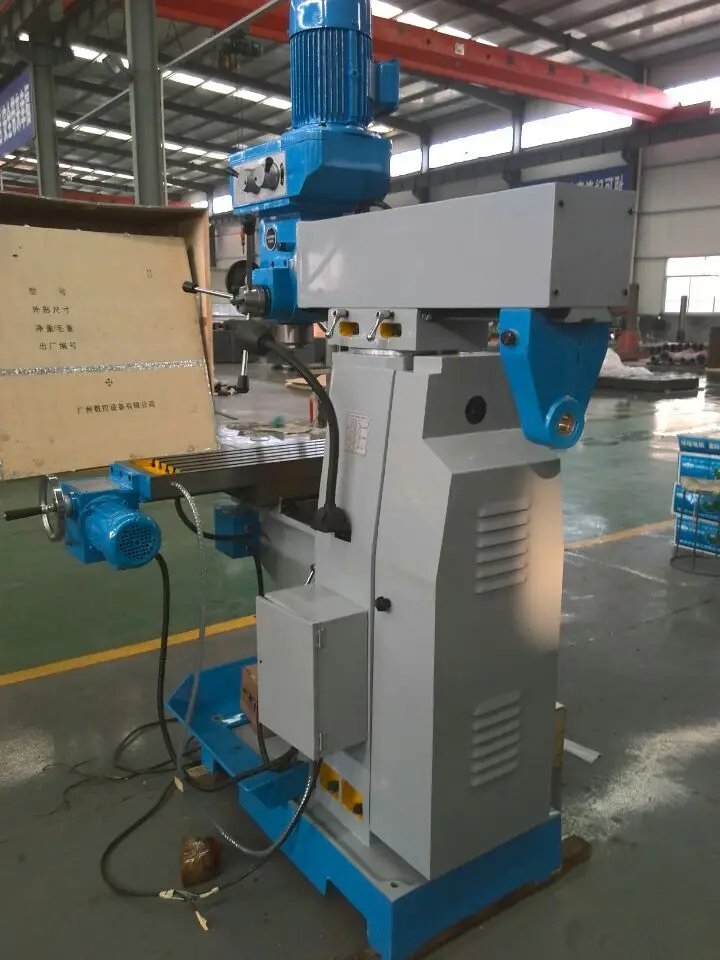

small Horizontal &vertical gear drive drilling and milling machine ZX7550cw
small Horizontal &vertical gear drive drilling and milling machine ZX7550cw
small Horizontal &vertical gear drive drilling and milling machine ZX7550cw
small Horizontal &vertical gear drive drilling and milling machine ZX7550cw
small Horizontal &vertical gear drive drilling and milling machine ZX7550cw
small Horizontal &vertical gear drive drilling and milling machine ZX7550cw
small Horizontal &vertical gear drive drilling and milling machine ZX7550cw

small Horizontal &vertical gear drive drilling and milling machine ZX7550cw

Share on (60791690741):


Price:

Quantity:


Product Overview

Description


Product Description

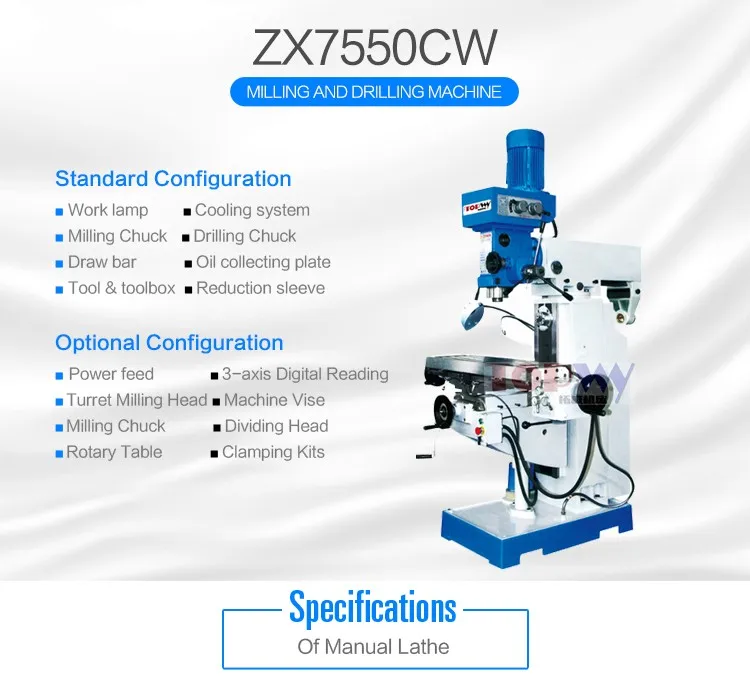

ZX7550CW:Driven by Gear

ZX7550W:Driven by Belt

\t
SPECIFICATIONS OF MILLING AND DRILLING MACHINE ZX7550
\t
Item
\t
ZX7550W
\t
ZX7550CW
\t
Spindle taper
\t
ISO40
\t
ISO30  R8  MT4
\t
Distance from spindle to table
\t
90-420mm
\t
70-420mm
\t
Spindle speeds
\t
(8step)90-2000r.p.m(V)
(8step)60-1350r.p.m(H)
\t
(8step)115-1750r.p.m(V)
(8step)60-1350r.p.m(H)
\t
Spindle travel
\t
120mm
\t
120mm
\t
Max.drilling capacity of auto-feeding
\t
50mm
\t
50mm
\t
Head movement
\t
±45°
\t
±45°
\t
Table size
\t
800×240mm
\t
800×240mm
\t
Table travel (horizontal/Cross/Vertical)
\t
400/230/350mm
\t
400/230/350mm
\t
T-slot number/Width/Distance
\t
3/14mm/60mm
\t
3/14mm/60mm
\t
Milling head moving(Vertical)
\t
Dovetail Rail
\t
Dovetail Rail
\t
Cross slide way
\t
Dovetail Rail
\t
Dovetail Rail
\t
Longitudinal slide way
\t
Dovetail Rail
\t
Dovetail Rail
\t
Horse power for main motor
\t
2.2kw
\t
0.85/1.5kw(V)  1.5kw(H)
\t
X axis driving motor
\t
370W
\t
370W
\t
Coolant pump power
\t
40W(12L)
\t
40W(12L)
\t
Overall dimension
\t
1290×1220×2100mm
\t
1290×1220×2100mm
\t
Packing size
\t
1140×1220×2220mm
\t
1140×1220×2220mm
\t
N.W./G.W.
\t
820/900kg
\t
850/1000kg

ZX7550W Driven by Belt:

Related Products
Company Information

Q1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.

Q2. Can you provide customized machine or SPM (Special purpose machine)?
A. Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.

Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.

Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine's bill of lading date. Extended warranty is available at the time of purchase. Please contact your TOPWAY sales representative for details.

Q6. What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
