3C Link Support 3R fiber to copper or fiber to fiber 10G Ethernet equipment 10g oeo media converter

Product Overview

Description

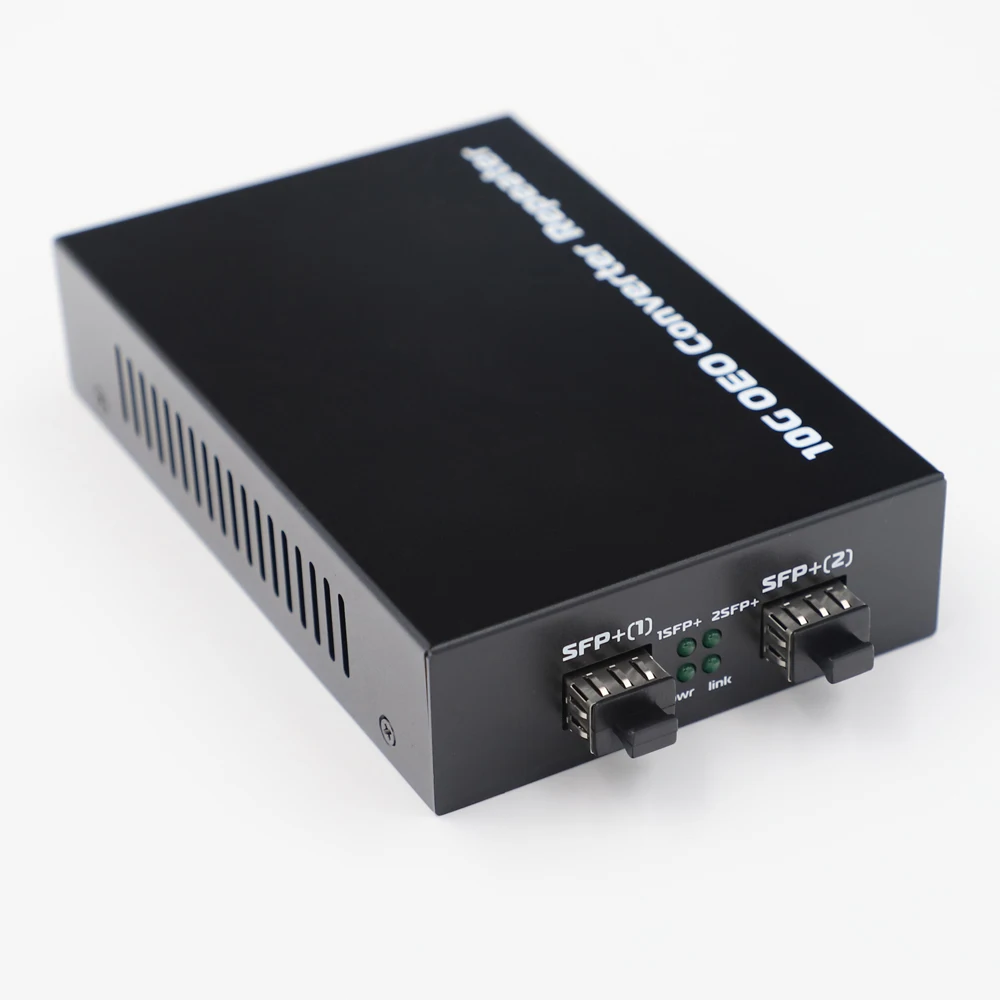

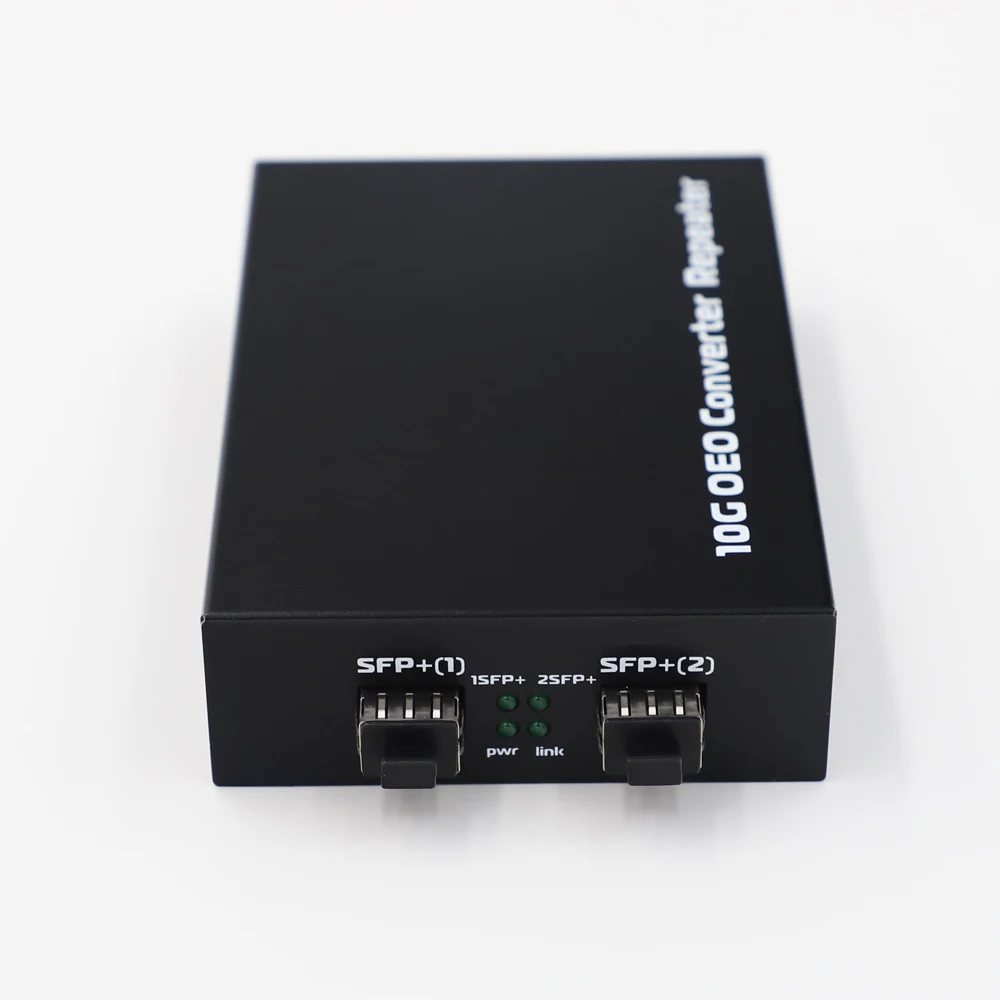

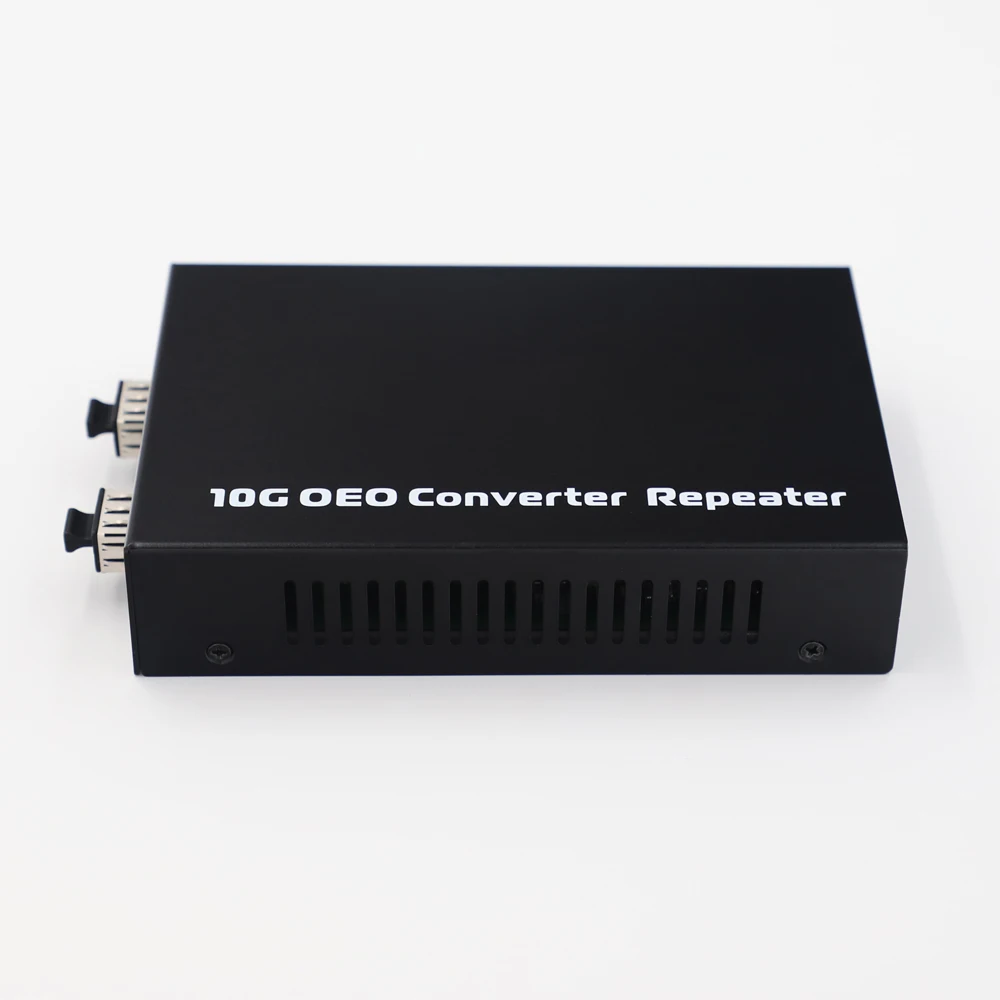

3C-Link  Support 3R  fiber to copper or fiber to fiber 10G Ethernet equipment 10g oeo media converter







 This product is high-performance 10G optical media converter , Using Optical - Electrical - Electrical wavelength conversion, realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with WDM (DWDM/CWDM) technology, can achieve optical signals transmit in a single fiber by single or multiple way over a long distance. On the existing network infrastructure, it can quickly improve the communication capacity, expand the bandwidth, while using low cost and high cost-effective solutions to manage and operate the system, easy operation and maintenance.



• Support Jumbo Frame


• Transparent Transport and very low delay


• Connection between fiber to copper or fiber to fiber 10G Ethernet equipment


• Can be applied in Telecommunication room, R&D laboratory, Data center, etc


• Support ITUT prescribed DWDM/CWDM wavelength


• Support hot plugging


• Full State Led display


• Easy installation


• Supports 3R (Re-generation, Re-timing, Re-shaping) Performance



• Protocols:  IEEE802.3an(10Gbase-T), IEEE802.3ae(10Gbase-SR/LR/ER/ZR)


• Maximum Packet Forwarding Rate: 14,880,950/S


• nterface Type: RJ45 to SFP+, RJ45 to XFP,SFP+ to SFP+, SFP+ to XFP, XFP to XFP


• Connector: UTP: RJ-45, 1G/10Gbps;  Fiber: SFP+ or XFP


• Cable :


• UTP cable: Cat 6a (the max distance up to 100m)


• Fiber : multimode : 50/125, 62.5/125μm (the max distance up to 300m)


• singlemode : 8.3/125, 8.7/125, 9/125μm (the max distance up to 80km)


• Power:  AC 220V(170-260V) 50Hz;  DC 5V,3A


• Ambient temperature:0 ~ +50℃


• Storage temperature:-20 ~ +70℃


• Humidity:5% ~ 90%


• Dimensions:External Power:30 (high) x 100 (width) x140 (length) mm









3C-LINK MINI Type 10G SFP+ Media Converter



Interface Type	RJ45 to SFP+, RJ45 to XFP,SFP+ to SFP+, SFP+ to XFP, XFP to XFP
UTP Connector	RJ-45, 1G/10Gbps
Fiber Connector	SFP+
Data Rate	10Gb/s
Samples	available
